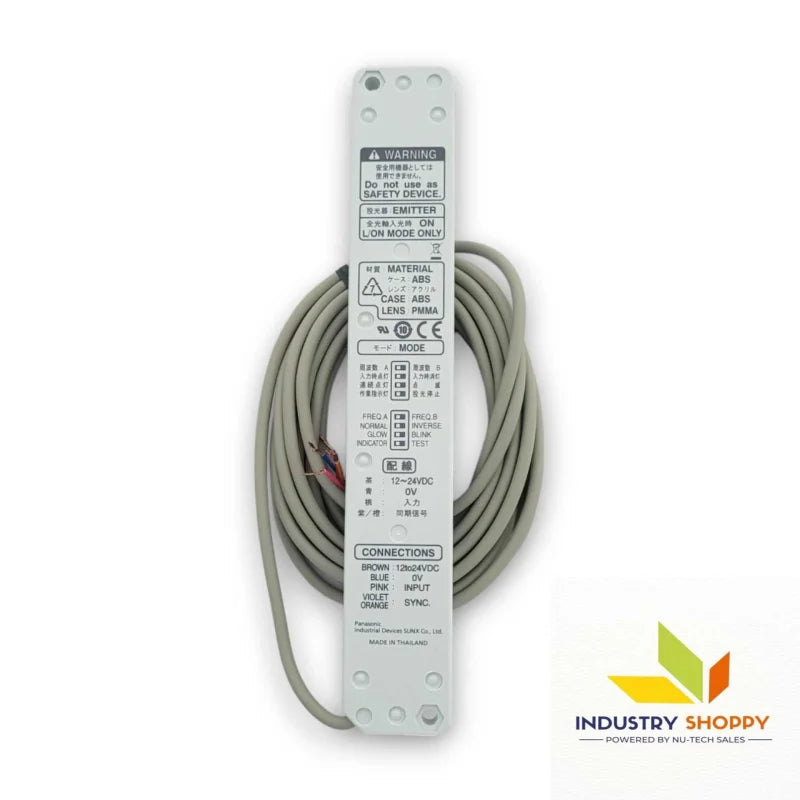

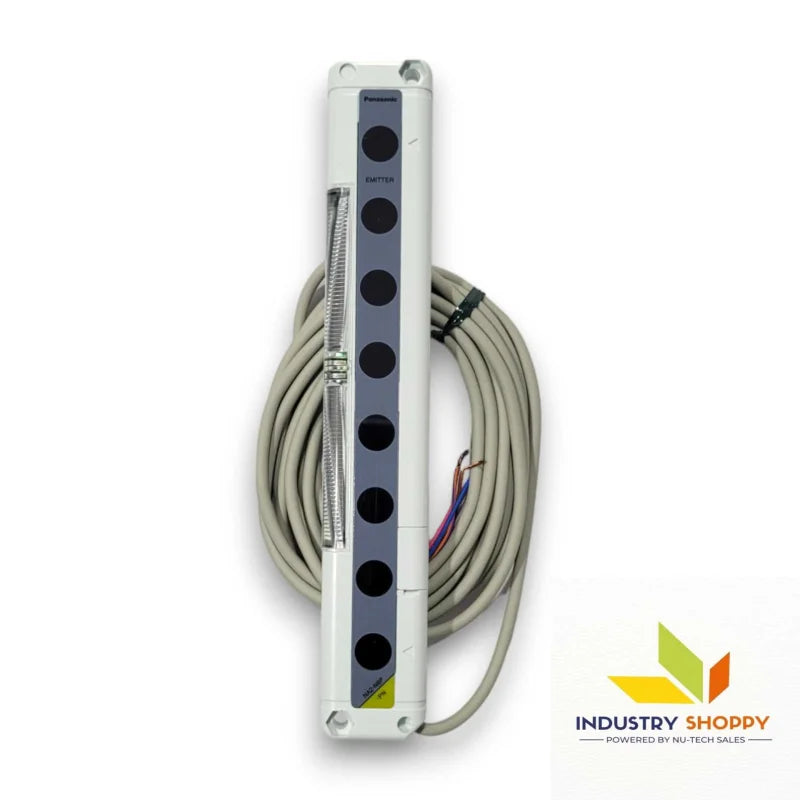

Panasonic NA2-N8-PN Area Sensor

The Panasonic NA2-N8-PN is an advanced area sensor designed to provide high-precision detection in a wide range of industrial applications. With its 8-meter sensing range, this sensor can effectively monitor larger areas for object detection, making it ideal for more complex detection tasks. Utilizing laser triangulation technology, the NA2-N8-PN ensures highly accurate detection, even in environments with varying object shapes, sizes, or materials.

The sensor features NPN output and offers fast response times, enabling quick and reliable feedback for high-speed operations. It operates within a 10-30 VDC voltage range, supporting both light and dark operation. The IP67-rated housing ensures protection against dust, water, and harsh industrial conditions, while the M8 4-pin connector provides easy installation and secure wiring.

The Panasonic NA2-N8-PN is a versatile and reliable area sensor ideal for industries requiring precise object detection over larger areas, ensuring high performance in various environments.

Key features :-

Product Number NA2-N8-PN
Part Number UNA2N8PN
Series NA2
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Height 140 mm 5.512 in
Sensing Range 5 m 16.404 ft
Beam Pitch 20 mm 0.787 in
Sensing Object dia. 30 mm dia. 1.181 in or more opaque object (completely beam interrupted objects)
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Power Consumption: Emitter: Job Indicator On 0.7 W or less
Power Consumption: Emitter: Job Indicator Off 0.6 W or less
Power Consumption: Receiver: Job Indicator On 0.7 W or less
Power Consumption: Receiver: Job Indicator Off 0.6 W or less
Output PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less (between output and +V)
- Residual voltage: 2 V or less (at 100 mA source current), 1 V or less (at 16 mA source current)
Output: Utilization Category DC-12 or DC-13
Output: Output Operation ON when all beam channels are received (OFF when one or more beam channels are interrupted)
Output: Short-Circuit Protection Incorporated
Response Time 10 ms or less (12 ms or less when the interference prevention function is used)
Indicators: Receiver Operation indicator: Red LED (lights up when one or more beam channels are interrupted)
Stable incident beam indicator: Green LED (lights up when all beam channels are stably received)
Job indicator: Red LED (lights up, blinks or lights off when the job indicator input is applied, selected by operation mode switch)
* When an excess current flows through the output, the stable incident beam indicator and the operation indicator on the receiver blink simultaneously due to operation of the short-circuit protection circuit.
Interference Prevention Function Incorporated
Test Input (Emission Halt) Function Incorporated
Pollution Degree 3 (Industrial environment)
Protection IP40(IEC)
Ambient Temperature -10 to +55 degrees +14 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -10 to +60 degrees +14 to +140 degrees Fahrenheit
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 870 nm 0.034 mil, modulated) (Note; Peak emission wavelength has been changed from production in March, 2017.)
Material Enclosure: Heat-resistant ABS
Lens cover: Polyester
Indicator cover: Acrylic
Cable 0.2 mm2 4-core cabtyre cable, 3 m 9.843 ft long
Cable Extension Extension up to total 25 m 82.021 ft is possible for both emitter and receiver, with 0.2 mm2, or more, cable.



Applications :-

  • Industrial Automation: Ideal for detecting objects or obstructions in automated production lines and large-scale systems, ensuring precise control and positioning.
  • Material Handling: Perfect for detecting multiple objects or monitoring conveyor belts, improving efficiency in sorting, tracking, and material handling.
  • Packaging Industry: Ensures reliable detection of items in packaging systems, improving operational speed and accuracy.
  • Quality Control: Used in quality inspection systems for precise object detection, helping to ensure product consistency and quality during manufacturing.
  • Logistics and Warehouse: Enhances material sorting and tracking in large warehouse systems, improving logistics operations and material handling efficiency.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
