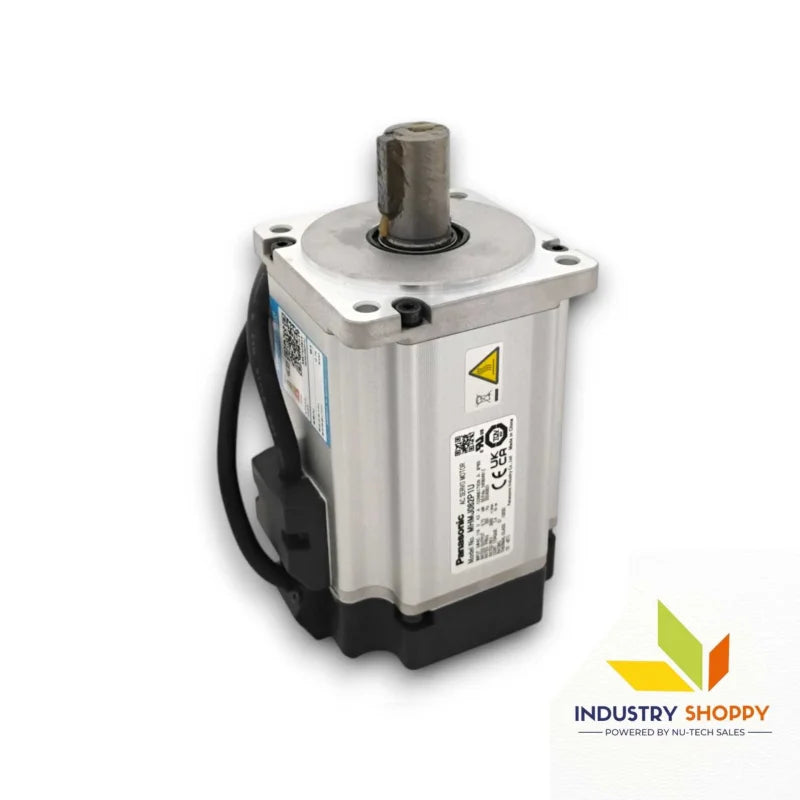

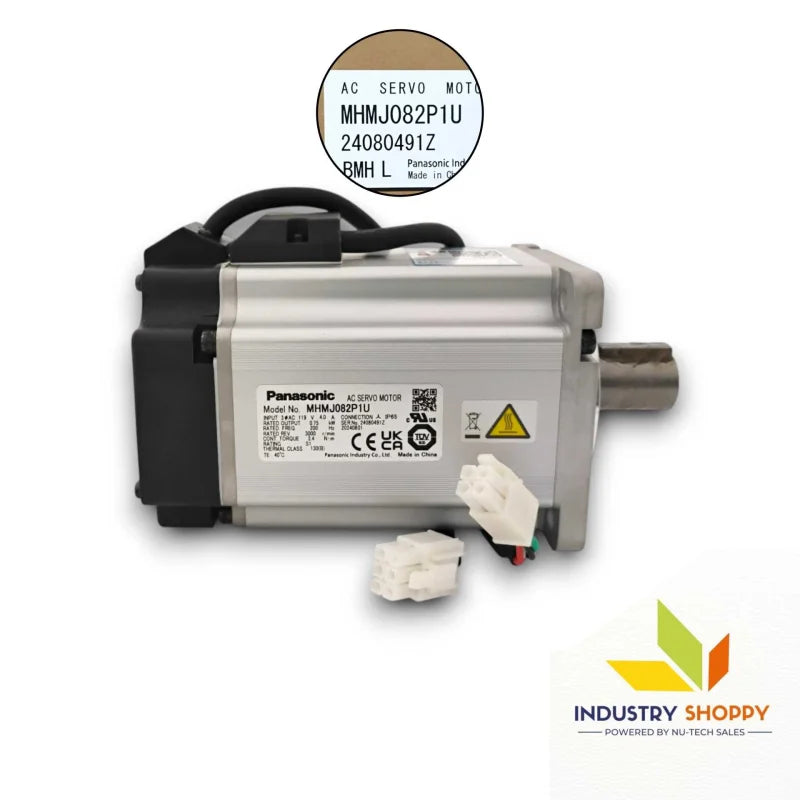

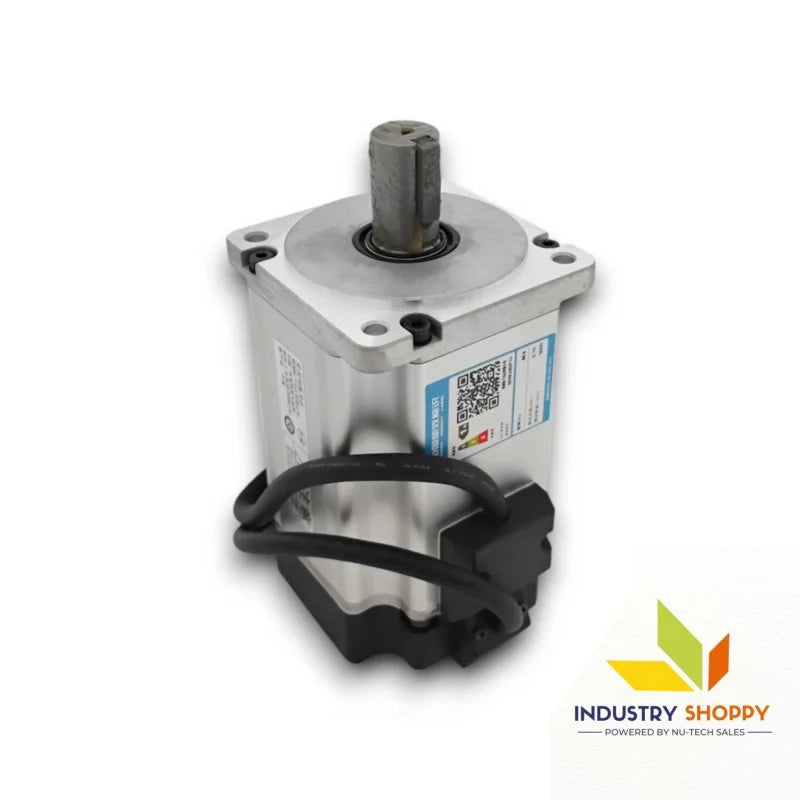

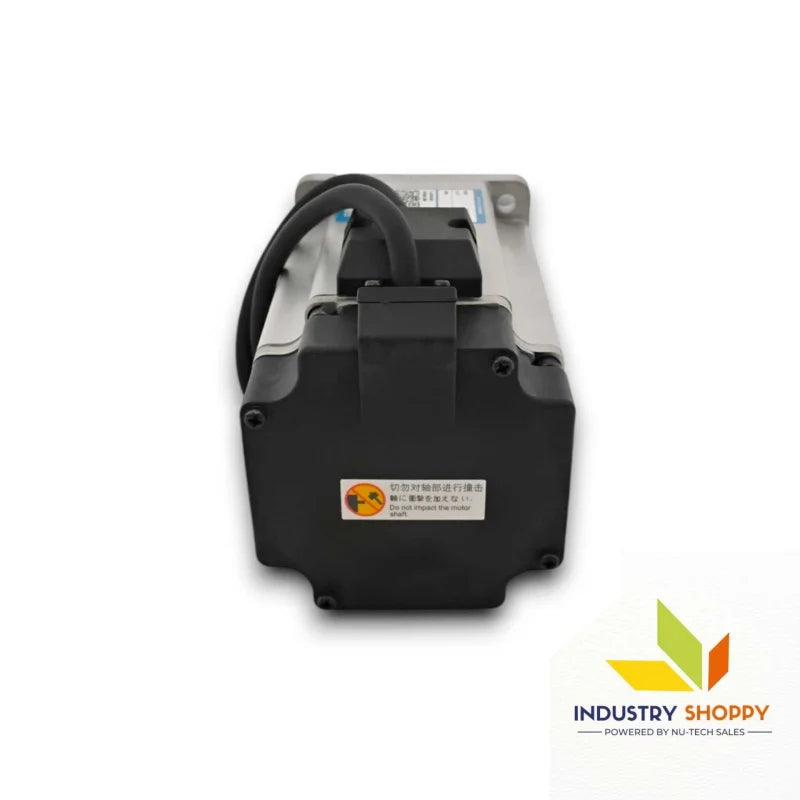

Panasonic MHMJ082P1U Servo Motor

Product SKU: NTSSM0008

Available:

Only 1 item in stock

1 item in stock

In stock

Pre-order

Out of stock

Brand	: Delta
Condition	: New
Model No.	: MHMJ082P1U
Input Voltage	: 200 V
Rated Torque (N·m)	: 2.4

Note : All tax and custom duty should be pay by buyer only.

$350.00

~~$425.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Panasonic MHMJ082P1U Servo Motor

The Panasonic MHMJ082P1U Servo Motor is a high-inertia, IP65-rated motor designed for precision and high-stability motion control applications. With an 80 mm square flange and lead wire configuration, it is ideal for compact yet demanding automation systems.

Operating at 200 V, this motor delivers 750 W rated output, 2.4 N·m rated torque, and up to 7.1 N·m peak torque, ensuring strong acceleration and load handling. It features a 20-bit incremental encoder (1,048,576 resolution) for highly accurate positioning feedback. The motor supports a rated speed of 3000 r/min and a maximum speed of 4500 r/min, making it suitable for high-speed applications.

With an IP65 protection class (excluding shaft and cable end), oil seal, and key-way shaft design, it ensures durability in industrial environments. The recommended inertia ratio is 20 times or less for optimal performance.

Applications:

CNC and precision machinery
Robotics and pick-and-place systems
Packaging and labeling machines
Automated production equipment

Technical Precautions:

Ensure proper 200V servo drive compatibility
Maintain recommended inertia ratio within 20:1
Use external regenerative resistor if required
Protect shaft end and cable termination from moisture exposure

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	Panasonic
Part Number	MHMJ082P1U
Product Details	High inertia, Lead wire type, IP65
Family Name	MINAS A5
Series	MHMJ Series
Type	High inertia
Special Order Product	Please avoid distributing the motor or equipment containing the motor to Japan, or other regions through Japan.
Protection Class	IP65
About Enclosure	Except rotating portion of output shaft and lead wire end
Environmental Conditions	For more details, refer to the instruction manual
Flange sq. Dimension	80 mm sq.
Flange Size (mm)	80
Motor Lead-out Configuration	Lead wire
Motor Encoder Connector	Lead wire
Power Supply Capacity (kVA)	1.3
Voltage Specifications (V)	200
Rated Output (W)	750
Rated Current (A rms)	4
Holding Brake	Without
Oil Seal	With
Shaft	Key-way, center tap
Rated Torque (N·m)	2.4
Momentary Max. Peak Torque (N·m)	7.1
Max. Current (A 0-p)	17
Regenerative Brake Frequency (times/min)	Without option: No limitWith option: No limitOption (External regenerative resistor) Part No.: DV0P4283
About Regenerative Brake Frequency	Refer to [Motor Specification Description], Note 1 and 2
Rated Rotational Speed (r/min)	3000
Max. Rotational Speed (r/min)	4500
Inertia of Rotor (×10⁻⁴ kg·m²)	1.51
Recommended Inertia Ratio	20 times or less
About Recommended Moment of Inertia Ratio	Refer to [Motor Specification Description], Note 3
Rotary Encoder Specifications	20-bit Incremental system
Rotary Encoder Resolution	10,48,576
Country of Origin	China

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
