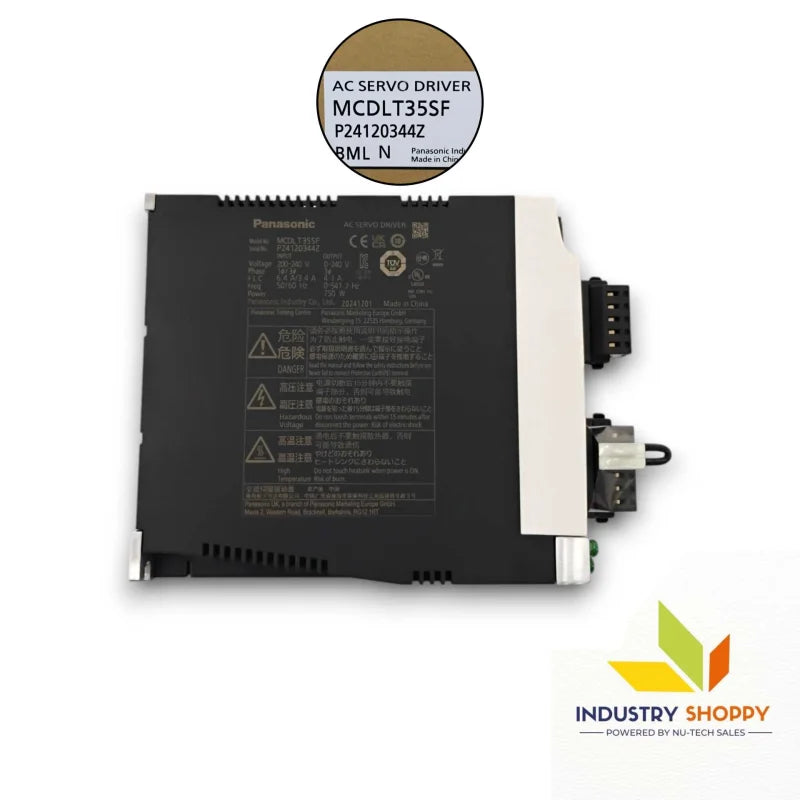

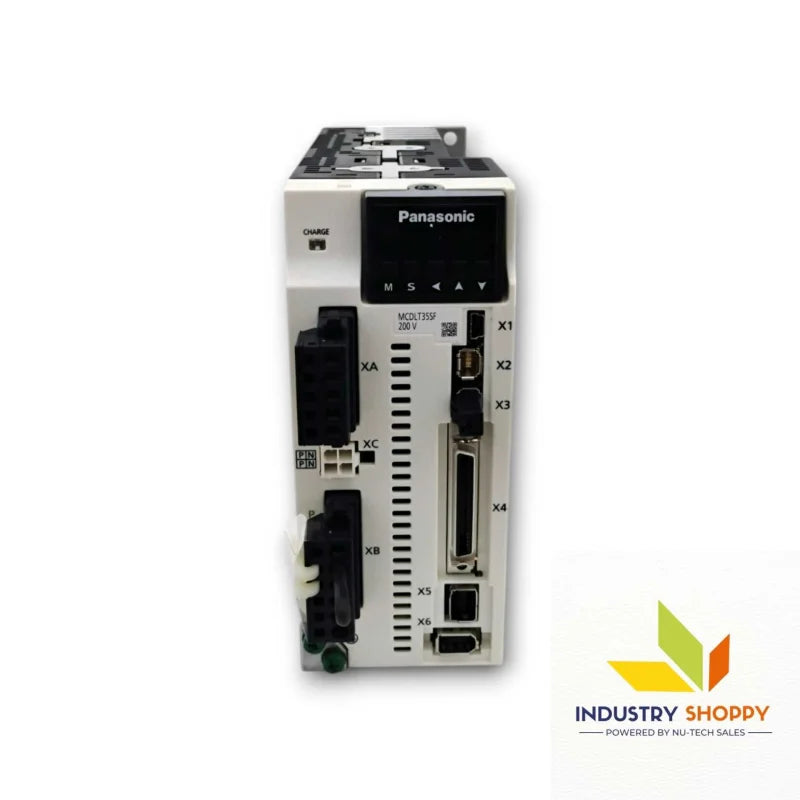

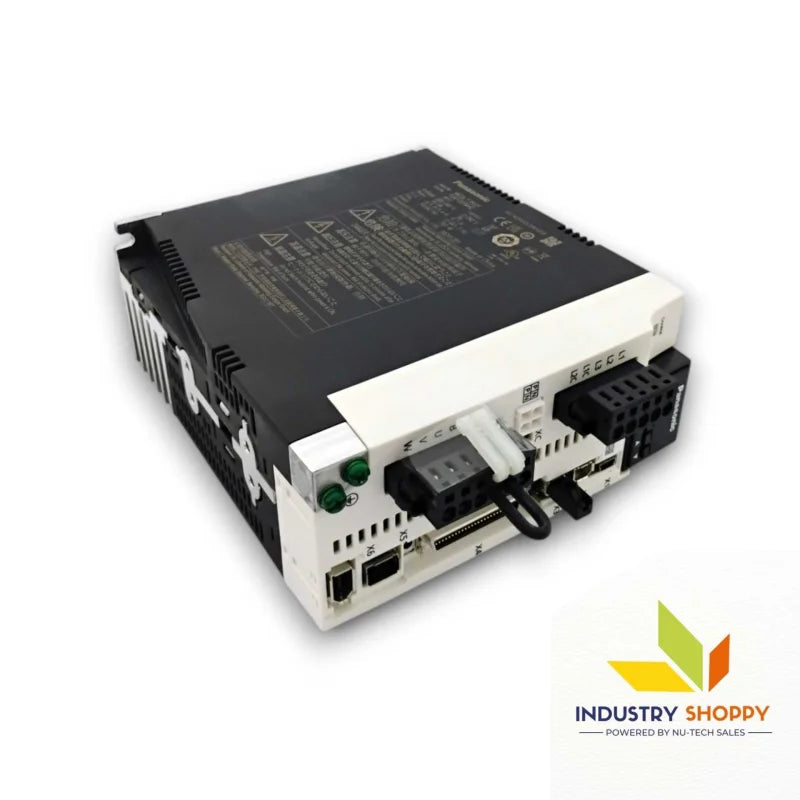

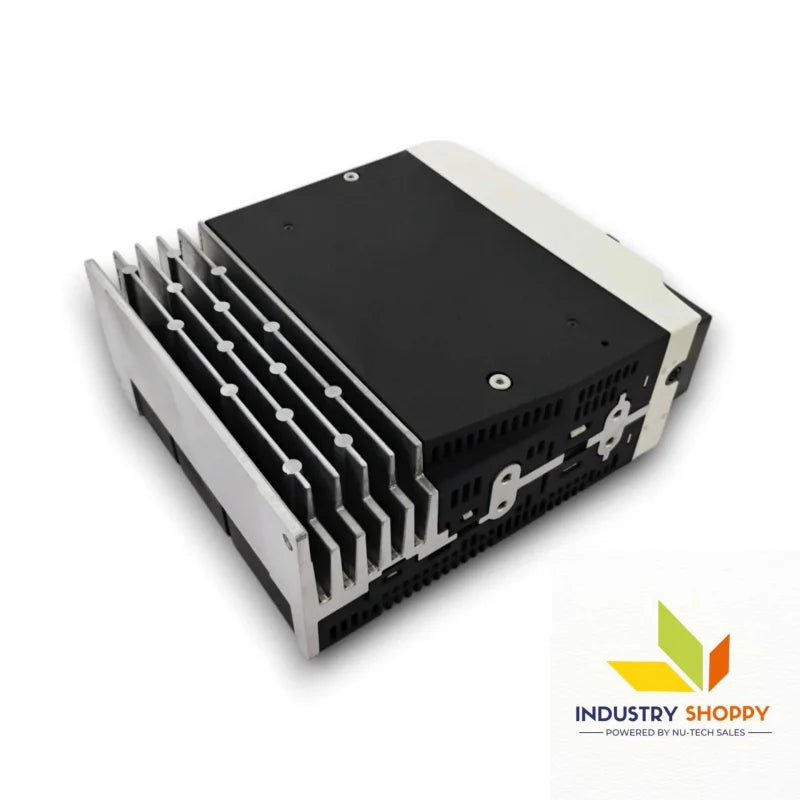

Panasonic MCDLT35SF Servo Drive

Product SKU: NTSSD0007

Available:

Only 4 items in stock

4 items in stock

In stock

Pre-order

Out of stock

Brand	: Delta
Condition	: New
Model No.	: MCDLT35SF
Input Voltage	: Single/3-phase 200 V
Frequency response (kHz)	: 3.2

Note : All tax and custom duty should be pay by buyer only.

$375.00

~~$475.00~~

Want it delivered by

Description
Specifications
Declaration
Reviews

Panasonic MCDLT35SF Servo Drive

The Panasonic MCDLT35SF Servo Drive is a high-performance motion controller designed for precision automation systems. It operates on single/three-phase 200 V input (200–240 V, 50/60 Hz) and delivers an impressive 3.2 kHz frequency response, ensuring ultra-fast and accurate positioning.

Equipped with a 23-bit absolute encoder (8,388,608 resolution) and 7-wire serial communication, this drive provides exceptional positioning accuracy. It also supports external scale feedback (A/B phase with homing differential input) for advanced control applications.

The unit offers flexible connectivity with 10 digital inputs, 6 digital outputs, analog I/O, pulse I/O, and multiple communication options including USB, RS232, RS485, and Modbus-RTU. A built-in regenerative resistor (with external option) enhances braking performance, making it suitable for dynamic motion control systems.

Applications:

High-precision CNC machinery
Robotics and pick-and-place systems
Semiconductor and electronics manufacturing
Automated assembly and packaging lines

Technical Precautions:

Ensure stable 200–240 V power supply within tolerance range
Properly configure encoder and feedback parameters
Use appropriate grounding and shielded cables for communication
Verify regeneration capacity before high-inertia applications

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Facebook, YouTube,

Brand	Panasonic
Model Number	MCDLT35SF
Voltage Range	Single/3-phase 200 V
Frequency response (kHz)	3.2
Input power: Main circuit	Single/3-phase 200 V (+10% -15%) to 240 V (+10% -15%) 50/60 Hz
Encoder Feedback	23-bit (8,388,608 resolution) absolute encoder, 7-wire serial
External Scale Feedback	A/B phase, homing signal differential input. A communication protocol developed for Servo Motor encoders of Panasonic Industry Co., Ltd. is also supported.
Parallel I/O Connector: Control Signal Input	General purpose 10 inputs. The function of general-purpose input is selected by parameters.
Parallel I/O Connector: Control Signal Output	General purpose 6 outputs. The function of general-purpose output is selected by parameters.
Parallel I/O Connector: Analog Signal Input	3 inputs (16-bit A/D: 1 input, 12-bit A/D: 2 inputs)
Parallel I/O Connector: Analog Signal Output	2 outputs (Analog monitor: 2 outputs)
Parallel I/O Connector: Pulse Signal Input	2 inputs (Photo-coupler input, Line receiver input). Both open collector and line driver interface can be connected. High-speed line driver interface can be connected.
Parallel I/O Connector: Pulse Signal Output	4 outputs (Line driver: 3 outputs, Open collector: 1 output). Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses. Open collector output also available for Z or EXZ signal.
Communication Function	USB, RS232, RS485, Modbus-RTU
Communication Function: USB	USB interface to connect to computers for parameter setting or status monitoring.
Communication Function: RS232	1:1 communication
Communication Function: RS485	1:n communication (max 31)
Communication Function: Modbus-RTU	1:n communication
Regeneration	Built-in regenerative resistor (external resistor also enabled)
Country of Origin	China

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
