Panasonic MCDJT3220 Servo Drive

Panasonic MCDJT3220 Servo Drive

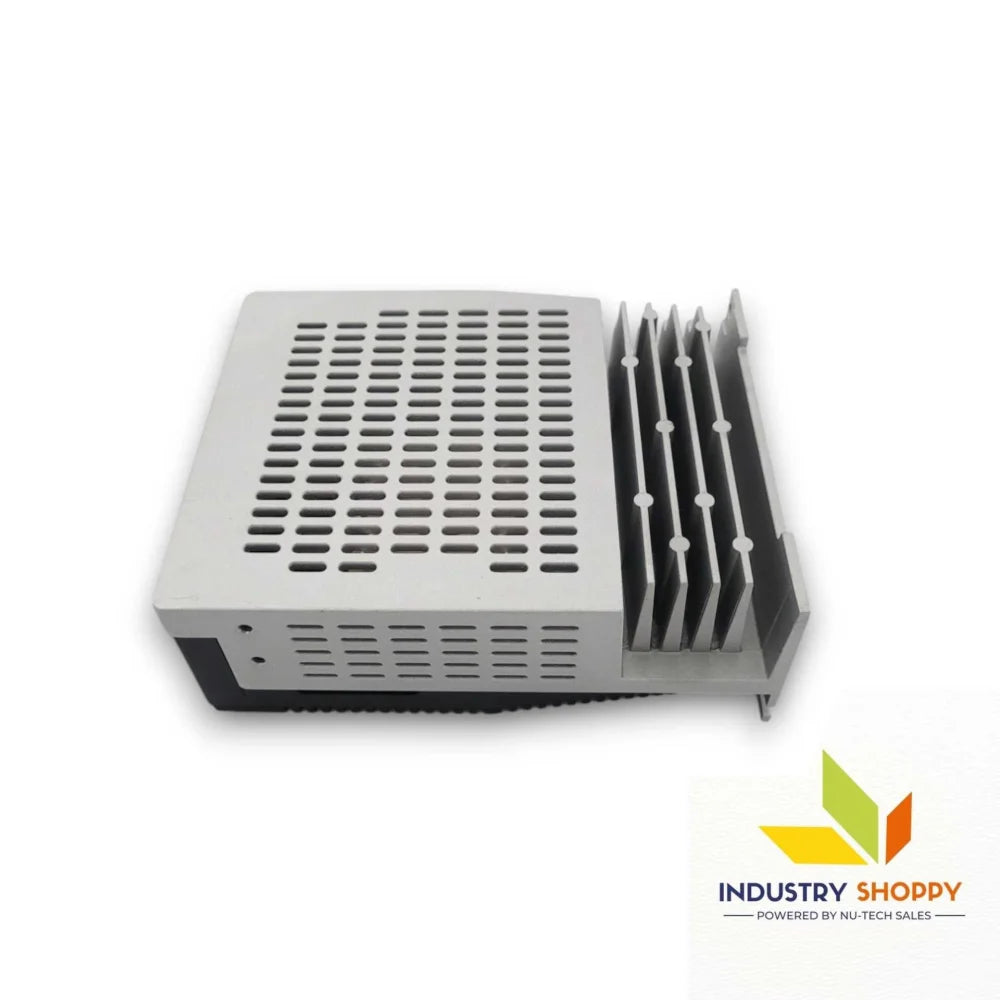

The Panasonic MCDJT3220 Servo Drive is a high-performance motion control solution tailored for seamless operation with MINAS LIQI series servo motors. Its compact design and single-phase 220V input make it ideal for a wide range of industrial machines, offering exceptional reliability and versatility.

Equipped with auto gain tuning and a dynamic brake function, it guarantees precise motion control and smoother deceleration during power-off or emergency stops. The drive supports a rotary encoder feedback resolution of 10,000 P/R, delivering exceptional positioning accuracy.

The unit integrates safety features like regenerative discharge support (external resistor) and robust protection against overcurrent and inrush surges, with a maximum inrush current of 31A. The chassis-mount design makes installation flexible and sturdy for various applications.

Cabling is straightforward, supporting HVSF 0.75～2.0mm² for power and motor connections. Engineered for an ambient temperature range of 0-50°C, the MCDJT3220 offers dependable performance even in challenging environments.

This drive delivers optimized control for industries requiring precise, stable, and efficient motion.

Key features :-

Applications :-

• Assembly Lines: Guarantees smooth, synchronized servo motion for automated systems.
• Robotics: Ensures accurate, real-time positioning and repeatability for joint movement.
• Packaging Equipment: Supports reliable, high-speed handling and alignment.
• Material Handling: Provides stable load transfer and rotation accuracy.
• Machining Tools: Controls precise cutting paths and repeatable positioning.

Precautions:

• Proper Installation: Ensure the servo motor is securely mounted to avoid misalignment, vibration, or mechanical stress during operation.
• Correct Wiring: Always follow the manufacturer’s wiring diagram to prevent electrical faults or damage to the motor and drive.
• Power Supply Check: Verify that input voltage and phase match the motor specifications before applying power. Incorrect voltage can cause immediate failure.
• Avoid Overloading: Do not exceed the rated torque or speed values. Continuous overload can lead to motor overheating and premature failure.
• Environmental Protection: Keep the motor away from water, oil mist, corrosive gases, and excessive dust to maintain IP65 protection and performance.
