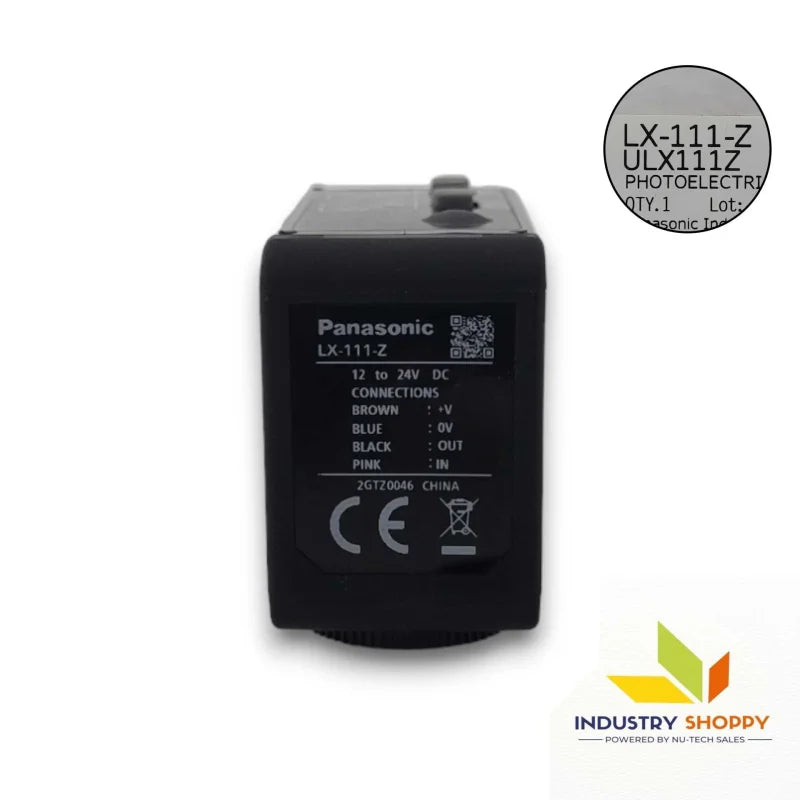

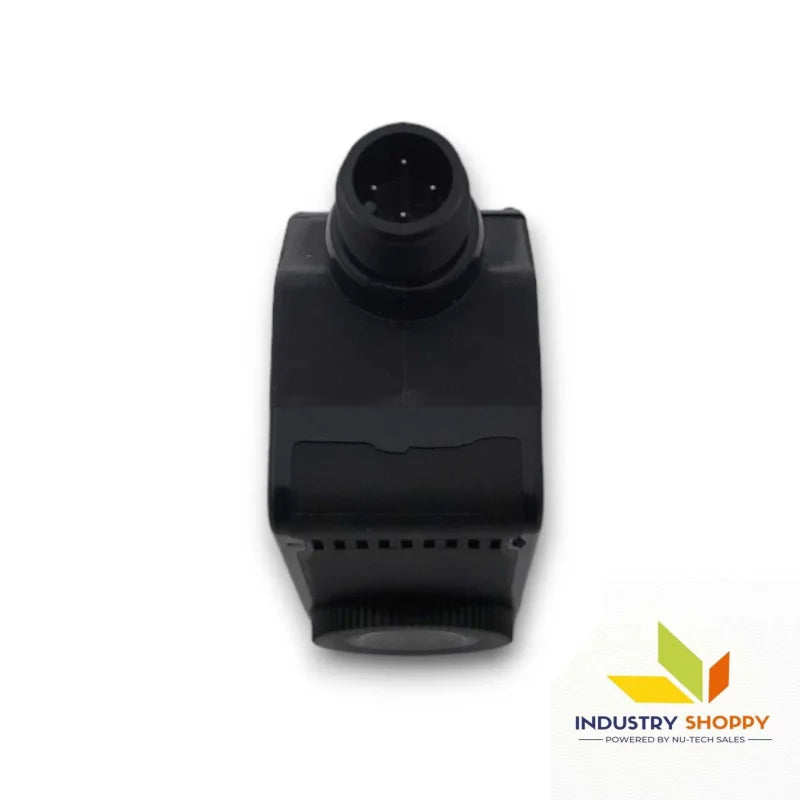

Panasonic LX-111-Z Color Mark Sensor

The Panasonic LX-111-Z Color Mark Sensor is designed to deliver accurate and reliable color and mark detection for various industrial applications. With a sensing range of 10 ± 3 mm, it ensures precise detection. The sensor operates on a 12 to 24 V DC supply voltage and features low power consumption—750 mW in normal mode and 600 mW in ECO mode.

It uses NPN open-collector transistor outputs with short-circuit protection and operates in both Mark mode (Light-ON / Dark-ON) and Color mode (Consistent-ON / Inconsistent-ON), easily adjustable through teaching input. The response time is 45 microseconds for mark detection and 150 microseconds for color detection.

The sensor features IP67 protection for harsh environments and is resistant to dust and water ingress. It also has fine sensitivity adjustment and a variable ON/OFF timer function. Ideal for use in assembly lines, packaging, and quality control, it ensures high-performance operation in demanding conditions.

Key features :-

Product Number LX-111-Z
Part Number ULX111Z
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 10 ± 3 mm 0.394 ± 0.118 in
Spot size 1 x 5 mm 0.039 x0.197 in (at 10 mm0.394 in setting distance)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1(OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 1:Short-circuit protection Incorporated
Output 1:Output operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2(OUT) -
Output 2:Short-circuit protection -
Output 2:Output operation -
Response time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching input NPN non-contact input
- Signal condition: High... +5 V to +V, or open, Low... 0 to +2 V (source current: 0.5 mA or less)
- Input impedance: 10 kOhm approx.
Digital display
Sensitivity setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine sensitivity adjustment function Incorporated
Timer function Incorporated with variable ON-delay / OFF-delay timer, switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient temperature -10 to +55 ℃ +14 to +131 ℉(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2Â acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil/ 470 nm 0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Packaging Industry:
    Perfect for detecting color marks on packaging materials to ensure the accurate application of labels, improving the speed and quality of the packaging process.
  • Printing Industry:
    Used in printing applications to detect color registration marks, ensuring that printed materials are correctly aligned and registered, maintaining high print quality.
  • Labeling Systems:
    Ideal for automated labeling systems, enabling accurate color detection to ensure that labels are applied correctly according to color-coded instructions.
  • Quality Control:
    Helps in quality inspection processes by detecting color variations in products or packaging, ensuring consistent quality in manufacturing operations.
  • Automated Sorting:
    Used in automated sorting systems, allowing for the detection of color-coded items, improving sorting accuracy and efficiency in production lines.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
