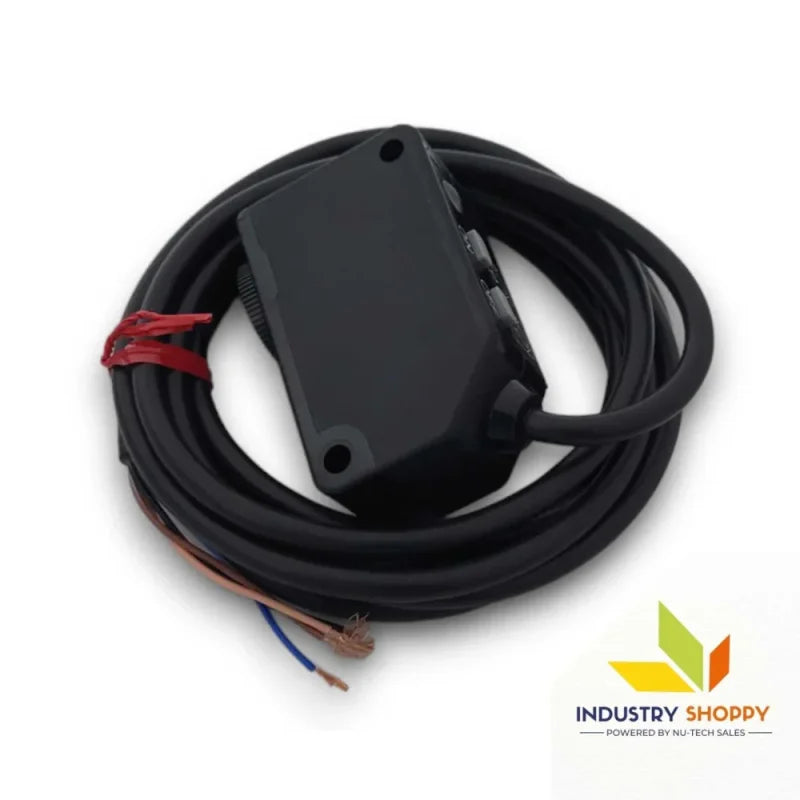

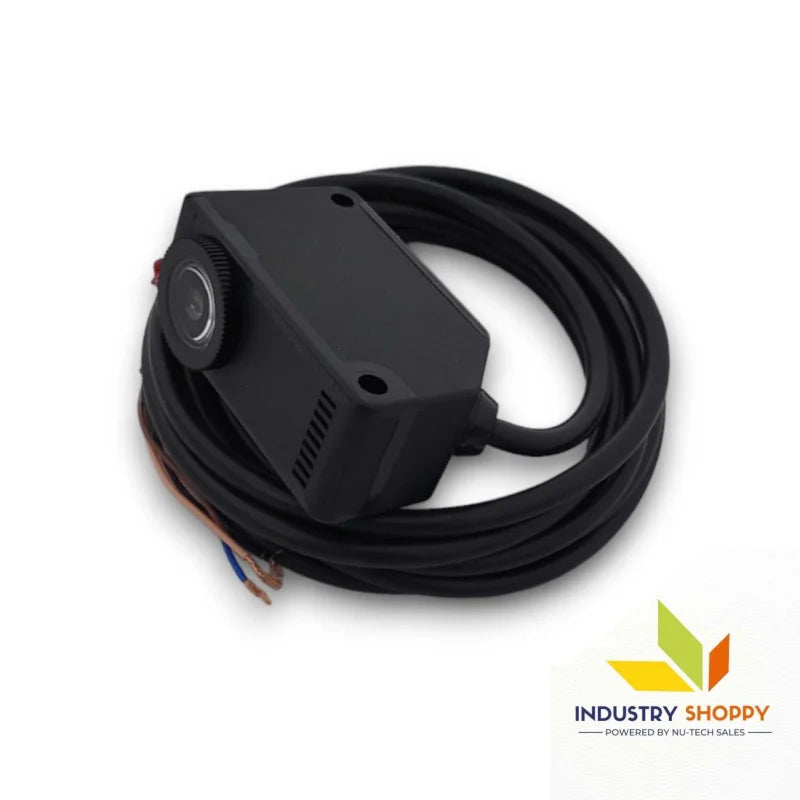

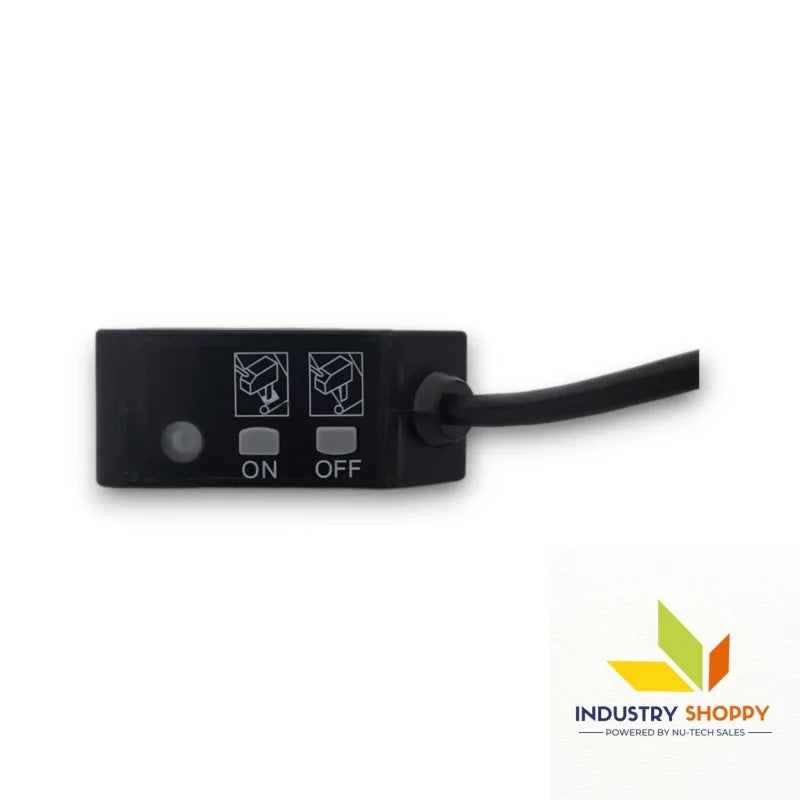

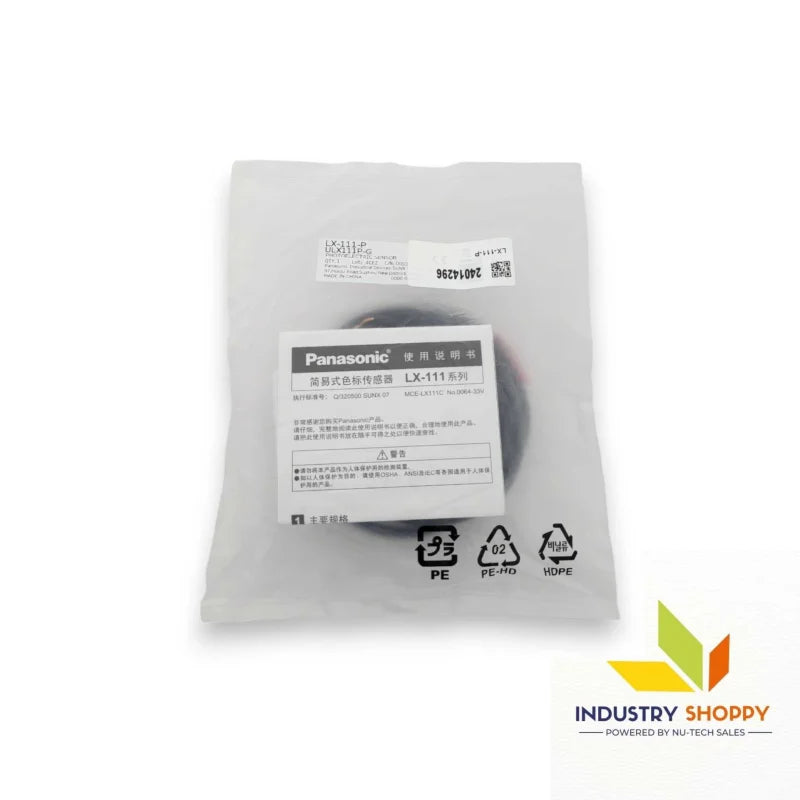

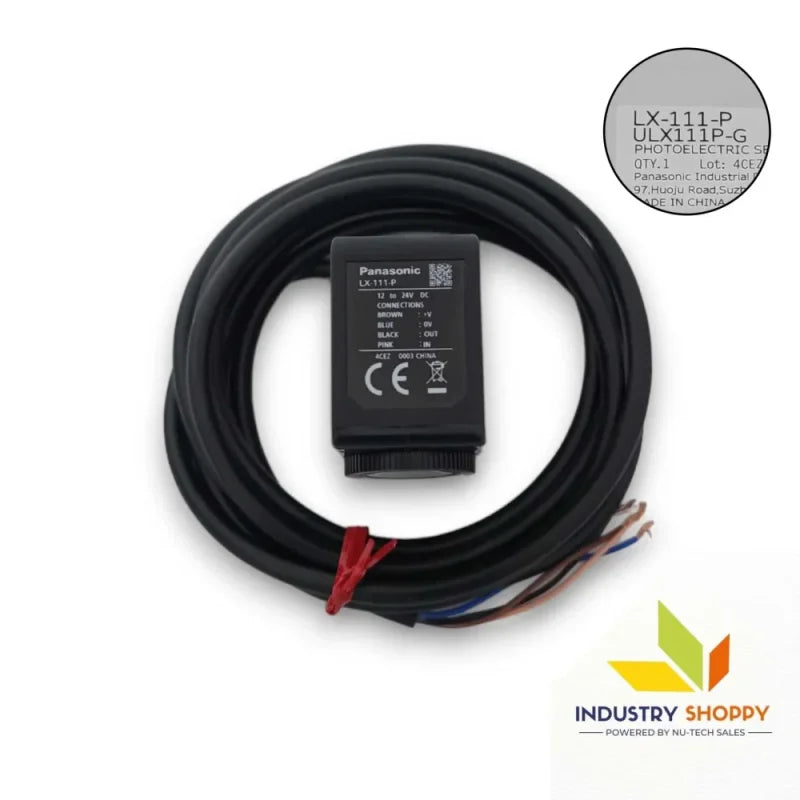

Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic LX-111-P Color Mark Sensor
Panasonic

Panasonic LX-111-P Color Mark Sensor

Product SKU: NTSSEN00118
Available:
Only 15 items in stock
15 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  ULX111P
  • Type
:  Color Mark Sensor
  • Output Type
:  PNP
  • Operating Type
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$60.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic LX-111-P Color Mark Sensor

The Panasonic LX-111-P Color Mark Sensor is a high-performance device designed for precise color and mark detection in various industrial applications. It boasts a sensing range of 10 ± 3 mm and a spot size of 1 x 5 mm, ensuring accuracy even in tight spaces. The sensor operates with a 12 to 24 V DC supply voltage, offering PNP open-collector outputs, and supports a maximum sink current of 50 mA.

Featuring a response time of 45 microseconds in mark mode and 150 microseconds in color mode, the LX-111-P is ideal for fast-paced processes. It includes a 4-digit LED display for easy setup, and the fine sensitivity adjustment function allows precise calibration. The variable ON/OFF delay timer offers flexible control over output timing.

Built to withstand demanding environments, the LX-111-P is IP67 rated, providing protection against dust and water. The sensor uses RGB LEDs for color detection and is suitable for industries such as printing, packaging, and assembly lines.

Key features :-

Product Number LX-111-P
Part Number ULX111P
CE marking directive compliance EMC Directive, RoHS Directive
Sensing range 10 ± 3 mm 0.394 ± 0.118 in
Spot size 1 x 5 mm 0.039 x0.197 in (at 10 mm0.394 in setting distance)
Supply voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1(OUT) PNP open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 1:Short-circuit protection Incorporated
Output 1:Output operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2(OUT) PNP open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 2:Short-circuit protection Incorporated
Output 2:Output operation Inverted operation of the output 1
Response time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching input PNP non-contact input
- Signal condition: High... +5 V to +V, or open, Low... 0 to +2 V (source current: 0.5 mA or less)
- Input impedance: 10 kOhm approx.
Digital display
Sensitivity setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine sensitivity adjustment function Incorporated
Timer function Incorporated with variable ON-delay / OFF-delay timer, switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient temperature -10 to +55 ℃ +14 to +131 ℉(No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock resistance 500 m/s2Â acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil/ 470 nm 0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long
Cable extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Packaging Lines: Accurately detect registration marks for precise cutting and labeling.
  • Color Matching Systems: Ensure consistent color verification in production quality checks.
  • Conveyor Sorting: Identify and sort objects based on color differentiation.
  • Printing Equipment: Monitor and align printing marks with high-speed responsiveness.
  • Assembly Automation: Validate component presence or orientation using color and contrast.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
