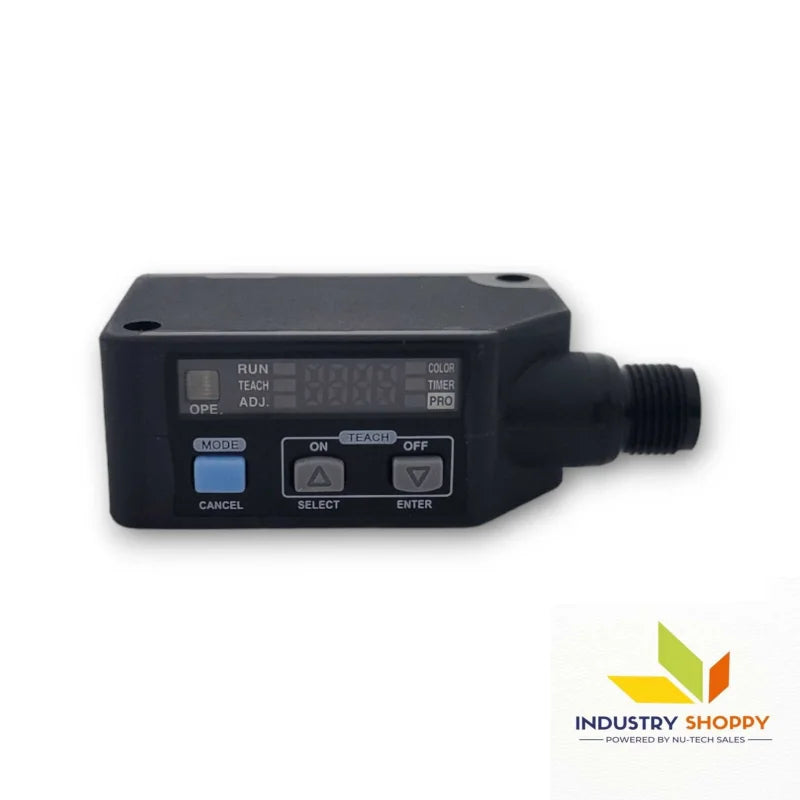

Panasonic LX-101-Z Color Mark Sensor

Panasonic LX-101-Z Color Mark Sensor

The Panasonic LX-101-Z Color Mark Sensor is engineered for precise mark and color detection, offering a sensing range of 10 ± 3 mm. It operates with 12 to 24 V DC power and has low power consumption—750 mW in normal mode and 600 mW in ECO mode. The sensor is equipped with NPN open-collector transistor outputs, providing reliable performance and short-circuit protection.

It features Mark mode (Light-ON / Dark-ON) and Color mode (Consistent-ON / Inconsistent-ON), easily adjustable through a non-contact teaching input. The response time is 45 microseconds for mark detection and 150 microseconds for color detection, ensuring fast and efficient operation.

With IP67 protection, the sensor is durable and resistant to dust and water, making it ideal for industrial environments. It also includes fine sensitivity adjustment and a timer function with variable ON/OFF delay settings. This sensor is perfect for automated assembly lines, quality control, and packaging applications, offering exceptional accuracy in harsh conditions.

Key features :-

Applications :-

• Packaging Industry:
  Used for detecting color marks on packaging materials, ensuring accurate application of labels and color-coded markings, improving packaging speed and reducing errors.
• Printing Industry:
  Ideal for detecting color registration marks, ensuring proper alignment and registration of printed materials, maintaining high print quality in high-speed operations.
• Labeling Systems:
  Perfect for automated labeling systems to detect color marks, ensuring the correct application of color-coded labels and improving labeling efficiency.
• Quality Control:
  Helps detect color variations during quality inspection processes, ensuring products meet color specifications and maintaining consistent product quality.
• Automated Sorting:
  Enhances the accuracy of automated sorting systems by detecting color-coded objects, improving sorting speed and operational efficiency in production lines.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
