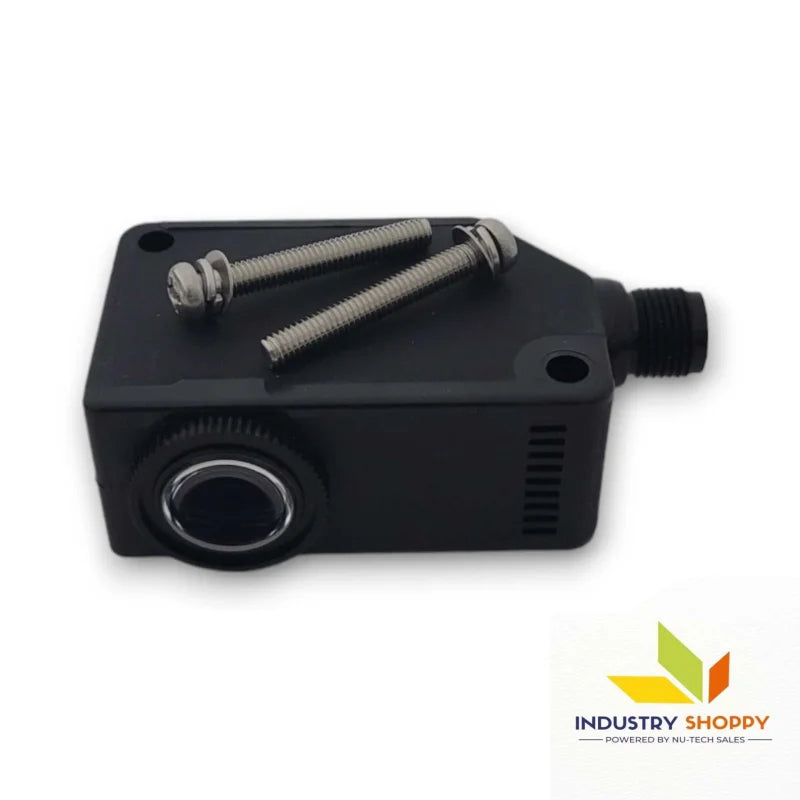

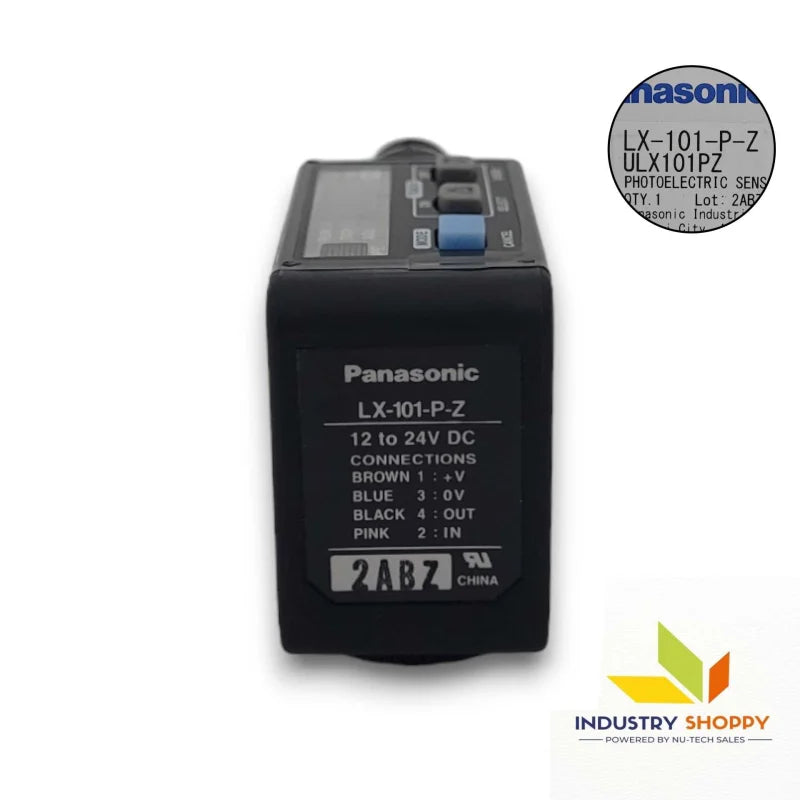

Panasonic LX-101-P-Z Color Mark Sensor

Panasonic LX-101-P-Z Color Mark Sensor

The Panasonic LX-101-P-Z Color Mark Sensor offers advanced color and mark detection with a sensing range of 10 ± 3 mm and spot size of 1 x 5 mm. It operates with a 12 to 24 V DC power supply and provides low current consumption, with 750 mW in normal mode and 600 mW in ECO mode. The sensor features PNP open-collector transistor outputs with short-circuit protection and supports Light-ON / Dark-ON and Consistent-ON / Inconsistent-ON modes, which can be easily set through non-contact teaching input.

With a response time of 45 microseconds in mark mode and 150 microseconds in color mode, this sensor is ideal for high-speed applications. It is equipped with a 4-digit red LED display, allowing for easy monitoring. The IP67 protection rating ensures reliable performance in demanding environments. Additional features include fine sensitivity adjustment, timer functions, and compatibility with up to 100 m cable extensions. Perfect for automated production lines, quality control, and packaging.

Key features :-

Applications :-

• Packaging Industry:
  Ideal for detecting color marks on packaging materials to ensure accurate placement of labels and color-coded markings during packaging operations.
• Printing Industry:
  Used to detect color registration marks in printing applications, ensuring proper alignment and registration for high-quality prints in high-speed operations.
• Labeling Systems:
  Enables automated labeling systems to detect color marks, ensuring correct color-coded label application and increasing labeling accuracy and efficiency.
• Quality Control:
  Detects color variations in products or packaging, ensuring consistency and compliance with color specifications, maintaining high quality and reducing defects.
• Automated Sorting:
  Enhances sorting accuracy by detecting color-coded items in production lines, improving sorting efficiency and speed in automated systems.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
