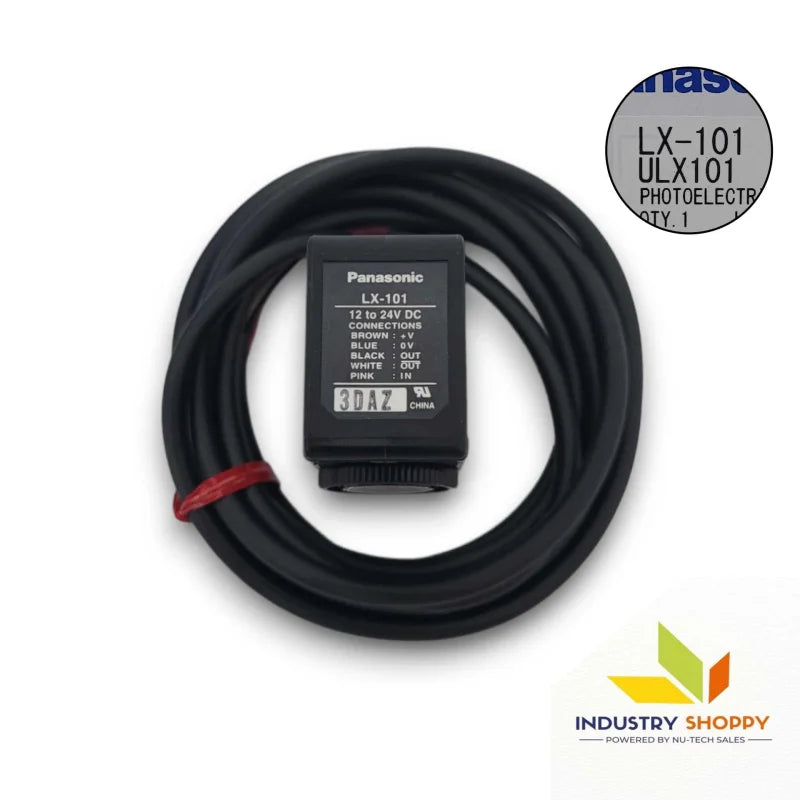

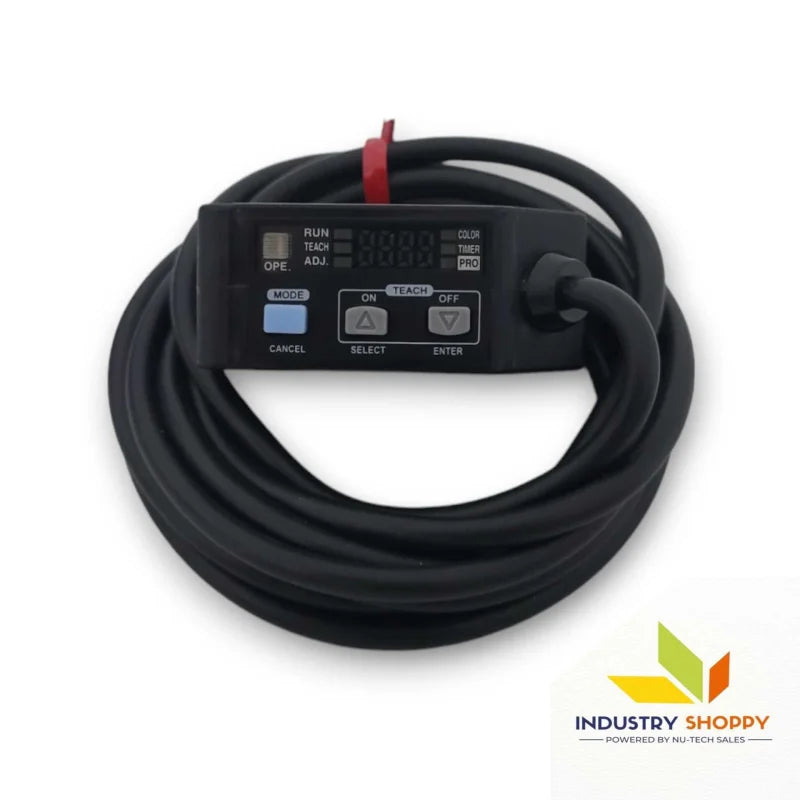

Panasonic LX-101 Color Mark Sensor

The Panasonic LX-101 Color Mark Sensor is designed for precise mark and color detection, ensuring optimal performance in demanding industrial environments. It features a sensing range of 10 ± 3 mm and a spot size of 1 x 5 mm, ideal for tight spaces. The sensor operates with a 12 to 24 V DC supply voltage and offers NPN open-collector outputs, which can handle up to 50 mA of current.

With a response time of 45 microseconds in mark mode and 150 microseconds in color mode, the LX-101 supports fast-paced operations. It also includes a 4-digit LED display for easy setup and fine sensitivity adjustment for improved accuracy. The variable ON/OFF delay timer offers flexibility in output timing.

Built for rugged environments, the LX-101 is IP67 rated, making it resistant to dust and water. It features RGB LEDs for color detection and provides reliable operation in industries such as printing, packaging, and assembly lines.

Key features :-

Product Number LX-101
Part Number ULX101
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 10 ± 3 mm 0.394 ± 0.118 in
Spot Size 1 x 5 mm 0.039 x 0.197 in (at 10 mm 0.394 in setting distance)
Supply Voltage 12 to 24 V DC ± 10 % Ripple P-P 10 % or less
Current Consumption Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 600 mW or less(Current consumption 25 mA or less at 24 V supply voltage)
Output 1 (OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 1: Short-Circuit Protection Incorporated
Output 1: Output Operation Mark mode: Light-ON / Dark-ON (Auto-setting on teaching)
Color mode: Consistent-ON / Inconsistent-ON (Setting on teaching)
Output 2 (OUT) NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 1.5 V or less (at 50 mA sink current)
Output 2: Short-Circuit Protection Incorporated
Output 2: Output Operation Inverted operation of the output 1
Response Time Mark mode: 45 micro s or less
Color mode: 150 micro s or less
Teaching Input NPN non-contact input
- Signal condition: High... +5 V to +V, or open, Low... 0 to +2 V (source current: 0.5 mA or less)
- Input impedance: 10 kOhm approx.
Digital Display 4-digit red LED display
Sensitivity Setting Mark mode: 2-level teaching / Full-auto teaching
Color mode: 1-level teaching
Fine Sensitivity Adjustment Function Incorporated
Timer Function Incorporated with variable ON-delay / OFF-delay timer,
switchable either effective or ineffective
(Timer period: 1 to 500 ms, 9 levels variable)
Protection IP67 (IEC)
Ambient Temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),
Storage: -20 to +70 ℃ -4 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil)
Material Enclosure: PBT
Display cover: Polycarbonate
Operation buttons: Silicone rubber
Lens: Glass
Lens holder: Aluminum
Cable 0.34 mm2 5-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Packaging Industry:
    Ideal for detecting color marks on packaging materials, ensuring accurate label placement and proper alignment during packaging processes.
  • Printing Industry:
    Used to detect color registration marks, ensuring accurate alignment and registration in high-speed printing applications.
  • Labeling Systems:
    Enables automated labeling systems to detect color-coded marks, ensuring correct label application and increasing operational efficiency.
  • Quality Control:
    Ensures products meet color specifications, detecting color variations and maintaining consistency in manufacturing and packaging.
  • Automated Sorting:
    Enhances sorting accuracy in automated systems by detecting color-coded items, improving sorting speed and operational efficiency.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
