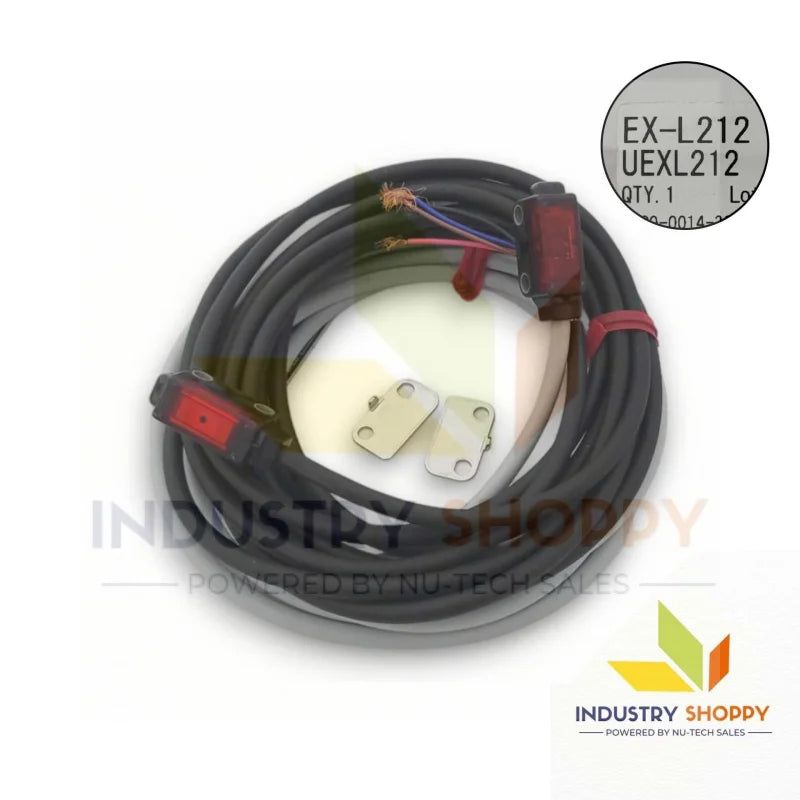

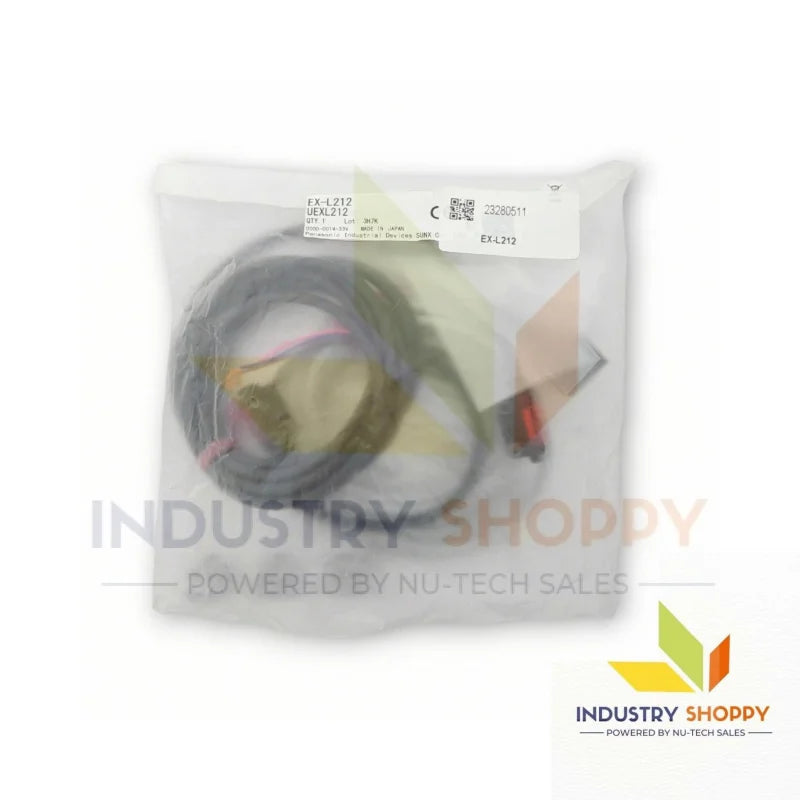

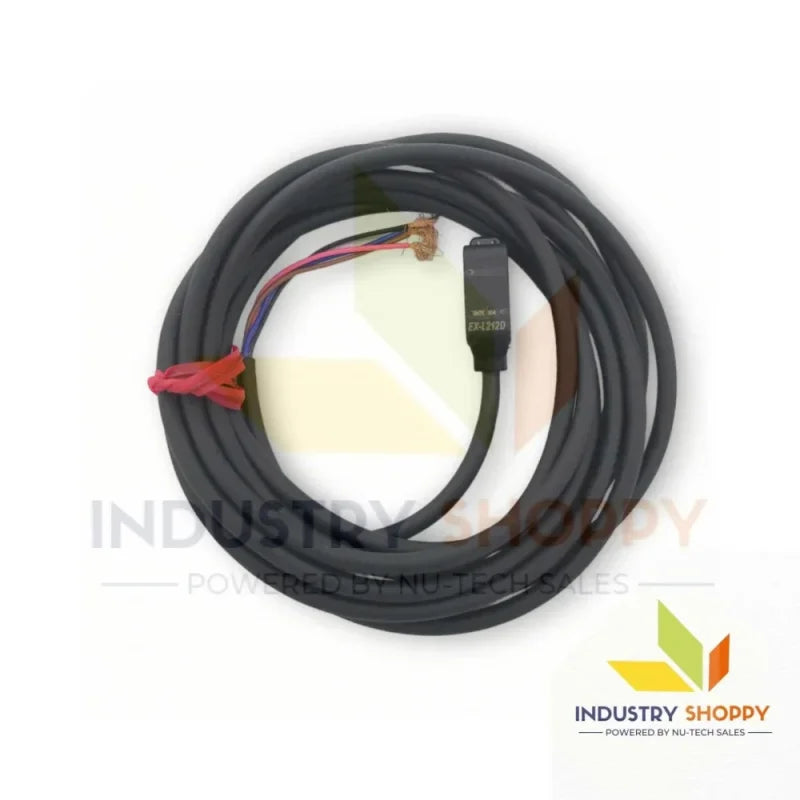

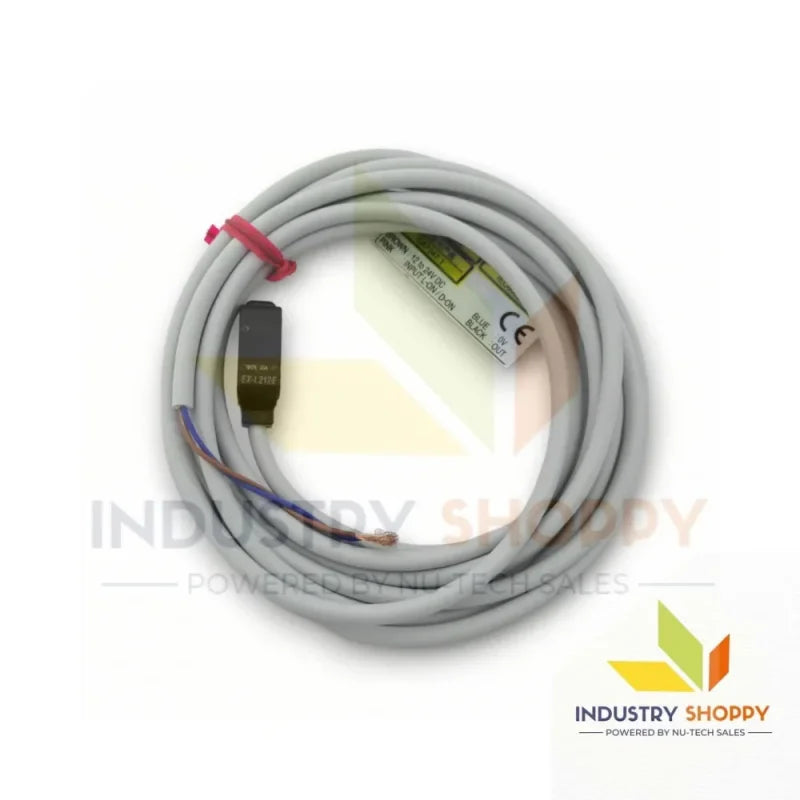

Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic EX-L212 Photoelectric Sensor
Panasonic

Panasonic EX-L212 Photoelectric Sensor

Product SKU: NTSSEN00384
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UEXL212
  • Type
:  Photoelectric Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$125.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic EX-L212 Photoelectric Sensor

The Panasonic EX-L212 Laser Sensor (Part Number: UEXL212) is designed for precise detection and measurement applications, providing a 3-meter (9.843 ft) sensing range with an excellent repeatability of 0.05 mm (0.0020 in) or less. This optical sensor utilizes a red semiconductor laser (Class 1) for safe, accurate detection of opaque objects with a minimum sensing object size of ø3 mm (0.118 in). It is ideal for high-precision applications such as automated manufacturing, material handling, and quality control.

The EX-L212 features a sensing spot size of 8 × 5.5 mm at a 1-meter distance, with the spot size expanding to 17 × 11 mm at the maximum 3-meter sensing distance. It offers an NPN open-collector transistor output, which is highly configurable for Light-ON or Dark-ON operation based on your system requirements. With a short-circuit protection mechanism, this sensor ensures durability and safety even in harsh conditions.

Designed with IP67 protection, this sensor is resistant to dust and water, making it suitable for industrial environments. The EX-L212 also incorporates orange and green LEDs for operation and stability indicators, ensuring easy monitoring of sensor performance. Its fast response time of 0.5 ms guarantees real-time feedback, essential for dynamic industrial applications.

Key features :-

Brand Panasonic
Product Number EX-L212
Part Number UEXL212
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 3 m 9.843 ft
Emission Spot Size (Typical) Approx. 8 × 5.5 mm 0.315 × 0.217 in (vertical × horizontal)
(at a sensing distance of 1 m)
(Note) In the case sensing distance is 3 m 9.843 ft, the emission spot size is H 17 × W 11 mm H 0.669 × W 0.433 in (visual reference value).
Sensing Object Opaque object of ø3 mm ø0.118 in or more
Minimum Sensing Object (Typical) -
Repeatability Perpendicular to sensing axis: 0.05 mm 0.0020 in or less
Repeatability (Typical) (Perpendicular to Sensing Axis) -
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption Emitter: 10 mA or less
Receiver: 10 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 26.4 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Light-ON / Dark-ON selectable by the output operation switching input
Output: Short-Circuit Protection Incorporated (short-circuit protection / inverse polarity protection)
Response Time 0.5 ms or less
Operation Indicator Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type)
Power Indicator -
Sensitivity Adjuster -
Protection IP67 (IEC)
Ambient Temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Red semiconductor laser Class 1 (IEC / JIS/ FDA/ GB) (Note: This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated May 8, 2019, issued by CDRH
(Center for Devices and Radiological Health) under the FDA (Food and Drug Administration)
(Maximum output: 390 μW, Peak emission wavelength: 655 nm 0.026 mil)
Material Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
Cable 0.15 mm2 4-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m 6.562 ft long



Applications :-

  • Automated Manufacturing: Used for detecting parts or monitoring the position of items on automated lines.
  • Material Handling: Enables reliable detection for conveyors and robotic arms in industrial material handling.
  • Quality Control: Ensures accurate presence detection during inspection and sorting processes.
  • Packaging: Monitors the placement of objects for precise packaging or assembly.
  • Industrial Robotics: Provides feedback for precise object placement or sorting tasks in automated robotics systems.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
