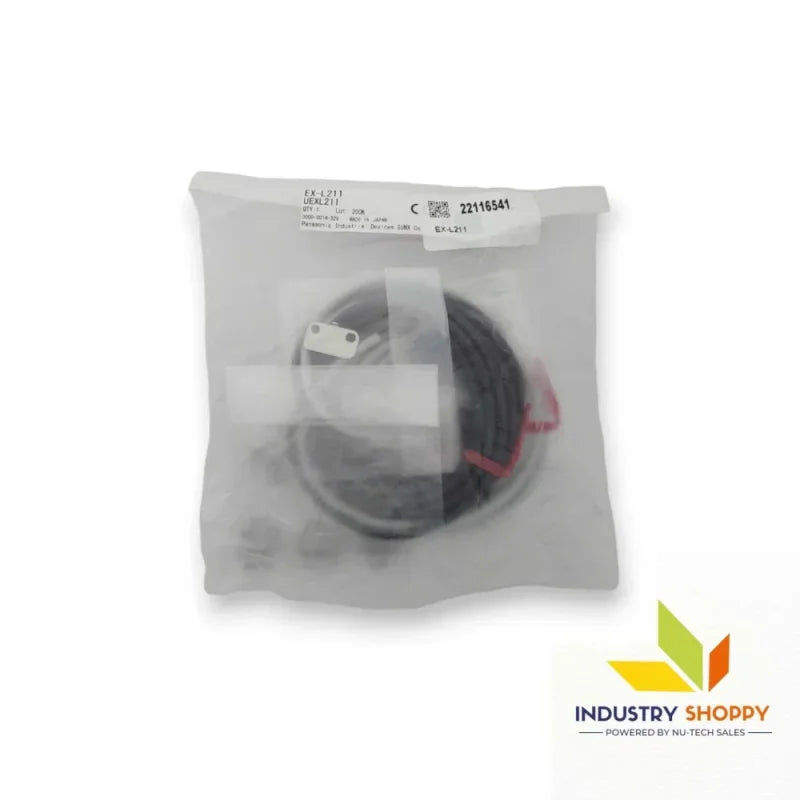

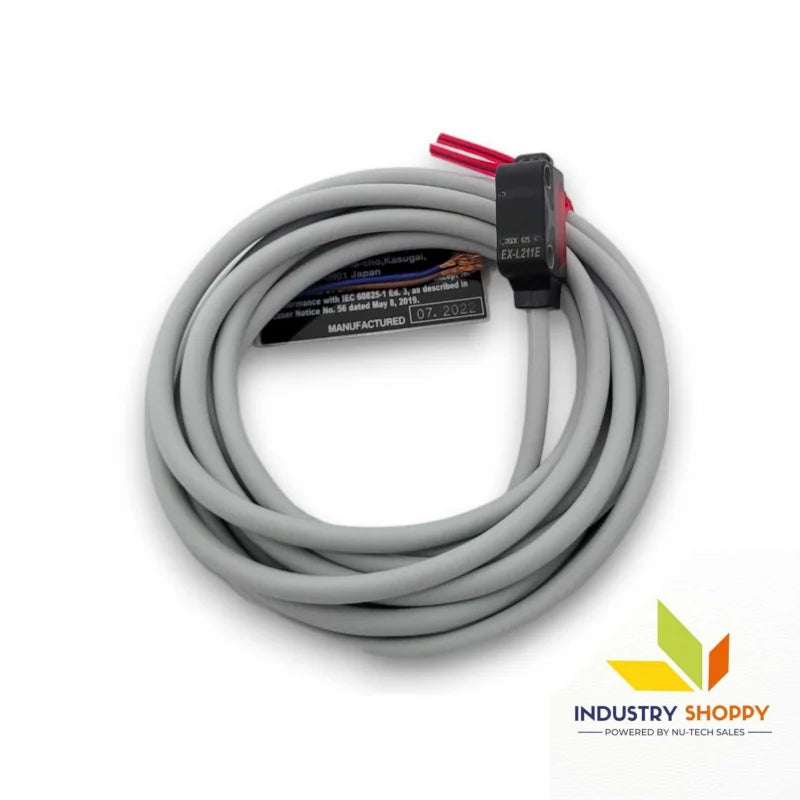

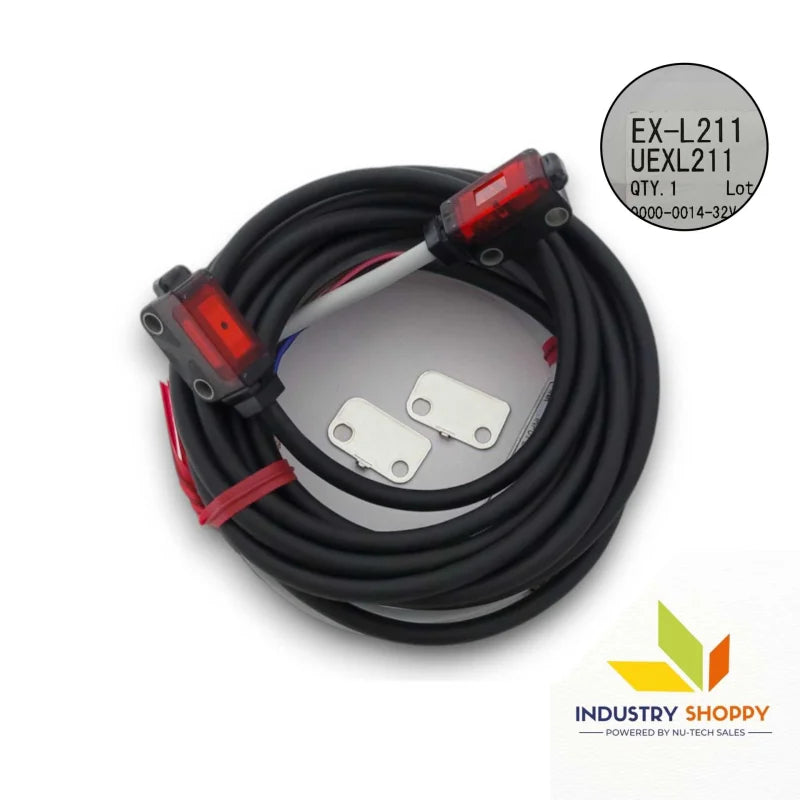

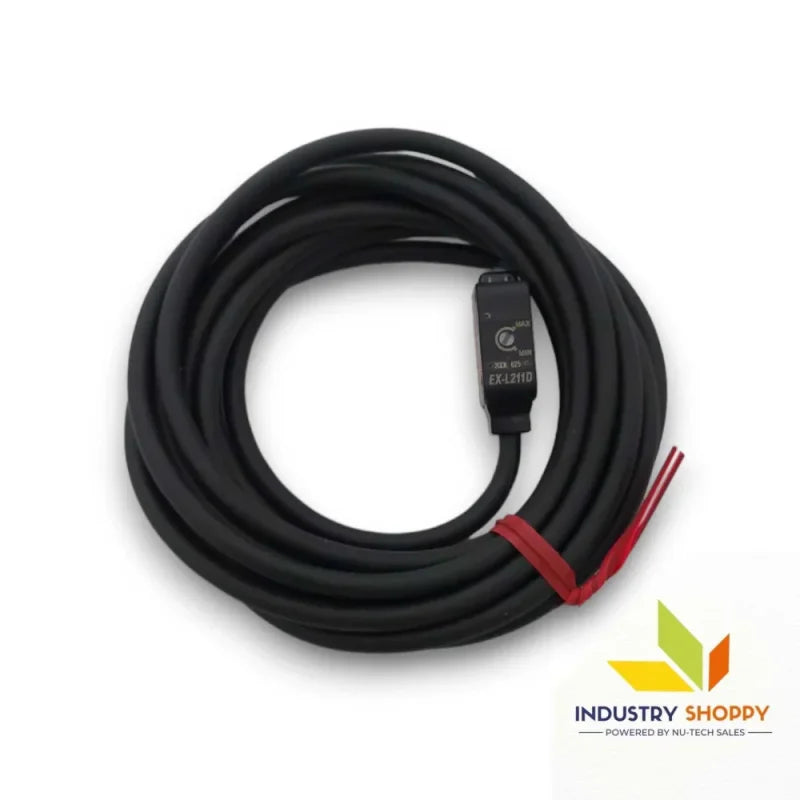

Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic EX-L211 Laser Sensor
Panasonic

Panasonic EX-L211 Laser Sensor

Product SKU: NTSSEN00036
Available:
Only 48 items in stock
48 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UEXL211
  • Type
:  Thrubeam Laser Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$150.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic EX-L211 Laser Sensor

The Panasonic EX-L211 Laser Sensor (Part Number: UEXL211) is designed for high-precision, reliable detection in various industrial automation applications. This sensor is capable of sensing objects as small as ø0.3 mm (0.012 in), with a 1-meter sensing range (3.281 ft), making it ideal for automated systems that require accurate detection of small parts or objects.

This sensor uses a red semiconductor laser with a Class 1 rating, ensuring safe operation under industrial conditions. It features a PNP open-collector transistor output, short-circuit protection, and inverse polarity protection for enhanced durability and easy integration into control systems. The sensor operates with a fast response time of 0.5 ms, enabling rapid and real-time feedback for precise automation control.

Additionally, the EX-L211 is built to withstand harsh environments with an IP67 protection rating, making it resistant to dust and water. Its vibration and shock resistance ensure reliability even in dynamic and demanding industrial settings.

Key features :-

Brand Panasonic
Product name EX-L211
Part Number UEXL211
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 1 m 3.281 ft
Emission Spot Size (Typical) Approx. 6 × 4 mm 0.236 × 0.157 in (vertical × horizontal)
(at a sensing distance of 1 m)
Sensing Object Opaque object of ø2 mm ø0.079 in or more
Minimum Sensing Object (Typical) Opaque object of ø0.3 mm ø0.012 in
(Note)Typical values when the sensitivity adjuster is optimally adjusted.
Repeatability Perpendicular to sensing axis: 0.05 mm 0.0020 in or less
Repeatability (Typical) (Perpendicular to Sensing Axis) 0.01 mm 0.0004 in or less(all area)
(Note)Typical values when the sensitivity adjuster is optimally adjusted.
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption Emitter: 10 mA or less
Receiver: 10 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 26.4 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Light-ON / Dark-ON selectable by the output operation switching input
Output: Short-Circuit Protection Incorporated (short-circuit protection / inverse polarity protection)
Response Time 0.5 ms or less
Operation Indicator Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type)
Power Indicator Green LED (lights up when the power is ON) (incorporated on the emitter)
Sensitivity Adjuster Continuously variable adjuster (incorporated on the receiver)
Protection IP67 (IEC)
Ambient Temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Red semiconductor laser Class 1 (IEC / JIS/ FDA/ GB) (Note: This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated May 8, 2019, issued by CDRH
(Center for Devices and Radiological Health) under the FDA (Food and Drug Administration)
(Maximum output: 390 μW, Peak emission wavelength: 655 nm 0.026 mil)
Material Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
Cable 0.15 mm2 4-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (thru-beam type: Total 100 m 328.084 ft both emitter and receiver).



Applications :-

  • Automation Systems: Provides precise detection in manufacturing, assembly, and sorting lines.
  • Material Handling: Ensures accurate object position detection on conveyor belts and robotic systems.
  • Quality Control: Detects and inspects components with high precision in automated inspection systems.
  • Packaging: Monitors the presence of objects in packaging lines for sorting and packaging processes.
  • Safety Applications: Detects objects for safety systems that require accurate and reliable operation.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
