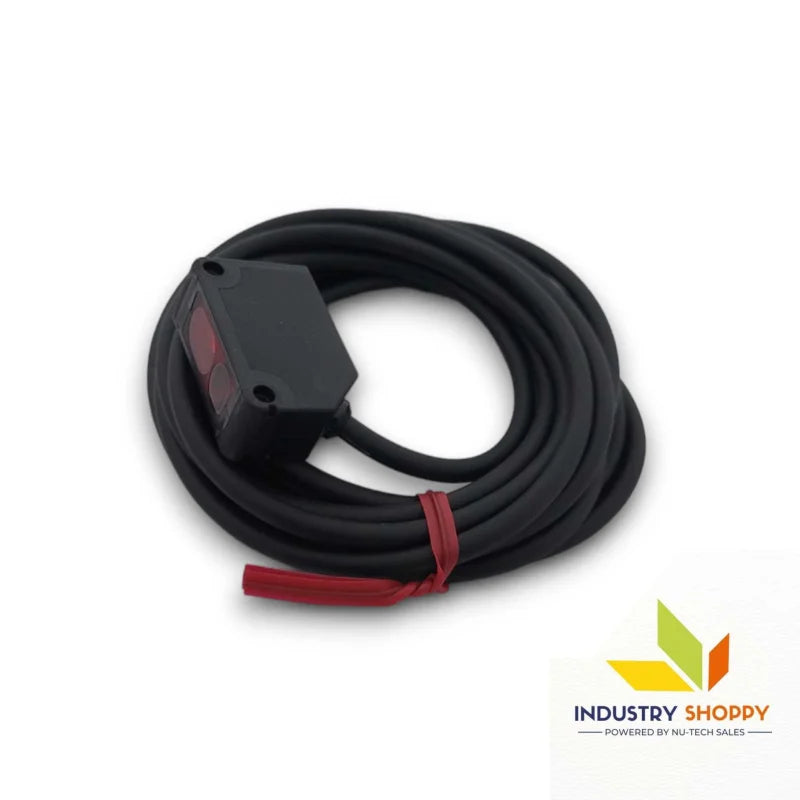

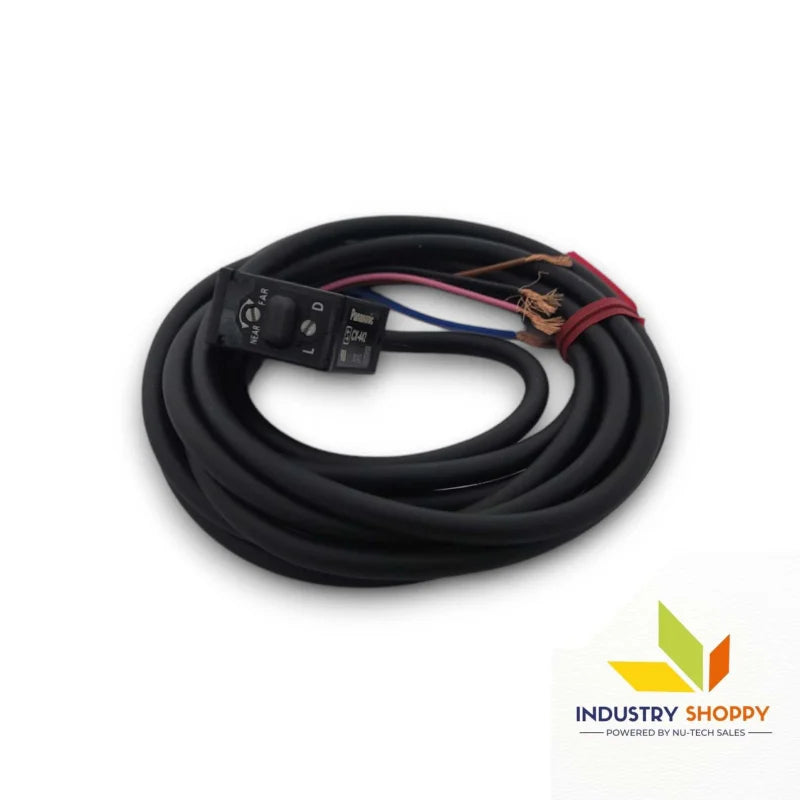

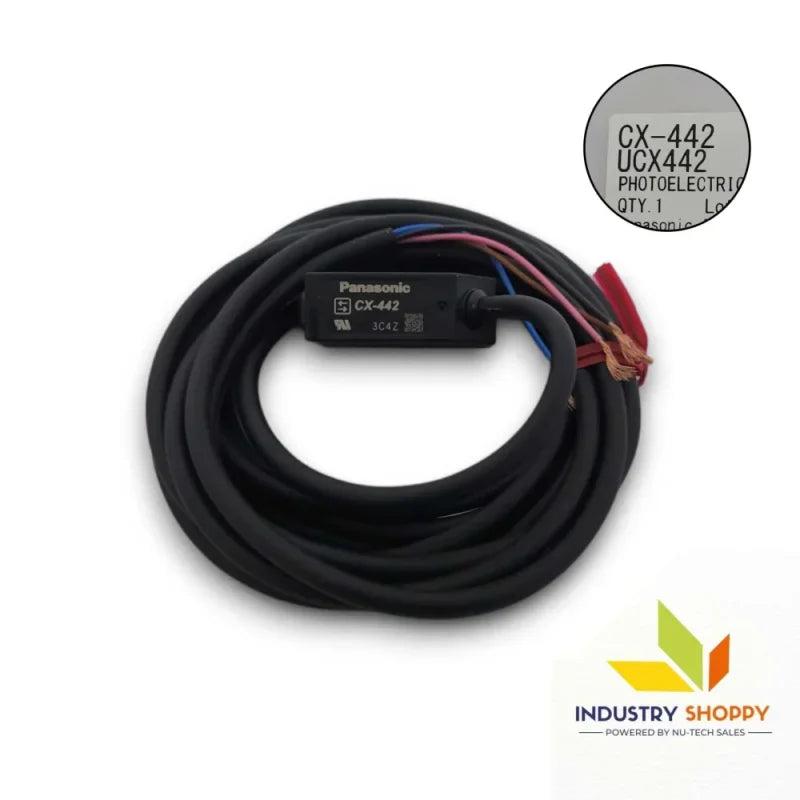

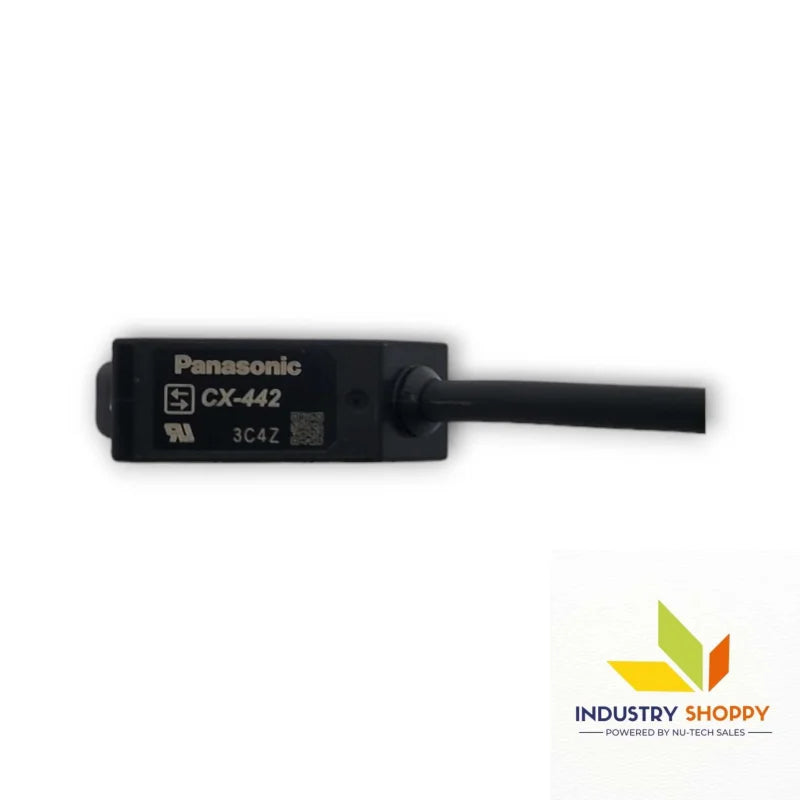

Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic CX-442 Photoelectric Sensor
Panasonic

Panasonic CX-442 Photoelectric Sensor

Product SKU: NTSSEN00034
Available:
Only 26 items in stock
26 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UCX442
  • Type
:  Photoelectric Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$75.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic CX-442 Photoelectric Sensor

The Panasonic CX-442 Photoelectric Sensor is a high-performance photoelectric sensor designed for accurate detection with an adjustable range of 40 to 300 mm (1.575 to 11.811 inches). It offers a sensing range of 20 to 300 mm (0.787 to 11.811 inches) when detecting white non-glossy paper. With repeatability of 1 mm along the sensing axis and 0.2 mm perpendicular to the sensing axis, the sensor delivers reliable results in various industrial settings.

The Panasonic CX-442 Photoelectric Sensor is equipped with a PNP open-collector transistor output, allowing for versatile operation with a choice between Detection-ON or Detection-OFF modes. The 5-turn mechanical distance adjuster provides precise control over the sensor's settings, making it adaptable to different application needs. With short-circuit protection and automatic interference prevention, the CX-442 ensures stable and accurate detection in multi-sensor environments.

Rated IP67, the sensor is protected against dust and water, ensuring durability in harsh conditions. Operating at a peak emission wavelength of 650 nm with a red LED emitting element, the sensor maintains optimal performance even at longer distances, with a spot diameter of Ø15 mm (0.591 inches) at 300 mm distance.

Key features :-

Brand Panasonic
Product name CX-442
CE Marking Directive Compliance EMC Directive, RoHS Directive
Adjustable Range 40 to 300 mm 1.575 to 11.811 in
(Note) The adjustable range stands for the maximum sensing range which can be set with the distance adjuster. The sensor can detect an object 2 mm 0.079 in [CX-444(-P): 15 mm 0.591 in, CX-442(-P): 20 mm 0.787 in], or more, away.
Sensing Range (With White Non-Glossy Paper) 20 to 300 mm 0.787 to 11.811 in
Hysteresis 5 % or less of operation distance(with white non-glossy paper)
Repeatability Along sensing axis: 1 mm 0.039 in or less, Perpendicular to sensing axis: 0.2 mm 0.008 in or less (with white non-glossy paper)
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption 20 mA or less
Output NPN open-collector transistor
- Maximum sink current: 100 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 100 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Switchable either Detection-ON or Detection-OFF
Output: Short-Circuit Protection Incorporated
Response Time 1 ms or less
Operation Indicator Orange LED (lights up when the output is ON)
Stability Indicator Green LED(lights up under stable operating condition)
Sensing Mode BGS / FGS functions switchable with wiring of sensing mode selection input
Distance Adjuster 5-turn mechanical adjuster
Automatic Interference Prevention Function Incorporated
(Note) Note that detection may be unstable depending on the mounting conditions or the sensing object. In the state that this product is mounted, be sure to check the operation with the actual sensing object.
Protection IP67 (IEC)
Ambient Temperature - 25 to +55℃ -13 to +131℃ ℉ (No dew condensation or icing allowed ), Storage: -30 to +70℃ -22 to +158℃ ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element (Modulated) Red LED
Emitting Element (Modulated): Peak Emission Wavelength 650 nm 0.026 mil
Spot Diameter Ø15 mm Ø0.591 in approx.(at 300 mm 11.811 in distance)
Material Enclosure: PBT (Polybutylene terephthalate)
Front cover: Polycarbonate
Indicator cover: Polycarbonate
Cable 0.2 mm24-core cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.



Applications :-

  • Automation Systems: Ideal for detecting objects in automated production lines and systems.
  • Material Handling: Used for detecting the presence of materials during the transportation process.
  • Packaging Industry: Ensures correct alignment of items during packaging operations.
  • Conveyor Systems: Provides accurate object detection to prevent misalignment or damage on conveyor belts.
  • Robotics: Assists robotic systems in picking or sorting tasks by accurately detecting items in industrial environments.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
