Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic CX-422-P Photoelectric Sensor
Panasonic

Panasonic CX-422-P Photoelectric Sensor

Product SKU: NTSSEN00043
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Supply Voltage
:  12 to 24 V DC ±10% Ripple P-P 10% or less
  • Part Number
:  UCX422P
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Current Consumption
:  15 mA or less


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$70.00
$100.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

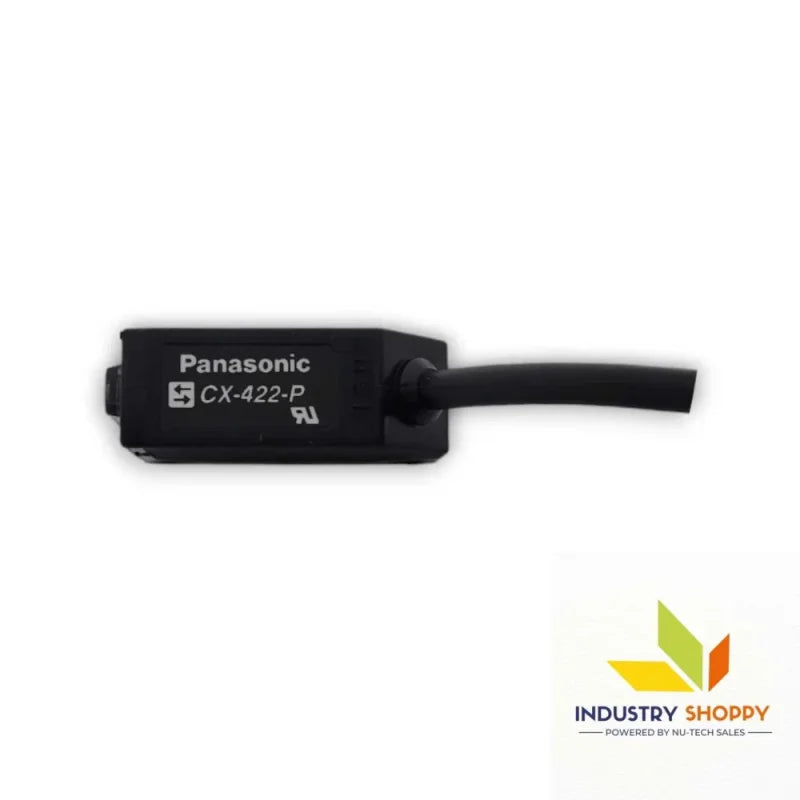

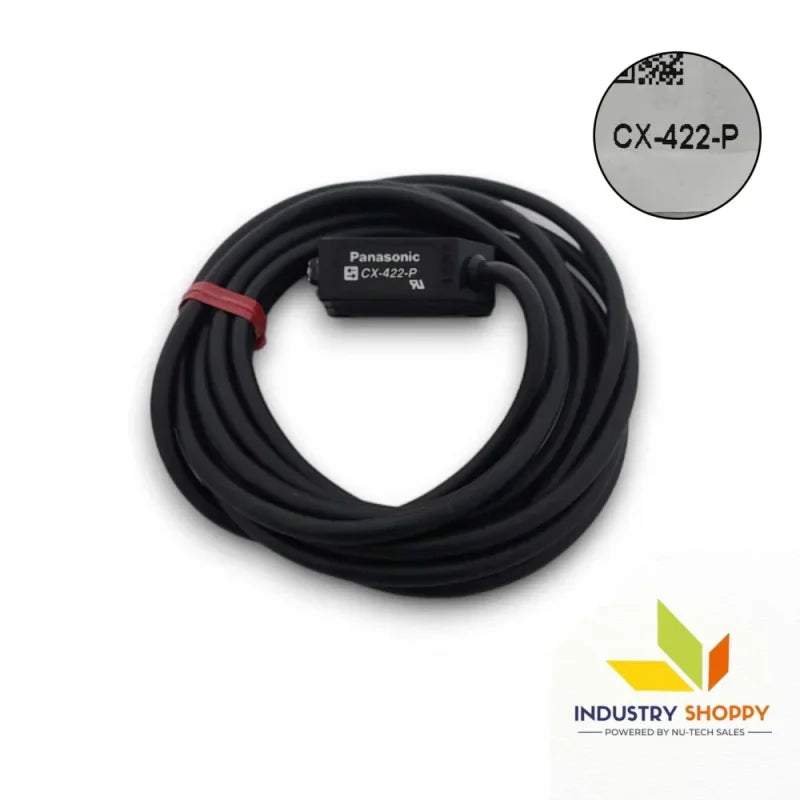

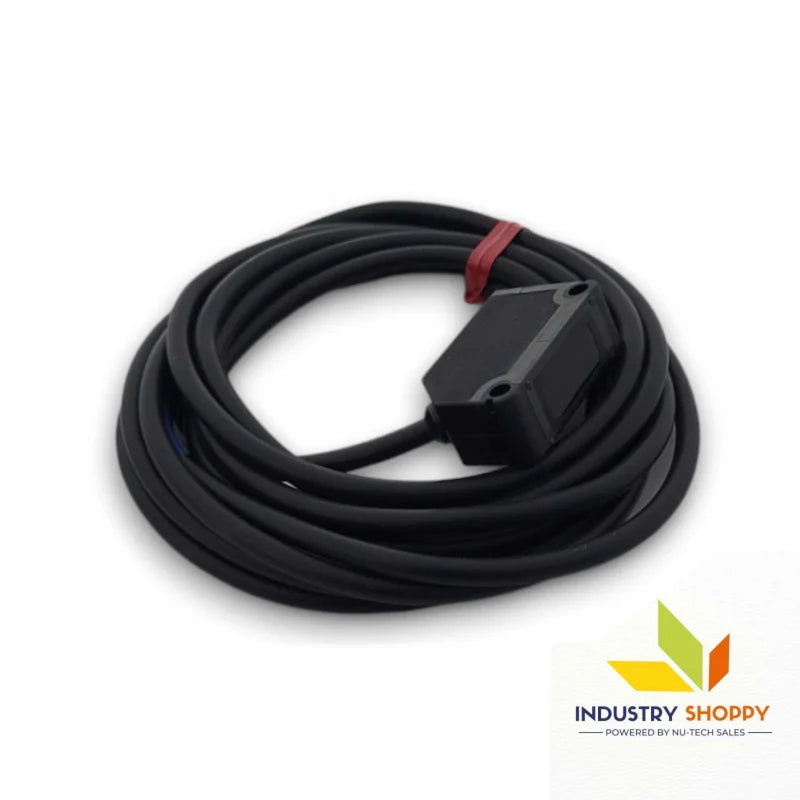

Panasonic CX-422-P Photoelectric Sensor

The Panasonic CX-422-Photoelectric Sensor is a compact and reliable diffuse reflective photoelectric sensor, designed for accurate object detection in industrial automation. With a sensing range of up to 800 mm, it efficiently detects opaque, translucent, and even transparent objects, making it highly versatile for various applications.

Engineered for precision, the CX-422-P offers repeatability of ≤1 mm and fast response time of ≤1 ms, ensuring consistent performance in high-speed systems. It features a PNP open-collector output with selectable Light-ON/Dark-ON modes, allowing flexible integration into control circuits.

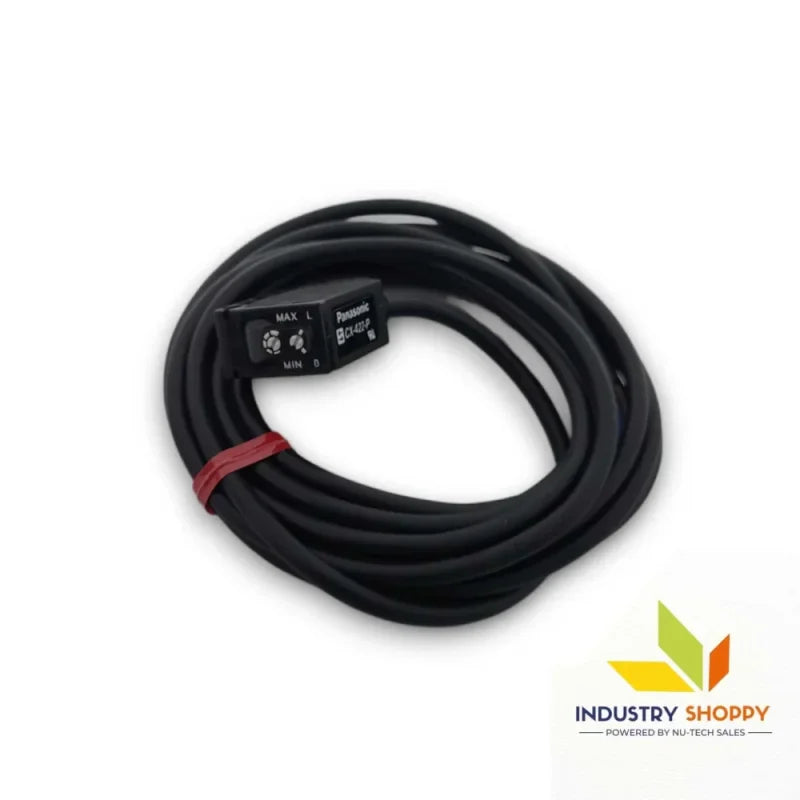

The sensor includes dual LED indicators (orange for output and green for stability), enabling easy monitoring and setup. A built-in sensitivity adjuster ensures accurate detection tuning, while the automatic interference prevention function allows multiple sensors to operate in close proximity without signal disturbance.

Built for harsh environments, the CX-422-P comes with IP67 protection, rugged PBT housing, and operates within a wide temperature range of -25°C to +55°C. Its infrared LED (860 nm) ensures stable detection performance across different surface types.


Applications

  • Object detection on conveyors and packaging lines

  • Presence sensing in automation systems

  • Detection of transparent or reflective materials

  • Assembly and sorting processes


Technical Precautions

  • Confirm detection with actual object, especially for transparent materials.

  • Avoid strong ambient light (≤3000 lx) directly on sensing surface.

  • Maintain proper sensitivity adjustment for stable operation.

  • Use within specified 12–24 V DC supply range.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandPanasonic
Product nameCX-422-P
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Sensing Range800 mm (31.496 in)

Note: For diffuse reflective type, specified with white non-glossy paper (200 × 200 mm / 7.874 × 7.874 in)
Sensing ObjectOpaque, translucent, or transparent object

Note: Confirm detection with actual sensor before use
Repeatability (Perpendicular to Sensing Axis)1 mm (0.039 in) or less
Hysteresis15% or less of operation distance

Note: Specified with white non-glossy paper (200 × 200 mm)
Supply Voltage12 to 24 V DC ±10% Ripple P-P 10% or less
Current Consumption15 mA or less
OutputPNP open-collector transistor

- Maximum sink current: 100 mA

- Applied voltage: 30 V DC or less

- Residual voltage: 2 V or less (at 100 mA), 1 V or less (at 16 mA)
Output OperationSwitchable: Light-ON or Dark-ON
Output Short-Circuit ProtectionIncorporated
Response Time1 ms or less
Operation IndicatorOrange LED (lights up when output is ON, on receiver for thru-beam type)
Stability IndicatorGreen LED (lights up under stable light/dark condition, on receiver for thru-beam type)
Power Indicator-
Sensitivity AdjusterContinuously variable (on receiver for thru-beam type)
Automatic Interference Prevention FunctionIncorporated (Two sensors can be mounted close together)
ProtectionIP67 (IEC)
Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F) No dew/icing

Storage: -30 to +70 °C (-22 to +158 °F)
Ambient HumidityOperating: 35 to 85 % RH

Storage: 35 to 85 % RH
Ambient IlluminanceIncandescent light: 3,000 lx or less at light-receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance20 MΩ or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance10 to 500 Hz, 1.5 mm (0.059 in) amplitude, 10 G max, X/Y/Z directions for 2 h each
Shock Resistance500 m/s² (approx. 50 G) in X/Y/Z directions, 3 times each
Emitting Element (Modulated)Infrared LED
Peak Emission Wavelength860 nm (0.034 mil)
MaterialEnclosure: PBT (polybutylene terephthalate)

Lens: Acrylic

Indicator cover: Acrylic
Cable0.2 mm² 3-core cabtyre cable, 2 m (6.562 ft) long
Cable ExtensionUp to 100 m (328.084 ft) possible with 0.3 mm² or more cable
Country of originJapan

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
