Omron Z-15GD-B Micro Switch

Omron Z-15GD-B Micro Switch

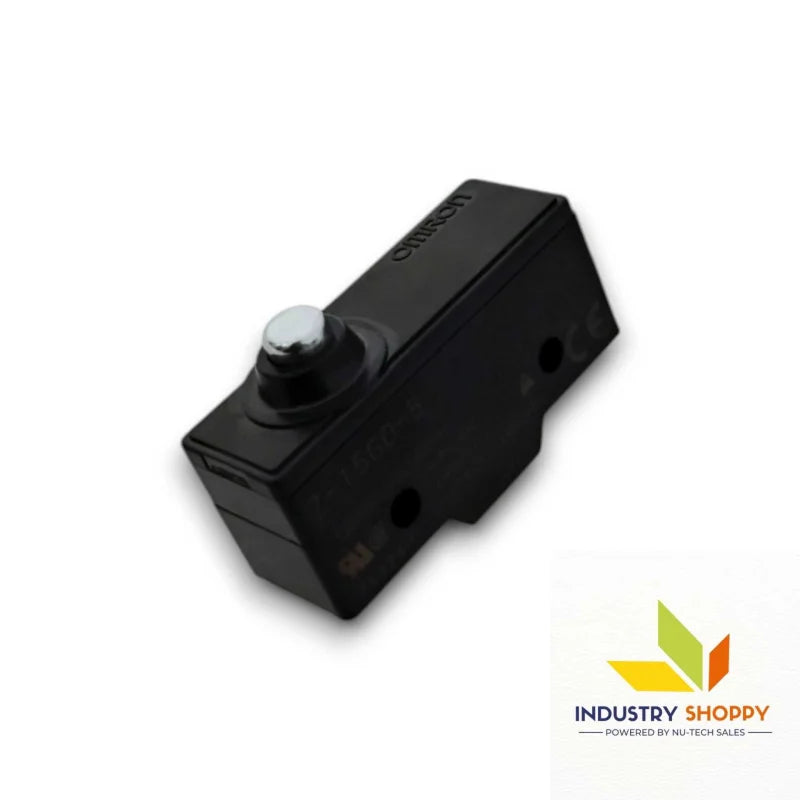

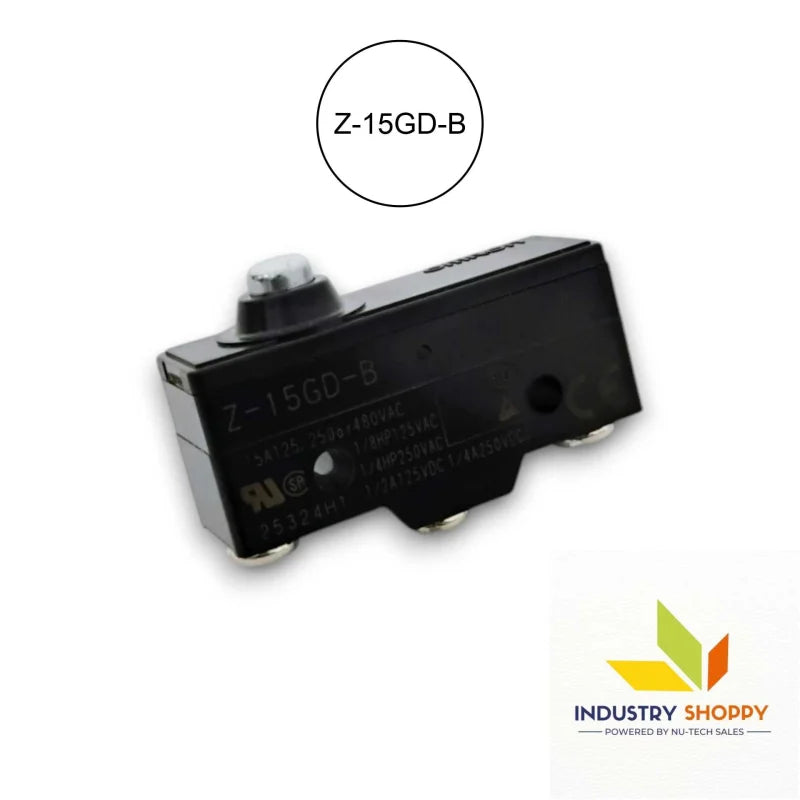

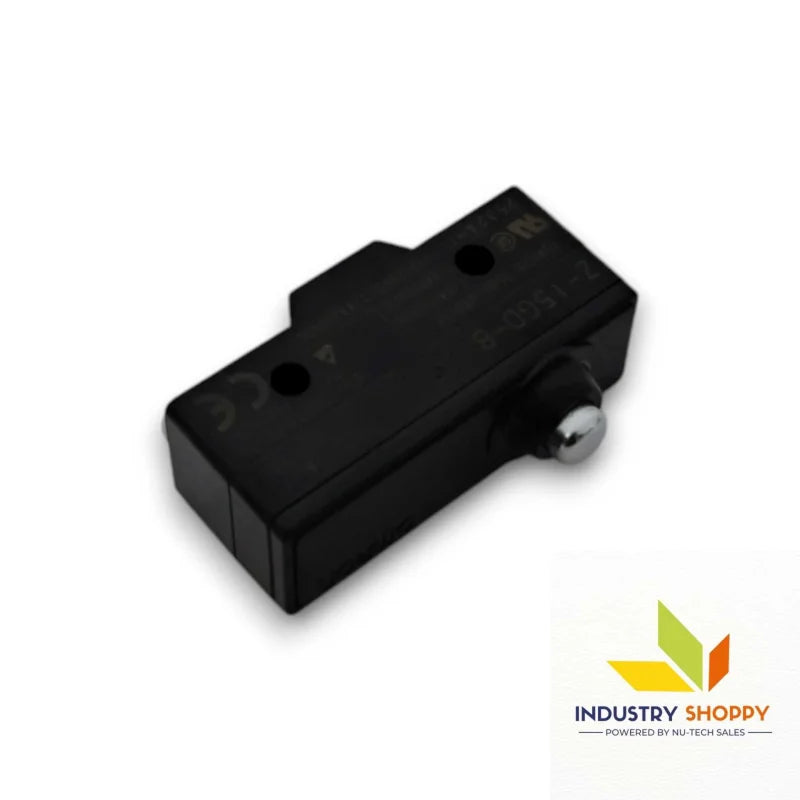

The Omron Z-15GD-B Micro Switch is a robust and reliable component designed for precision switching in demanding industrial environments. This SPDT switch features both ON-(OFF) and OFF-(ON) functionality with a plunger actuator, making it ideal for limit and position detection applications.

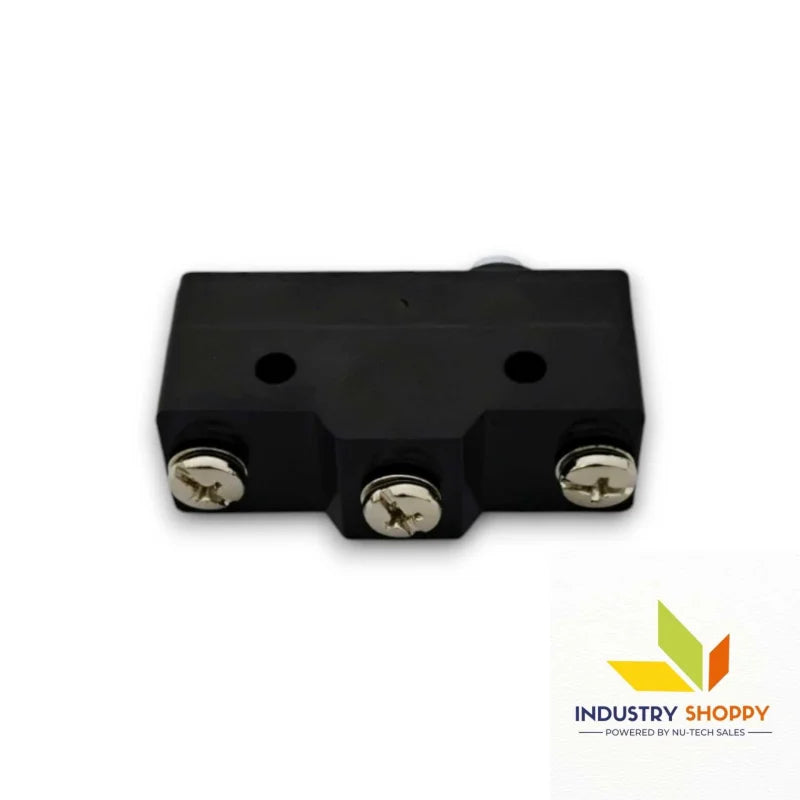

It operates at 15 A, with a voltage rating of 250 VAC or 14 VDC, supporting a variety of electrical systems. The switch has an operating force of 3.43 N, providing firm tactile feedback. Built with a chassis-mount style and screw terminals, it ensures easy and secure installation.

The Z-15GD-B is non-illuminated, with an IP00 rating, making it suitable for use in enclosed or protected systems. With a wide temperature range of -25°C to 80°C, it performs reliably under both hot and cold conditions.

This switch is part of Omron's trusted Z series, known for durability and consistency in mechanical and automated systems.

Key features :-

Applications :-

• Machine Safety Stops – Triggers system shutdowns or alerts when a machine part reaches its travel limit.
• Elevator Position Control – Detects floor position or door open/close status with high accuracy.
• Automated Door Systems – Senses door positions to control open/close motor functions.
• Industrial Robotics – Monitors robotic joint limits to prevent overextension and mechanical damage.
• Packaging Equipment Sensors – Ensures correct alignment and product position in automated packaging lines.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
