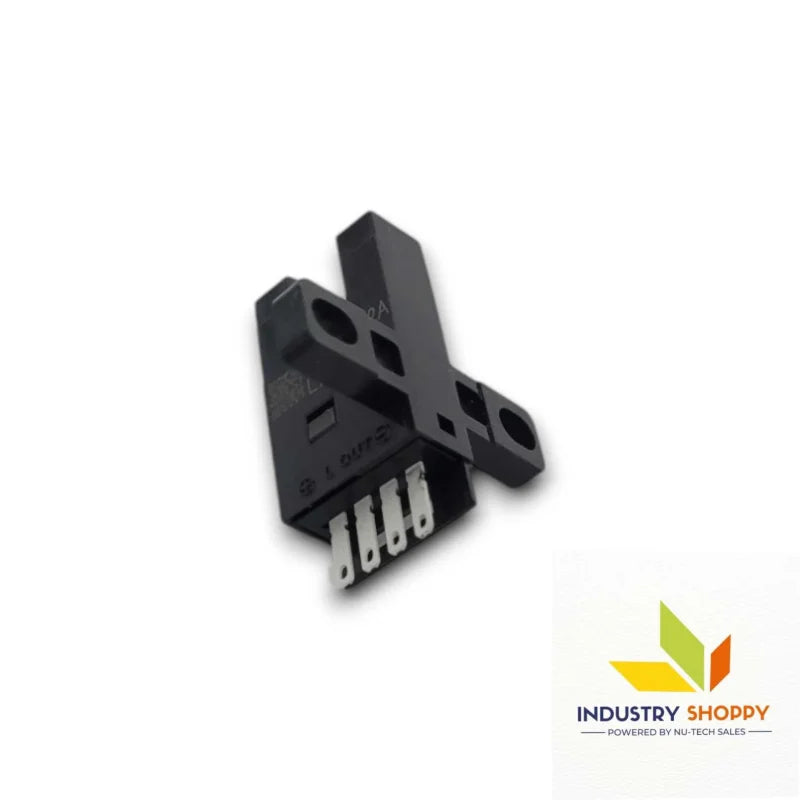

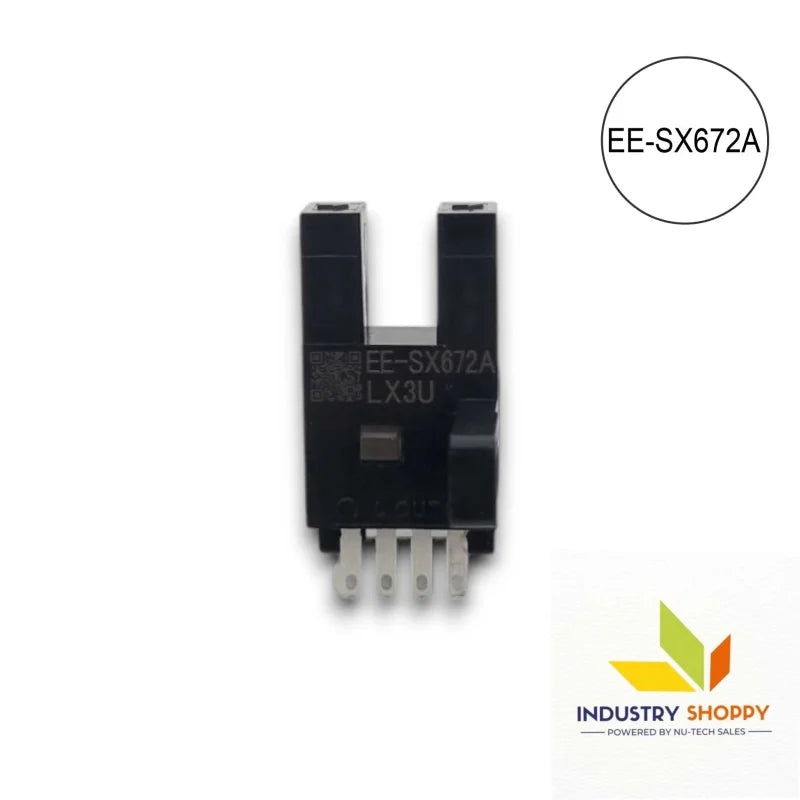

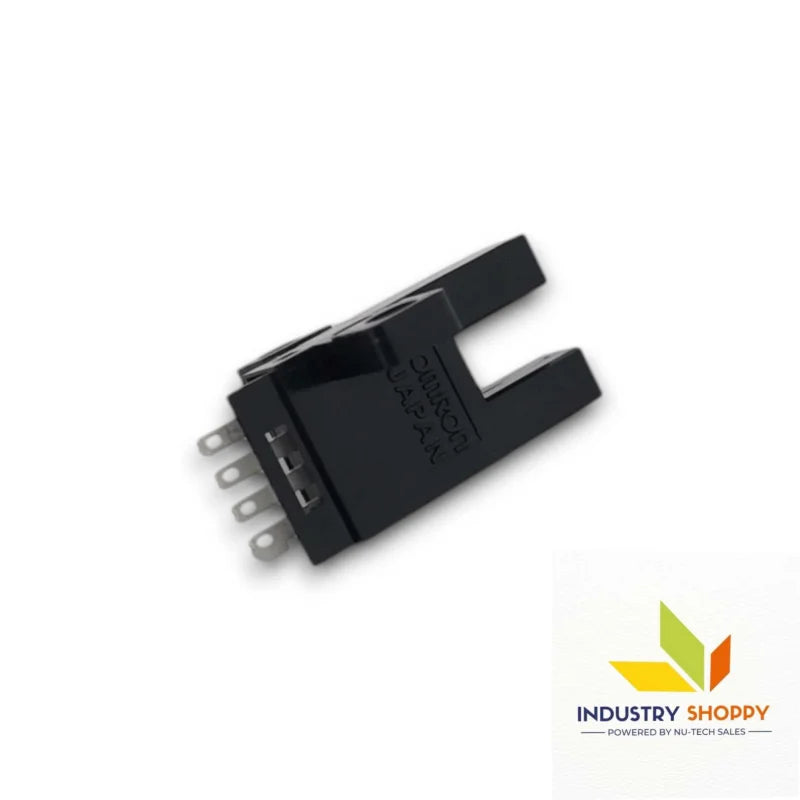

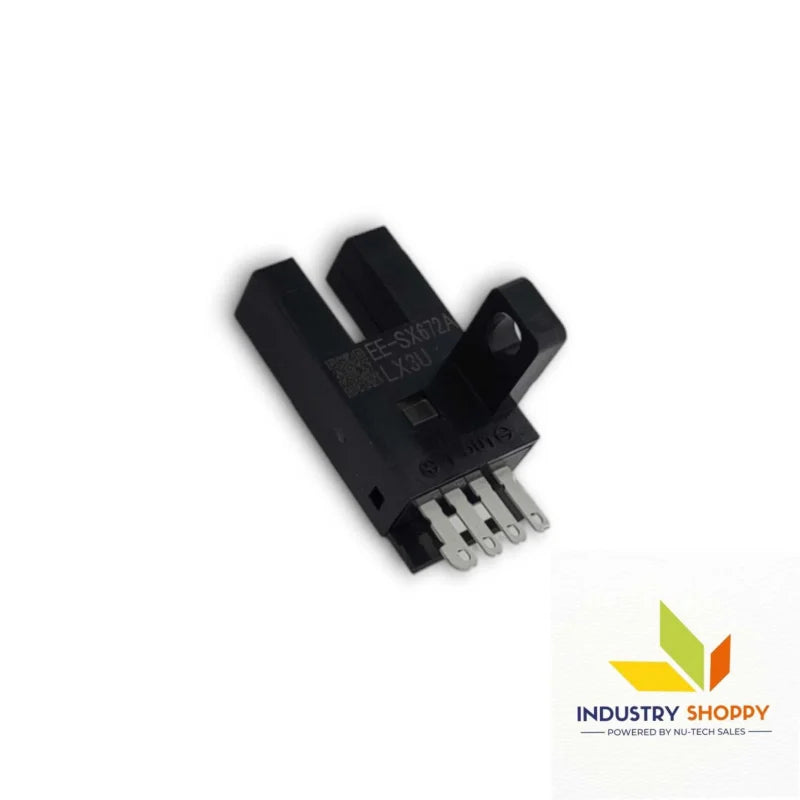

Omron EE-SX672A Photo Micro Sensor

Omron EE-SX672A Photo Micro Sensor

The Omron EE-SX672A Photo Micro Sensor is a grooved type photo microsensor that offers precise detection in demanding applications. Featuring a T-shaped design with a slot center of 7 mm, this sensor operates as a through-beam type sensor with a non-modulated infrared LED light source (peak wavelength: 940 nm) for reliable object detection. It can detect small, opaque objects with a minimum size of 2 x 0.8 mm.

The Omron EE-SX672A Photo Micro Sensor supports both Dark-ON and Light-ON operation modes to accommodate various application needs. It features an NPN open collector output, capable of handling up to 100 mA of load current. The sensor offers short-circuit protection and a response frequency of 1 kHz (with an average of 3 kHz) to ensure quick and accurate detection.

Built for industrial environments, the Omron EE-SX672A Photo Micro Sensor has an IP50 rating, protecting it from dust ingress, while operating in temperatures ranging from -25 to +55°C. With a vibration resistance of up to 100 m/s² and a shock resistance of 500 m/s², this sensor is designed to withstand harsh conditions. It comes with a connector type connection, with the option for direct soldering.

Key features :-

Applications :-

• Automated Material Handling: Ideal for sorting and detecting small objects on production lines or conveyor belts.
• Machine Automation: Can be used to detect objects in automated machinery systems, improving efficiency and precision.
• Robotics: Useful for detecting the position of small objects in robotic arms and other automated robotic applications.
• Packaging: Applied in packaging systems to ensure the proper placement of items or detect missing components.
• Quality Control: Used in quality inspection systems to verify object presence and check for defects.
• Measurement and Detection Systems: Effective for small part detection in measurement applications.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
