Omron EE-SX671A Photo Micro Sensor

Omron EE-SX671A Photo Micro Sensor

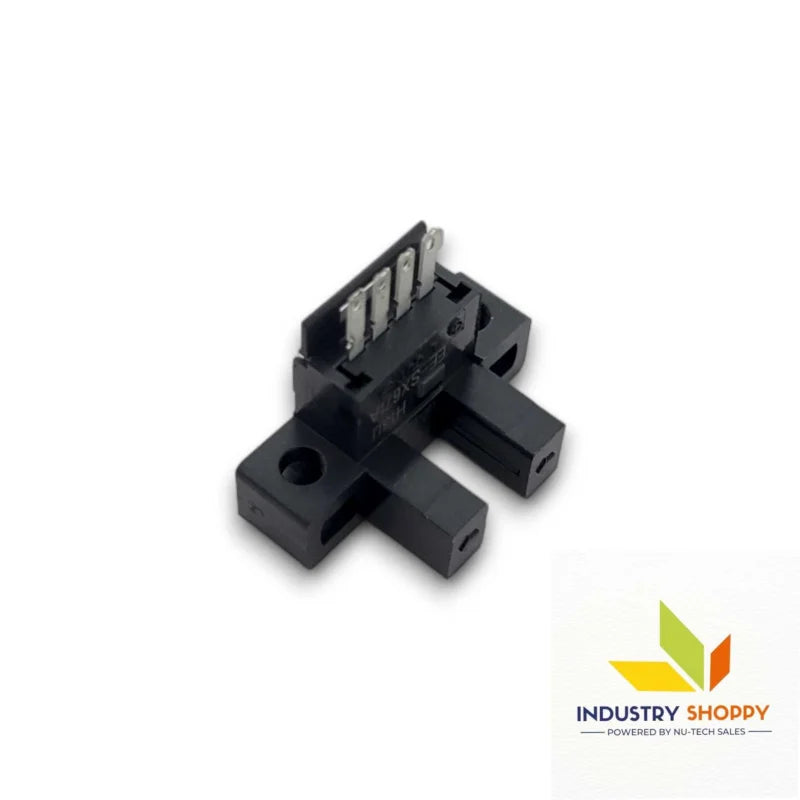

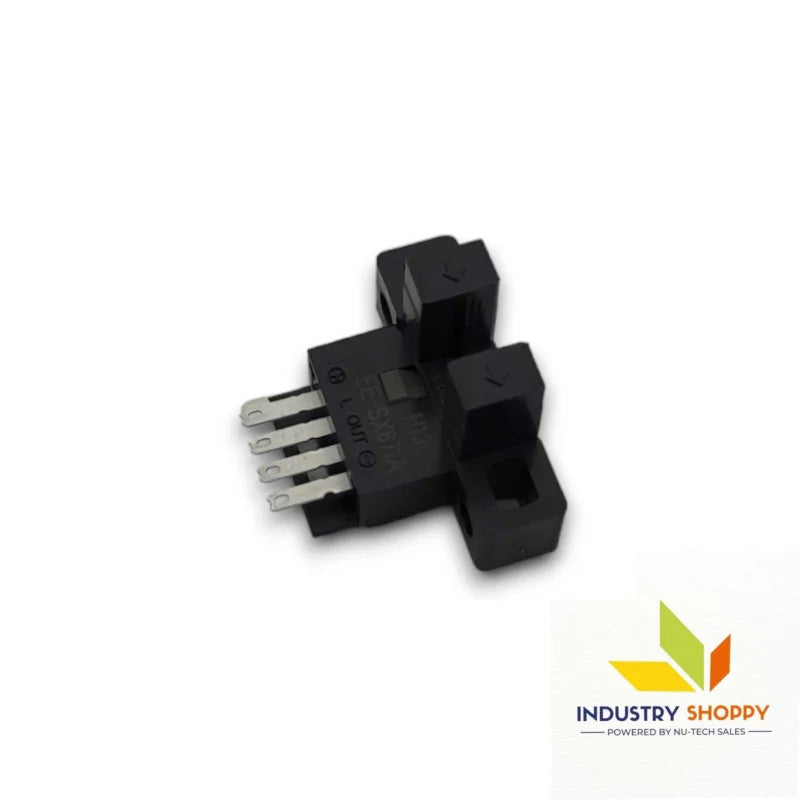

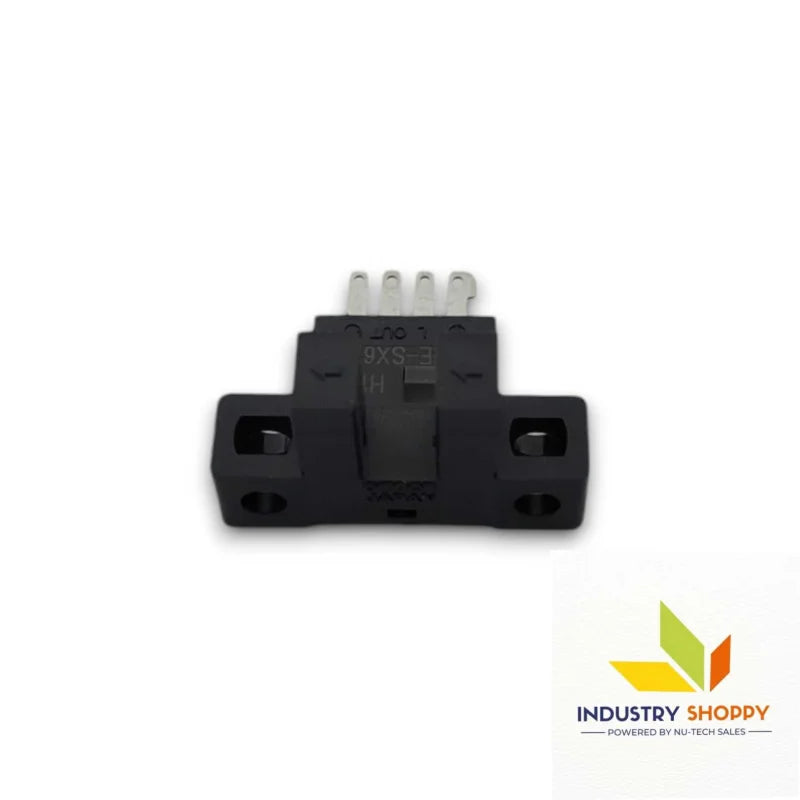

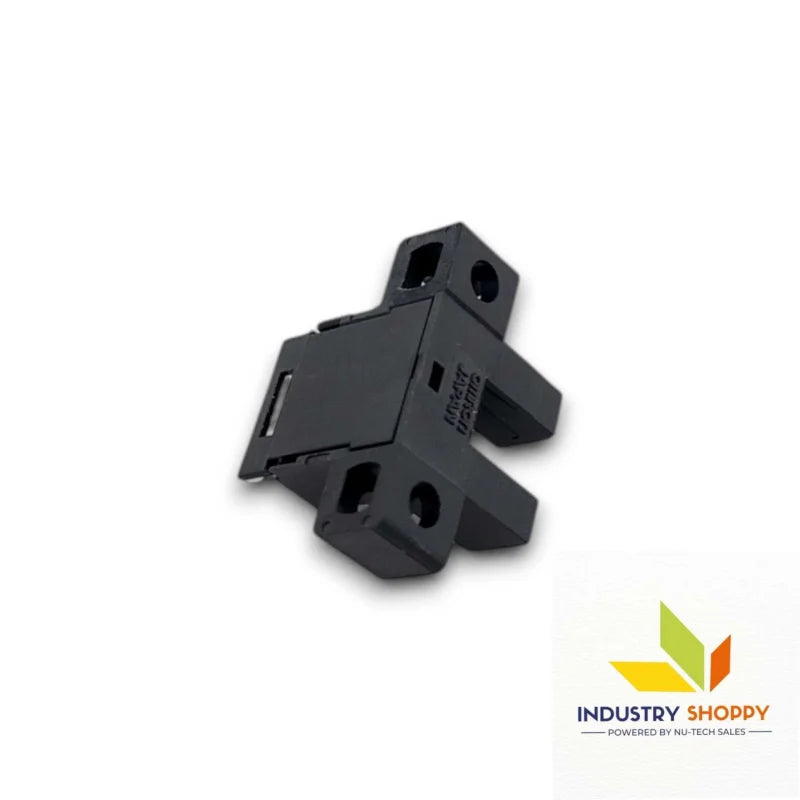

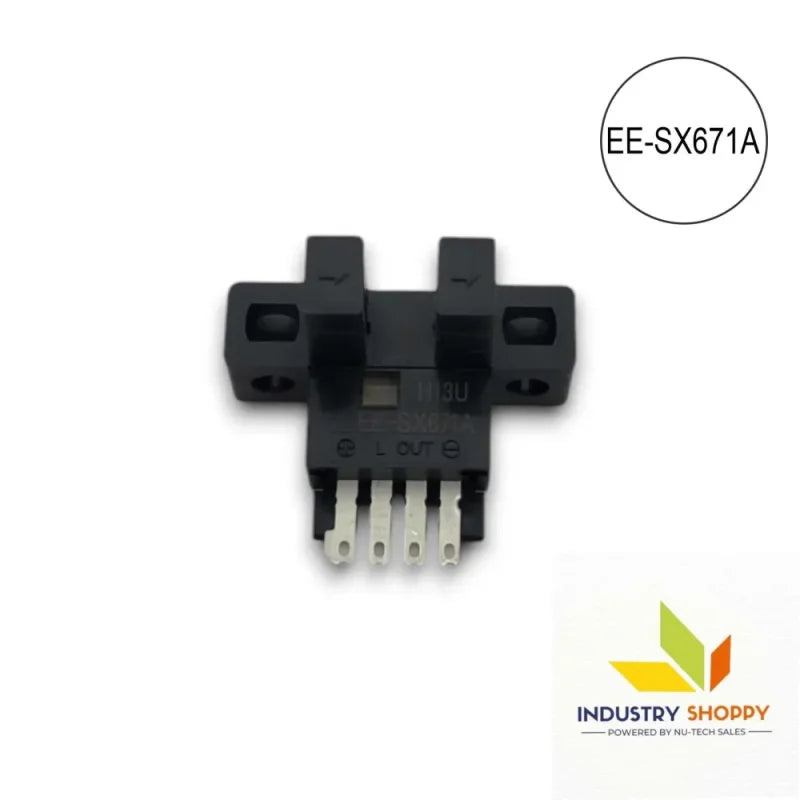

The Omron EE-SX671A Photo Micro Sensor is a grooved type photo microsensor designed for high-precision detection applications. With an L-shaped design, it operates as a through-beam type sensor utilizing a non-modulated infrared LED (peak wavelength 940 nm). This sensor features a slot width of 5 mm and can detect opaque objects as small as 2 x 0.8 mm.

This sensor offers selectable Dark-ON and Light-ON operation modes and comes equipped with an NPN open collector output that can handle up to 100 mA of load current. It is built with short-circuit protection to ensure durability and reliability in various environments.

The Omron EE-SX671A Photo Micro Sensor has an impressive response frequency of 1 kHz (average 3 kHz) to guarantee quick detection. Its IP50 protection rating ensures resistance against dust, and it is capable of operating in temperatures from -25°C to +55°C. The sensor is highly resistant to vibrations (up to 100 m/s²) and shocks (500 m/s²) to withstand demanding industrial environments.

It is available with a connector type connection, and direct soldering is also possible for flexibility in installations.

Key features :-

Applications :-

• Material Handling Automation: Useful for detecting small objects on automated conveyor belts.
• Manufacturing Lines: Helps in quality control and part detection on production lines.
• Robotic Systems: Ideal for detecting objects in robotic arms and automation systems.
• Packaging Industry: Used for verifying product placement and checking for missing components.
• Inspection Systems: Ensures that items are properly positioned or free from defects in inspection setups.
• Measurement Systems: Effective for detecting objects in measurement and sorting systems.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
