Omron EE-SX671-WR Photo Micro Sensor

Omron EE-SX671-WR Photo Micro Sensor

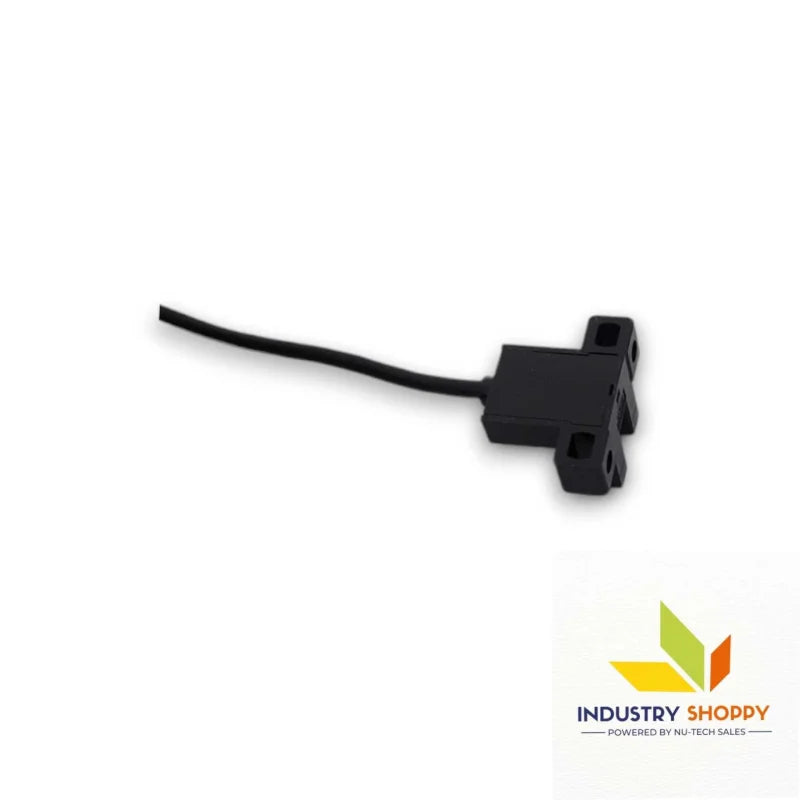

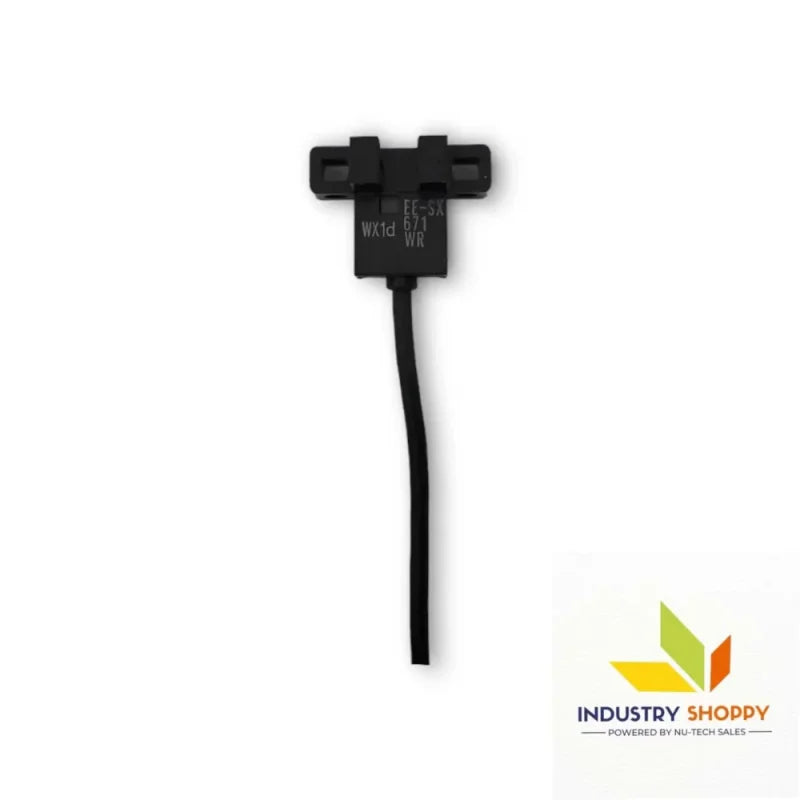

The Omron EE-SX671-WR is a grooved-type photo microsensor with an L-shaped design. It utilizes a through-beam type sensing method and features a non-modulated infrared LED (peak wavelength 940 nm) for detection. The sensor has a slot width of 5 mm and can detect objects as small as 2 x 0.8 mm.

This model offers selectable Dark-ON and Light-ON operation modes, making it adaptable for various industrial applications. It has an NPN open collector output, with the ability to handle up to 100 mA of load current, and comes with built-in short-circuit protection for enhanced durability.

The EE-SX671-WR operates with a response frequency of 1 kHz (with an average of 3 kHz), ensuring fast and precise object detection. It is designed with an IP50 protection rating, making it resistant to dust and suitable for use in environments with challenging conditions. The sensor can operate in temperatures ranging from -25°C to +55°C and is highly resistant to vibration (up to 100 m/s²) and shocks (500 m/s²).

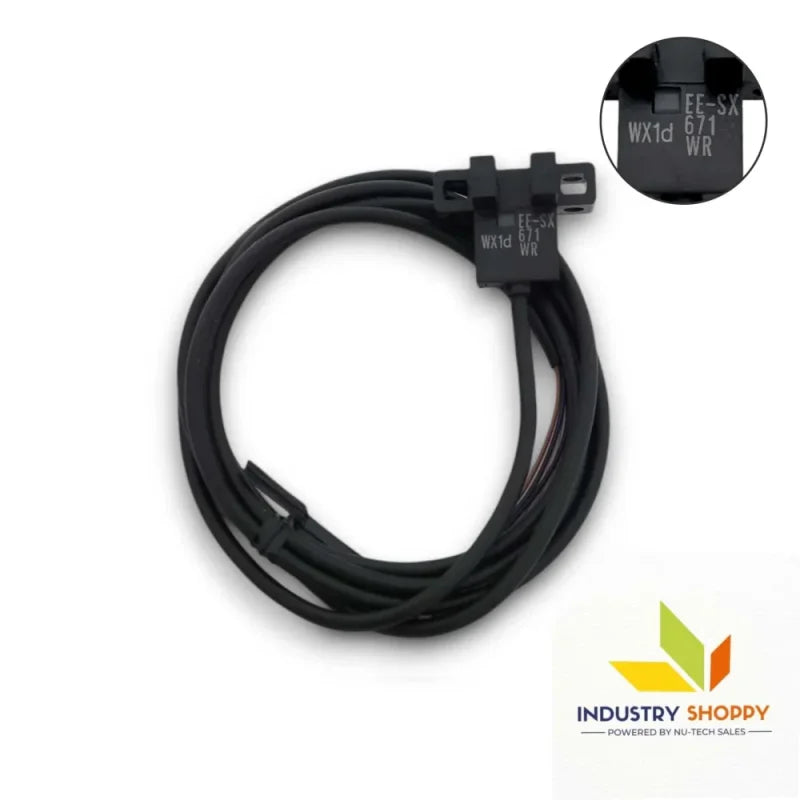

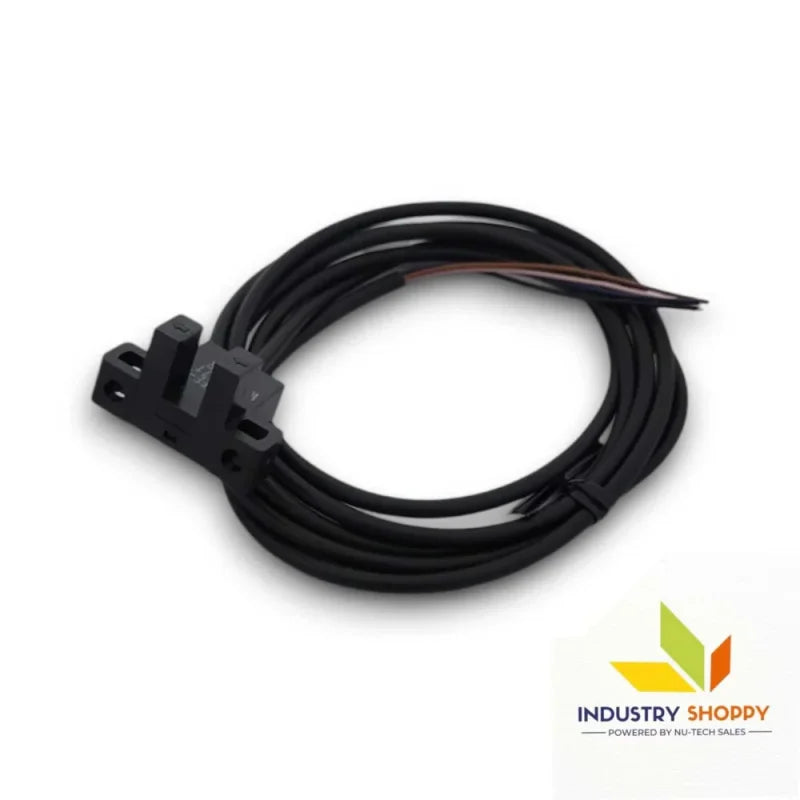

This model is pre-wired with a 1-meter cable, providing convenience and flexibility for installation in various systems.

Key features :-

Applications :-

• Automation Systems: Ideal for detecting small objects and materials in automated manufacturing lines.
• Industrial Robots: Used for object detection in robotic arms and automated assembly systems.
• Packaging Equipment: Helps detect objects in packaging lines, ensuring proper placement and operation.
• Inspection Systems: Suitable for high-precision inspection of components, checking for defects or misalignment.
• Material Handling: Efficient for detecting objects on conveyors and ensuring proper material flow in warehouses or factories.
• Sorting Systems: Used for sorting products based on size or shape in high-speed sorting systems.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
