Omron E3FA-TP11 2M Photoelectric Sensor

Omron E3FA-TP11 2M Photoelectric Sensor

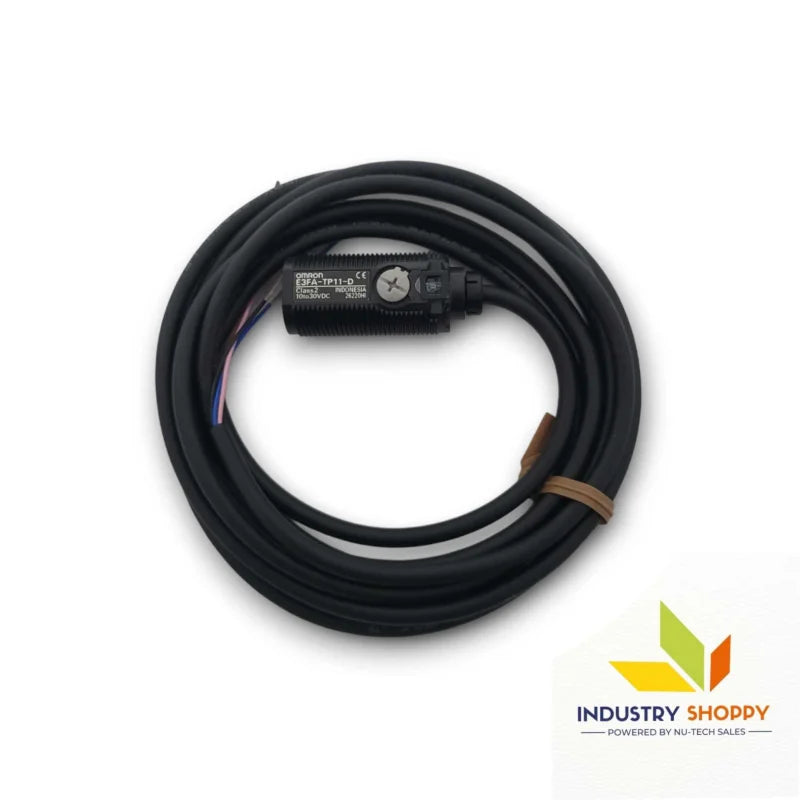

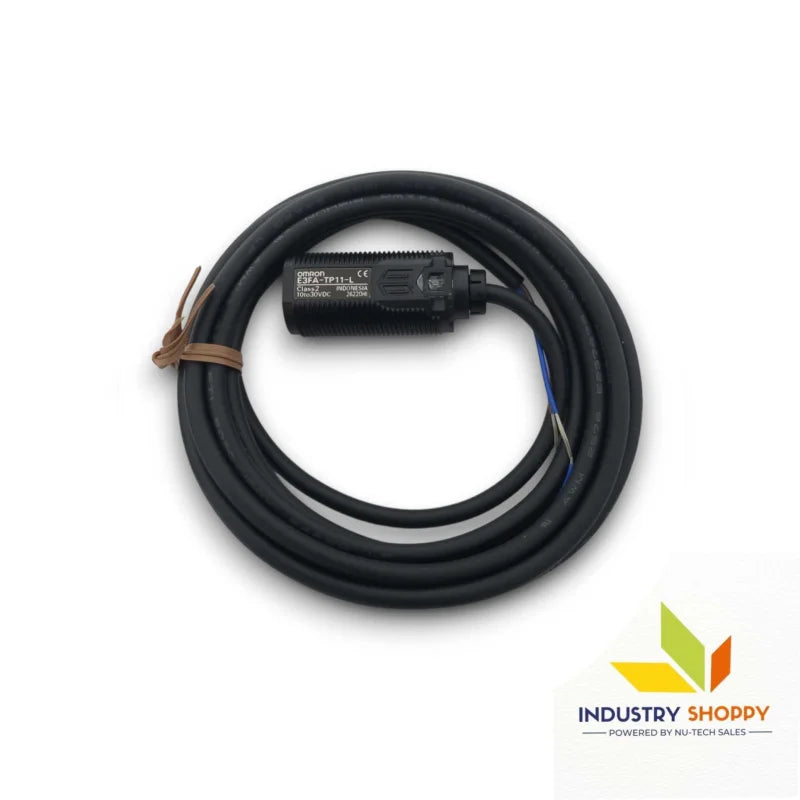

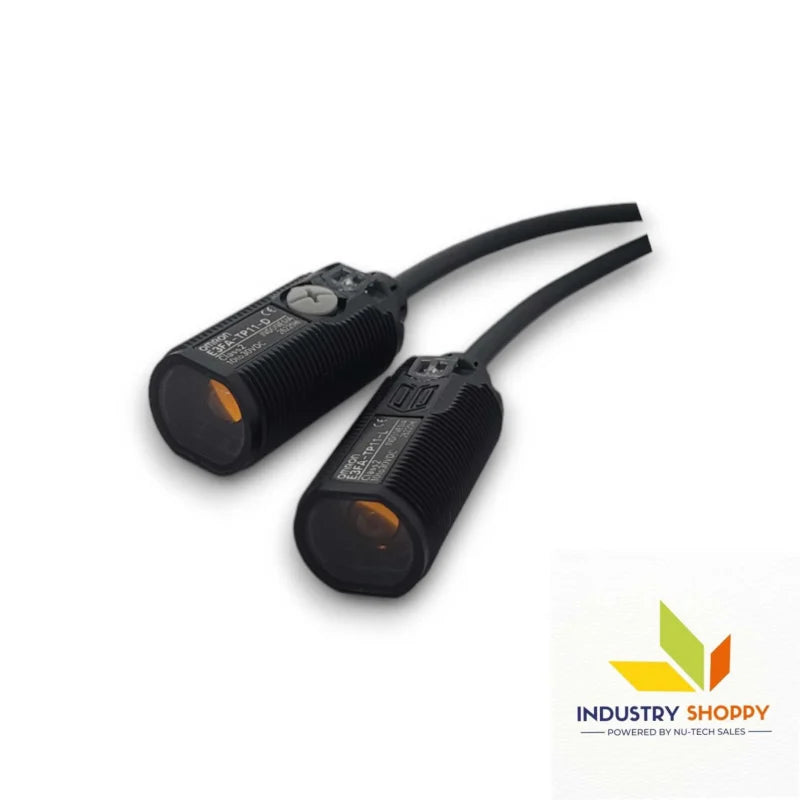

The Omron E3FA-TP11 Photoelectric Sensor is a cylindrical photoelectric sensor from the E3FA series, designed for reliable object detection in industrial applications. Using a through-beam sensing method, this sensor has an impressive sensing range of up to 20 meters, making it suitable for a wide variety of settings, including large-scale production lines and warehouses. The red LED light source (wavelength: 624 nm) ensures reliable detection of opaque objects as small as 7 mm in diameter.

The Omron E3FA-TP11 Photoelectric Sensor offers both Light-ON and Dark-ON modes, allowing it to be tailored to different operational needs. It operates with a PNP open collector output with a maximum current of 100 mA and a maximum applied voltage of 30 VDC. The sensor is protected by built-in circuits for output short-circuit protection, reverse polarity protection, and power supply reverse polarity protection, ensuring reliability and durability.

With a response time of 0.5 ms and single-turn sensitivity adjustment, it provides fast and precise detection. The ambient temperature range is -25°C to 55°C for operation, and it can be stored safely between -40°C to 70°C, making it suitable for use in harsh environments. The sensor is also resistant to ambient illuminance, handling up to 10,000 lx from sunlight and 3,000 lx from incandescent lamps.

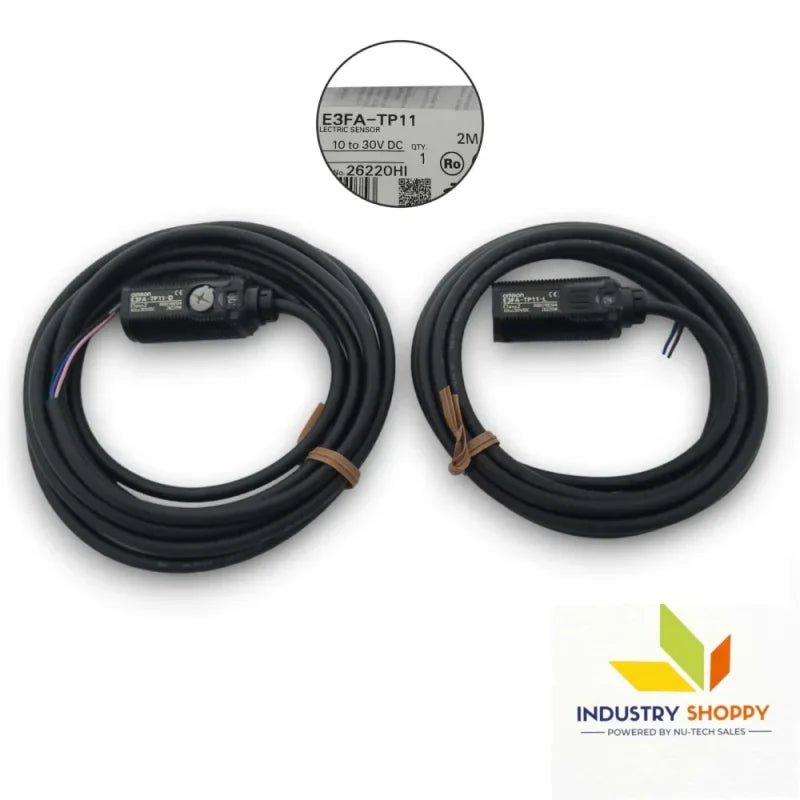

The IP67/IP69K protection ratings ensure that the sensor is highly resistant to dust, water, and other environmental elements, making it suitable for outdoor and industrial environments. The pre-wired model comes with a 2-meter cable for easy integration.

Applications :-

• Conveyor Systems: Ideal for detecting and tracking items moving along conveyors, ensuring efficient sorting and processing.
• Material Handling: Effective in monitoring materials and products in automated material handling systems.
• Industrial Automation: Suitable for use in robotic applications and manufacturing processes where precise object detection is needed.
• Packaging and Sorting: Used in packaging lines for accurate detection of objects to be packaged or sorted based on size or shape.
• Outdoor Applications: With high ambient light tolerance, it's suitable for outdoor systems exposed to direct sunlight.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
