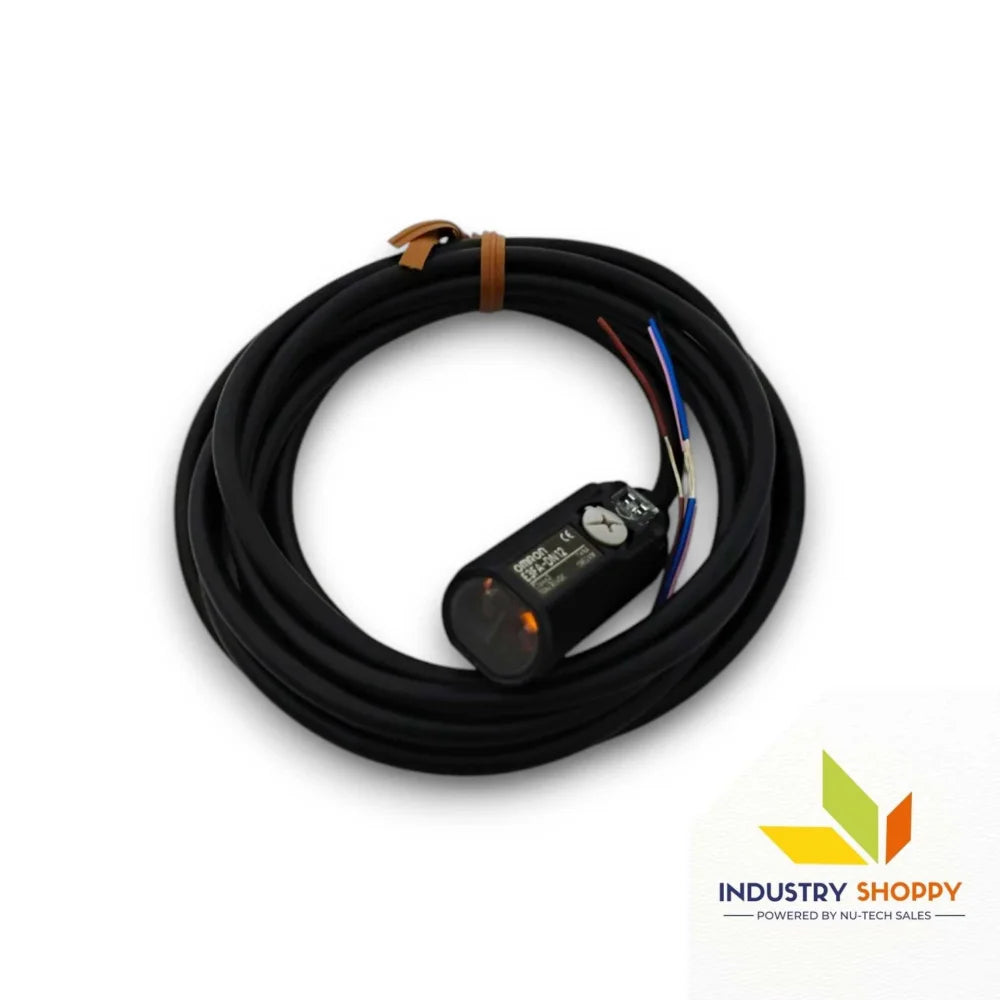

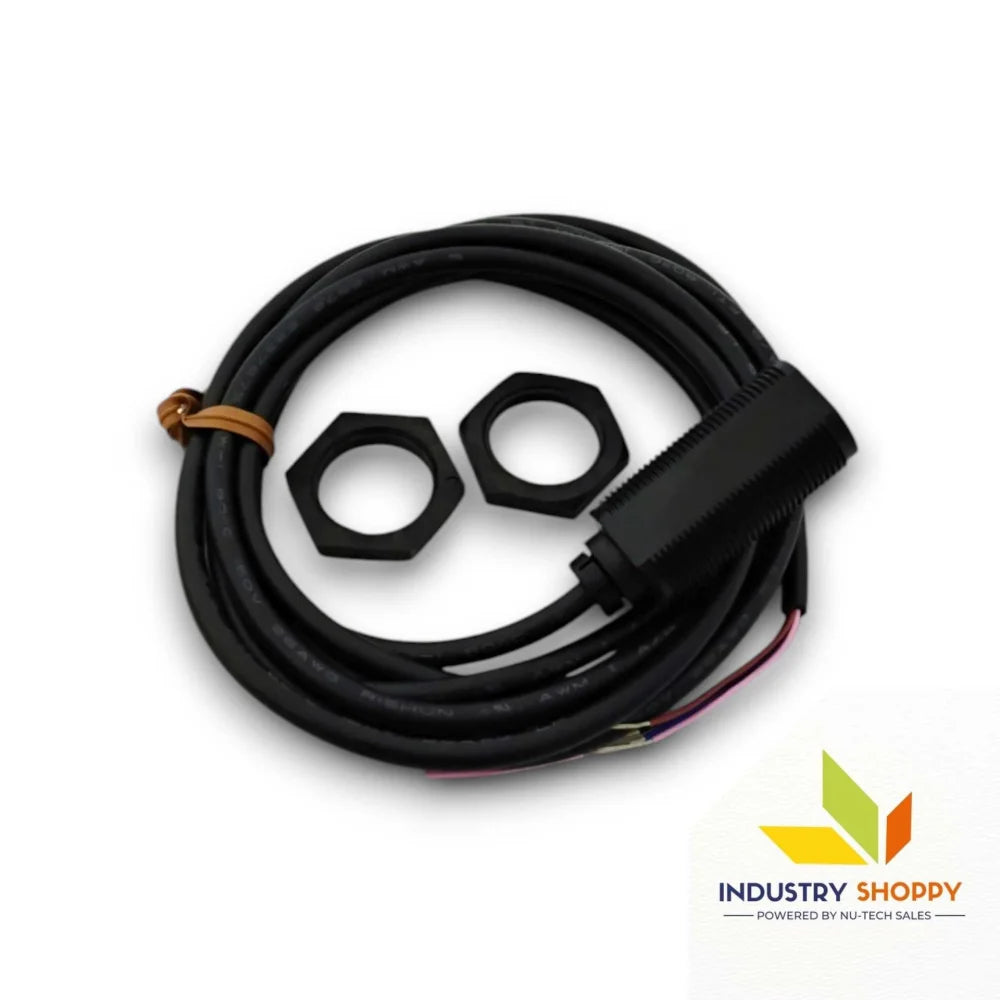

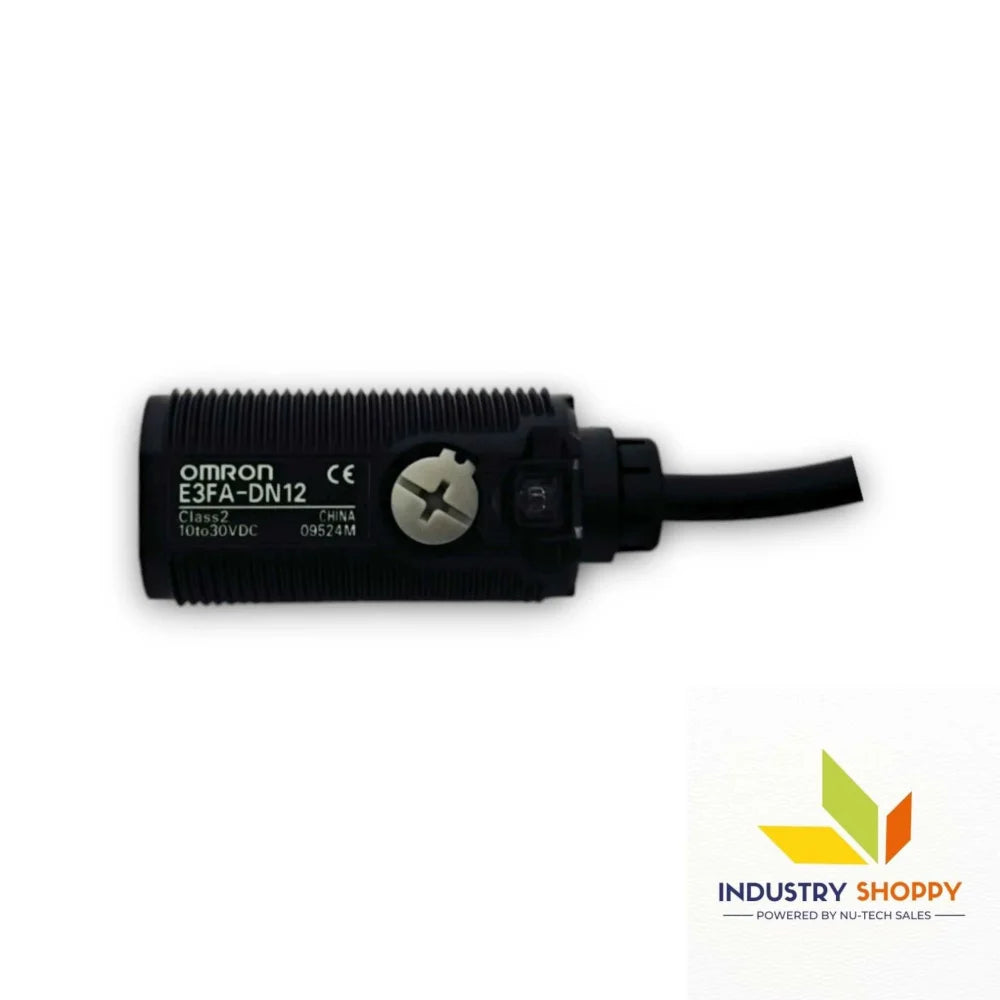

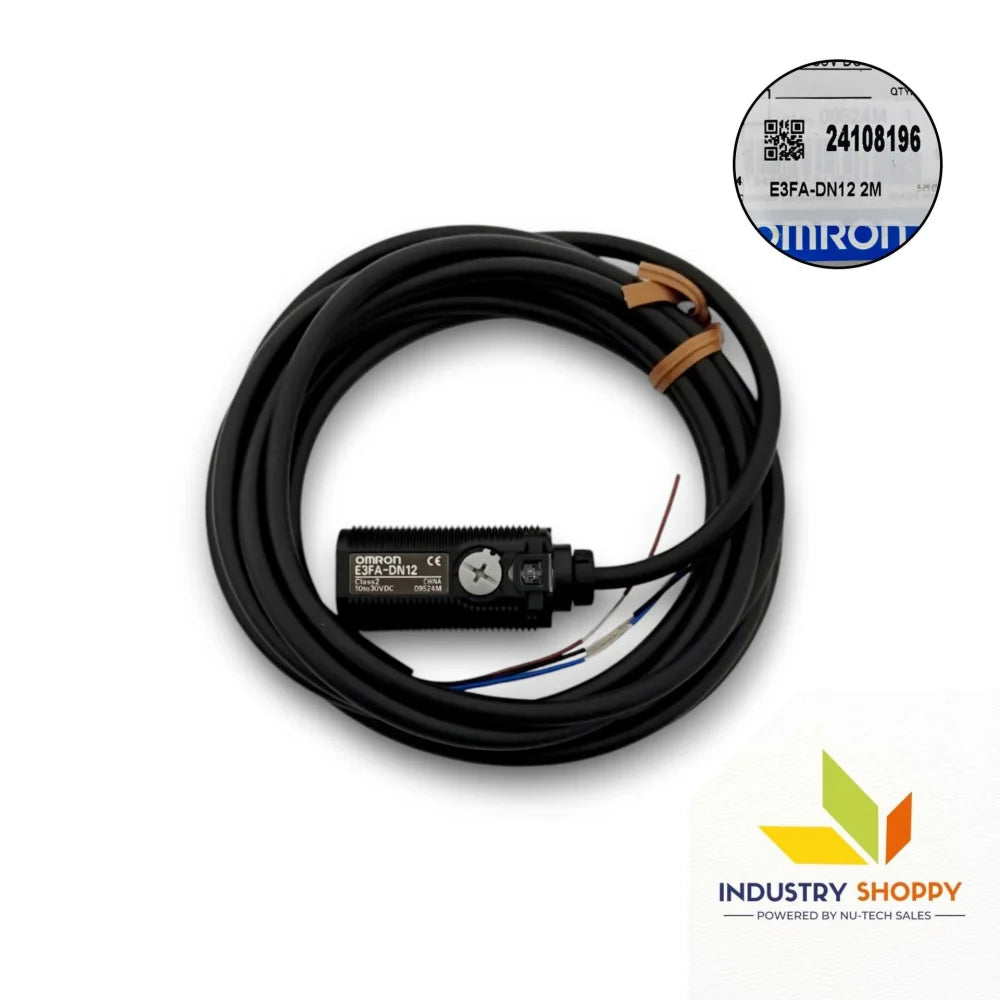

Omron E3FA-DN12 2M Photoelectric Sensor

Omron E3FA-DN12 2M Photoelectric Sensor

The Omron E3FA-DN12 2M Photoelectric Sensor is a compact and highly reliable cylindrical sensor designed for general industrial automation. It utilizes a diffuse-reflective sensing method with a sensing distance of up to 300 mm, optimized for detecting white objects like 300 x 300 mm paper. With a red LED light source and a defined spot size of 40 x 50 mm, it delivers accurate and stable detection performance.

Engineered for flexibility, this sensor offers Light-ON/Dark-ON mode selection and single-turn sensitivity adjustment for easy setup. It features an NPN open-collector output rated at 30 VDC and 100 mA, with protective circuits for short-circuit and polarity reversal protection. The sensor reacts quickly with a 0.5 ms maximum response time, ensuring efficiency in high-speed environments.

With a rugged ABS housing, PMMA lens, and IP67/IP69K enclosure ratings, it withstands harsh industrial conditions. Its wide ambient operating range from –25 °C to +55 °C and excellent resistance to vibration and shock make it a dependable choice. A 2-meter pre-wired cable allows simple integration into existing systems.

Key features :-

Applications :-

• Packaging Machines: Ideal for detecting various packaging materials, ensuring accurate placement and process control during high-speed operations.
• Assembly Lines: Useful for object detection and position verification in automated industrial assembly systems.
• Conveyor Systems: Monitors product presence or absence, helping manage flow and avoid jams on conveyors.
• Robotics: Supports automation by enabling object recognition and feedback for robotic pick-and-place tasks.
• Food Processing Equipment: Operates reliably in washdown conditions, making it suitable for hygienic environments with strict cleaning standards.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
