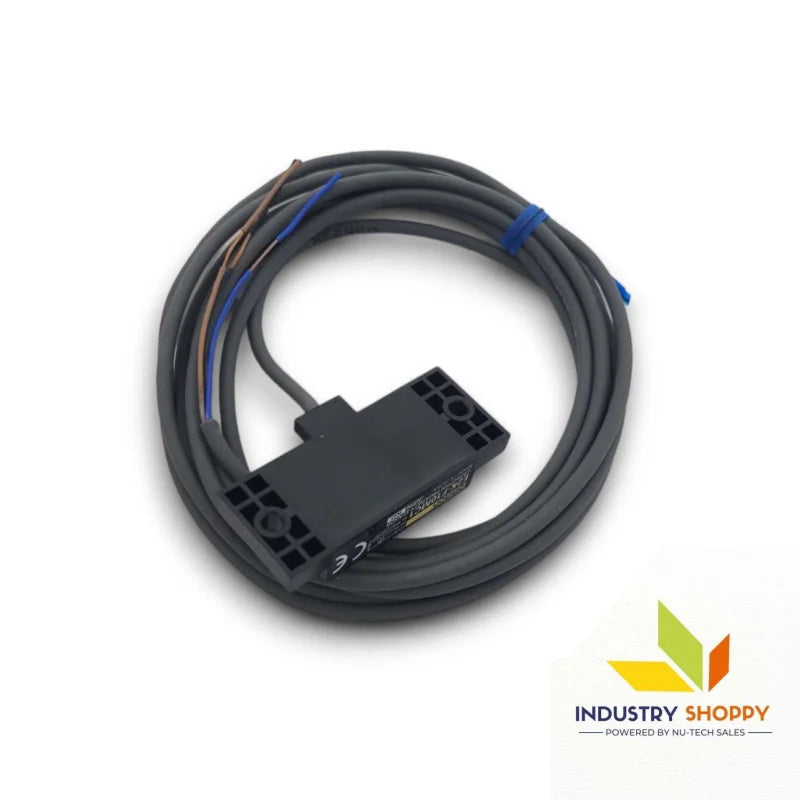

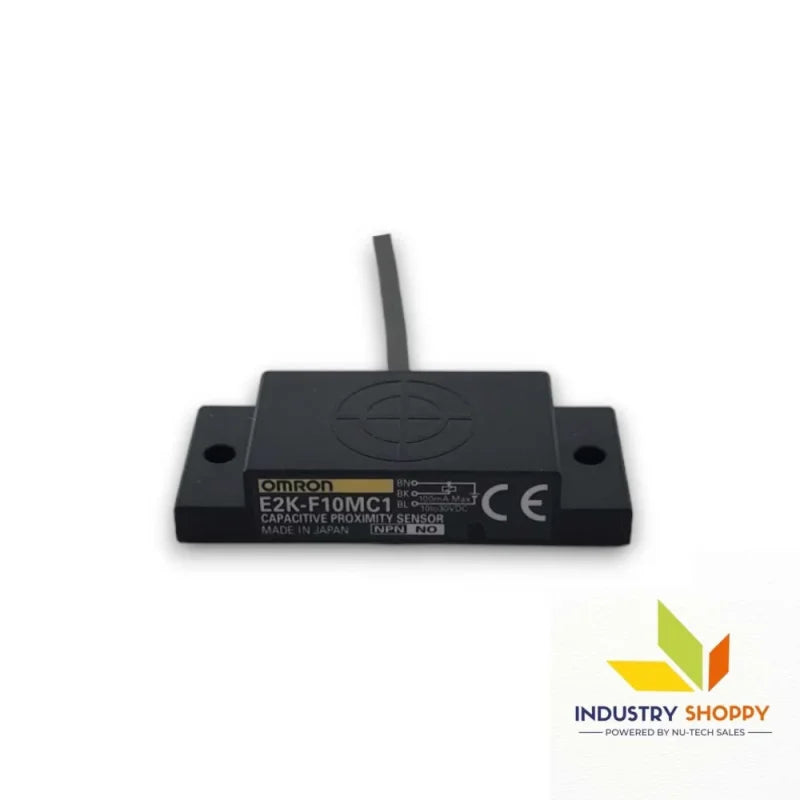

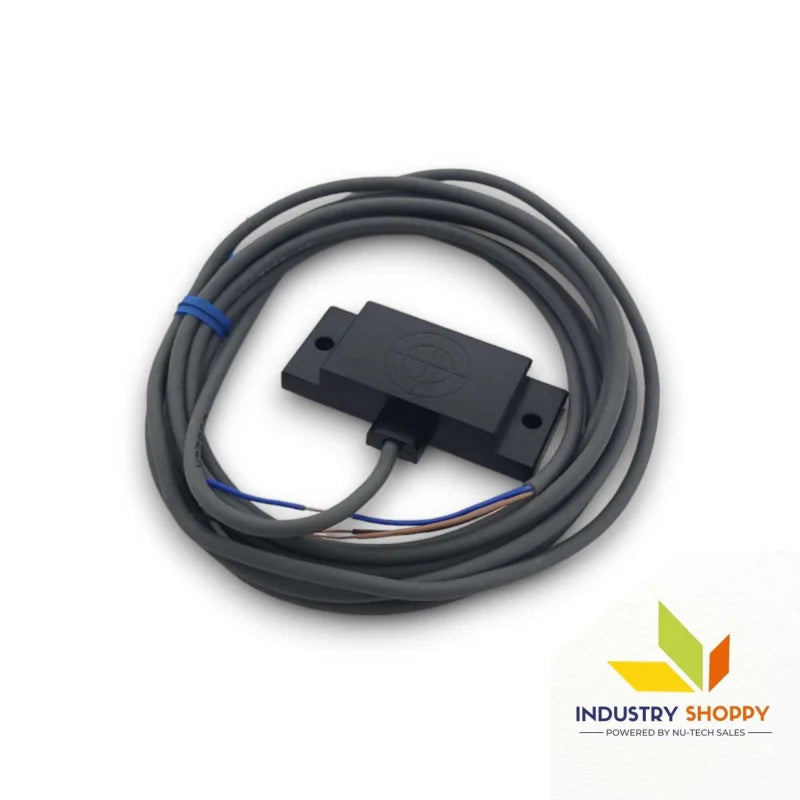

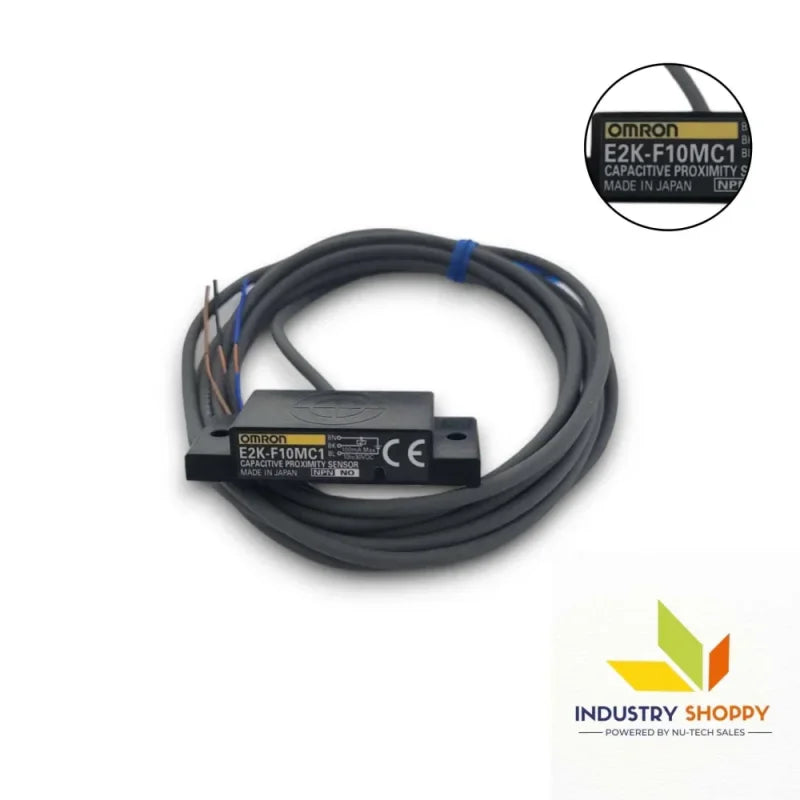

Omron E2K-F10MC1-2M Proximity Switch

Omron E2K-F10MC1-2M Proximity Switch

The Omron E2K-F10MC1 is an advanced capacitive proximity sensor featuring a square type and unshielded design. With a sensing distance of 10 mm, it is capable of detecting a wide range of materials, including conductors and dielectrics, making it versatile for various industrial applications. The detection indicator (red LED) provides clear visibility for operational status, ensuring easy monitoring during use.

This sensor operates with a DC three-wire configuration, with a power supply voltage range of 12 to 24 VDC, and a current consumption of 10 mA max. at 24 VDC, ensuring energy-efficient operation. The NPN open collector output supports up to 100 mA at 30 VDC, with a residual voltage of just 1.5 V max., even with a 2-meter cable length. The sensor is equipped with reverse polarity protection and a surge suppressor for enhanced durability and reliability.

Operating in a temperature range of -10°C to 55°C, the E2K-F10MC1 is built to withstand demanding environments. It is protected to IP64 standards, offering protection against dust and splashes, making it suitable for various industrial and manufacturing applications. The sensitivity setting is easily adjustable using an eleven-turn adjuster, allowing for precise control over the detection range.

Key features :-

Applications :-

• Automated Assembly Lines: Ideal for detecting non-metallic components or packaging materials on automated lines, enhancing process efficiency and reducing errors.
• Material Detection: Perfect for detecting various materials, both conductive and non-conductive, in industrial settings such as sorting and material handling.
• Packaging Equipment: Can be used for detecting the presence or absence of packaging materials, contributing to the smooth operation of automated packaging systems.
• Level Detection in Tanks: Suitable for use in level detection applications where different types of materials need to be monitored within tanks or containers.
• Quality Control: Helps in monitoring the integrity of products during production, ensuring defects or foreign material presence is detected quickly and reliably.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
