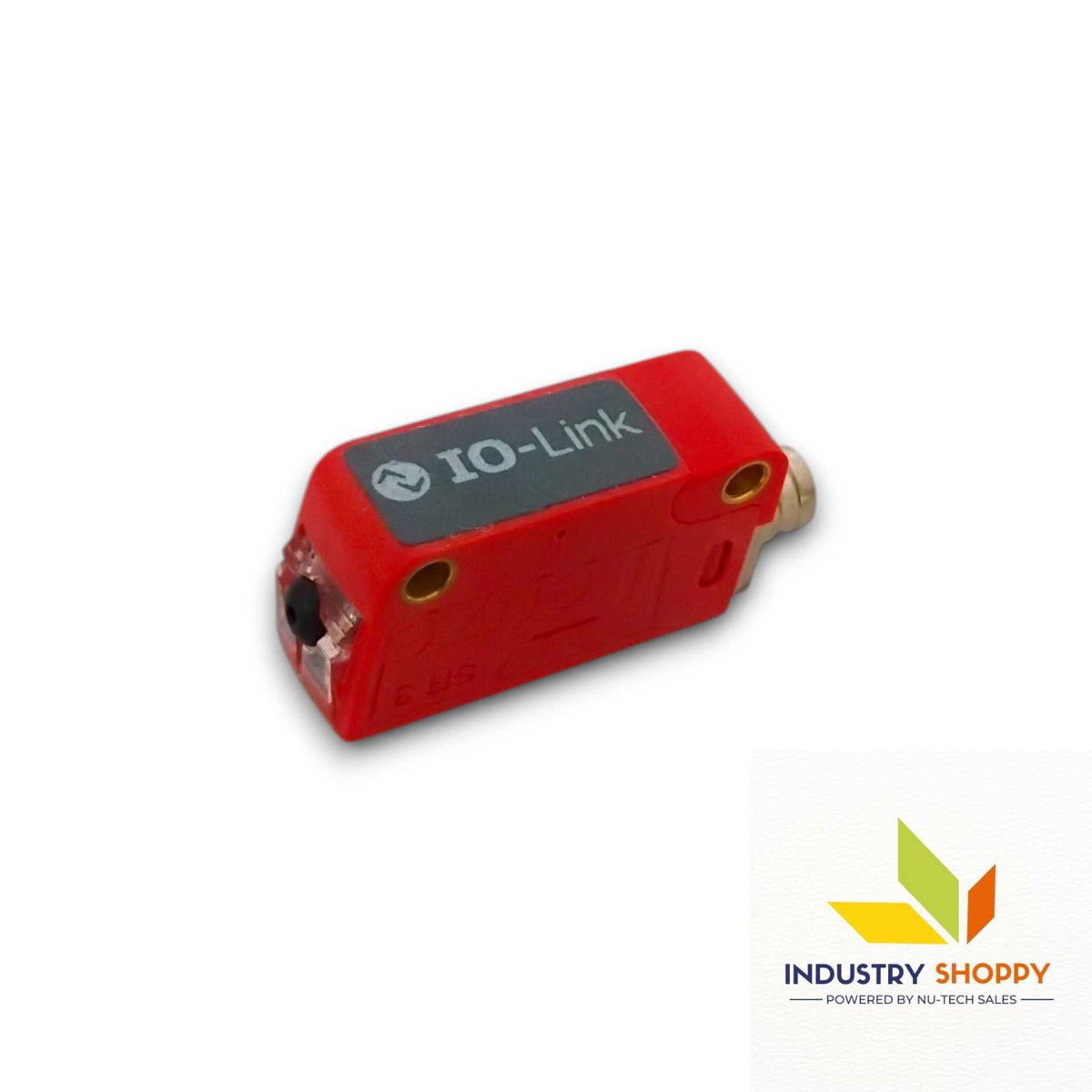

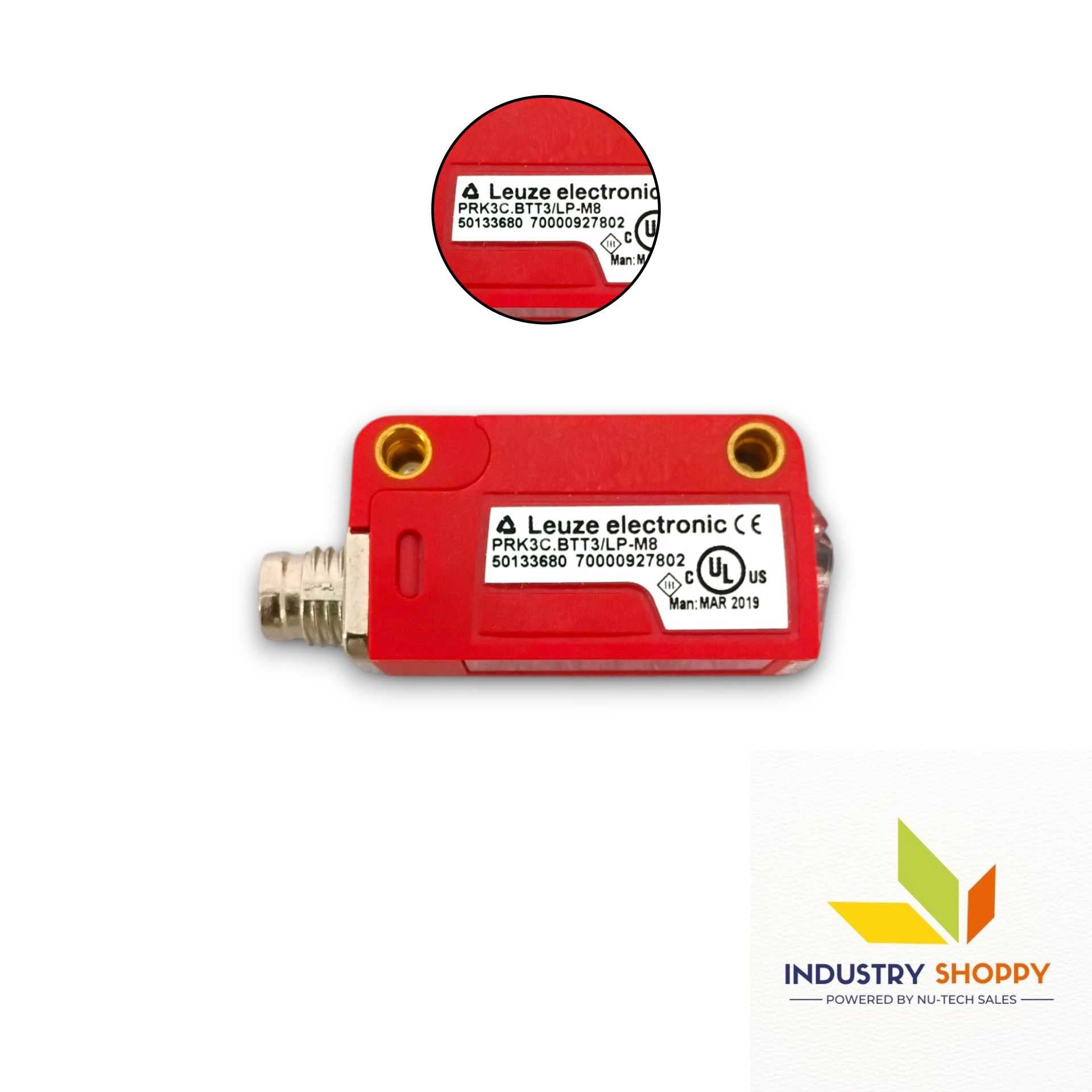

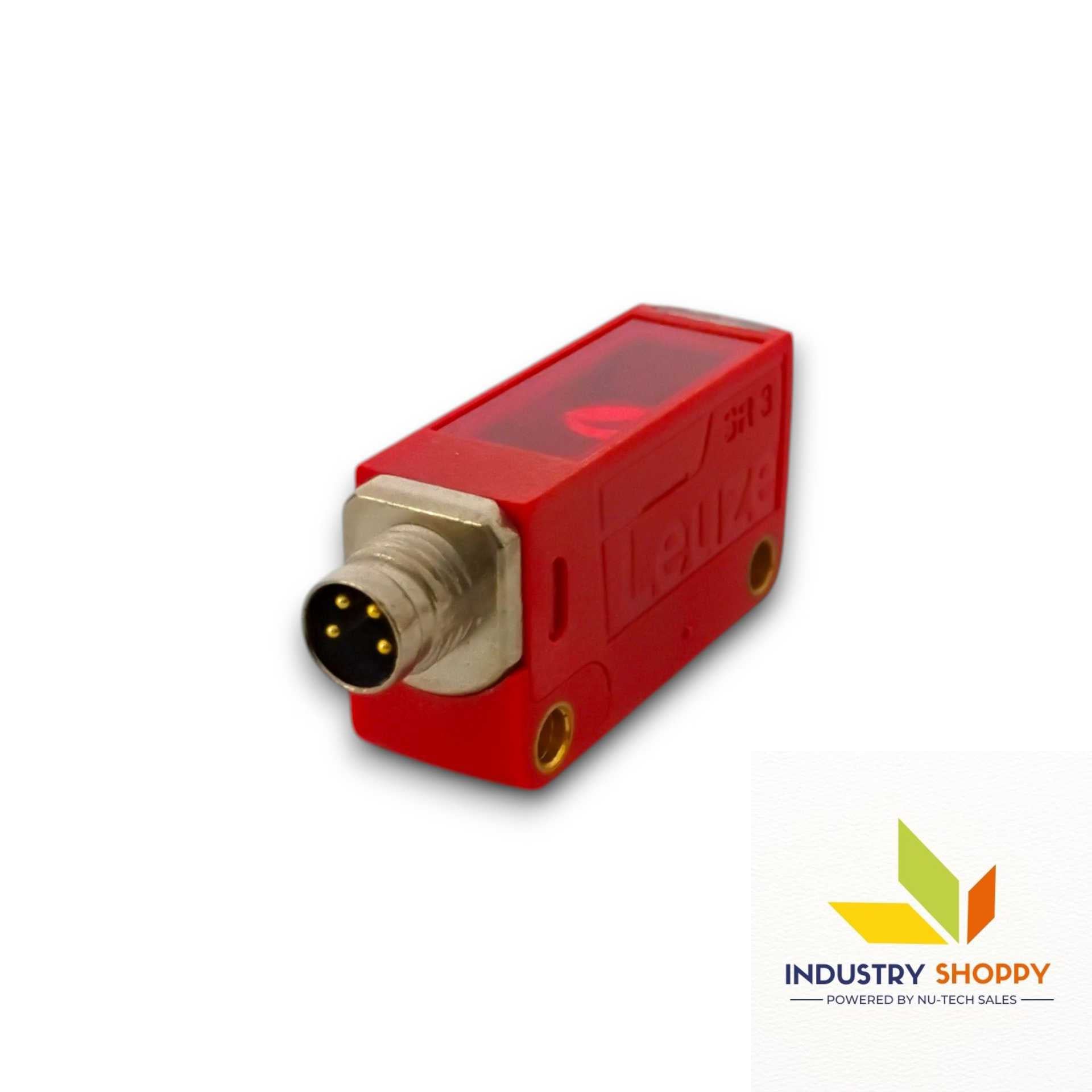

Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor
Leuze

Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor

Product SKU: NTSSEN00851
Available:
Only 1 item in stock
1 item in stock
In stock
Pre-order
Out of stock
  • Brand
:  Leuze
  • Supply Voltage (UB)
:  10 ... 30 V, DC, Incl. residual ripple
  • Part Number
:  50133680
  • Type
:  Photoelectric Sensor
  • Open-circuit current
:  0 ... 15 mA
  • Switching element
:  Transistor, PNP


Note :- Custom duty and local tax should be pay by buyer only.

$220.00
$350.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor

The Leuze PRK3C.BTT3/LP-M8 Photoelectric Sensor (50133680) from Leuze electronic is a compact and advanced reflection sensor with autocollimation, specially designed for reliable detection of highly transparent bottles and films. It features a red LED (635 nm) and delivers precise sensing with a range up to 3 meters and 3.6 meters typical range using a reflector.

Equipped with IO-Link interface and push-pull outputs, it supports both PNP and NPN switching modes, offering high flexibility in automation systems. With a fast 0.33 ms response time and 1500 Hz switching frequency, it ensures accurate detection in high-speed applications.

The rugged PC-ABS housing with IP67/IP69K protection ensures durability in harsh environments. It teaches button enables easy sensitivity adjustment, while the tracking function improves detection consistency for transparent materials in dynamic processes.


Applications

• Detection of transparent bottles in conveyor systems

• Transparent film detection in packaging lines

• High-speed sorting and inspection systems

• Industrial automation requiring precise sensing


Technical Precautions

• Ensure proper reflector alignment for transparent object detection

• Perform teach-in for optimal sensitivity settings

• Keep lens clean from dust, oil, or moisture

• Operate within specified voltage and environmental limits


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberPRK3C.BTT3/LP-M8
Part Number50133680

Series

3C
Operating principleReflection principle
ApplicationDetection of highly transparent bottles, Detection of transparent films

Special version

Autocollimation, Tracking function

Operating range

0 ... 3 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit0 ... 3.6 m (typical operating range), With reflector TK(S) 100x100
Light sourceLED, Red
Wavelength635 nm
Transmitted-signal shapePulsed
LED groupExempt group (in acc. with EN 62471)

Supply voltage UB

10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 15 mA

Number of digital switching outputs

2 Piece(s)

Type

Digital switching output

Switching element

Transistor, Push-pull
Switching principleIO-Link / light switching (PNP)/dark switching (NPN)

Switching element

Transistor, PNP
Switching principleDark switching

Switching frequency

1,500 Hz
Response time0.33 ms
Readiness delay300 ms
Response jitter110 µs

Type

IO-Link

COM mode

COM2
Min. cycle timeCOM2 = 2.3 ms
Frame type2.5
SpecificationV1.1
SIO-mode supportYes

Number of connections

1 Piece(s)

Function

Signal IN, Signal OUT, Voltage supply
Type of connectionConnector
Thread sizeM8
TypeMale
MaterialMetal
No. of pins4 -pin

Dimension (W x H x L)

11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic / PMMA
Housing colorRed
Type of fasteningTwo M3 threaded sleeves, Via optional mounting device
Compatibility of materialsECOLAB

Type of display

LED
Number of LEDs2 Piece(s)
Operational controlsTeach button
Function of the operational controlSensitivity adjustment

Ambient temperature, operation

-10 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

Degree of protection

IP 67

IP 69K
Protection classIII
