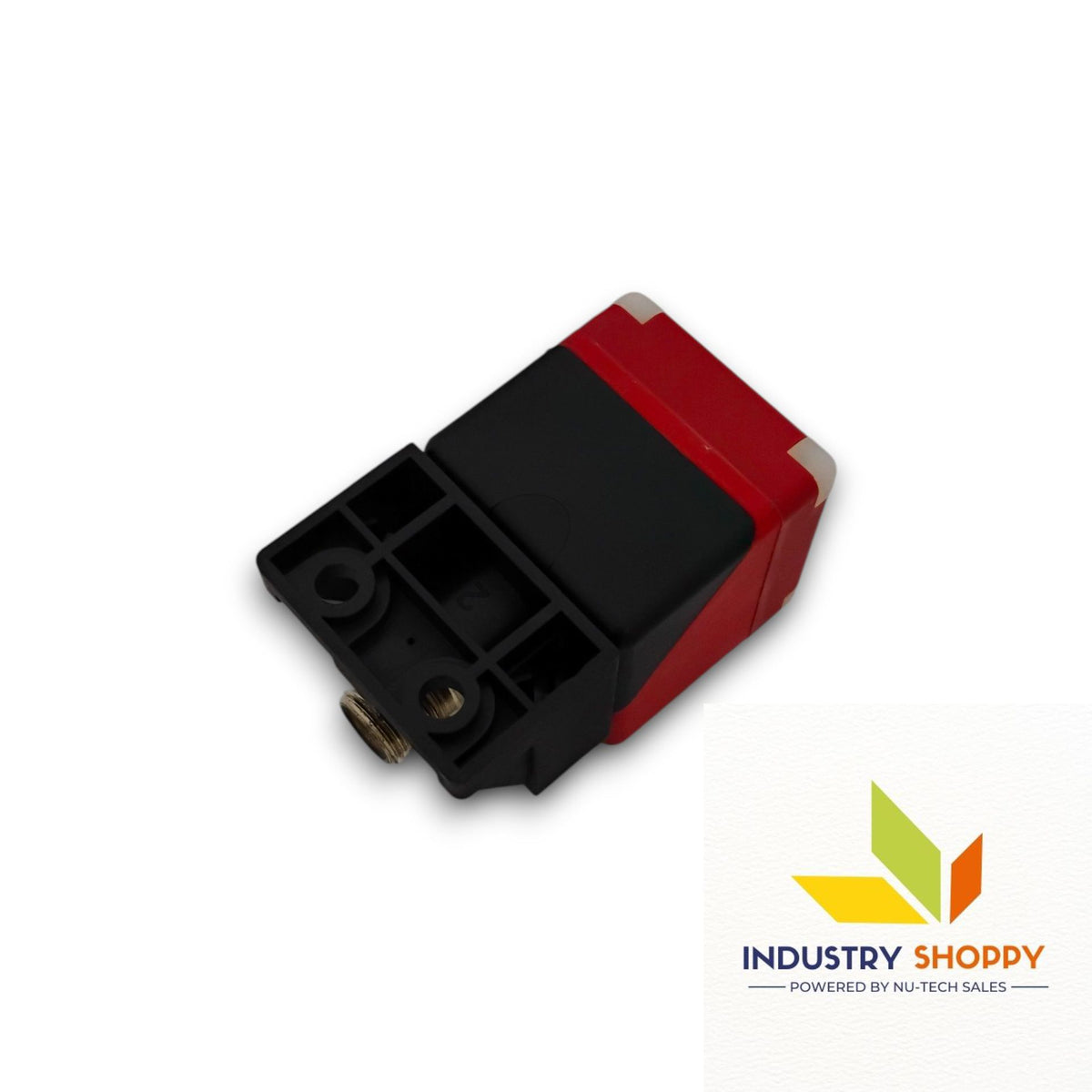

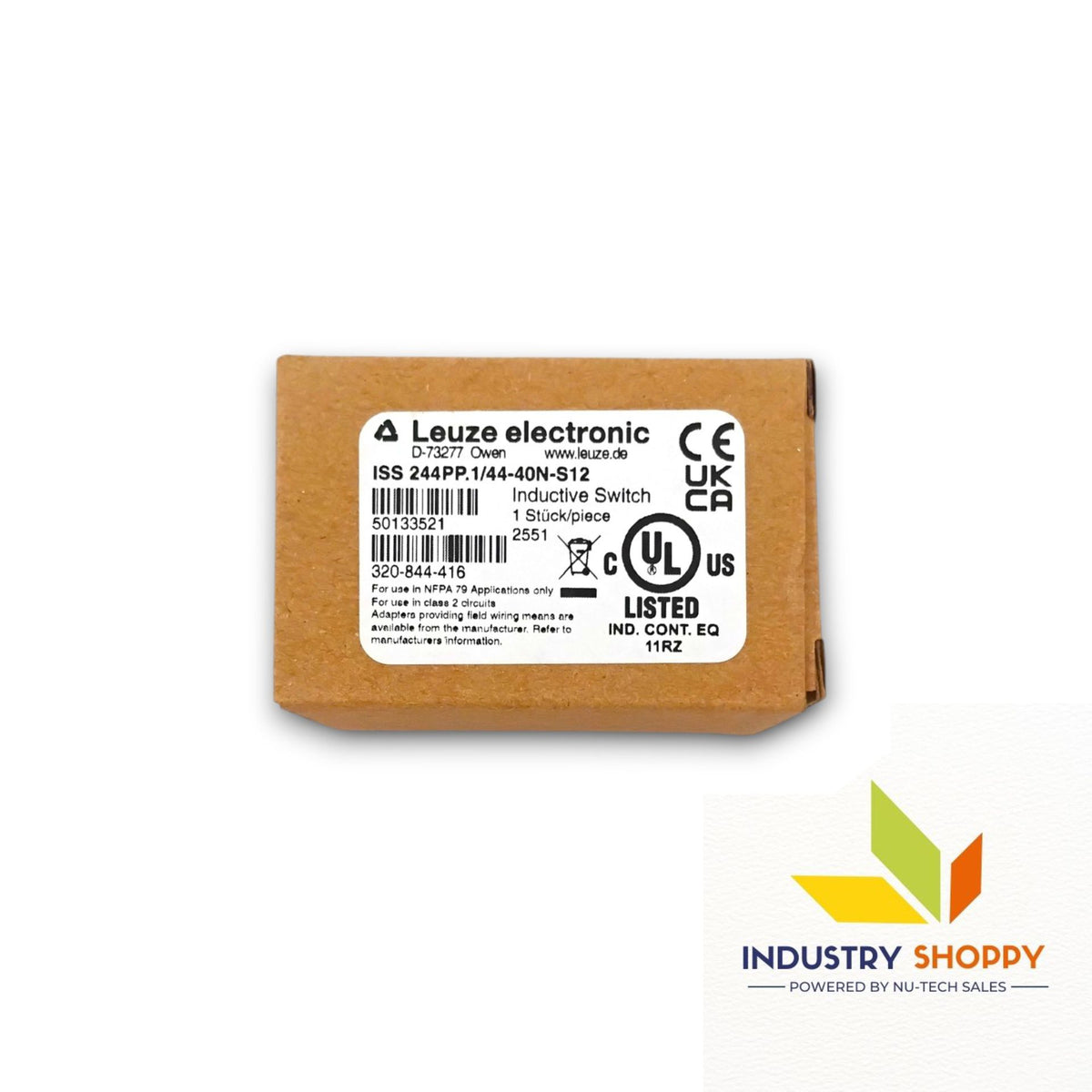

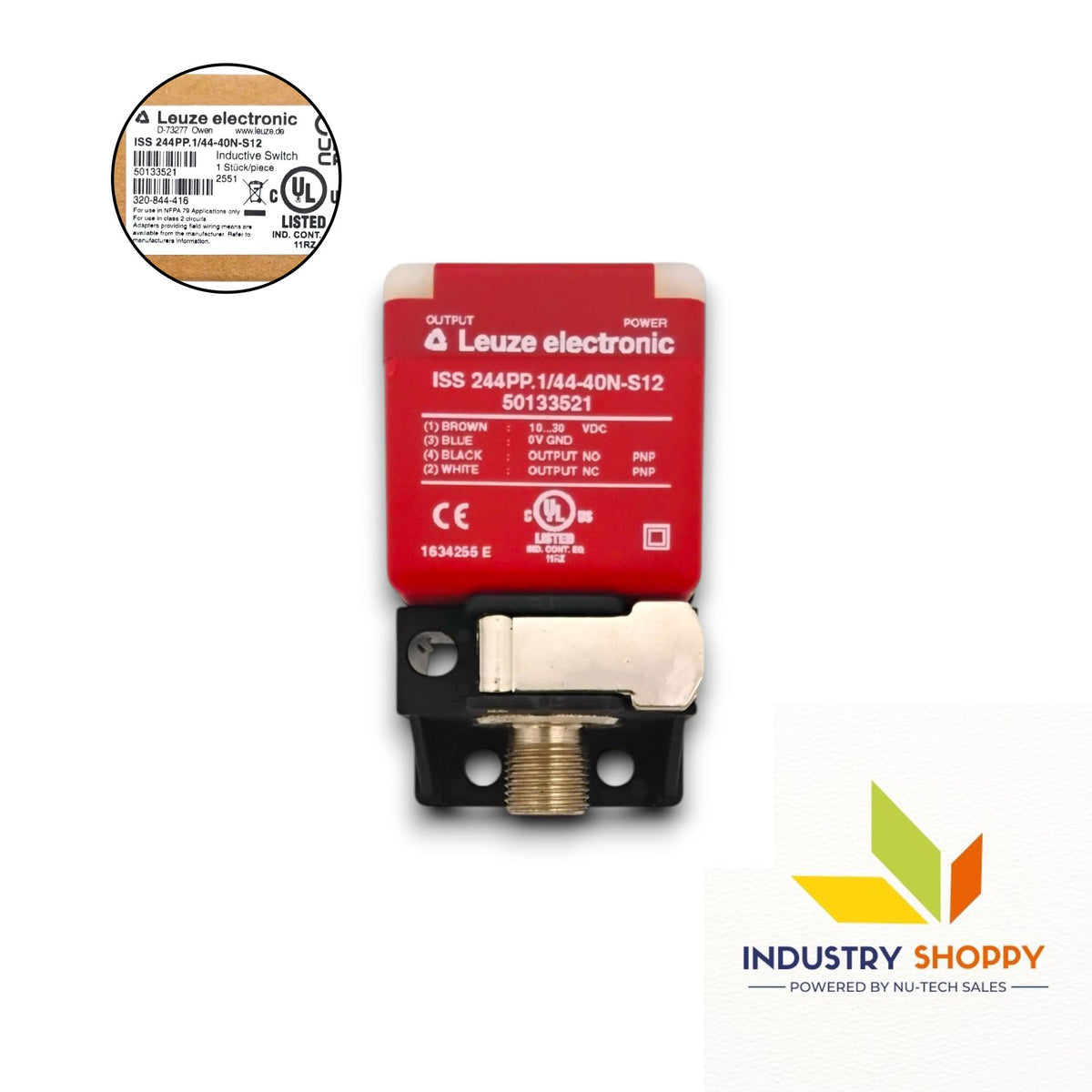

Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze ISS244PP.1/44-40N-S12 Inductive Switch
Leuze

Leuze ISS244PP.1/44-40N-S12 Inductive Switch

Product SKU: NTSSEN00883
Available:
Only 20 items in stock
20 items in stock
In stock
Pre-order
Out of stock
  • Brand: Leuze
  • Part No.: 50133521
  • Supply voltage UB: 10 ... 30 V, DC
  • Open-circuit current: 0 ... 30 mA
  • Switching element: Transistor, PNP
  • Number of Pins: 04 Pins


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$110.00
$275.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Leuze ISS244PP.1/44-40N-S12 Inductive Switch

The Leuze ISS244PP.1/44-40N-S12 Inductive Switch (Part No. 50133521, ISS 244PP.1/44-40N-S12) is a high-performance cubic inductive proximity sensor designed for accurate non-contact metal object detection in demanding industrial environments. With a 40 mm operating range limit (Sn) and an effective sensing range of 0–32.4 mm (Sa), it delivers reliable switching performance for automation, material handling, and machine control applications.

The sensor features a special antivalent output configuration with dual PNP transistor outputs, providing both NO and NC switching signals for flexible integration with PLCs and industrial controllers. Operating on a 10–30 VDC power supply, it supports a maximum switching current of 200 mA, 100 Hz switching frequency, and a 100 ms readiness delay for stable performance. Constructed with a durable PA66 plastic housing and polyamide sensing face, the sensor is built for long service life and reliable operation.

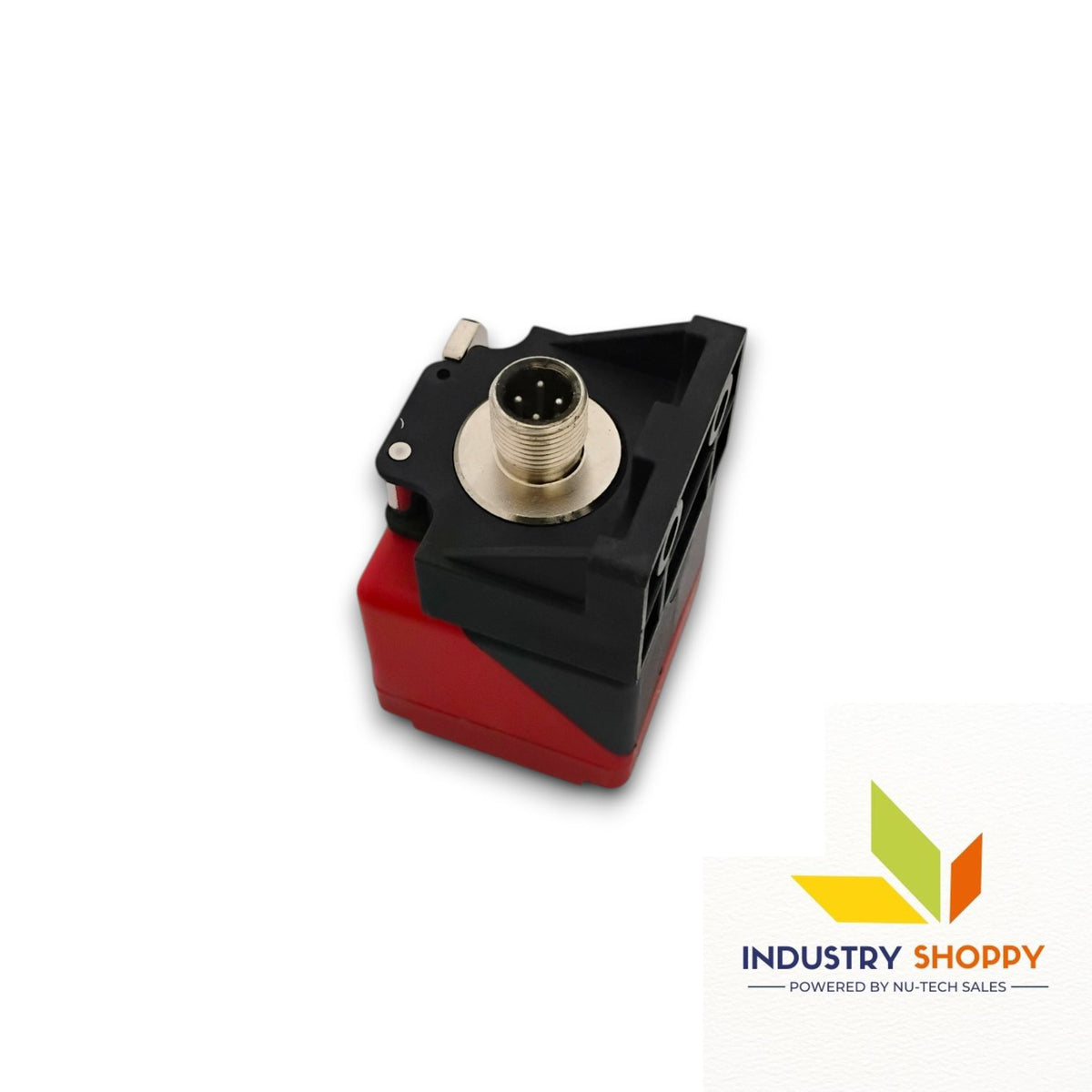

The M12 A-coded 4-pin metal connector ensures secure and simple installation, while four integrated LEDs provide clear operating and switching status indication. With an IP68 and IP69K protection rating, the sensor resists dust, water immersion, and high-pressure washdowns, making it ideal for harsh industrial environments. Designed for operation from -25°C to +85°C, the ISS244PP.1/44-40N-S12 offers an exceptional MTTF of 1,899 years, ensuring dependable long-term performance in critical industrial applications.


Applications

  • Industrial automation systems for reliable metal object detection.

  • Conveyor and material handling equipment for position sensing.

  • Packaging and manufacturing machinery requiring durable proximity sensing.

  • Food processing and washdown environments demanding IP68/IP69K protection.


Technical Precautions

  • Operate only within the 10–30 VDC specified supply voltage range.

  • Install the sensor as a non-flush (non-embedded) device for rated sensing performance.

  • Ensure the M12 4-pin connector is securely tightened to maintain IP68/IP69K protection.

  • Avoid exceeding the 200 mA maximum switching current and verify correct wiring of the PNP NO/NC antivalent outputs before commissioning.

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandLEUZE
Product NumberISS244PP.1/44-40N-S12
Part Number50133521

Series

244
type. operating range limit Sn40 mm
Operating range Sa0 ... 32.4 mm

Special version

Antivalent

MTTF

1,899 years

Supply voltage UB

10 ... 30 V, DC
Residual ripple0 ... 20 %, From UB
Open-circuit current0 ... 30 mA
Temperature drift, max. (in % of Sr)10 %, Over the entire operating temperature range
Repeatability, max. (in % of Sr)10 %, For UB = 20 … 30 V DC, ambient temperature Ta = 23 °C ± 5 °C
Switching hysteresis15%

Number of digital switching outputs

2 Piece(s)

Voltage type

DC
Switching current, max.200 mA
Residual current, max.0.01 mA
Voltage drop≤ 2 V

Switching element

Transistor, PNP
Switching principleNO contact – Antivalent

Switching element

Transistor, PNP
Switching principleNC contact – Antivalent

Switching frequency

100 Hz
Readiness delay100 ms

Number of connections

1 Piece(s)

Function

Signal OUT Voltage supply
Type of connectionConnector
Thread sizeM12
TypeMale
MaterialMetal
No. of pins4 -pin
EncodingA-coded

Design

Cubic
Dimension (W x H x L)40 mm x 40 mm x 67 mm
Type of installationNon-embedded/non-flush
Housing materialPlastic
Plastic housingPA 66
Sensing face materialPlastic, Polyamide (PA 66)
Housing colorBlack Red, RAL 3000
Type of fasteningThrough-hole mounting
Standard measuring plate120 x 120 mm², Fe360

Type of display

LED
Number of LEDs4 Piece(s)

Ambient temperature, operation

-25 ... 85 °C
Ambient temperature, storage-25 ... 85 °C

Degree of protection

IP 68 IP 69K
