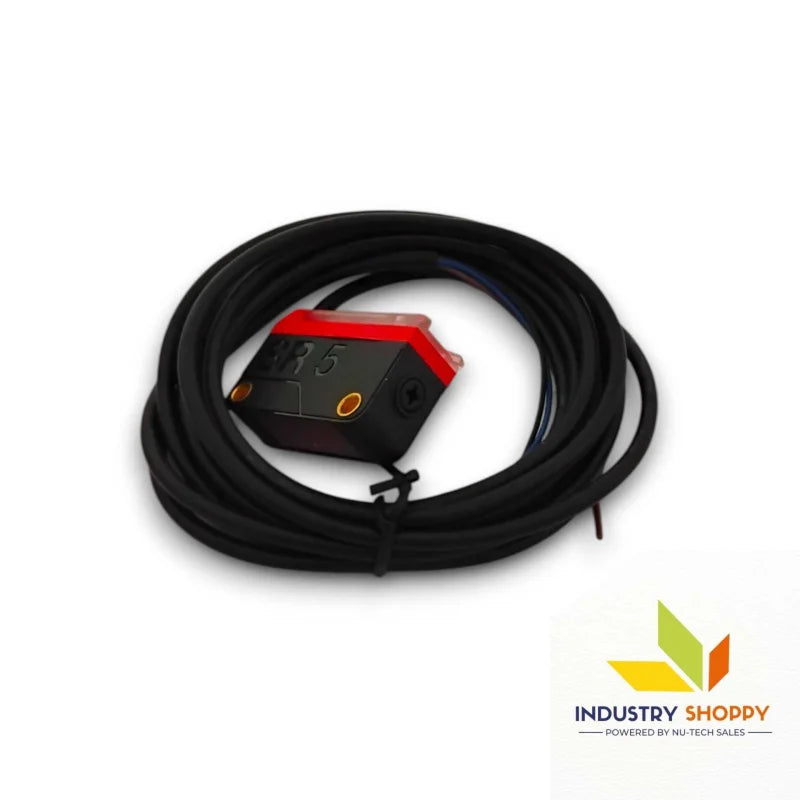

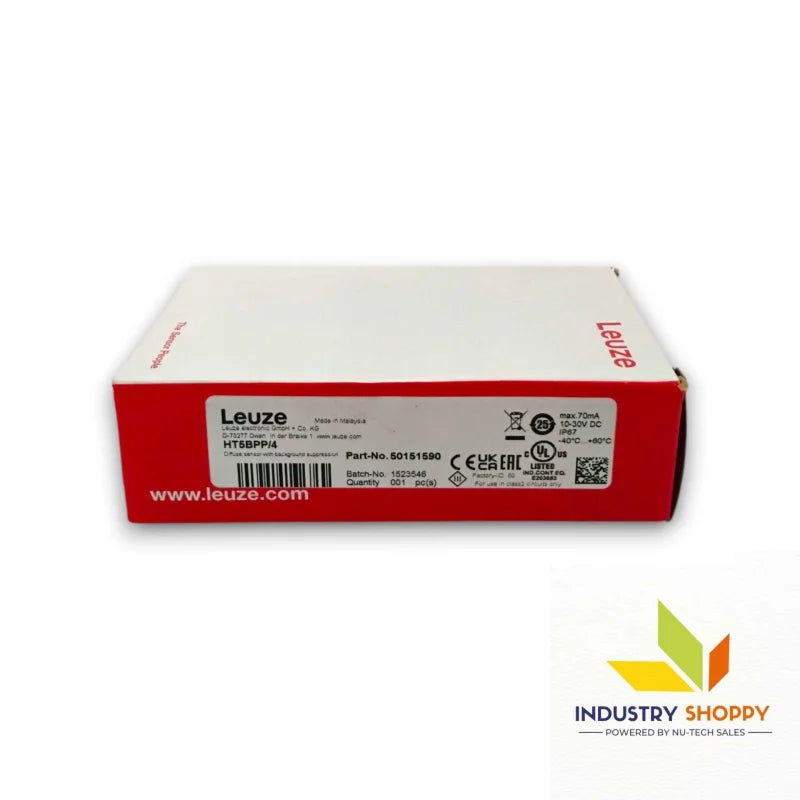

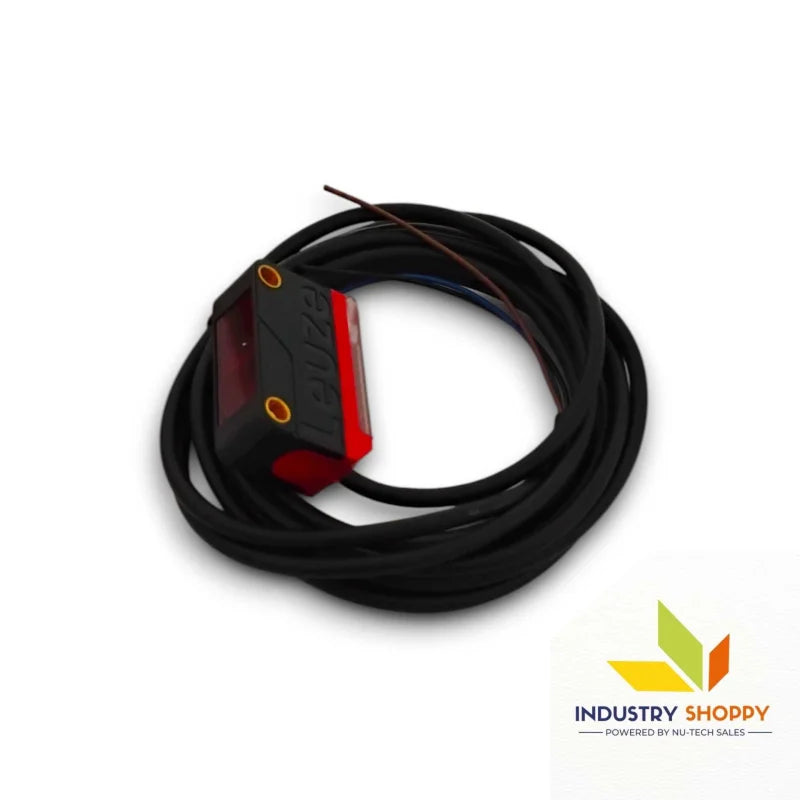

Leuze HT5BPP/4 Diffuse Sensor

The Leuze HT5BPP/4 Diffuse Sensor (Part No. 50151590) is a high-performance diffuse reflection sensor designed for precise object detection with reliable background suppression. It delivers exceptional accuracy, supported by a black-white error of less than 15% up to 200 mm, making it ideal for applications requiring stable detection across varying surface colors. With an operating range of 0.002 to 0.4 m, it ensures dependable performance even with low-reflective targets such as gray (18%) or black (6%) surfaces.

The sensor uses a Power PinPoint® red LED with a wavelength of 660 nm, generating a focused, round light spot for improved detection consistency. Its fixed focal distance of 120 mm, coupled with a pulsed signal output, enhances optical stability and noise immunity. It supports PNP digital switching output, operating in light or dark switching mode depending on polarity.

Built for industrial environments, the HT5BPP/4 features IP67 protection, ECOLAB-certified material compatibility, and a rugged PC-ABS housing. Its fast 1,000 Hz switching frequency and 0.5 ms response time ensure rapid detection in dynamic processes. With a wide operating temperature range from –40 to 60 °C, it is suitable for demanding conditions, offering long-term reliability and consistent performance.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.


Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,

Product NumberHT5BPP/4
BrandLeuze
Part No.50151590
Series5B
Operating PrincipleDiffuse reflection principle with background suppression
Black-white Error< 15% up to 200 mm
Operating Range (White 90%)0.002 … 0.4 m
Operating Range (Gray 18%)0.005 … 0.3 m
Operating Range (Black 6%)0.01 … 0.2 m
Adjustment Range20 … 400 mm
Beam PathFocused
Light SourcePower PinPoint® LED, Red
Wavelength660 nm
Transmitted-Signal ShapePulsed
LED GroupExempt group (EN 62471)
Light Spot Size (at sensor distance)5.6 mm [100 mm]
Spot GeometryRound
FocusFixed, Focal distance 120 mm
Protective CircuitPolarity reversal protection, Short-circuit protected
Supply Voltage UB10 … 30 V DC (Incl. residual ripple)
Residual Ripple0 … 15 % from UB
Open-Circuit Current0 … 15 mA
TypeDigital switching output
Switching ElementTransistor, PNP
Switching PrincipleLight switching (dark switching by reversing polarity of UB)
Switching Frequency1,000 Hz
Response Time0.5 ms
Readiness Delay300 ms
FunctionSignal OUT, Voltage supply
Connection TypeCable, 2,000 mm, PVC, 3-wire, Black, 0.14 mm²
Dimensions (W × H × L)11 × 32.4 × 20 mm
Housing MaterialPlastic, PC-ABS
Lens Cover MaterialPlastic / PMMA
Net Weight44 g
Housing ColorBlack / Red
FasteningTwo M3 threaded sleeves / Optional mounting device
Material CompatibilityECOLAB
Display TypeLED, 2 pieces
Operational ControlsMultiturn potentiometer for range adjustment
Ambient Temperature, Operation–40 … 60 °C
Ambient Temperature, Storage–40 … 70 °C
Degree of ProtectionIP67
Protection ClassIII
Approvalsc UL US
Standards AppliedIEC 60947-5-2
Country of OriginMalaysia
