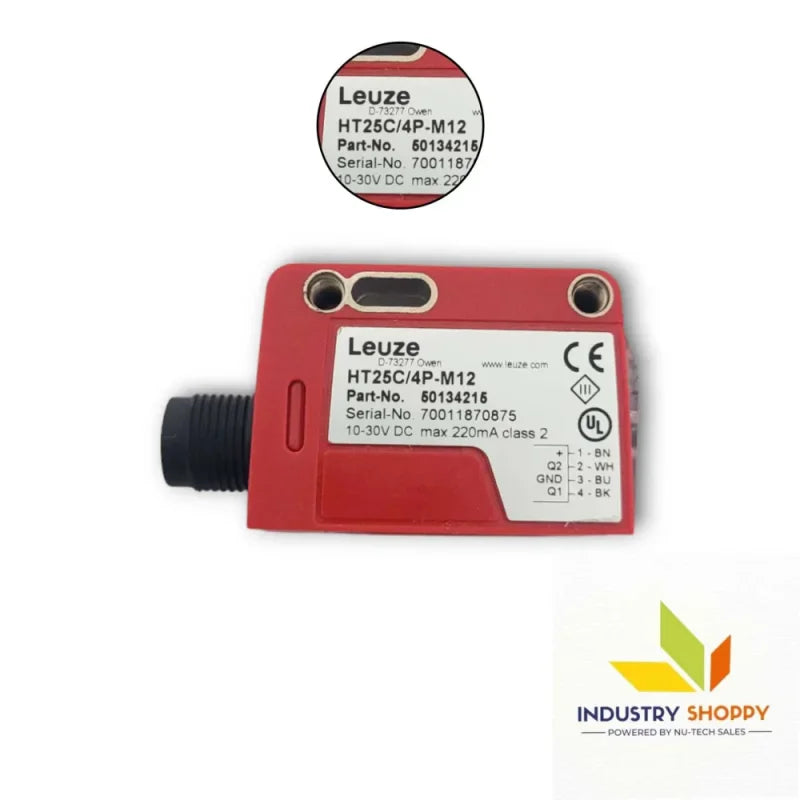

Leuze HT25C/4P-M12 Diffuse Sensor

Leuze HT25C/4P-M12 Diffuse Sensor

The Leuze HT25C/4P-M12 Diffuse Sensor is a powerful and compact photoelectric sensor designed for accurate object detection over extended distances. Utilizing the diffuse reflection principle with background suppression, it delivers reliable performance across a wide range of object colors and materials. It boasts a black-white error of less than 10% up to 400 mm and a maximum operating range of up to 1.2 meters, making it ideal for applications requiring longer sensing distances.

This sensor features a red LED light source (640 nm) and supports both light and dark switching via a PNP transistor output. With a fast response time of 0.5 ms and switching frequency of 1,000 Hz, it is well-suited for high-speed production environments. The rugged ABS plastic housing, M12 PUR connector, and IP67/IP69K protection rating ensure durability in harsh industrial and washdown conditions. A multiturn potentiometer allows precise range adjustment, while ECOLAB certification guarantees resistance to industrial cleaning agents. Its compact size and through-hole mounting options make it easy to integrate into various automation systems.

Key features :-

Applications :-

• Long-Range Object Detection
  Ideal for detecting objects up to 1.2 meters away in assembly lines, logistics, and conveyor systems.
• Color-Independent Sensing
  Ensures accurate detection across black, gray, and white objects with minimal black-white error.
• Packaging and Material Handling
  Detects items of various shapes and materials in packaging lines, bins, and sorting systems.
• Automated Storage and Retrieval Systems
  Supports precise detection of pallets or containers for inventory and logistics operations.
• Food and Beverage Industry
  Suitable for use in hygienic zones thanks to IP69K and ECOLAB-certified materials.
• Harsh Industrial Environments
  Withstands moisture, dust, and aggressive cleaning agents, making it perfect for washdown areas.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
