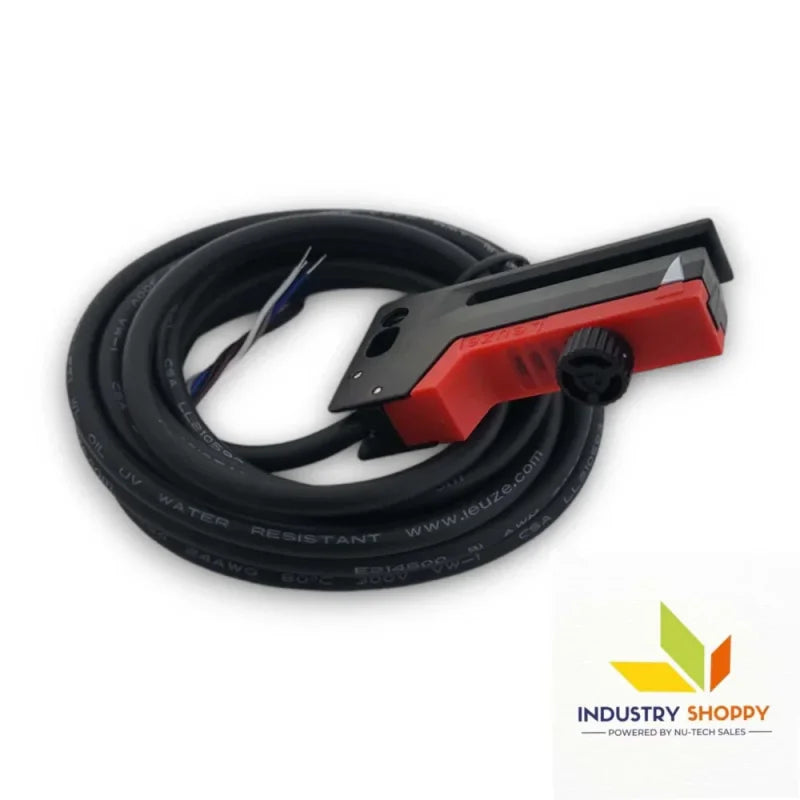

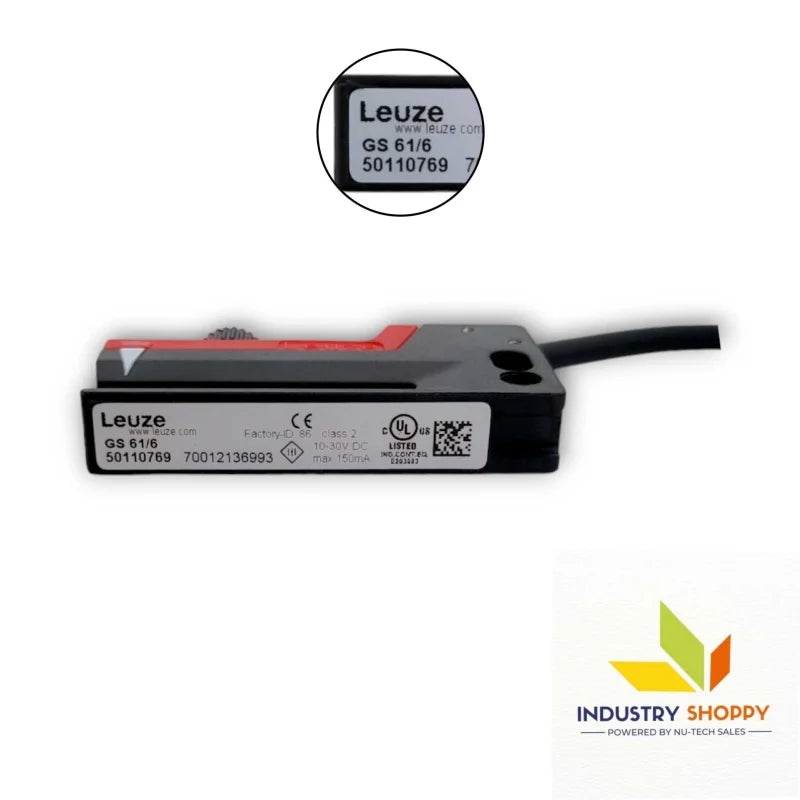

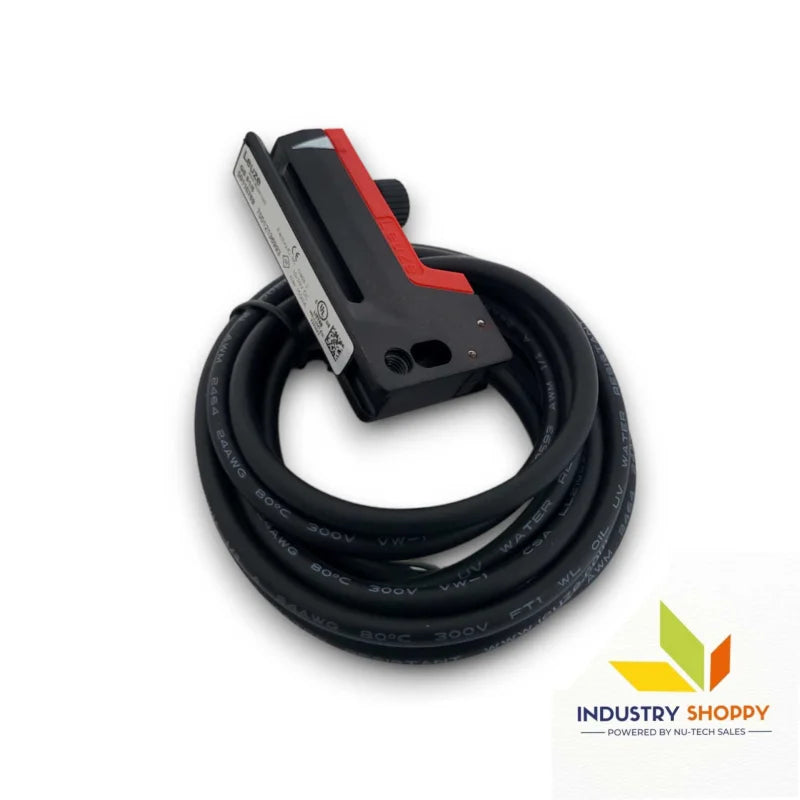

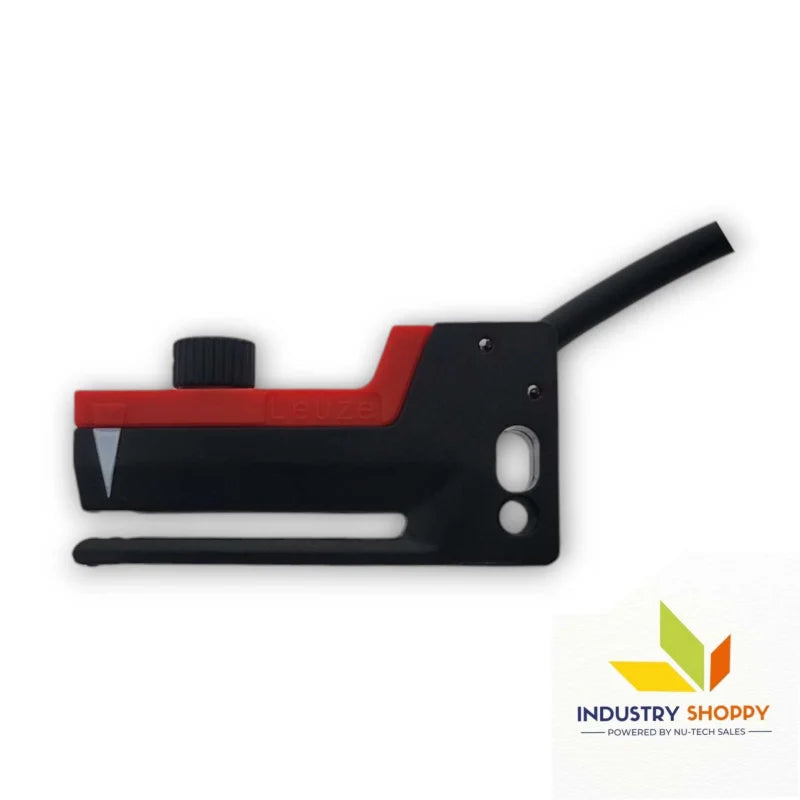

Leuze GS61/6 Fork Photoelectric Sensor

Leuze GS 61/6 Fork Photoelectric Sensor

The Leuze GS 61/6 sensor from the 61 series utilizes optical physics for the detection of non-transparent labels, ensuring precise and reliable performance in industrial environments. With a minimum label width and gap of 2 mm, it excels in applications requiring the detection of small, opaque objects.

Key Features:

• Part Number: 50110769
• Model Number: GS61/6
• Series: 61
• Principle of Physics: Optical
• Application: Detection of non-transparent labels
• Label Width, Min.: 2 mm
• Label Gap, Min.: 2 mm
• Medium: Not transparent
• Light Source: LED, Infrared
• Wavelength: 940 nm
• Protective Circuit: Polarity reversal protection, Short circuit protected
• Supply Voltage UB: 10 to 30 V DC
• Residual Ripple: 0 to 15 % from UB
• Open-Circuit Current: 0 to 30 mA
• Number of Digital Switching Outputs: 1 Piece(s)
• Type: Digital switching output
• Voltage Type: DC
• Switching Current, Max.: 100 mA
• Switching Voltage: High: ≥(UB-2V), Low: ≤ 2 V
• Switching Element: Transistor, Push-pull
• Switching Principle: Switching signal in label gap
• Switching Frequency: 10,000 Hz
• Response Time: 0.05 ms
• Readiness Delay: 300 ms
• Max. Conveyor Speed During Teach-in: 20 m/min
• Number of Connections: 1 Piece(s)
• Function: Signal OUT, Voltage supply
• Type of Connection: Cable
• Cable Length: 2,000 mm
• Number of Conductors: 5-wire
• Design: Fork
• Mouth Width: 3 mm
• Mouth Depth: 41 mm
• Dimensions (W x H x L): 11 mm x 30 mm x 60 mm
• Housing Material: Plastic (PC)
• Lens Cover Material: Plastic/PC
• Net Weight: 70 g
• Housing Color: Black, RAL 9005; Red, RAL 3000
• Type of Fastening: Mounting thread, Through-hole mounting, Via optional mounting device
• Type of Display: LED
• Number of LEDs: 2 Piece(s)
• Operational Controls: Multiturn potentiometer for sensitivity adjustment
• Ambient Temperature, Operation: -20 to 60 °C
• Ambient Temperature, Storage: -30 to 70 °C
• Degree of Protection: IP 65
• Protection Class: III
• Certifications: c UL US
• Standards Applied: IEC 60947-5-2

Application: The GS 61/6 sensor is specifically designed for the detection of non-transparent labels, ensuring high accuracy and efficiency in conveyor systems. Its robust construction and versatile mounting options make it suitable for various industrial applications.

Technical Precautions:

• Ensure proper installation and secure connection to prevent operational issues.
• Adjust sensitivity using the multiturn potentiometer to optimize label detection.
• Maintain the sensor within the specified temperature range for optimal performance.
• Clean the sensor regularly to ensure reliable operation in demanding environments.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Our engineers carefully entered all the details of this module based on the datasheet. However, mistakes can happen even with our best efforts. Please double-check all specifications before use.
