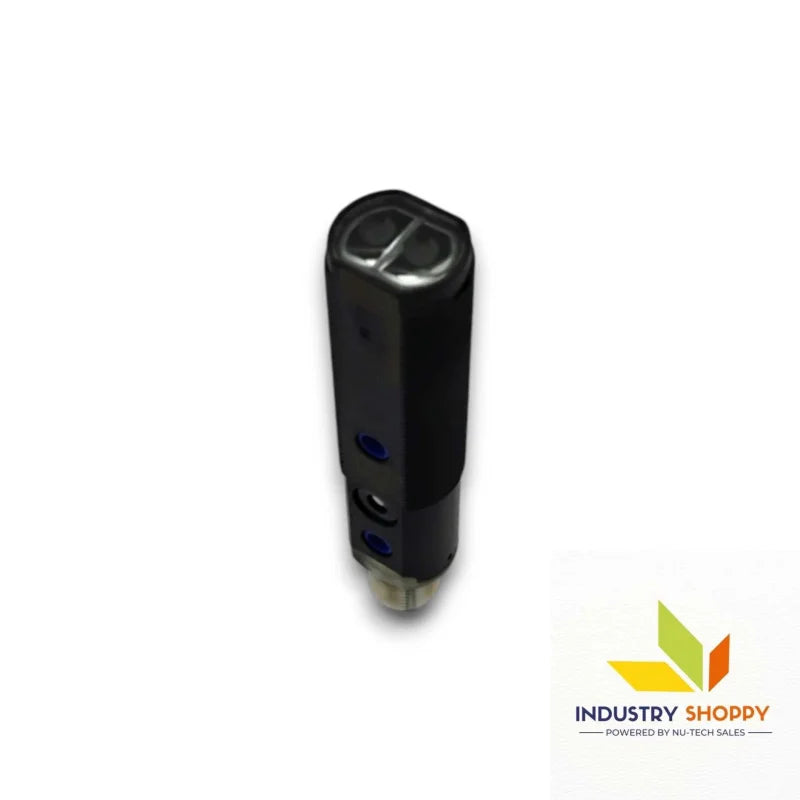

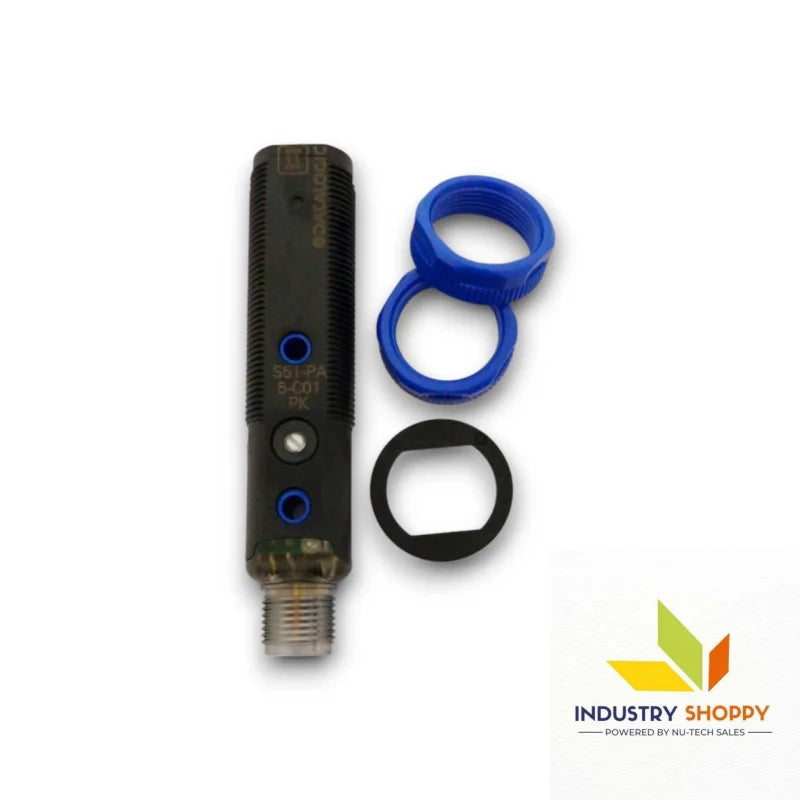

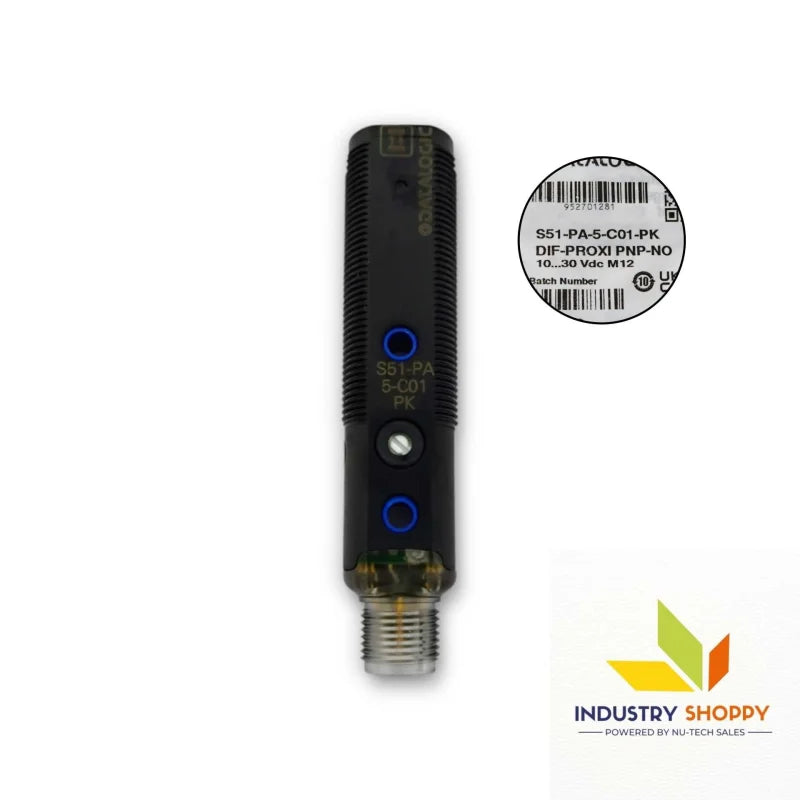

Datalogic S51-PA-5-C01-PK Photoelectric Sensor

Datalogic S51-PA-5-C01-PK Photoelectric Sensor

Updated version of this sensor : S5N-PA-5-C01-PK

The Datalogic S51-PA-5-C01-PK Photoelectric Sensor is a high-performance diffuse proximity sensor designed for reliable object detection across various industrial applications. Operating on the S50 series platform, it uses a red laser light (650 nm) to provide accurate and focused detection with a spot size of 1.5 x 5 mm using a standard 9 mm lens.

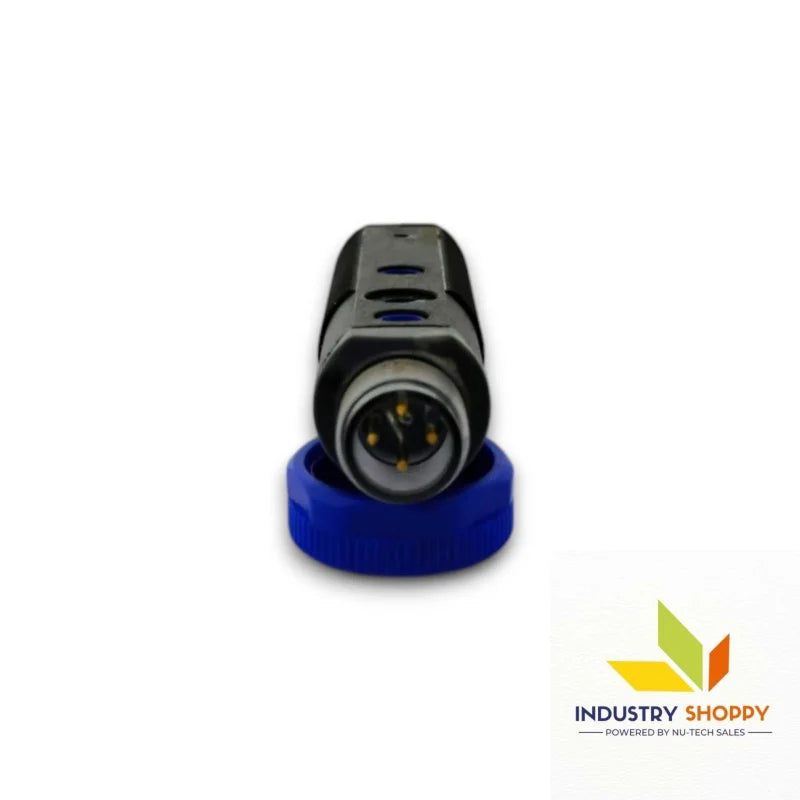

This sensor offers a sensing distance of up to 700 mm (27.559 inches) and supports both Dark-ON and Light-ON PNP output modes for versatile integration. The M12 connector ensures easy installation, while its IP67-rated housing—made from PBT and nickel-plated brass—delivers excellent durability in harsh environments.

It runs on a 10–30 VDC power supply with 35 mA max consumption, supporting an output current of up to 100 mA. With a 500µs response time and 1 kHz switching frequency, it ensures fast and precise detection. The sensor also boasts resistance to vibration and shock, with operating temperatures ranging from -10 to 55°C. Perfect for reliable automation sensing where speed and precision matter.

Key features :-

Applications :-

• Automated Conveyor Systems: Detects items quickly and accurately on moving belts for sorting, packaging, or quality checks.
• Robotics and Pick-and-Place Units: Enables precise object positioning and detection, improving robotic arm efficiency and response.
• Material Handling Equipment: Used to sense presence or absence of items on pallets, trays, or shelves in logistics systems.
• Assembly Line Quality Control: Helps ensure components are present and correctly positioned before the next manufacturing stage.
• Warehouse Automation: Monitors item flow and positioning in smart storage or retrieval systems, enhancing system accuracy.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
