Datalogic S51-MA-5-C10-NK Photoelectric Sensor

Datalogic S51-MA-5-C10-NK Photoelectric Sensor

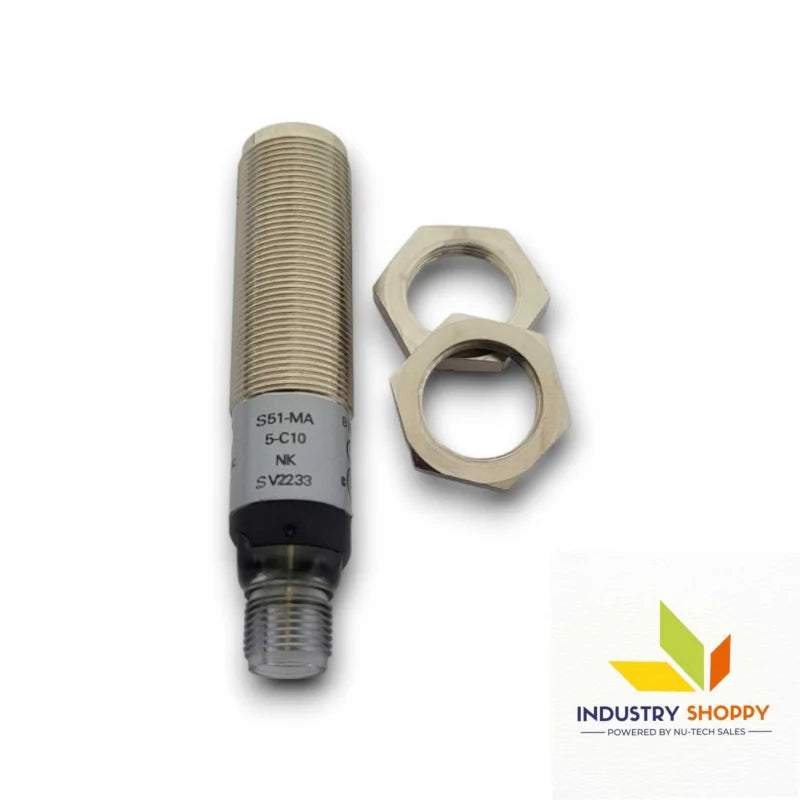

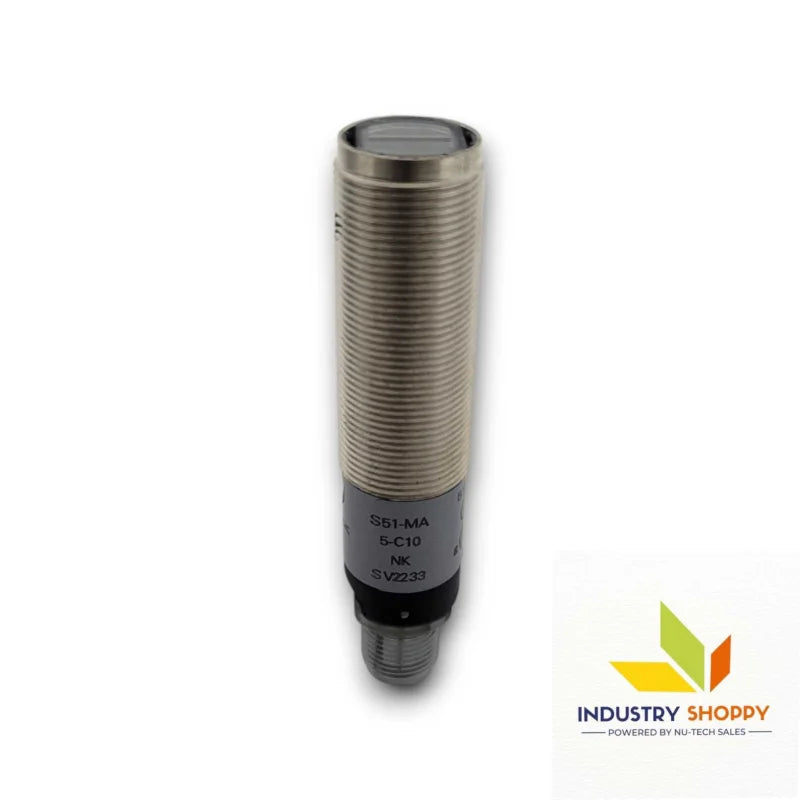

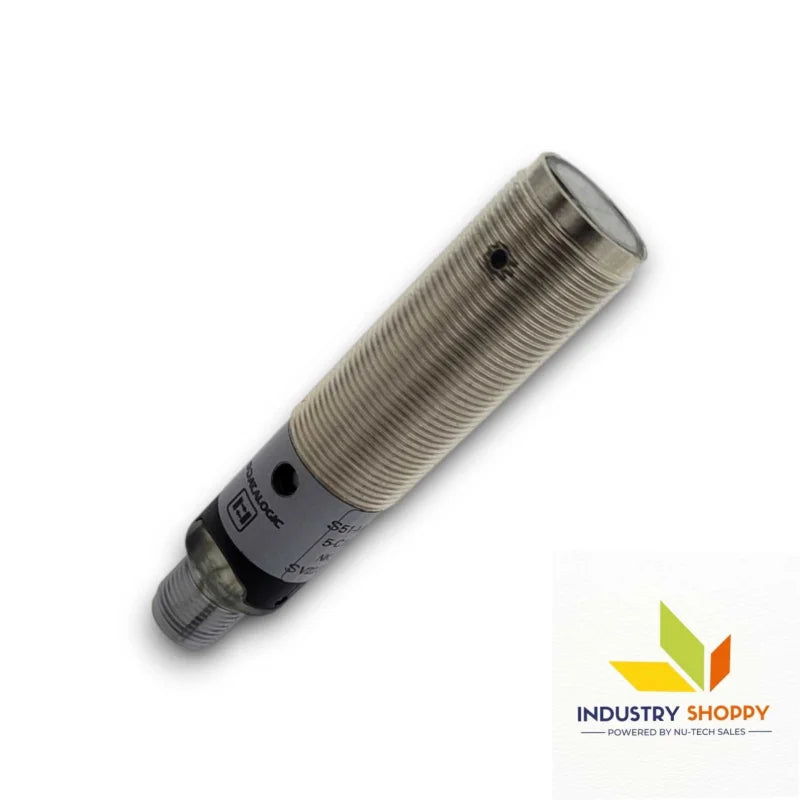

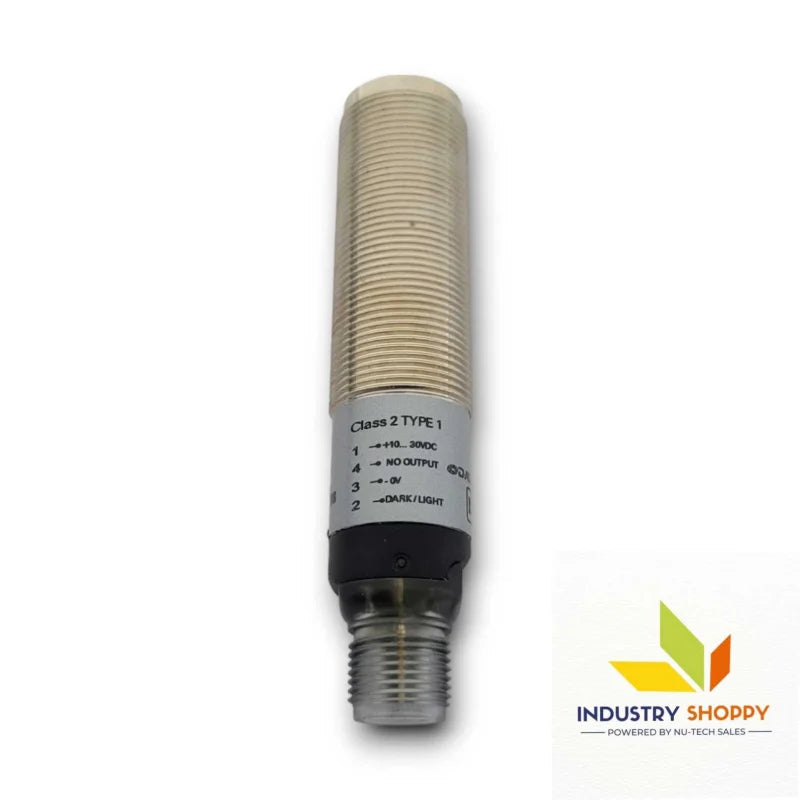

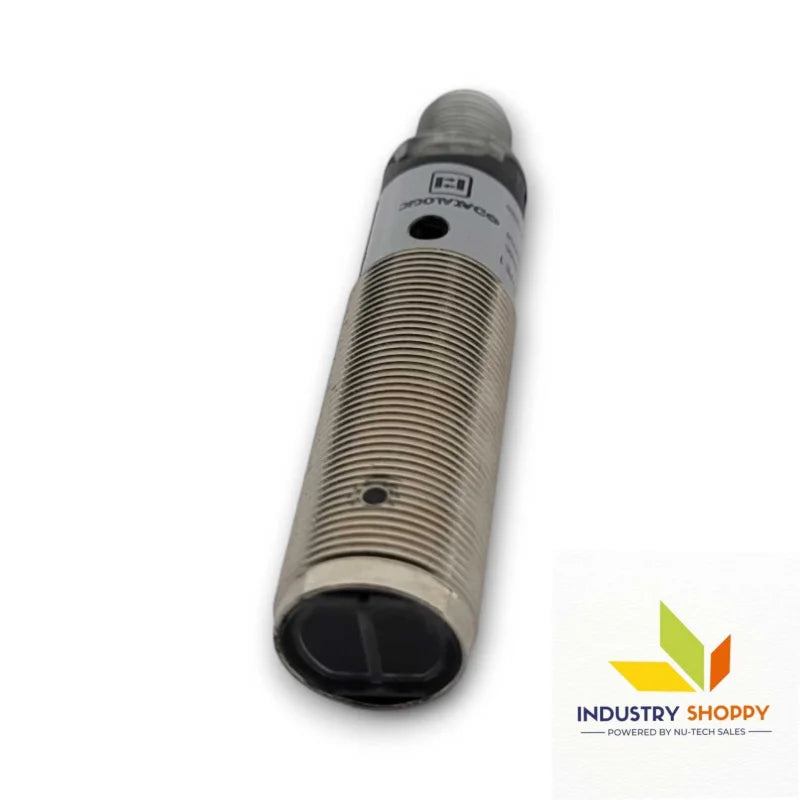

The Datalogic S51-MA-5-C10-NK Photoelectric Sensor (Product No. S51-MA-5-C10-NK, Part No. 952701831) is a high-performance diffuse proximity sensor designed for reliable object detection in industrial automation environments. It features a rugged M18 cylindrical housing made from nickel-plated brass, ensuring durability and resistance to mechanical stress. With a sensing distance of up to 450 mm and an infrared LED emitter, the sensor excels in detecting objects with varying surface reflectivity.

Operating on a 10–30 VDC power supply, it provides a robust NPN output and supports high-speed switching with a 1 ms response time and a switching frequency of 120 Hz. The unit includes essential protective features such as IP67-rated enclosure, shock and vibration resistance, and reverse polarity protection for safe, long-term performance in harsh conditions. Its PMMA lens and M12 connector allow for easy integration into automation systems. Ideal for short- to mid-range detection tasks, the S51-MA-5-C10-NK combines reliability, precision, and ruggedness in a compact package.

Key features :-

Applications :-

• Automated Packaging Lines: Detects packages of varying shapes and surfaces for sorting or quality control processes.
• Material Handling Systems: Identifies items on conveyors for routing, stopping, or counting in logistics setups.
• Assembly Machines: Ensures component presence verification for precise assembly operations in manufacturing.
• Robotic Automation: Enables object detection feedback in robotic arms for handling and inspection tasks.
• Bottling and Filling Stations: Senses the presence of containers on filling lines, even in dusty or variable lighting conditions.
• Textile and Printing: Monitors fabric or material movement for pattern alignment and material feed control.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
