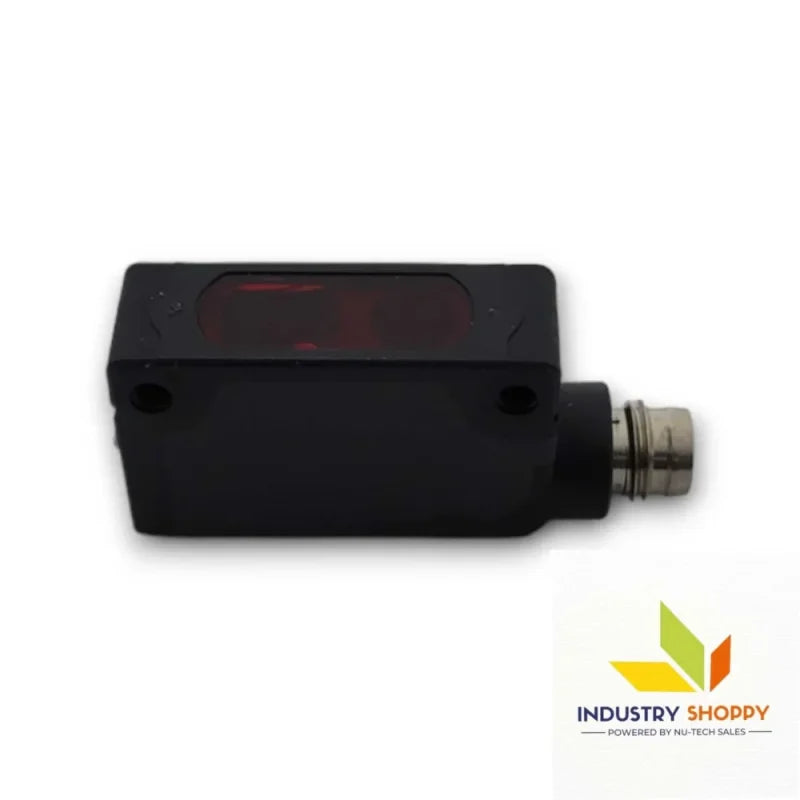

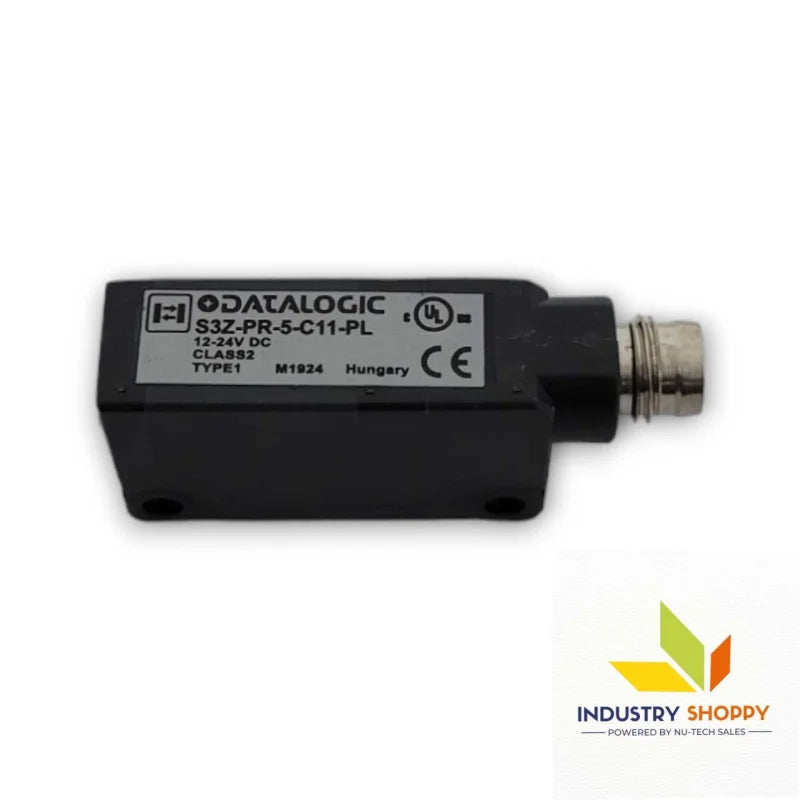

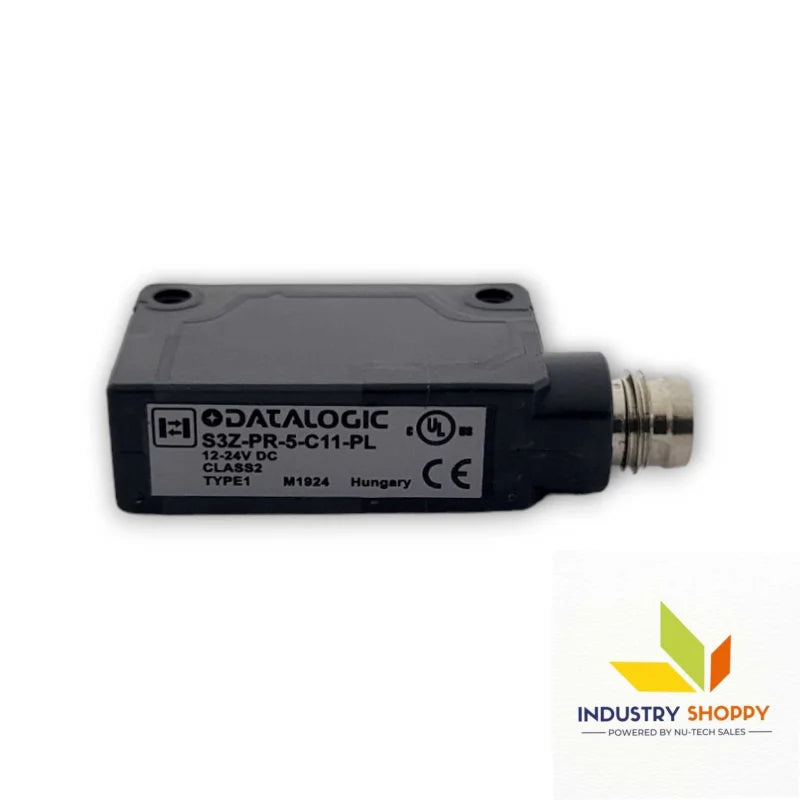

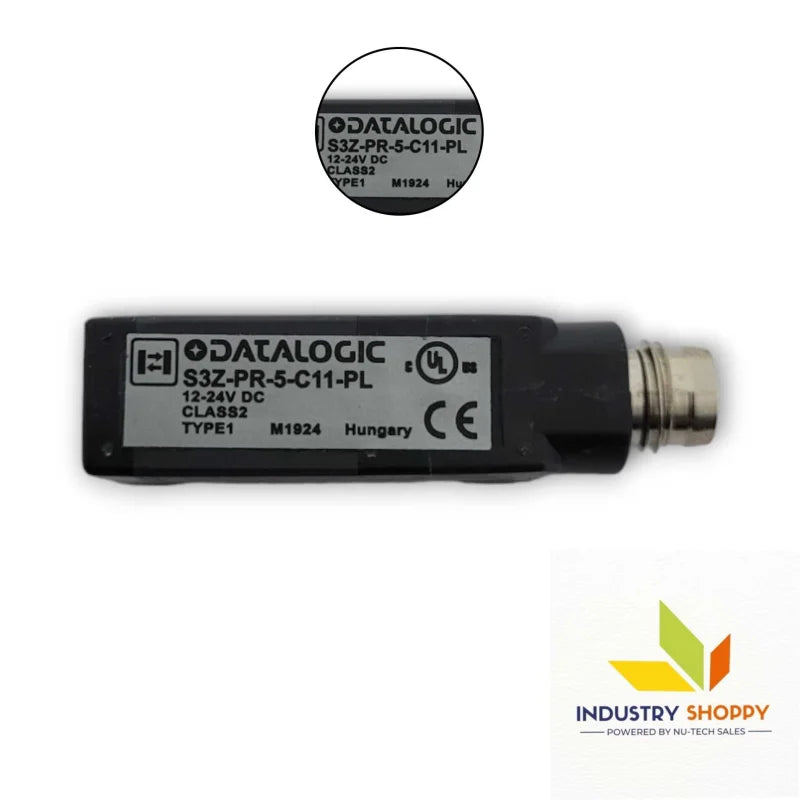

Datalogic S3Z-PR-5-C11-PL Photoelectric Sensor

Datalogic S3Z-PR-5-C11-PL Photoelectric Sensor

The Datalogic S3Z-PR-5-C11-PL Photoelectric Sensor (Product No. S3Z-PR-5-C11-PL, Part No. 95B010011) is a high-performance long-range diffuse proximity sensor designed for precision detection in compact automation environments. With a sensing range of 0–700 mm and an infrared LED emitter (850 nm), this sensor delivers consistent detection of objects, even with low reflectivity or challenging surface textures.

It operates on a 12–24 VDC power supply and features a PNP light-on output, supporting seamless integration into most control systems. The unit boasts a fast 1 ms response time and a switching frequency of 500 Hz, making it suitable for high-speed applications. Its compact body, made of PBT with a polycarbonate (PC) indicator cover, is IP67-rated, ensuring durability in harsh industrial conditions. The lens is crafted from PMMA and PC for optical clarity and impact resistance.

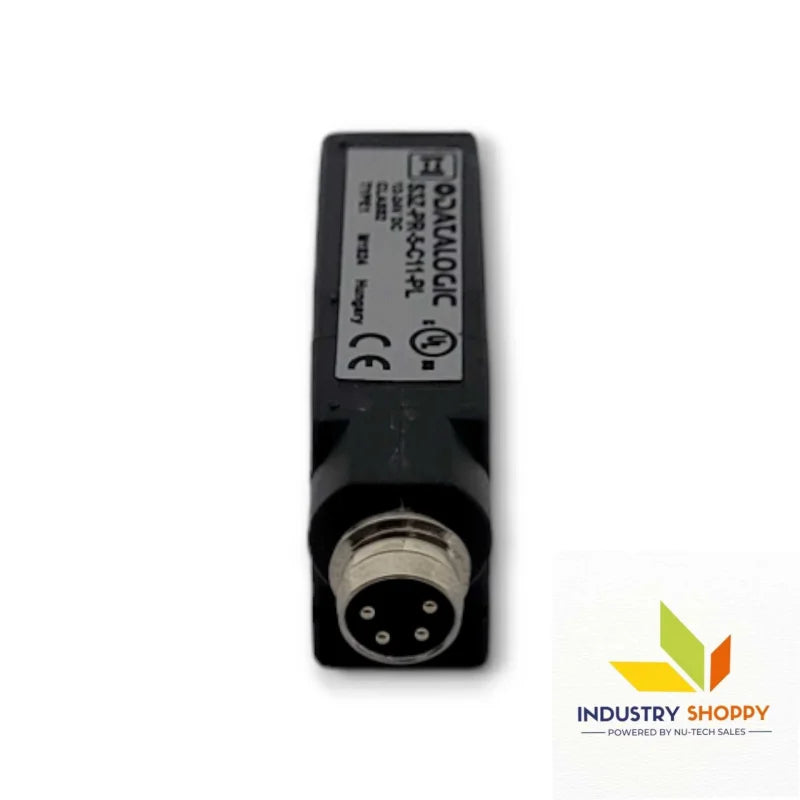

With robust resistance to shock, vibration, and temperature extremes, and featuring a standard M8 connector, the S3Z-PR-5-C11-PL offers reliable, long-distance detection in a small, rugged form factor.

Key features :-

Applications :-

• Automated Conveyor Lines: Detects packages or objects over long distances for sorting and routing operations.
• Packaging Equipment: Senses items for labeling, filling, or sealing functions, regardless of color or surface finish.
• Assembly Stations: Monitors part presence or movement during automated assembly operations.
• Material Detection: Ensures accurate detection of cartons, bottles, or irregular shapes in production flow.
• Printing and Labeling Machines: Triggers print or labeling actions based on object presence or position.
• Compact Automation Systems: Ideal for tight spaces requiring high-precision, long-range sensing capabilities.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
