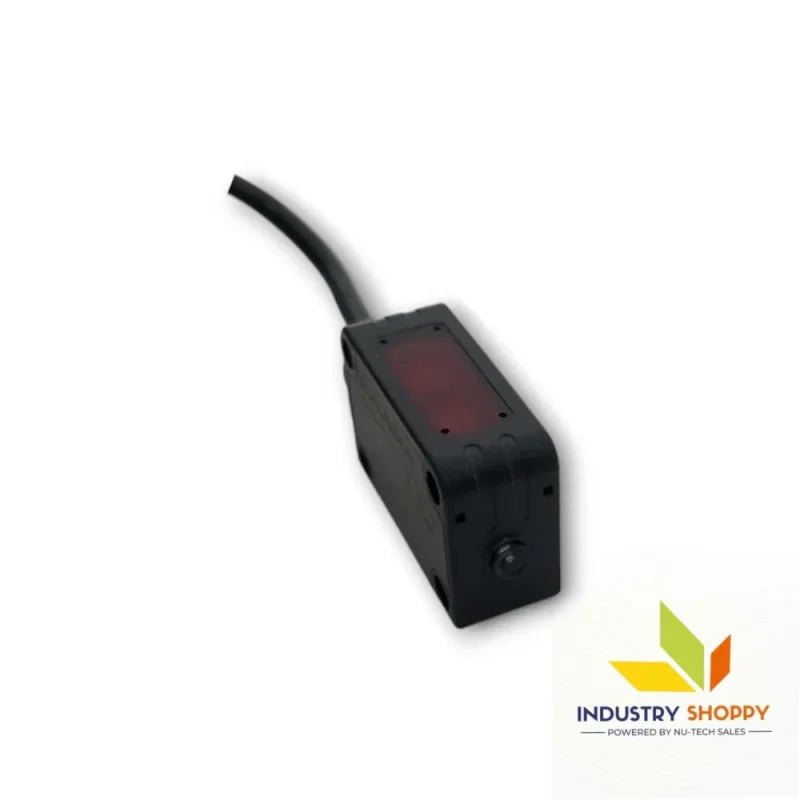

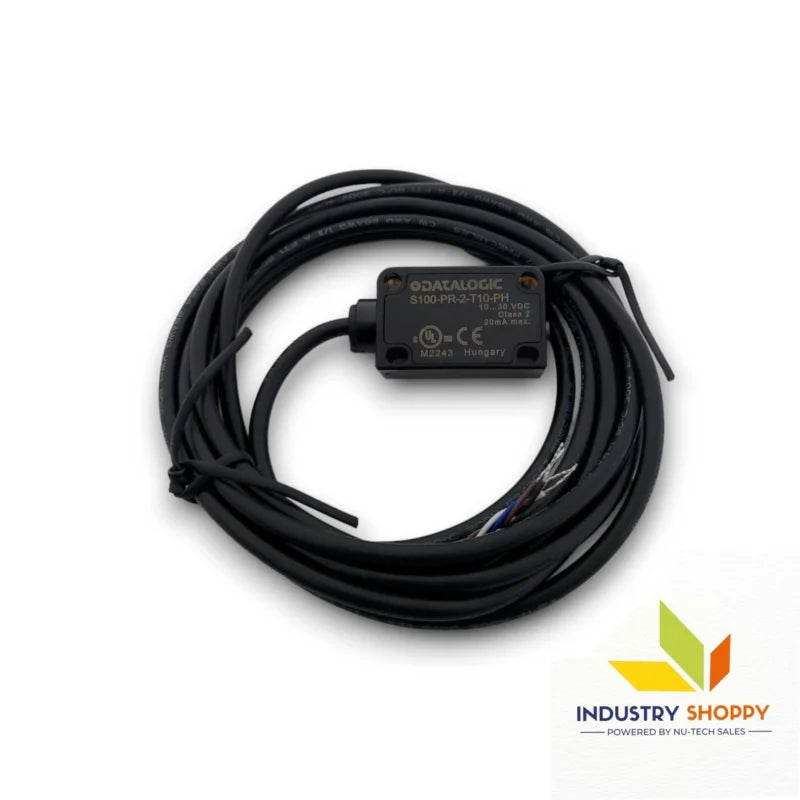

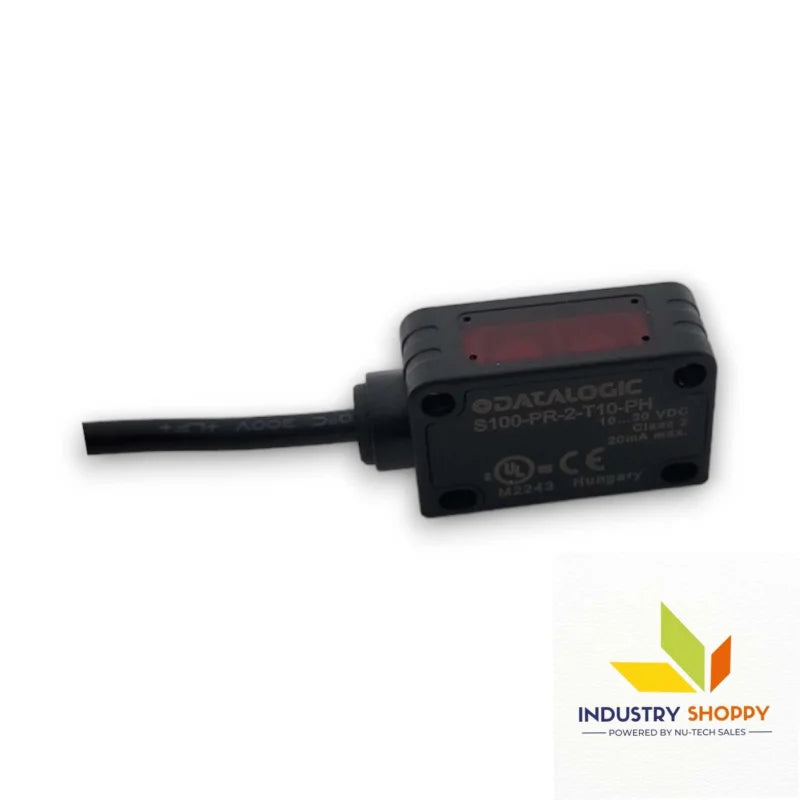

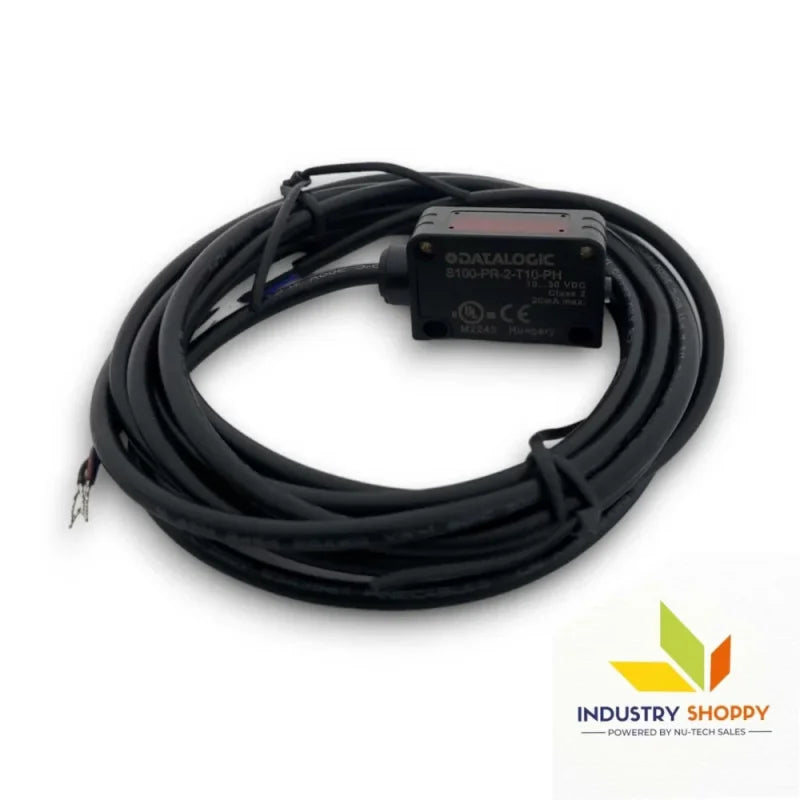

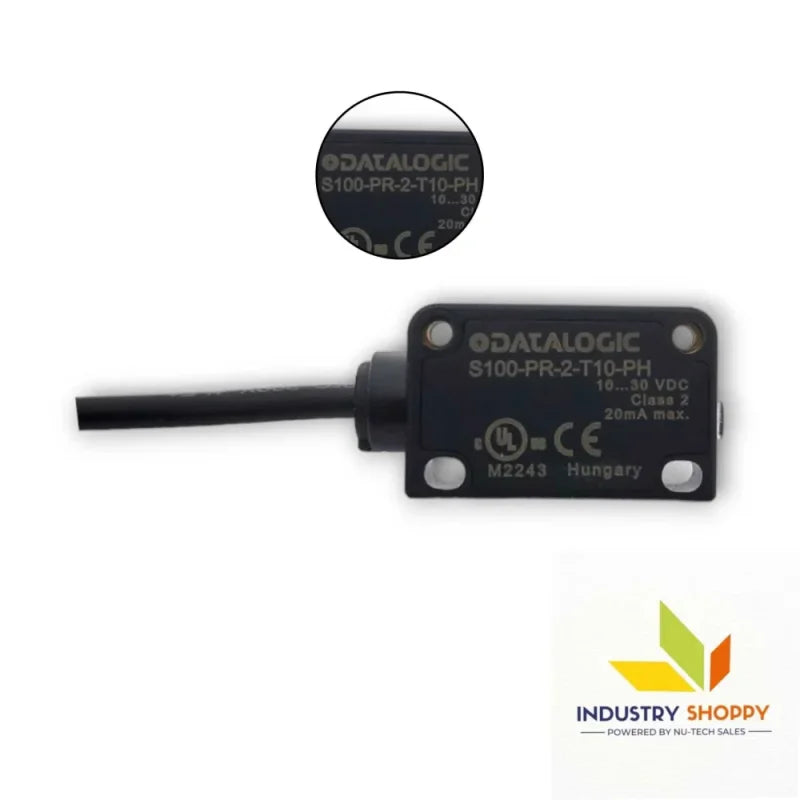

Datalogic S100-PR-2-T10-PH Photoelectric Sensor

Datalogic S100-PR-2-T10-PH Photoelectric Sensor

The Datalogic S100-PR-2-T10-PH (Product Number: S100-PR-2-T10-PH, Part Number: 950811130) is a compact polarized retroreflective photoelectric sensor specifically designed for clear object detection. Built in a miniature cubic housing (12x32x20 mm), this sensor provides radial optic positioning and features external teach-in sensitivity adjustment, making it flexible for quick setup and calibration in constrained spaces.

Utilizing an infrared LED emitter, the sensor reliably detects transparent or glossy materials at distances up to 2 meters, with excellent immunity to ambient light interference as per EN 60947-5-2 standards. It offers a PNP output configuration, with short-circuit and reverse polarity protection for operational safety. With a 1 ms response time, 500 Hz switching frequency, and IP67 protection rating, it ensures consistent performance in demanding industrial environments.

The S100-PR-2-T10-PH is equipped with a 2 m cable connection, ABS housing, and PMMA optics, combining robustness with precision for use in packaging, bottling, and logistics applications.

Key features :-

Applications :-

• Clear Bottle Detection: Accurately identifies transparent plastic or glass bottles on high-speed conveyor lines.
• Labeling Machines: Ensures clear labels or film are present before processing.
• Filling Stations: Detects clear containers before filling to prevent spills or machine faults.
• Food and Beverage Lines: Maintains product presence tracking, even with reflective or translucent packaging.
• Automated Sorting: Suitable for transparent object detection in high-speed sorting systems.
• Pharmaceutical Packaging: Verifies presence of clear vials or blister packs during inspection.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
