Baumer OHDK14P5101/S35A Diffuse Sensor

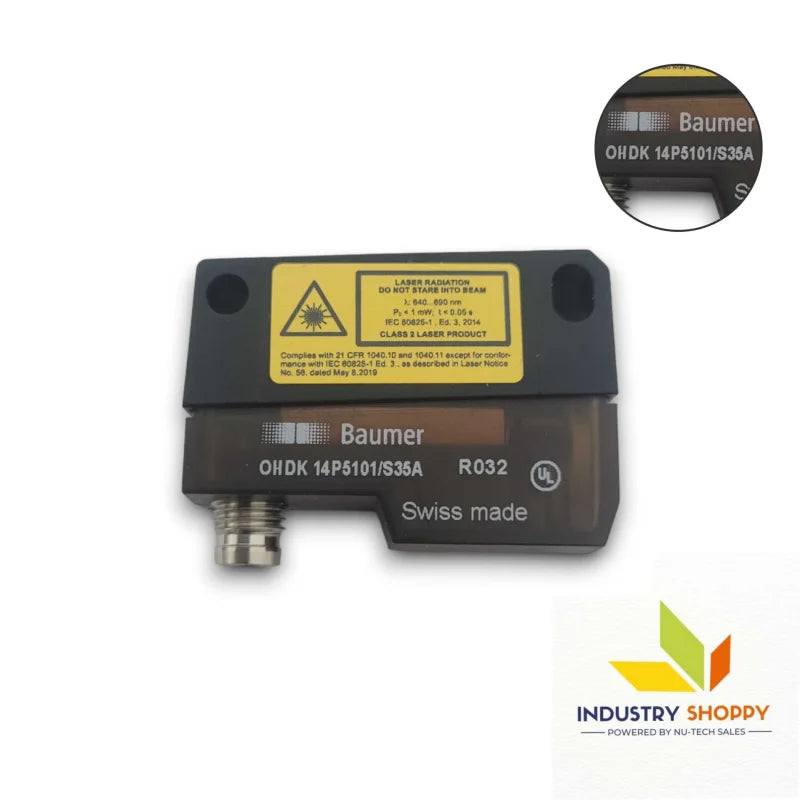

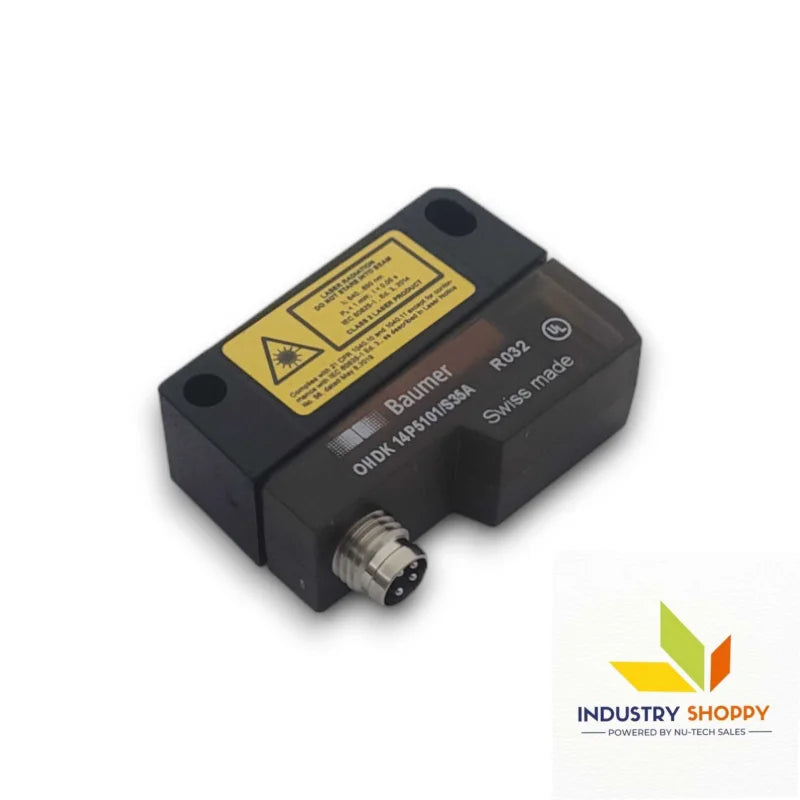

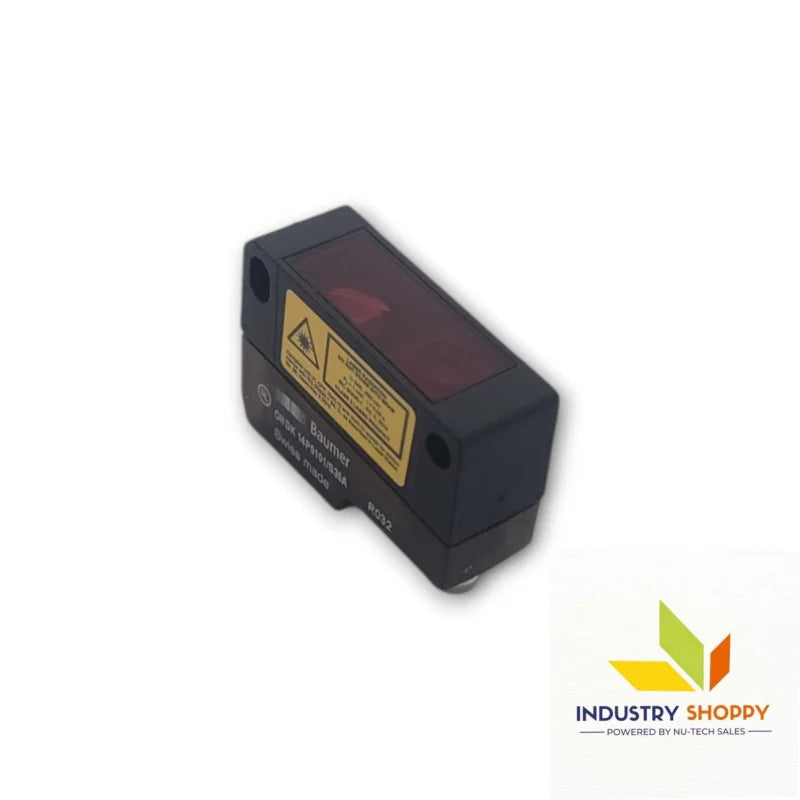

New Baumer OHDK 14P5101/S35A Diffuse Photoelectric Sensor with Background Suppression

The Baumer OHDK 14P5101/S35A diffuse sensor with background suppression is designed for accurate object detection within a range of 20 to 350 mm. It utilizes a pulsed red laser diode (Class 2) for precision and reliable performance, making it ideal for applications requiring selective detection without interference from background objects.

Key Features:

• Part Number: 11001254
• Model Number: OHDK14P5101/S35A
• Sensing Distance (Tw): 20 to 350 mm
• Repeat Accuracy: < 0.2 mm at laser focus

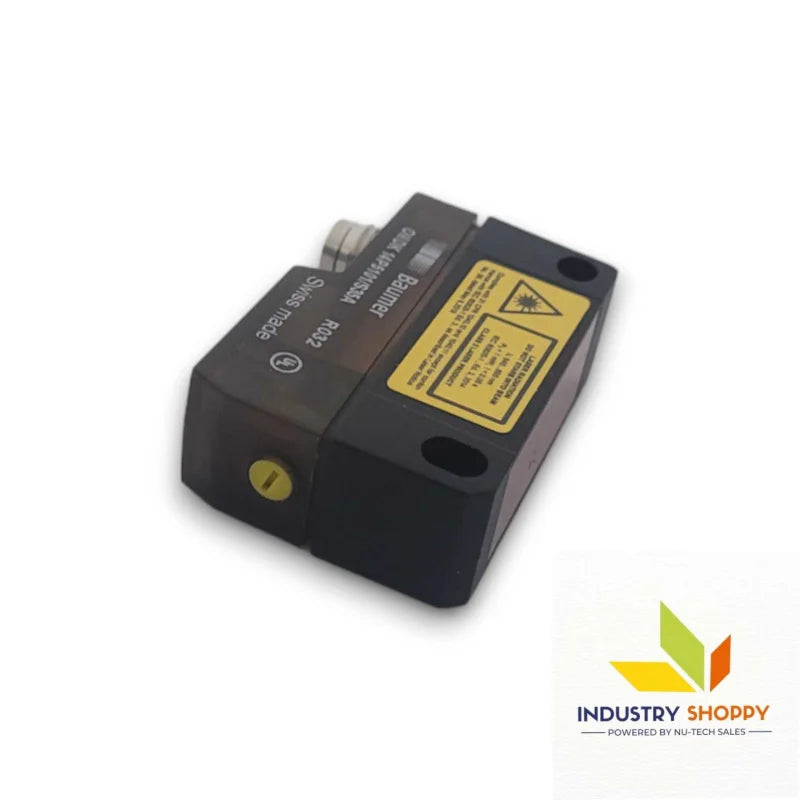

• Sensing Distance Adjustment: Mechanical, 9-turn knob
• Distance to Focus: 115 mm
• Light Source: Pulsed red laser diode (650 nm), Class 2

Electrical Data:

• Response Time/Release Time: < 0.5 ms
• Voltage Supply Range: 10-30 VDC
• Current Consumption (Max/Typical): 35 mA / 25 mA
• Voltage Drop: < 2.2 VDC
• Output Function: Light/dark operate (PNP)
• Max Output Current: 100 mA
• Protection: Short circuit and reverse polarity

Mechanical Data:

• Dimensions: 14.8 mm (Width), 43 mm (Height), 31 mm (Depth)
• Design: Rectangular
• Housing Material: Plastic (ASA, MABS), optics made of PMMA

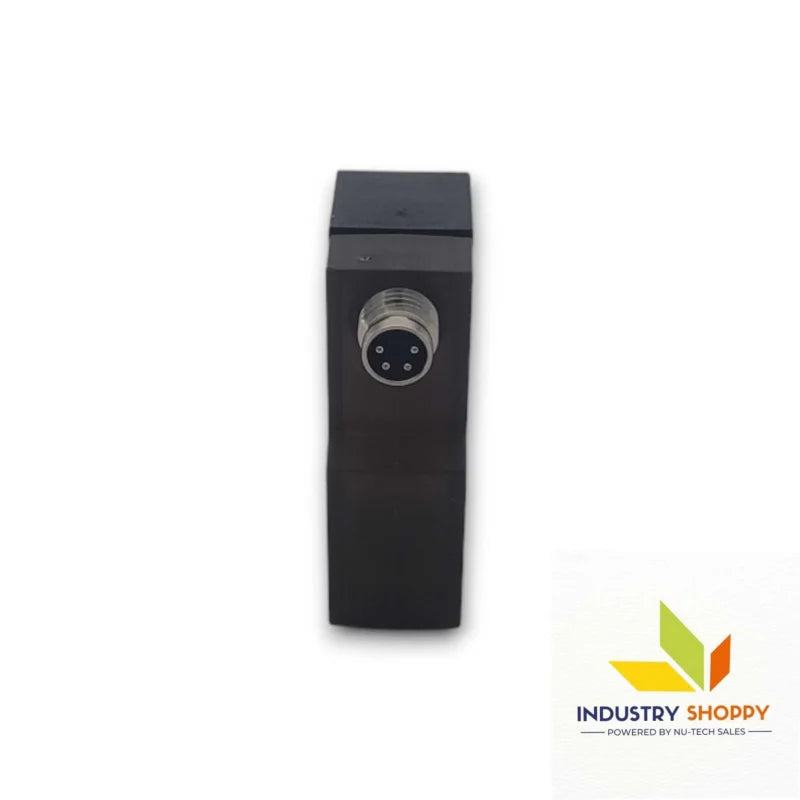

• Connection Type: M8, 4-pin connector

Ambient Conditions:

• Operating Temperature: -10°C to +50°C
• Protection Class: IP67

Applications:

The OHDK 14P5101/S35A sensor is widely used in industrial applications requiring precise object detection with background suppression, such as:

• Automated Manufacturing Lines: Detects objects while ignoring the background, ensuring accurate detection on fast-moving conveyors.
• Quality Control Systems: Identifies parts or products with high repeat accuracy, useful in assembly lines and inspection processes.
• Robotics and Automation: Ensures reliable positioning in robotic systems and automated machinery.
• Packaging and Material Handling: Detects and counts items on conveyor belts, reducing errors in sorting and packaging processes.

Technical Precautions:

1. Proper Alignment:
   Ensure that the sensor is aligned correctly to focus on the target object. Misalignment could cause false detection or failure to detect small objects within the sensing range.

2. Sensing Distance Adjustment:
   Use the 9-turn mechanical adjustment carefully to set the sensing distance for your specific application. Make sure the adjustment is accurate to avoid unintentional background detection.

3. Voltage Supply:
   Operate the sensor within the voltage range of 10-30 VDC. An improper power supply could lead to sensor malfunction or damage.

4. Avoid Overloading Output:
   Ensure that the connected load does not exceed 100 mA to avoid damage to the sensor’s output circuit.

5. Environmental Conditions:
   Keep the sensor within the operating temperature range of -10°C to +50°C and ensure it is not exposed to extreme temperatures, which can reduce performance or cause failure.

6. Protection from Dust and Water:
   Though the sensor is rated IP67, meaning it’s dust-tight and water-resistant, avoid exposing it to excessive moisture or dirt accumulation to ensure longevity.

7. Handle with Care:
   Since the sensor uses a pulsed red laser diode (Class 2), avoid direct exposure to the eyes and follow laser safety guidelines during installation and maintenance.

By following these precautions and using the sensor within its specified parameters, the OHDK 14P5101/S35A will provide reliable and efficient object detection in various industrial applications.
