Baumer IGYX18P17B3/L Proximity Sensor

Baumer IGYX18P17B3/L Proximity Sensor

Baumer IGYX18P17B3/L Inductive Proximity Sensor delivers reliable object detection with a nominal sensing distance of 8 mm and a quasi-flush mounting design for versatile integration into industrial environments. The sensor maintains consistent performance across temperature variations, with a ±10% drift over the 0 to +60 °C range and a hysteresis of 3–20%, ensuring accuracy in challenging conditions.

The sensor features a PNP normally open (NO) output with a maximum switching frequency of 400 Hz, making it suitable for dynamic applications. It supports short circuit and reverse polarity protection, with a maximum output current of 200 mA. A red LED indicator provides clear output status, enhancing usability.

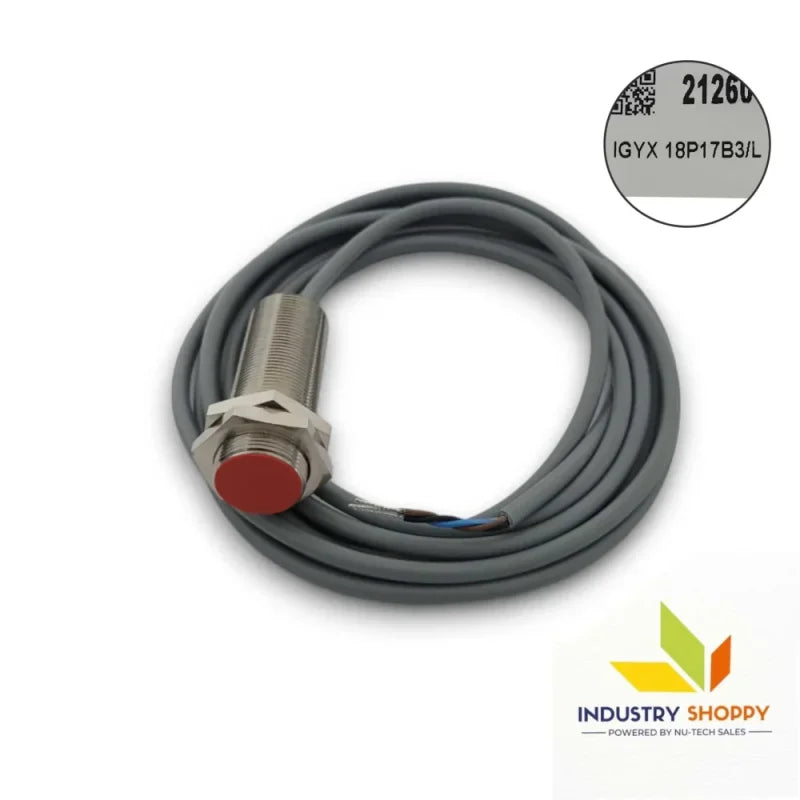

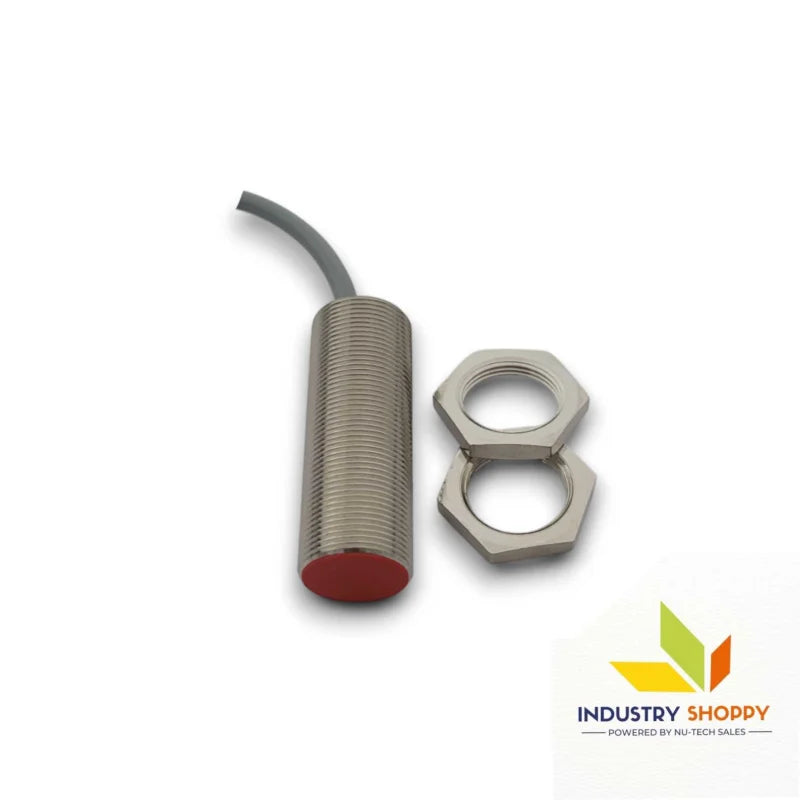

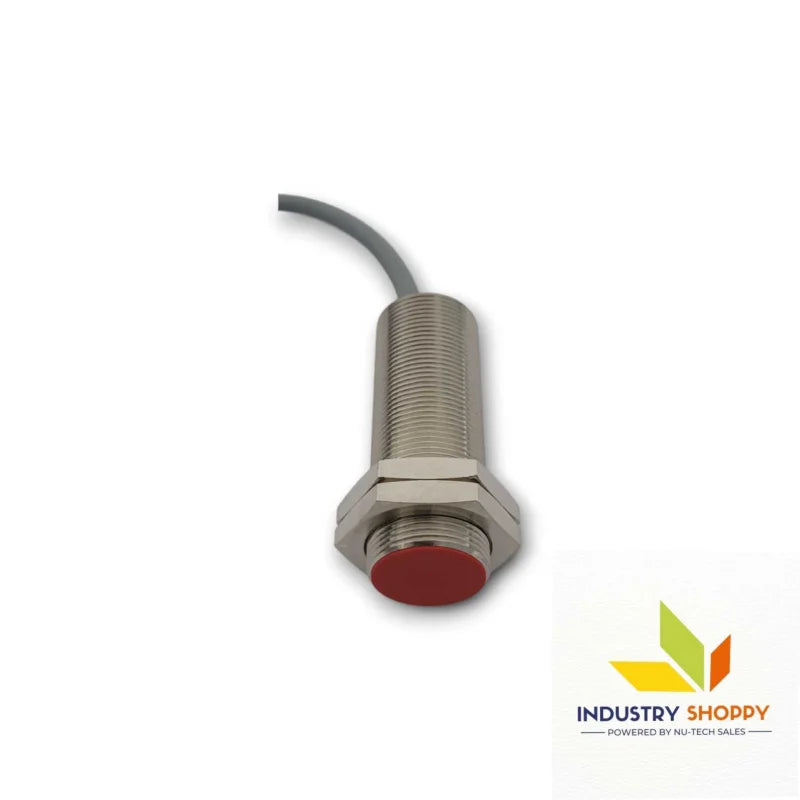

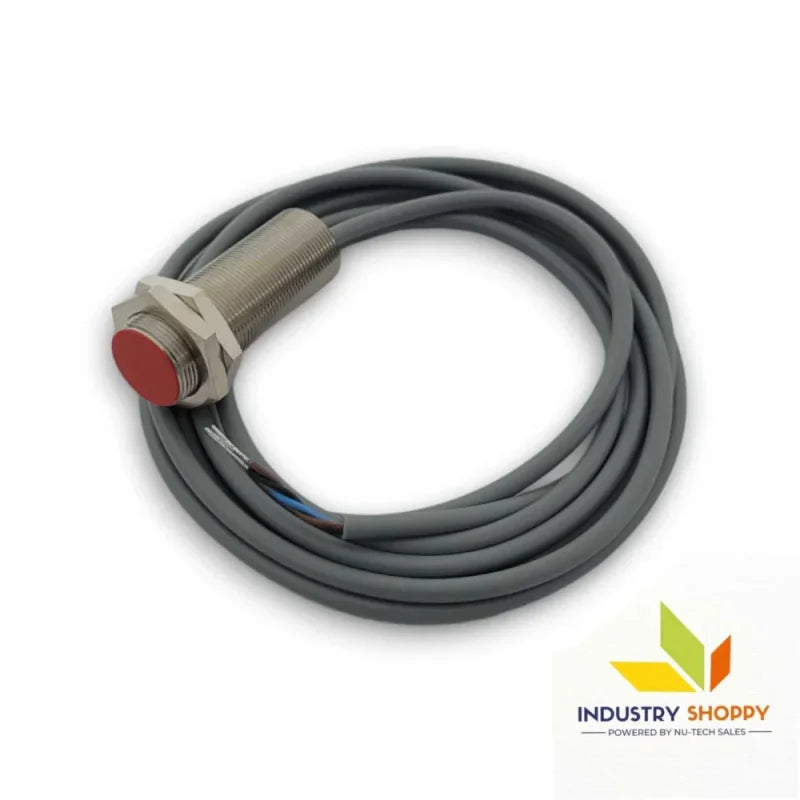

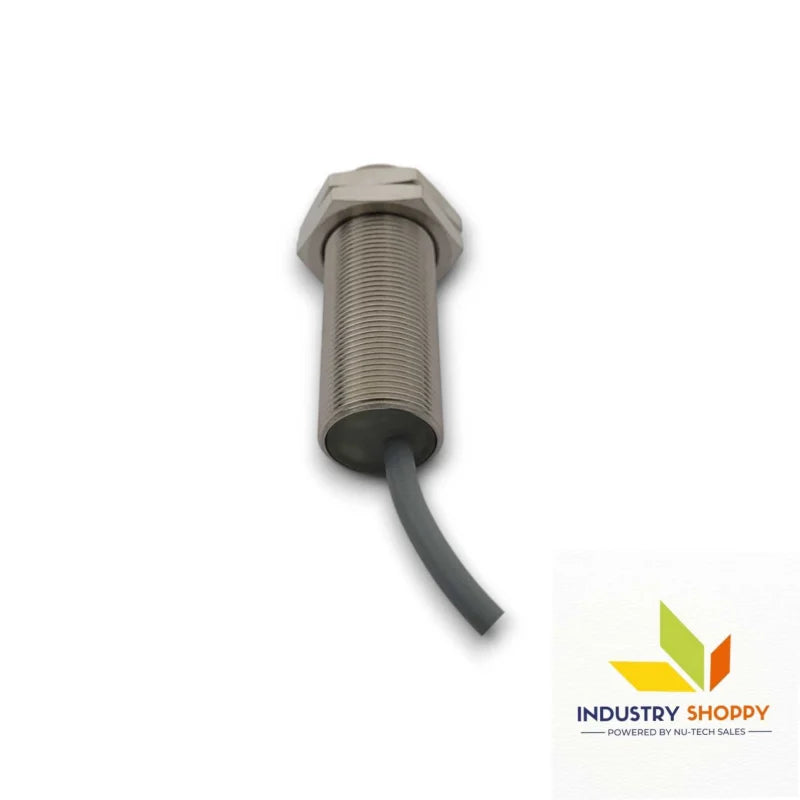

With a rugged brass nickel-plated housing and a PBT red sensing face, the sensor is IP67 rated for protection against dust and moisture. Measuring 18 mm in diameter and 50 mm in length, it includes a 2-meter cable for flexible connection. It is engineered for operational reliability in temperatures from -25 to +75 °C, with a tightening torque capacity up to 25 Nm.

Key features :-

Applications :-

• Automated Assembly Lines – Used for detecting the presence of metal parts or components to coordinate robotic or conveyor-driven processes.
• Position Sensing in Machine Tools – Ensures precise detection of end positions or tool carriers in CNC machines, improving cycle timing.
• Packaging Equipment Control – Detects moving parts or actuators, triggering further stages in filling, sealing, or labeling processes.
• Automotive Testing Rigs – Verifies part positioning in crash simulation or endurance testing where durability and responsiveness are critical.
• Conveyor System Monitoring – Identifies object presence or gaps on belts, enabling automatic adjustments or alerts in logistics and warehousing.

Precautions:

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
