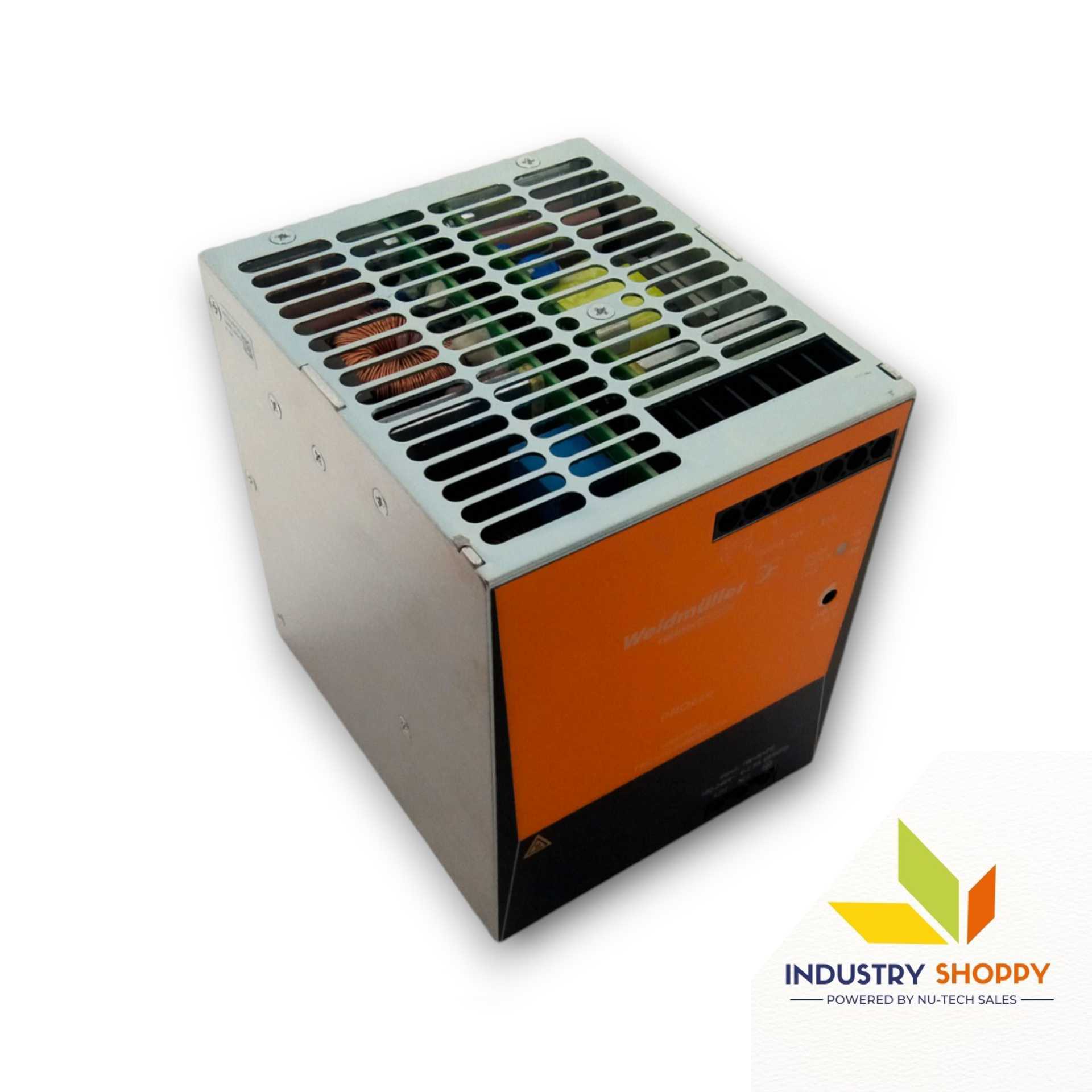

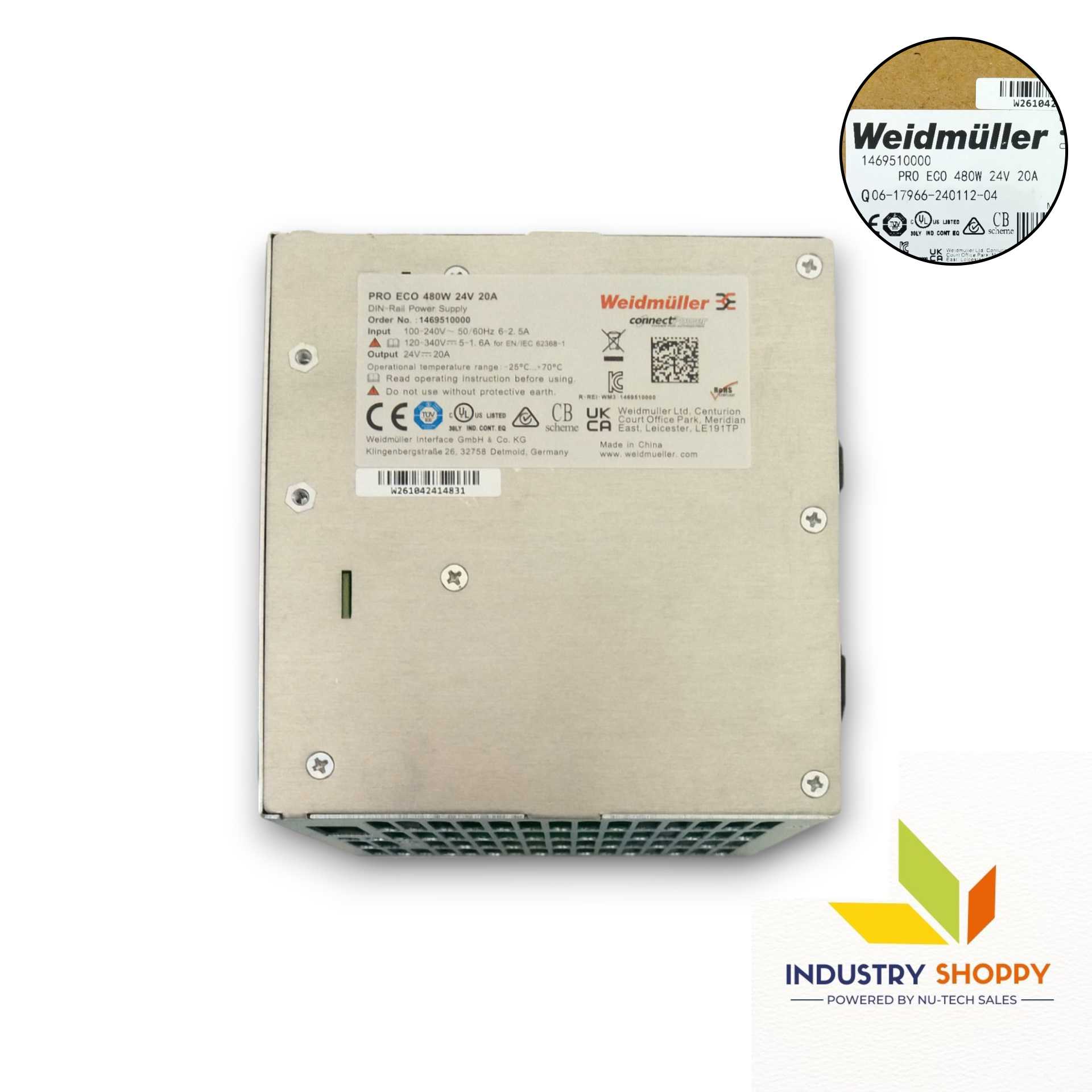

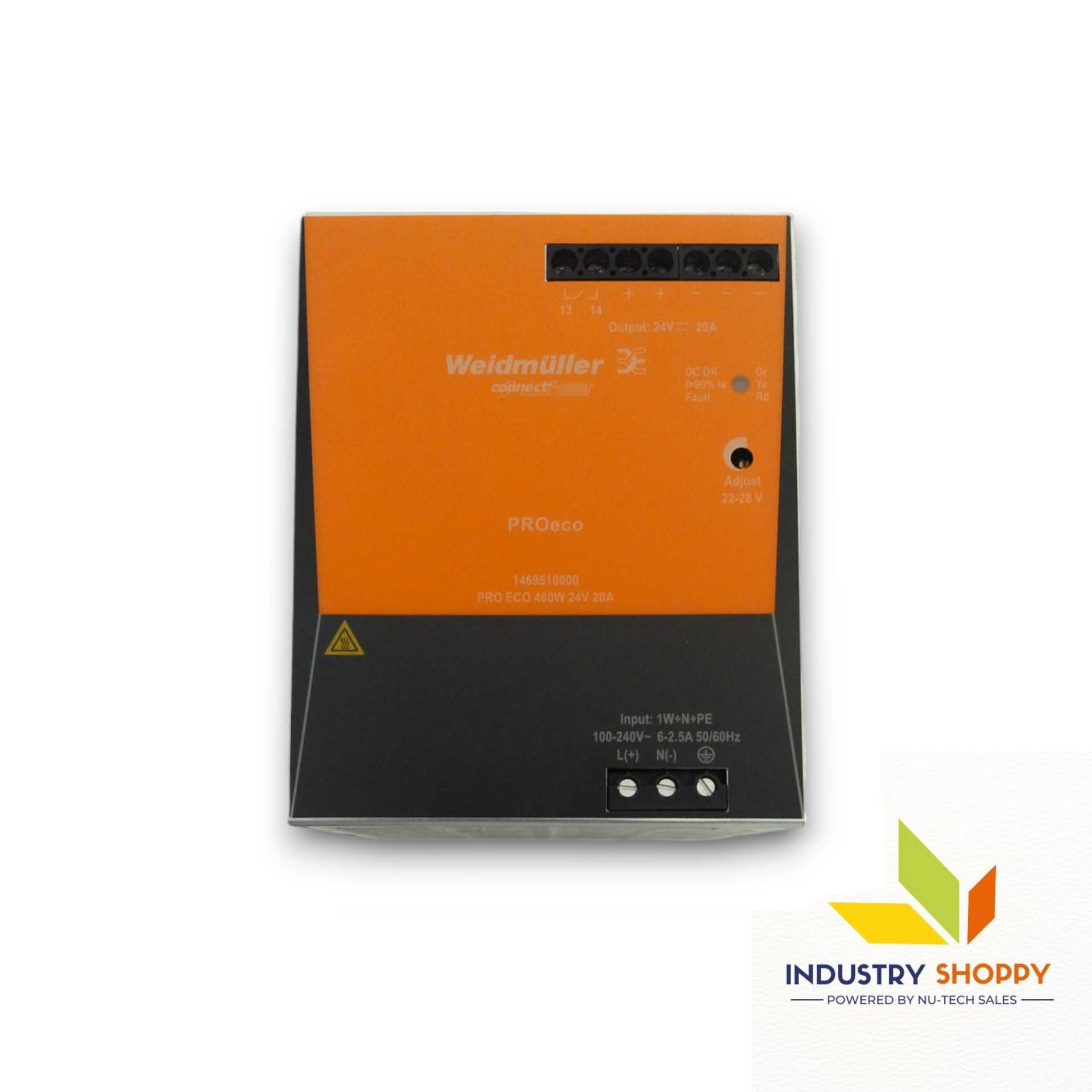

Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller PRO ECO 480W 24V 20A Power Supply
Weidmuller

Weidmuller PRO ECO 480W 24V 20A Power Supply

Product SKU:
Available:
Only 4 items in stock
4 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Baumer
  • Condition
:  New
  • Part Number
:  11110415
  • Type
:  Diffuse Sensor
  • Output Type
:  Push-pull (Light / Dark Operate)
  • Operating Range
:  30 … 200 mm


Note : All tax and custom duty should be pay by buyer only.

$210.00
$300.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Weidmüller PRO ECO 480W 24V 20A Power Supply - 1469510000

The Weidmüller PRO ECO 480W 24V 20A is a highly efficient and reliable switched-mode power supply designed to meet the needs of industrial automation and control systems. Compact and robust, this DIN rail-mountable unit delivers a stable 24V DC output at up to 20A current, making it ideal for demanding applications. Its high efficiency (up to 93%) reduces energy loss and heat generation, ensuring long-term durability and lower operating costs. The unit features overload, short-circuit, and overvoltage protection, providing safe and uninterrupted power delivery even in harsh environments. With a wide input voltage range (85–264V AC), this power supply is suitable for global use across different power networks.

Key Features :-

Product Name PRO ECO 480W 24V 20A
Brand Weidmuller
Order No. 1469510000
Version Power supply, switch-mode power supply unit, 24 V
Depth 120 mm
Height 125 mm
Width 100 mm
Net weight 1,557 g
Storage temperature -40 °C...85 °C
Operating temperature -25 °C...70 °C
RoHS Compliance Status Compliant with exemption
RoHS Exemption (if applicable/known) 7a, 7cI
REACH SVHC Lead 7439-92-1
SCIP 6d8cdf22-8230-4af8-86c8-3558c716666d
AC current consumption 2,37 A @ 230 V AC / 5,2 A @ 110 V AC
AC input voltage range 85...264 V AC (derating at 100 V AC)
Connection system Screw connection
DC current consumption 1,55 A @ 370 V DC / 4,65 A @ 120 V DC
DC input voltage range 80...370 V DC (Derating @ 120 V DC)
Frequency range AC 47...63 Hz
Input frequency 47...63 Hz
Input fuse (internal) Yes
Inrush current max. 5 A
Nominal power consumption 527.5 VA
Rated input voltage 100...240 V AC
Recommended back-up fuse 6 A / DI, safety fuse
16 A, Char. B, circuit breaker
6…8 A, Char. C, circuit breaker
Surge protection Varistor
Capacitive load unrestricted
Connection system Screw connection
Continuous output current @ UNominal 20 A @ 55 °C
15 A @ 70 °C
Nominal output current for Unom 20 A @ 55 °C
Output power 480 W
Output voltage, max. 28 V
Output voltage, min. 22 V
Output voltage, note (adjustable via potentiometer)
Overload protection Yes
Parallel connection option yes, max. 3
Protection against inverse voltage Yes
Ramp-up time ≤ 100 ms
Rated output voltage 24 V DC ± 1 %
Residual ripple, breaking spikes <50 mVPP @ 24 V DC, IN
AC failure bridging time @ Inom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Degree of efficiency 91%
Earth leakage current, max. 3.5 mA
Housing version Metal, corrosion resistant
Indication Green LED (Uoutput > 21.6 V DC)
Yellow LED (loutput > 90 % IRated typ. )
red LED (overload, overtemperature, short-circuit, Uoutput <20.4 V DC)
Max. perm. air humidity (operational) 5 %…95 % RH

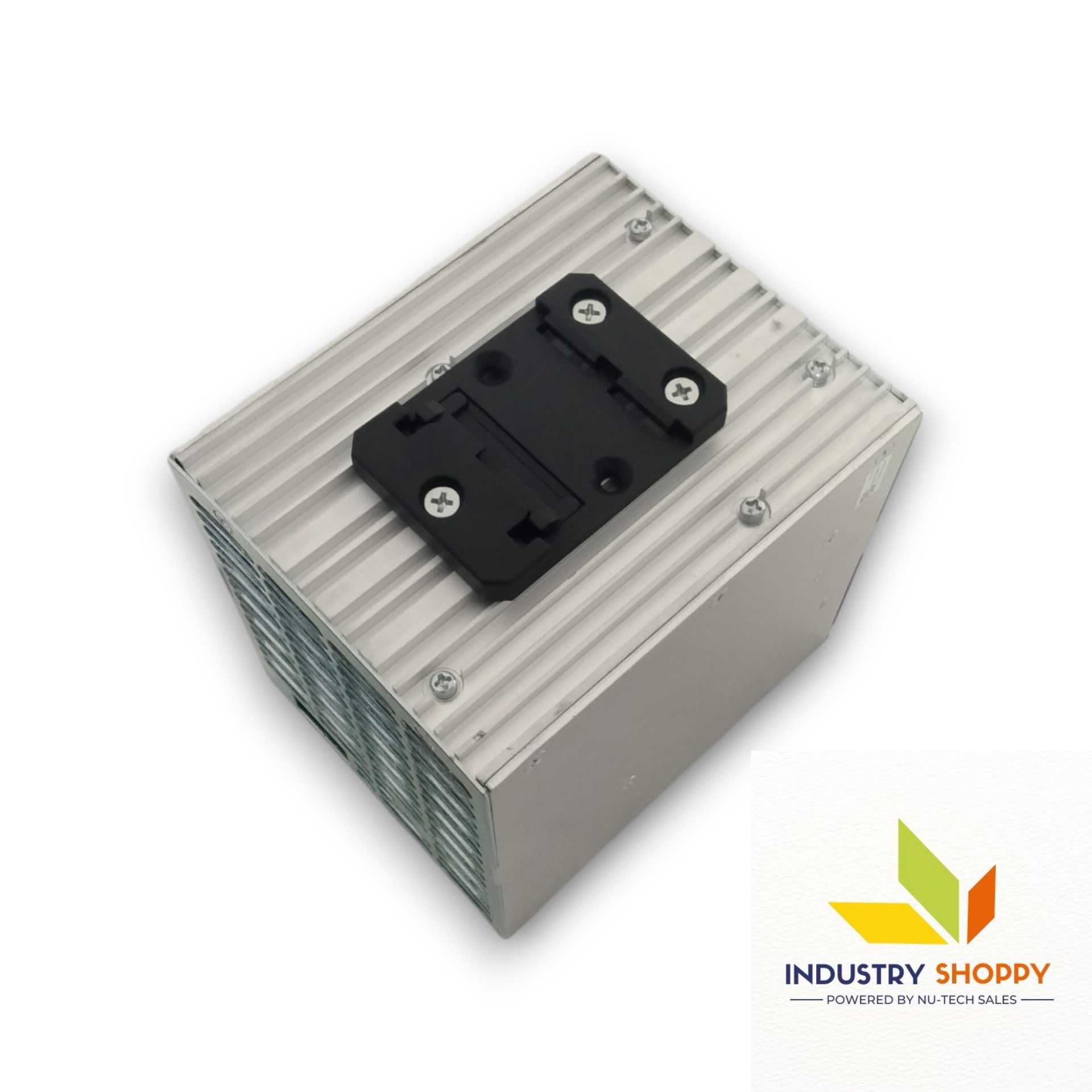

Mounting position, installation notice on terminal rail TS 35
Power factor (approx.) > 0.98…230 V AC / > 0.98…115 V AC
Power loss, idling 5 W
Power loss, nominal load 43 W
Protection against over-heating Yes
Protection against reverse voltages from the load 30…35 V DC
Protection degree IP20
Short-circuit protection Yes
Surge voltage category II
Country of origin China

Applications

  • Industrial automation systems

  • PLCs and HMIs

  • Sensors and actuators

  • Control panels and switchboards

  • Machine-building and process equipment

Precautions

  • Ensure proper ventilation and avoid installing in sealed enclosures without airflow.

  • Verify input and output voltage ratings before connecting to the load.

  • Do not exceed the rated current of 20A to prevent damage.

  • Install on DIN rail as specified, keeping distance from heat-generating components.

  • Follow electrical safety guidelines while wiring or servicing the unit.
