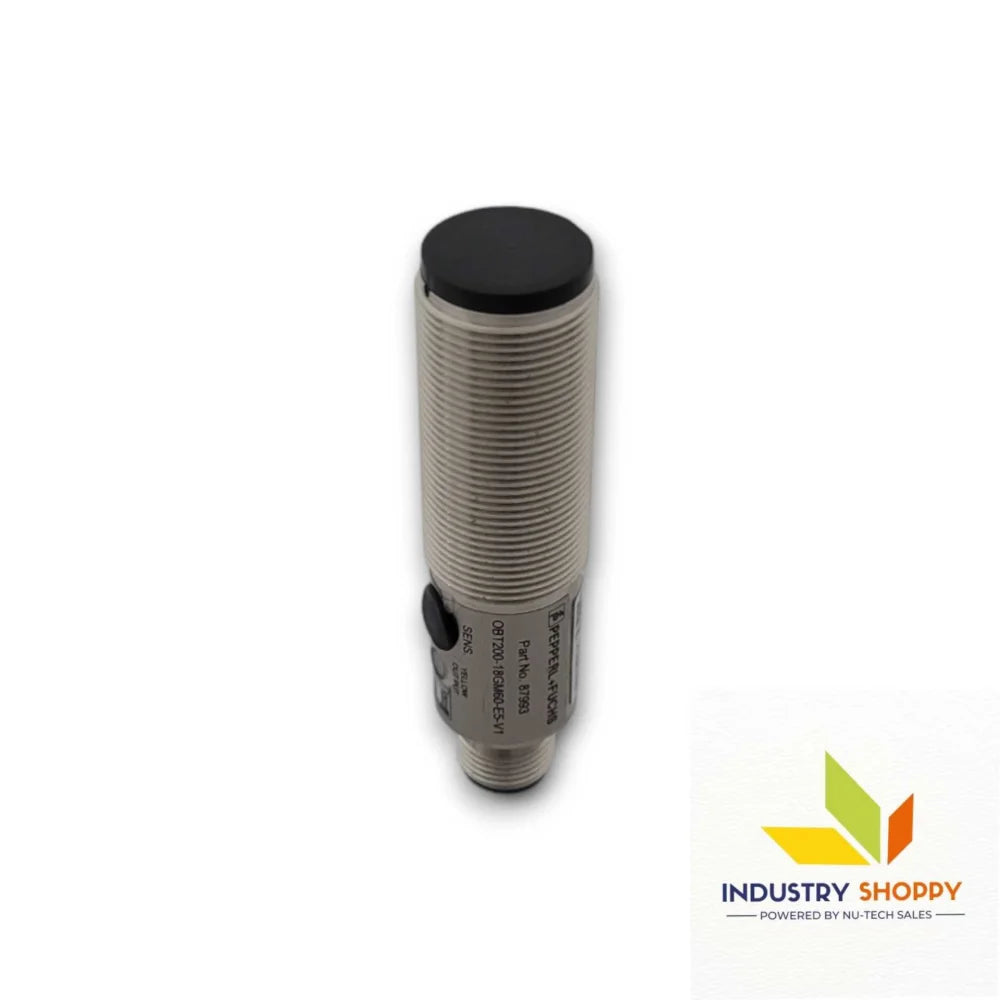

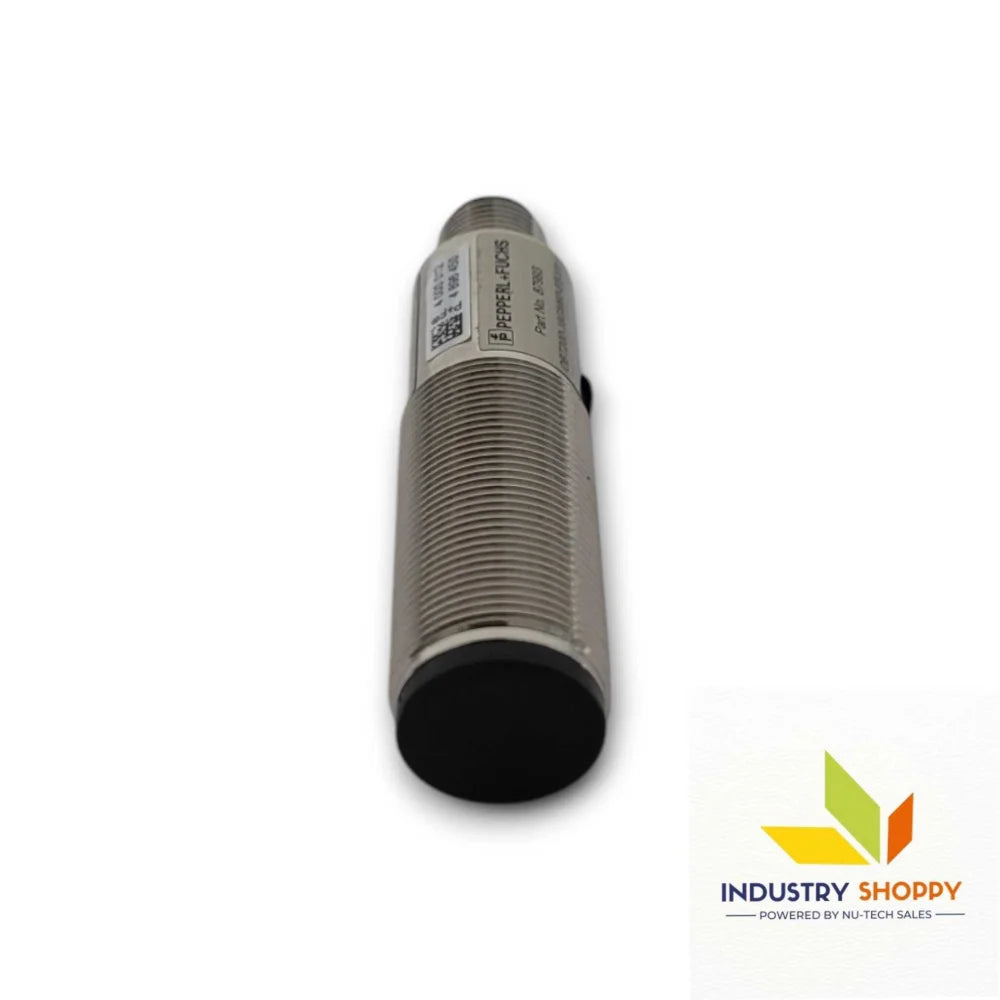

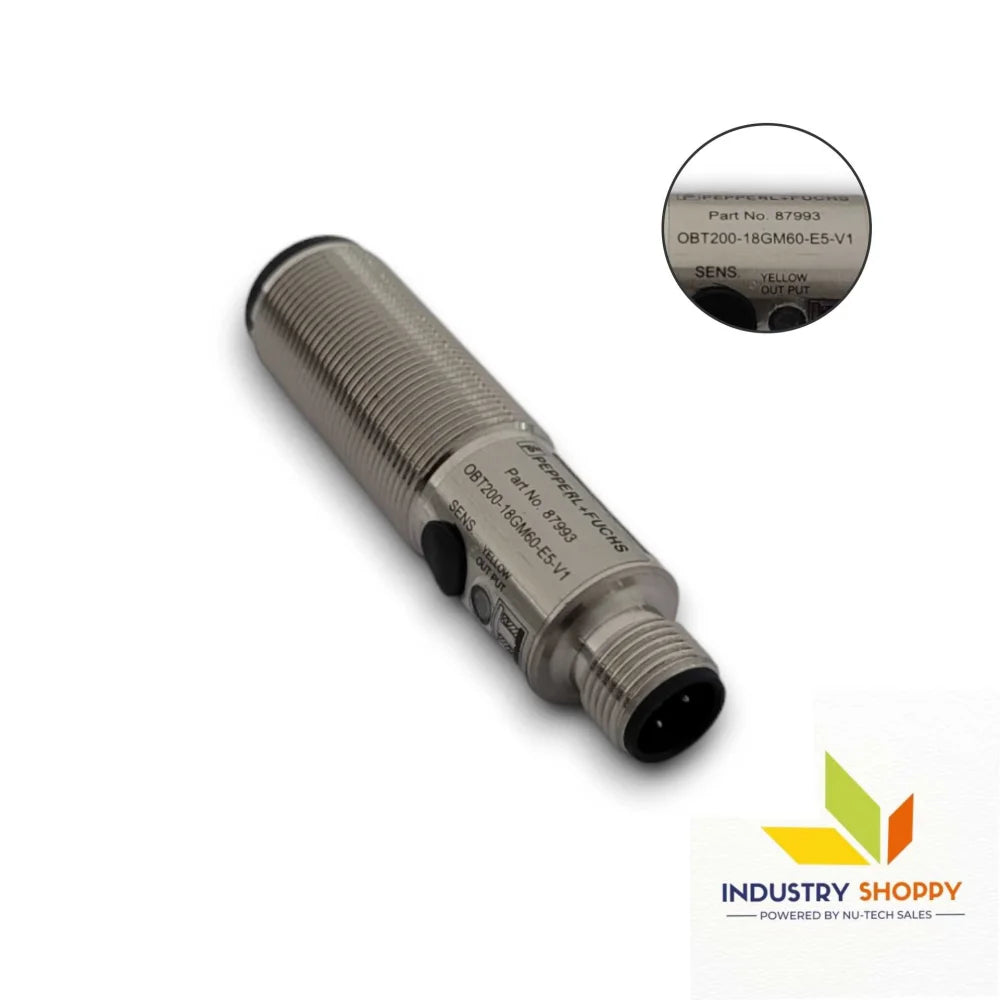

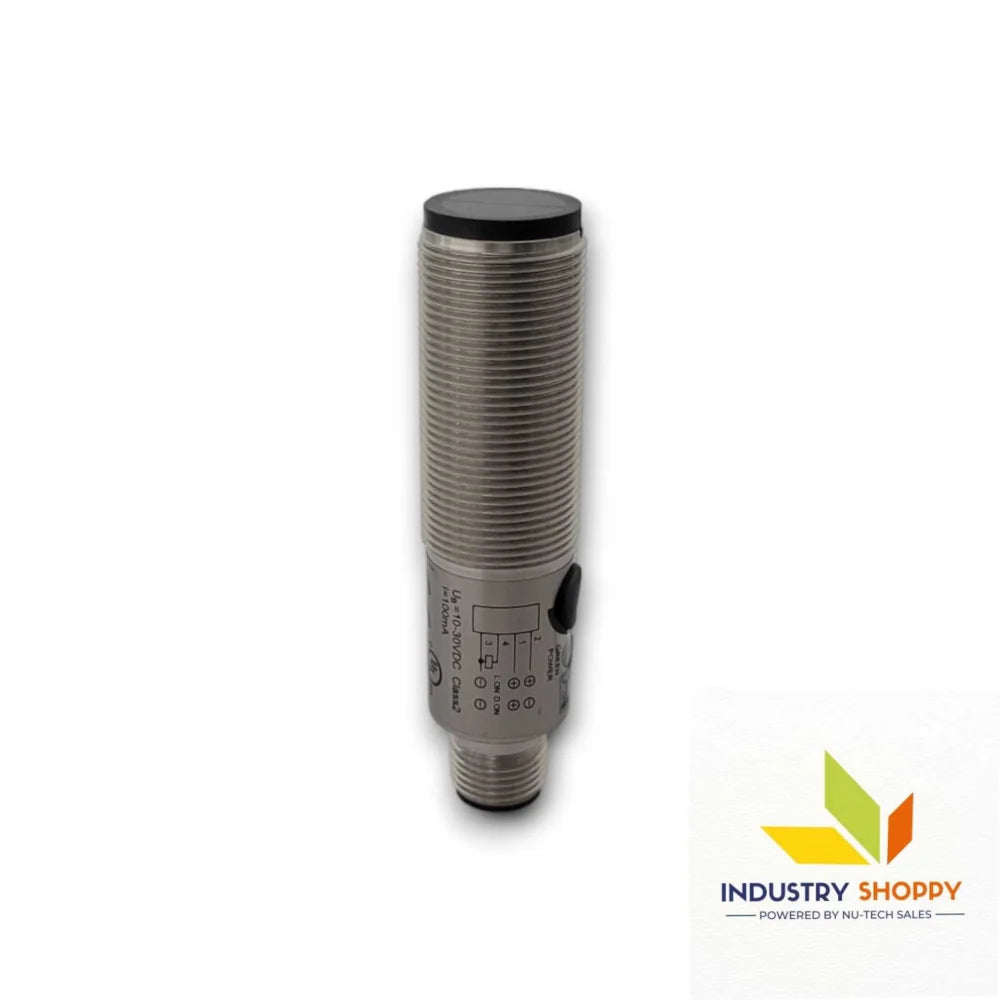

Pepperl+Fuchs OBT200-18GM60-E5-V1 Photoelectric Sensor

Product SKU: NTSSEN00003
Available:
Only 16 items in stock
16 items in stock
In stock
Pre-order
Out of stock
  • Brand: Pepperl+Fuchs
  • Part No.: 87993
  • Operating voltage (UB): 10 … 30 V DC, Class 2
  • Switching type: Light/Dark ON, electrically switchable
  • Response time: 1 ms
  • Switching frequency: 500 Hz

Note : All tax and custom duty should be pay by buyer only.

$60.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Pepperl+Fuchs OBT200-18GM60-E5-V1 Diffuse Sensor

The Pepperl+Fuchs OBT200-18GM60-E5-V1 Diffuse Sensor is a high-performance diffuse sensor engineered for precise detection at ranges up to 200 mm. Using an 880 nm infrared IRED light source, it delivers stable sensing even in challenging lighting conditions up to 10,000 Lux. Its 40 mm light spot at full range ensures accurate detection of small to medium objects.

The sensor features dual operation and function LEDs for clear indication of power, switching state, and stability control. With a fast 1 ms response time and 500 Hz switching frequency, it supports high-speed automation tasks.

The PNP output is fully protected with short-circuit and reverse-polarity safety, ensuring long-term reliability. Housed in nickel-plated brass with an IP67 rating and M12 connector, this model offers excellent durability in harsh industrial environments. Ideal for packaging, assembly lines, material handling, and machine automation.


Applications

  • Ideal for packaging and material handling systems requiring fast object detection.

  • Suitable for assembly lines for presence/absence sensing.

  • Used in robotic positioning and part verification.

  • Effective for conveyor automation and sensor-based sorting.

  • Works well in machine tools with reflective or variable targets.


Technical Precautions

  • Avoid exposure to direct reflective surfaces that may affect sensing accuracy.

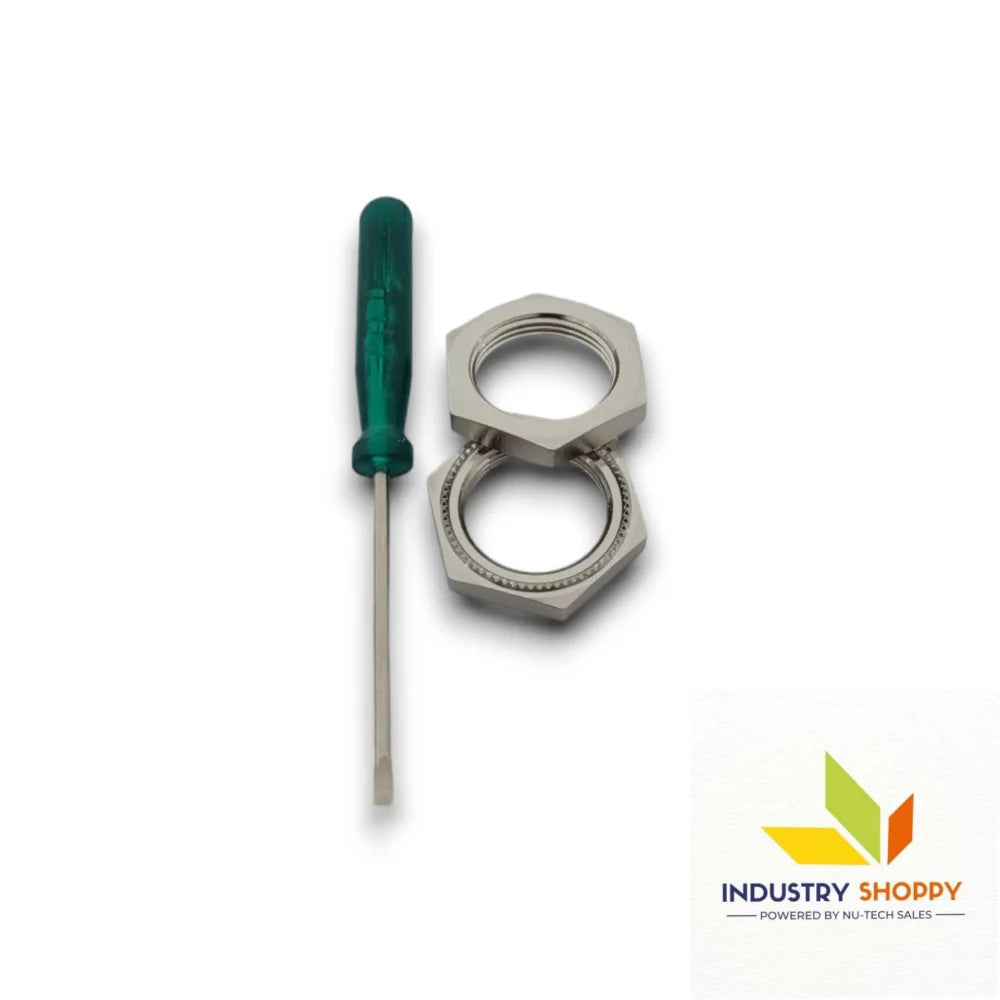

  • Ensure the M12 connector is tightened properly to maintain IP67 sealing.

  • Use a stable 10–30 VDC supply to prevent signal fluctuations.

  • Keep the optical face clean from dust/oil for consistent performance.

  • Do not exceed ambient temperature limits (–25°C to 55°C) to prevent damage.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,

ModelOBT200-18GM60-E5-V1
Part No.87993
BrandPEPPERLS+FUCHS
Detection range0 … 200 mm
Reference targetStandard white, 200 mm × 200 mm
Light sourceIRED, 880 nm
Light typeInfrared
Light spot diameterApprox. 40 mm at 200 mm
Ambient light limit10,000 Lux
IndicatorsOperation LED (green), Function LED (yellow/green)
Function indicator detailsYellow: switch state / Green: power on / Flashing: stability control
Control elementsSensing range adjuster
Operating voltage (UB)10 … 30 V DC, Class 2
Ripple10%
No-load supply current (I0)≤ 25 mA
Time delay before availability (tv)≤ 25 ms
Switching typeLight/Dark ON, electrically switchable
Signal output1 × PNP output, short-circuit & reverse polarity protected, open collector
Max. switching voltage30 V DC
Max. switching current100 mA
Voltage drop (Ud)≤ 2.5 V
Switching frequency500 Hz
Response time1 ms
Product standardEN 60947-5-2
UL standardUL 508
UL approvalcULus Listed, Type 1 enclosure
CCC approvalNot required ≤ 36 V
Other approvalsCE, cULus Listed 57M3 (only with UL Class 2 power supply)
Ambient temperature (operation)-25 … 55 °C
Storage temperature-40 … 70 °C
Degree of protectionIP67
Connection4-pin, M12 × 1 connector
Housing materialBrass, nickel-plated
Optical face materialPC
