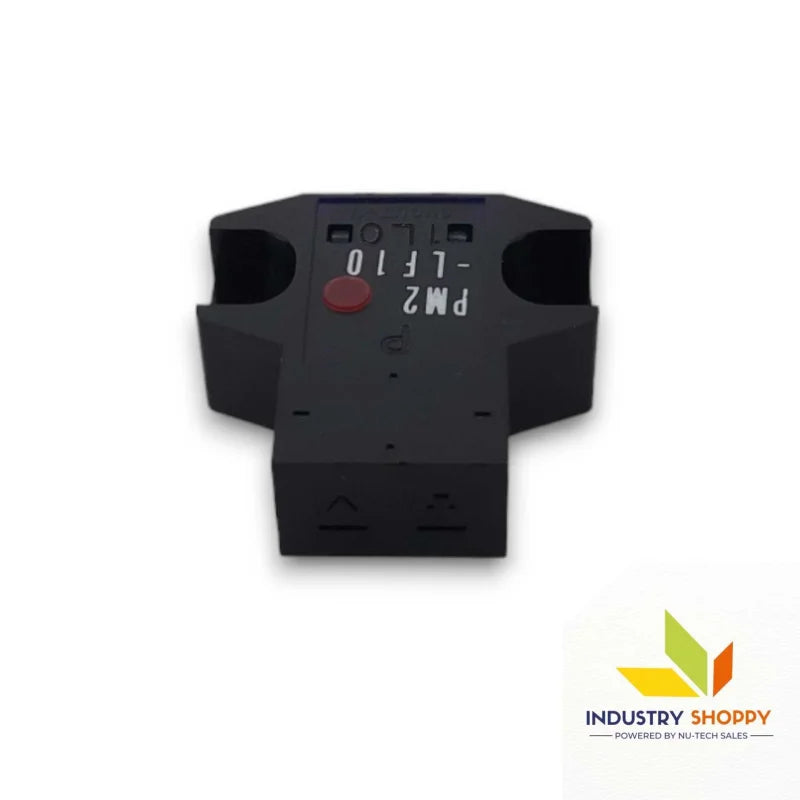

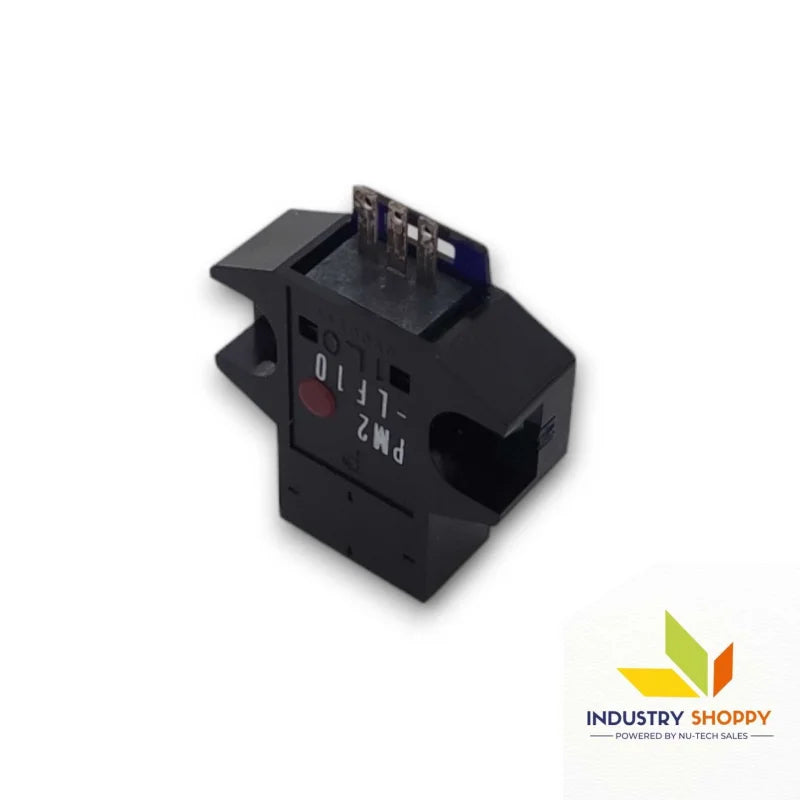

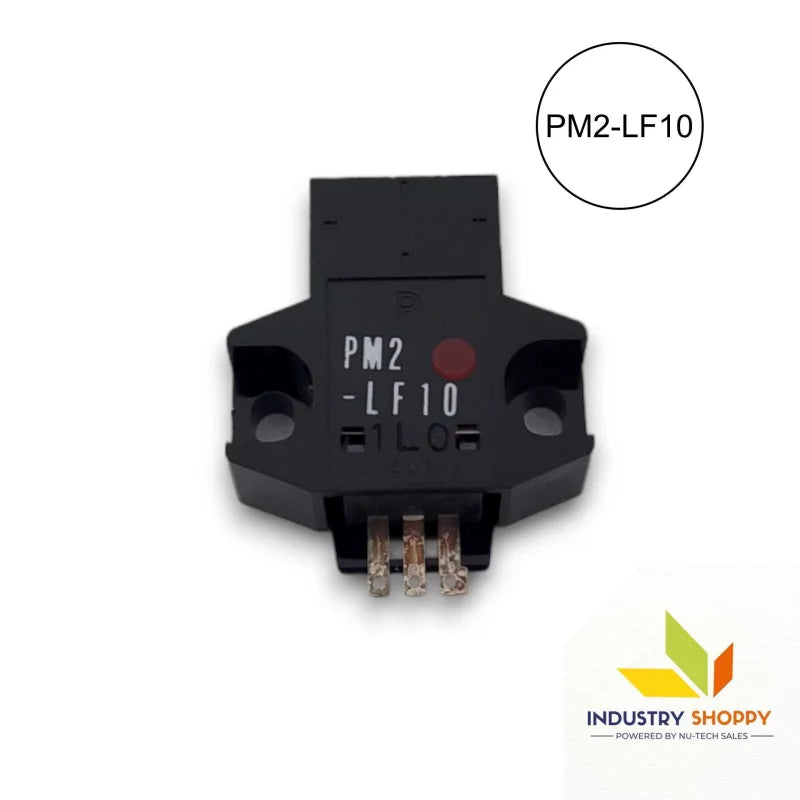

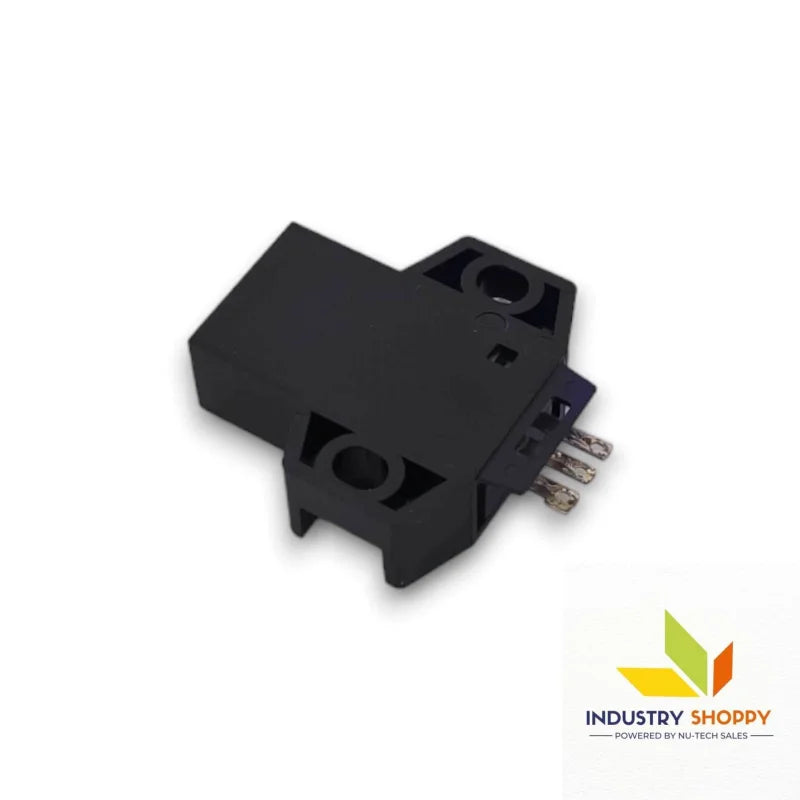

Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic PM2-LF10 Photoelectric Sensor
Panasonic

Panasonic PM2-LF10 Photoelectric Sensor

Product SKU: NTSSEN00078
Available:
Only 7 items in stock
7 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  Photoelectric Sensor
  • Output Type
:  --
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$50.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic PM2-LF10 Photoelectric Sensor

The Panasonic PM2-LF10 is a high-performance photoelectric sensor designed for precise and reliable object detection in various industrial applications. With a sensing range of 5 to 100 mm, it offers exceptional accuracy without interference. The sensor utilizes a visible red LED light source (650 nm) for reliable operation, while the adjustable sensitivity allows for easy calibration.

This compact sensor (18 mm × 9.8 mm × 23.3 mm) features an NPN output and operates with a response time of less than 1 ms. It supports both light and dark operation and works within a voltage range of 10-30 VDC with a 50 mA output current. The sensor is equipped with short-circuit protection, reverse polarity protection, and IP67-rated housing, making it suitable for challenging environments. The M8 3-pin connector ensures straightforward and secure installation.

Ideal for a variety of industrial automation and control applications, the Panasonic PM2-LF10 offers reliable detection, fast response time, and flexible installation options

Key features :-

Brand Panasonic
Product name PM2-LF10
Item Performance characteristics
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 2.5 to 8 mm 0.098 to 0.315 in (Conv. point: 5 mm 0.197 in) with white non-glossy paper (15 × 15 mm 0.591 in × 0.591 in)
(Note)The sensing range may extend up to 12.5 mm 0.492 in with white non-glossy paper due to product variation.
Minimum Sensing Object ø0.05 mm ø0.002 in copper wire (Setting distance: 5 mm 0.197 in)
Hysteresis 20 % or less of operation distance with white non-glossy paper
(15 × 15 mm 0.591 × 0.591 in)
Repeatability (Perpendicular to Sensing Axis) 0.08 mm 0.003 in or less
(Note) The repeatability is specified for white non-glossy paper (15 × 15 mm 0.591 × 0.591 in) at a setting distance of 5 mm 0.197 in.
Supply Voltage 5 to 24 V DC plus or minus 10 % Ripple P-P 5 % or less
Current Consumption Average: 25 mA or less, Peak: 80 mA or less
Output NPN open-collector transistor
Maximum sink current: 100 mA
Applied voltage: 30 V DC or less (between output and 0 V)
Residual voltage: 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current)
Output: Over-Current Protection Incorporated
Output: Utilization Category DC-12 or DC-13
Response Time 0.8 ms or less
Operation Indicator Red LED (lights up when the output is ON)
Pollution Degree 3 (Industrial environment)
Ambient Temperature –10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed),
Storage: –25 to +80 ℃ –13 to +176 ℉
Ambient Humidity 45 to 85 % RH, Storage: 45 to 85 % RH
Ambient Illuminance Incandescent light: 3,500 lx or less at the light-receiving face
Vibration Resistance 10 to 55 Hz frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 880 nm 0.035 mil, modulated)
Material Enclosure: Polycarbonate, Terminal part: HSM (Ag plated)
Cable -
Cable Length Total length up to 2 m 6.562 ft is possible with 0.3 mm2, or more, cable.
(If the cable is extended for 2 m 6.562 ft, or more, a capacitor of 10 µF must be connected between +V and 0 V terminals.)



Applications :-

  • Industrial Automation: Ideal for detecting objects in automated production lines, improving sorting and positioning.
  • Material Handling: Perfect for long-range detection on conveyor systems, enhancing sorting and tracking efficiency.
  • Packaging Industry: Used for precise object detection in packaging processes, increasing speed and accuracy.
  • Quality Control: Ensures consistent product quality by detecting objects in quality inspection systems.
  • Logistics and Warehouse: Enables efficient material sorting and handling in large-scale warehouse operations.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
