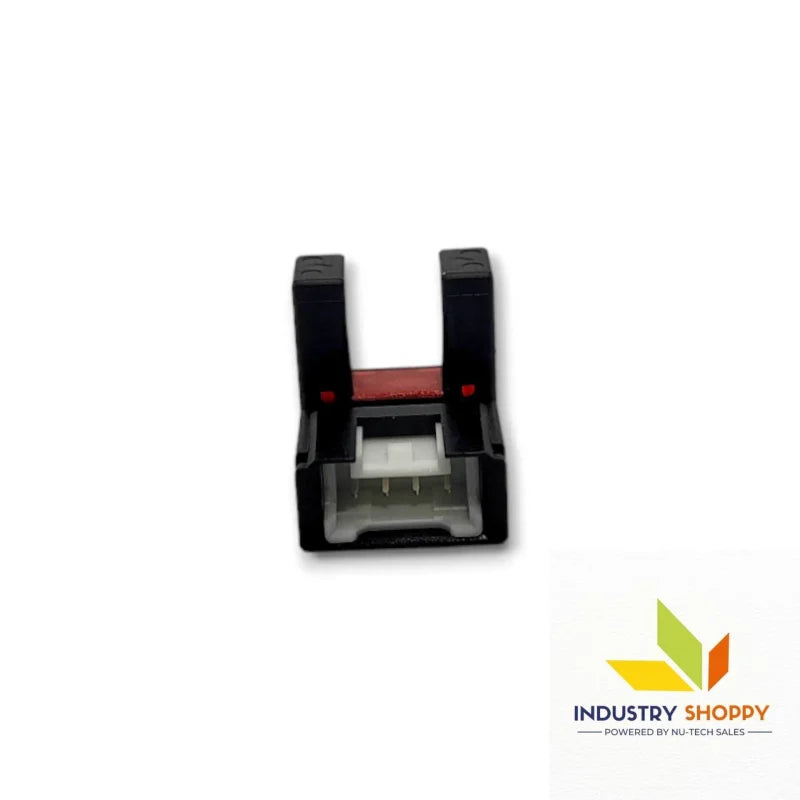

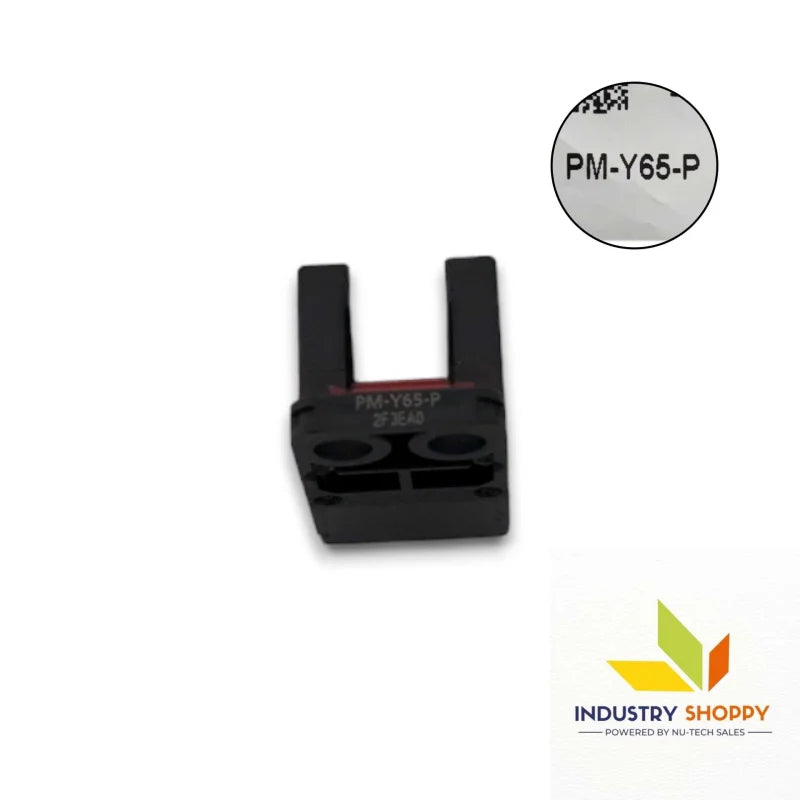

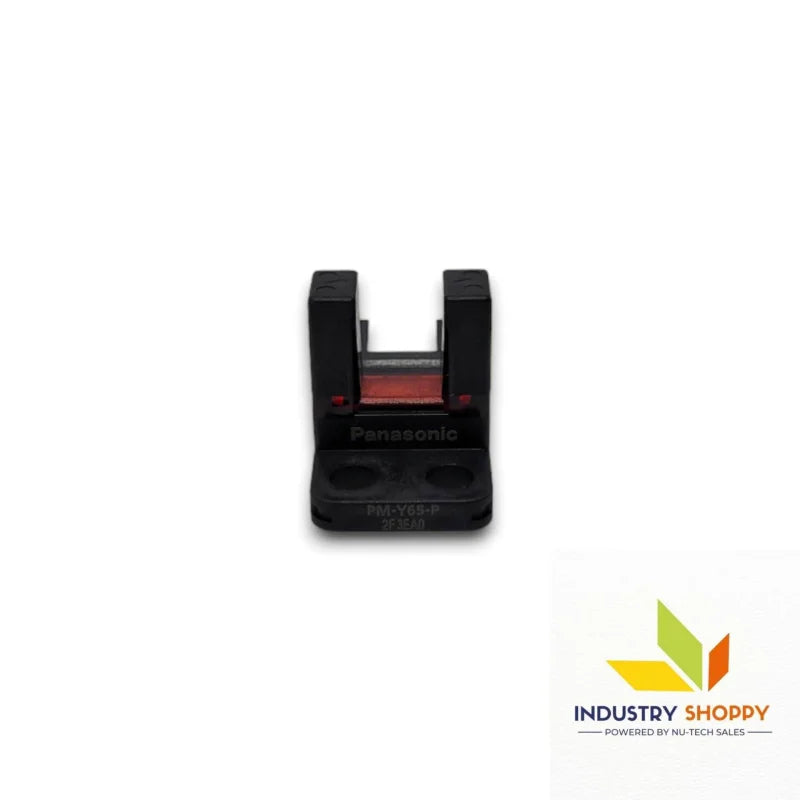

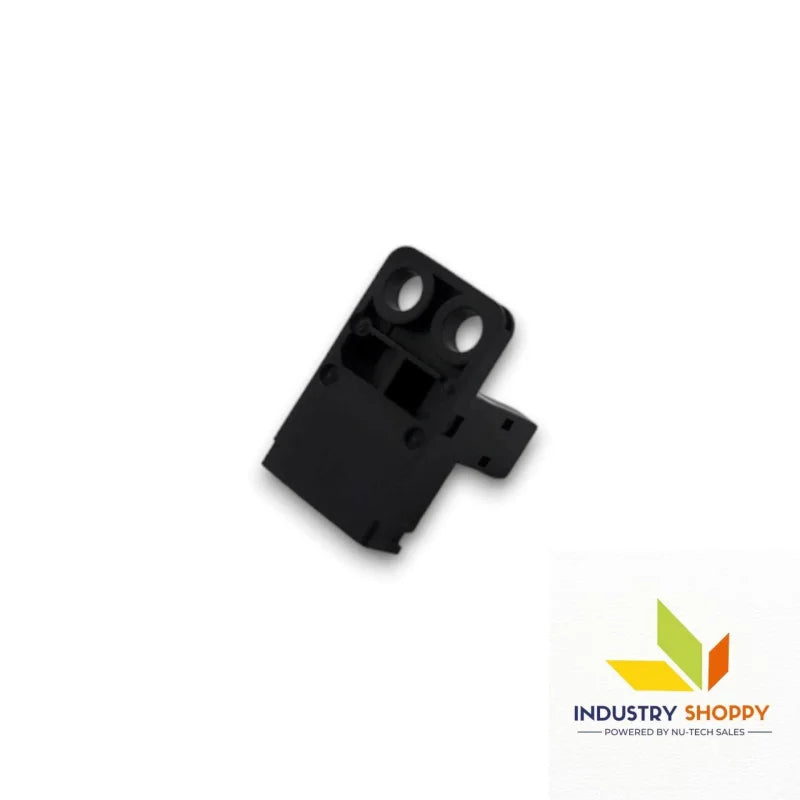

Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic PM-Y65-P Photoelectric Sensor
Panasonic

Panasonic PM-Y65-P Photoelectric Sensor

Product SKU: NTSSEN00150
Available:
Only 17 items in stock
17 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  --
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$25.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic PM-Y65-P Photoelectric Sensor

The Panasonic PM-Y65-P is a high-performance photoelectric sensor designed for precise detection in a wide range of industrial applications. It features a sensing range of up to 2 meters, ensuring reliable object detection over long distances. The sensor utilizes a polarized retro-reflective technology, allowing it to detect objects with high precision, even in challenging environments.

This sensor has an NPN output and offers a response time of less than 1 ms for fast detection. It operates within a voltage range of 10-30 VDC with a 50 mA output current, supporting both light and dark operation. The IP67-rated housing ensures durability and protection against dust and water, making it suitable for use in harsh industrial environments. Additionally, the M8 3-pin connector allows for easy installation and secure connections.

The Panasonic PM-Y65-P is ideal for applications requiring reliable, long-range detection, offering outstanding performance in various industrial settings.

Key features :-

Brand Panasonic
Product name PM-Y65-P
Item Performance characteristics
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 6 mm 0.236 in (fixed)
Minimum Sensing Object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply Voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output PNP open-collector transistor
・Maximum source current: 50 mA
・Applied voltage: 30 V DC or less (between output and + V)
・Residual voltage: 2 V or less (at 50 mA source current), 1 V or less (at 16 mA source current)
Output: Output Operation Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)
(Note) The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator Orange LED (lights up under light received condition)
Pollution Degree 3
Protection IP40 (IEC)
Ambient Temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
Ambient Humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance Fluorescent light: 1,000 ℓx at the light-receiving face

Voltage Withstand ability

 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT



Applications :-

  • Industrial Automation: Suitable for detecting objects in automated systems and production lines, improving sorting and positioning accuracy.
  • Material Handling: Perfect for long-range detection on conveyor systems, enhancing efficiency in sorting and tracking.
  • Packaging Industry: Provides precise detection during packaging processes, ensuring accurate and fast packaging operations.
  • Logistics and Warehouse: Enables efficient object detection for sorting and tracking materials in large warehouse systems.
  • Quality Control: Used in quality inspection systems to detect objects and ensure consistent product quality.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
