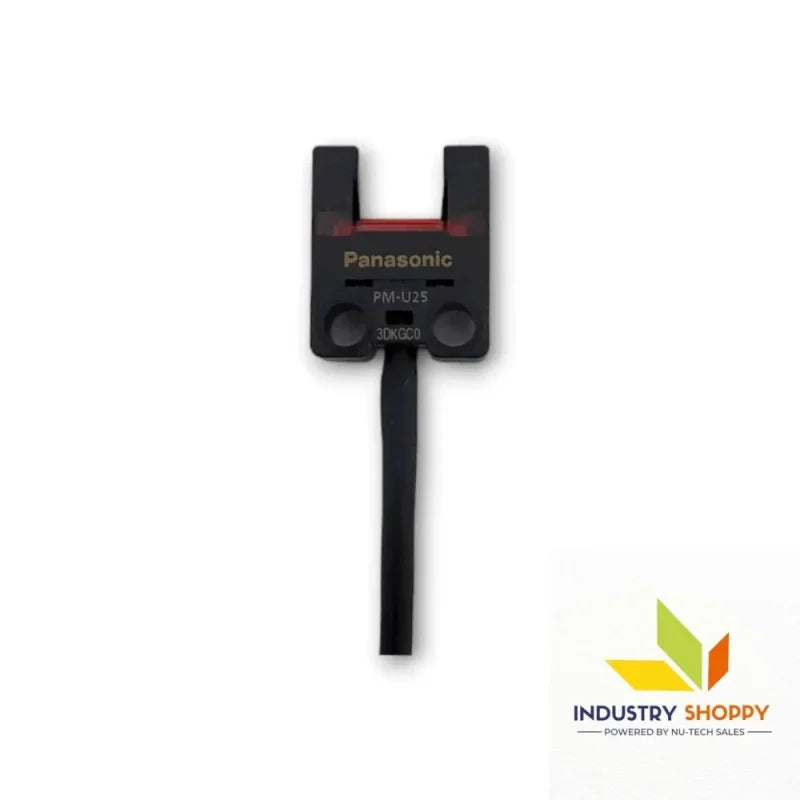

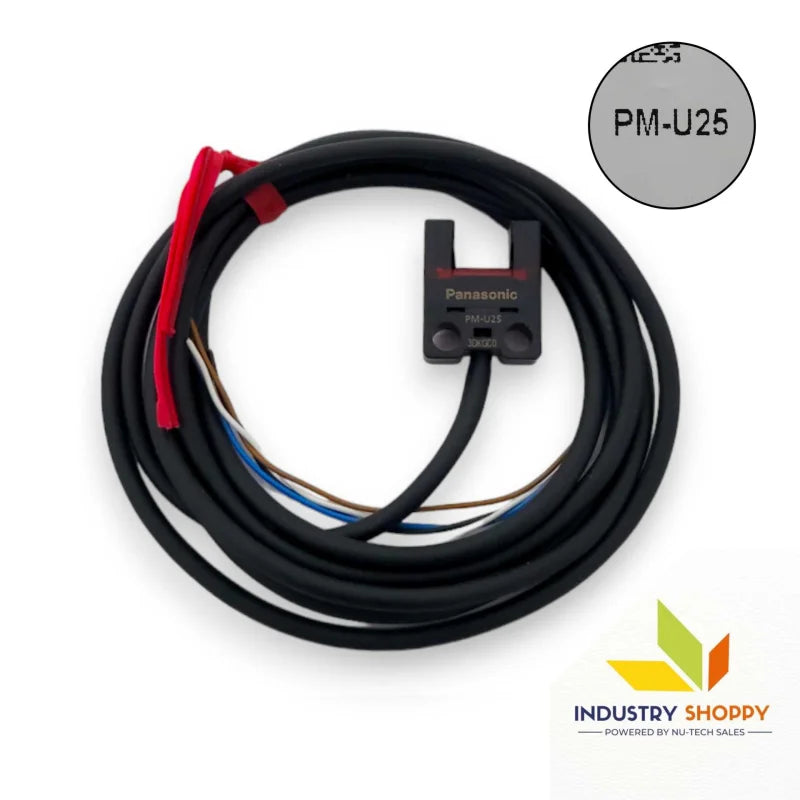

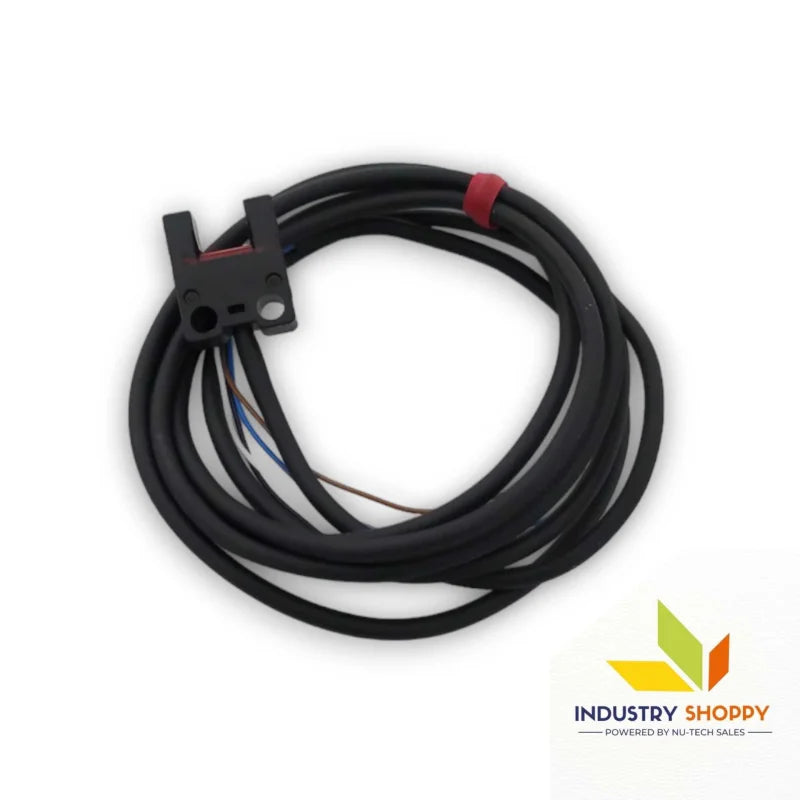

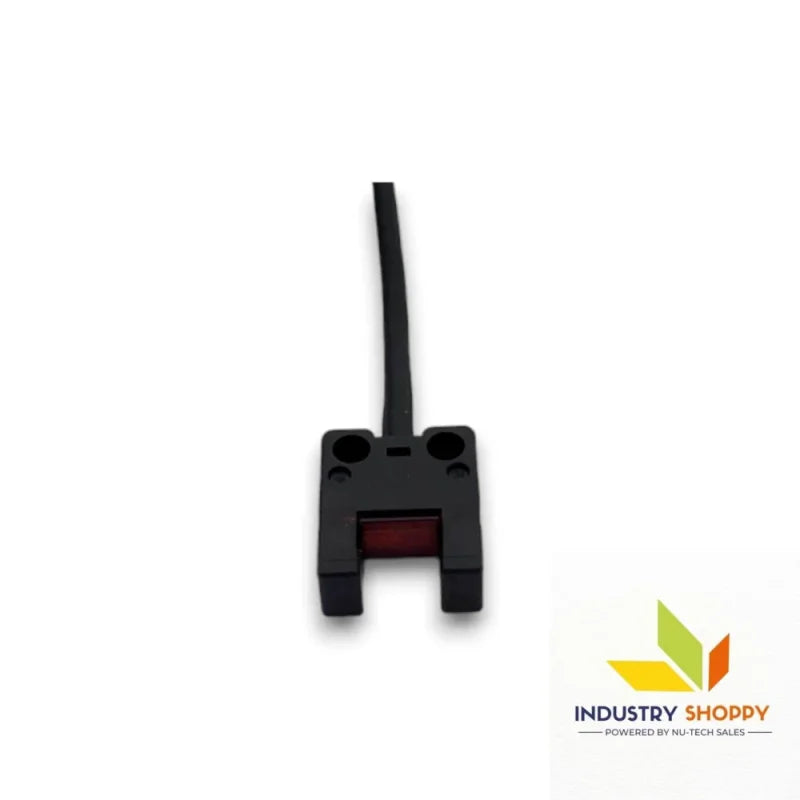

Panasonic PM-U25 Photoelectric Sensor

Product SKU: NTSSEN00388

Available:

Only 29 items in stock

29 items in stock

In stock

Pre-order

Out of stock

$24.00

~~$38.00~~

Want it delivered by

Description
Declaration
Reviews

Panasonic PM-U25 Photoelectric Sensor :

The Panasonic PM-U25 is a versatile and high-performance photoelectric sensor designed for precise object detection in a range of industrial environments. With a sensing range of up to 2.5 meters, it ensures reliable and accurate detection even over longer distances. The sensor utilizes through-beam technology, providing a stable and consistent output for high-precision applications.

This sensor features a NPN output, with a response time of less than 1 ms, allowing for fast and efficient detection. It operates within a voltage range of 10-30 VDC, supporting light and dark operation. The IP67-rated housing offers protection against dust and water, making it ideal for harsh and demanding industrial environments. Additionally, the M8 4-pin connector ensures a secure and easy installation process.

Key features :-

Product Number	PM-U25
Part Number	PMU25
Applicable regulations and certifications	CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations), ISO 13849-1 (Category 1, PLc) (Note), UL/c-UL certification
Sensing range	6 mm 0.236 in (fixed)
Minimum sensing object	0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis	0.05 mm 0.002 in or less
Repeatability	0.01 mm 0.0004 in or less
Supply voltage	5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current consumption	15 mA or less
Output	NPN open-collector transistor
Output : Output operation	Incorporated with 2 outputs: Light-ON / Dark-ON
Output : Short-circuit protection	Incorporated
Response time	Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less	1,000 V AC for one min. between all supply terminals connected together and enclosure
(Maximum response frequency: 3 kHz)(Note)	20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
(Note) : Refer to the note on the specification page for the response frequency.	10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Operation indicator	Orange LED (lights up under light received condition)
Pollution degree	3
Protection	IP64 (IEC)
Ambient temperature	-25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
(Note) : In case is used at an ambient temperature of +50 ℃ +122 ℉, or more, make sure to mount it on a metal body.	Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. (Note 2) : For safety applications, do not exceed 30 m 98.425 ft.
Ambient humidity	5 to 85 % RH, Storage: 5 to 95 % RH
Ambient illuminance	Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance	20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration resistance	10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock resistance	15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting element	Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material	Enclosure: PBT Display section: Polycarbonate
Cable	0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring length	Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. (Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher. (Note 2) : For safety applications, do not exceed 30 m 98.425 ft.

Applications :-

Industrial Automation: Ideal for detecting objects in automated production lines, providing accurate and efficient sorting, positioning, and control.
Material Handling: Perfect for long-range object detection on conveyor systems, enhancing tracking, sorting, and handling of materials.
Packaging Industry: Ensures reliable detection of items during packaging processes, improving speed and operational efficiency.
Quality Control: Used for inspecting and ensuring consistent product quality by detecting objects in quality control systems.
Logistics and Warehouse: Ideal for object detection and sorting in large-scale warehouse and logistics systems, improving material handling efficiency.

Precautions :-

Ensure Correct Wiring: Incorrect connections can cause sensor failure
Avoid Overvoltage: Operating within 10-30V DC prevents damage
Protect from Extreme Heat: Avoid installing near high-temperature sources
Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
