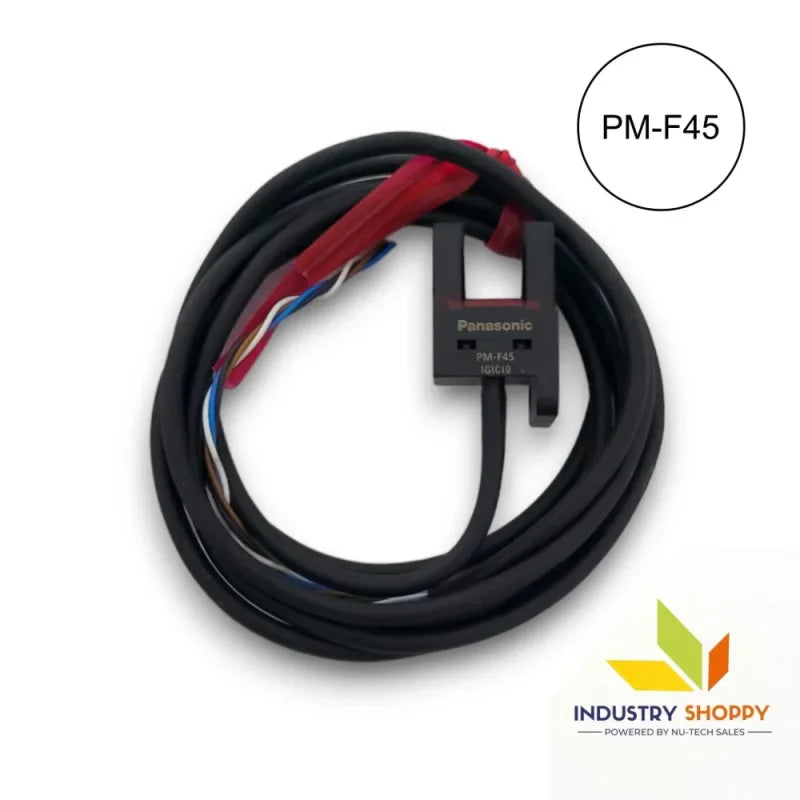

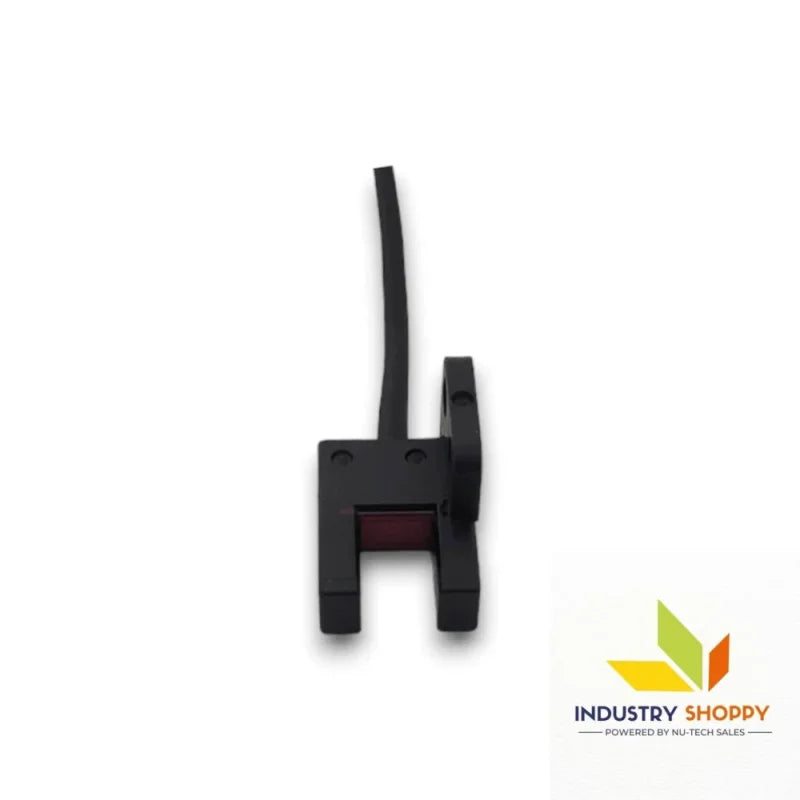

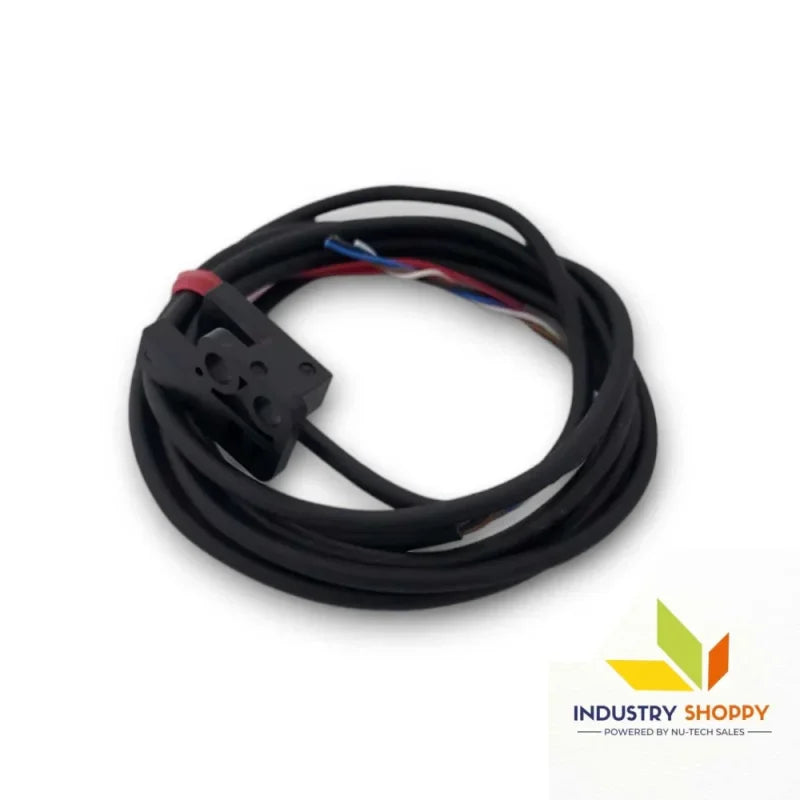

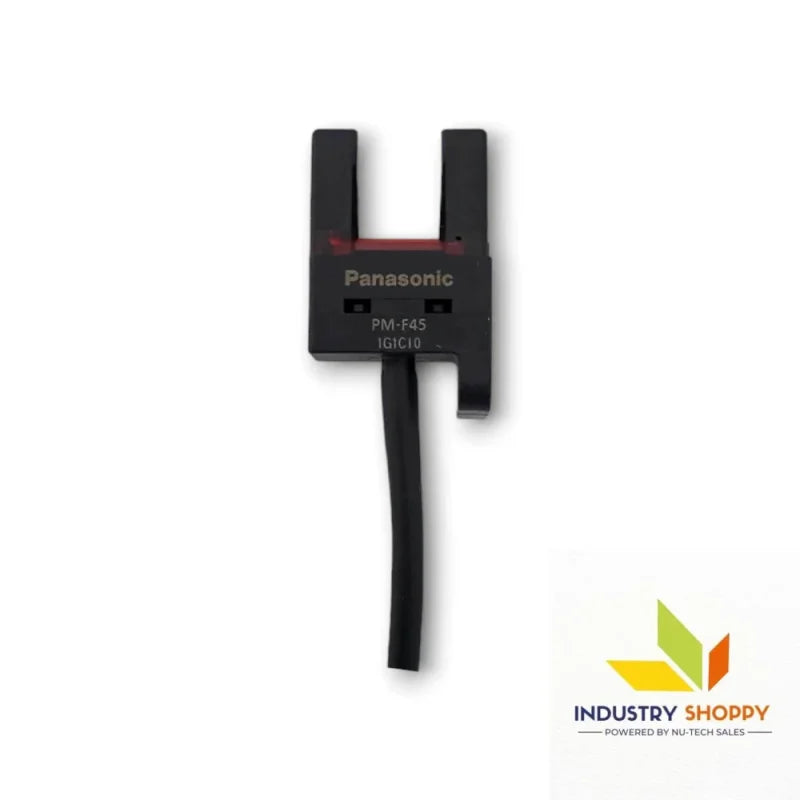

Panasonic PM-F45 Photoelectric Sensor

The Panasonic PM-F45 U-shaped Photoelectric Sensor is engineered for reliable and ultra-precise object detection in compact spaces. Featuring a fixed sensing range of 6 mm, it can detect even small opaque objects as tiny as 0.8 × 1.2 mm, offering outstanding performance in automation and positioning tasks. The U-shaped design makes it ideal for mounting in narrow or confined spaces, maximizing flexibility in installation.

Designed for high-speed detection, the PM-F45 boasts a response time as fast as 20 μs under light conditions and 80 μs under light interruption, with a maximum switching frequency of 3 kHz. This sensor incorporates dual outputs (Light-ON / Dark-ON), allowing flexible control logic in any application.

The rugged PBT enclosure and IP64 protection make it durable against dust and water splashes, while the robust design withstands shock levels up to 15,000 m/s² and vibration from 10 to 2,000 Hz.

Supporting a wide voltage range (5–24 V DC) and efficient NPN open-collector output, the PM-F45 is the perfect balance of compactness, reliability, and sensing accuracy for industrial needs.

Key features :-

Product Number PM-F45
Part Number PMF45
Item Performance characteristics
CE Marking Directives EMC Directive, RoHS Directive
Sensing Range 6 mm 0.236 in (fixed)
Minimum Sensing Object 0.8 × 1.2 mm 0.031 × 0.047 in opaque object
Hysteresis 0.05 mm 0.002 in or less
Repeatability 0.01 mm 0.0004 in or less
Supply Voltage 5 to 24 V DC ±10 % Ripple P-P 10 % or less
Current Consumption 15 mA or less
Output NPN open-collector transistor
・Maximum sink current: 50 mA
・Applied voltage: 30 V DC or less (between output and 0 V)
・Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Incorporated with 2 outputs: Light-ON / Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time Under light received condition: 20 μs or less
Under light interrupted condition: 80 μs or less
(Maximum response frequency: 3 kHz)(Note)
(Note) The response frequency is the value when the disc, given in the figure below, is rotated.
Operation Indicator Orange LED (lights up under light received condition)
Pollution Degree 3
Ambient Temperature -25 to +55 ℃ -13 to +131 ℉ (No dew condensation or icing allowed), Storage: -30 to +80 ℃ -22 to +176 ℉
Protection IP64 (IEC)
Ambient Humidity 5 to 85 % RH, Storage: 5 to 95 % RH
Ambient Illuminance Fluorescent light: 1,000 ℓx at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 2,000 Hz frequency, 1.5 mm 0.059 in double amplitude (maximum acceleration 196 m/s2) in X, Y and Z directions for two hours each
Shock Resistance 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions three times each
Emitting Element Infrared LED (Peak emission wavelength: 855 nm 0.034 mil, non-modulated)
Material Enclosure: PBT
Display section: Polycarbonate
Cable 0.09-mm2 4-core cabtyre cable, PVC, 1 m 3.281 ft long
Wiring Length Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
(Note 1) : If the cable is extended to 20 m 65.617 ft or longer, confirm that the supply voltage at the end of the cable attached to the sensor is 4.5 V or higher.
(Note 2) : For safety applications, do not exceed 30 m 98.425 ft.



Applications :-

  • Assembly Lines Ensures reliable part detection in compact machinery.
  • Pick and Place Systems Detects object presence for accurate robotic handling.
  • Packaging Machines Identifies small parts for position verification.
  • Label Detection Senses label edges or gaps with precision.
  • Conveyor Monitoring Triggers automated responses for object passing.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
