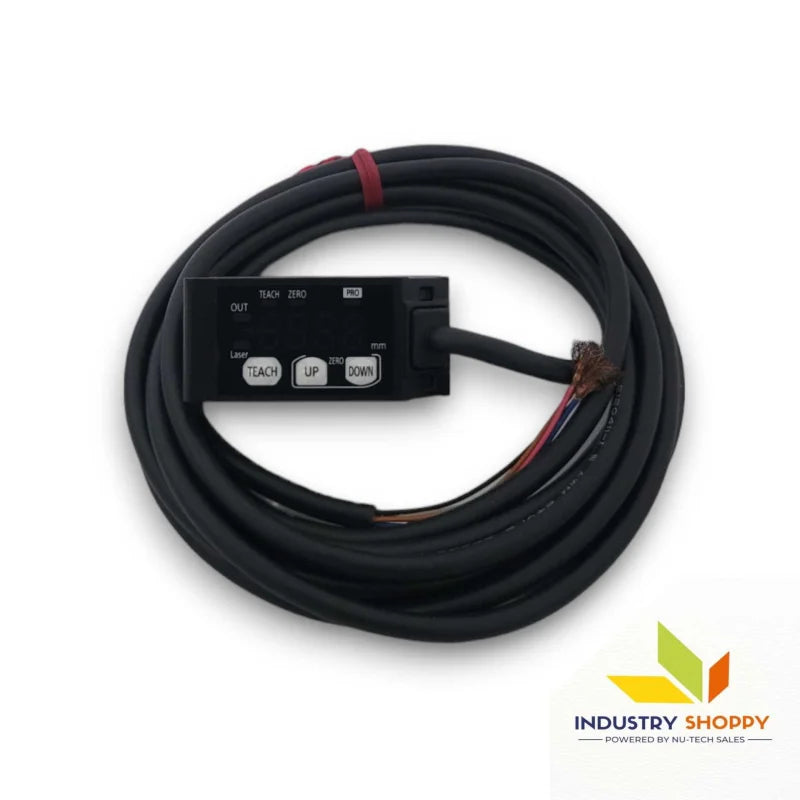

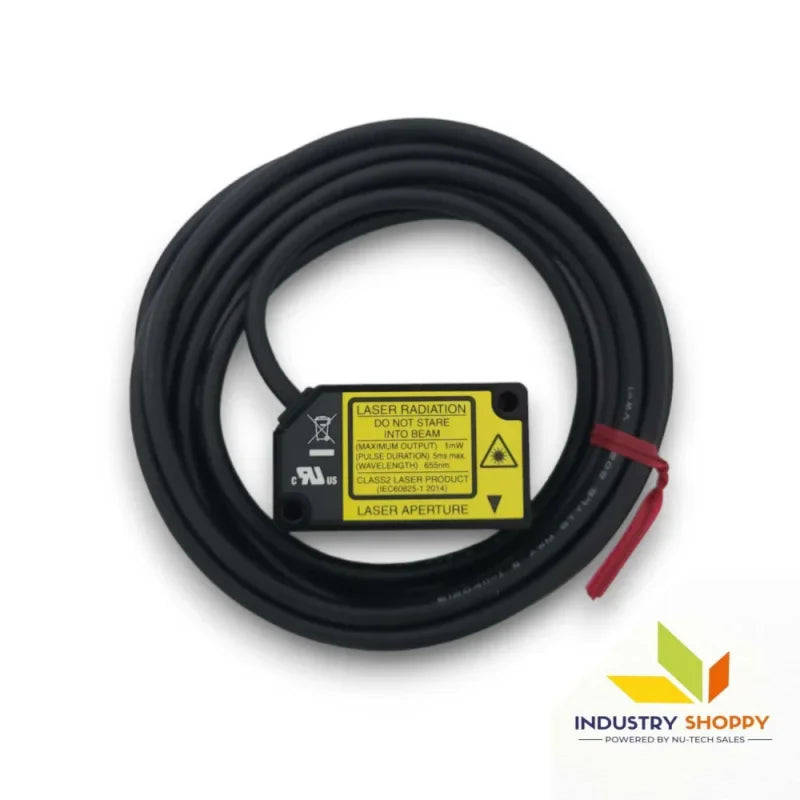

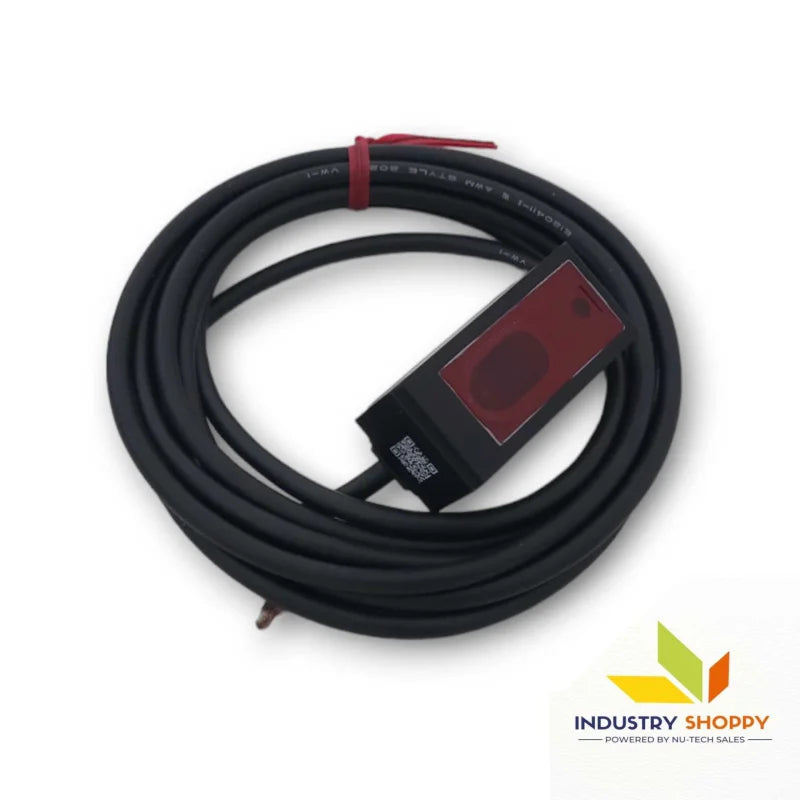

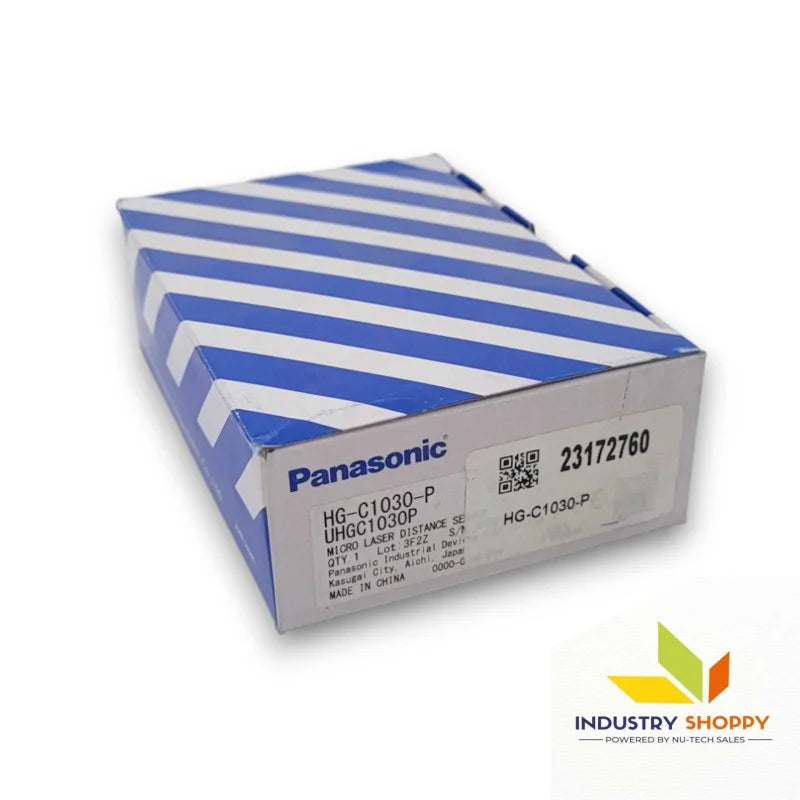

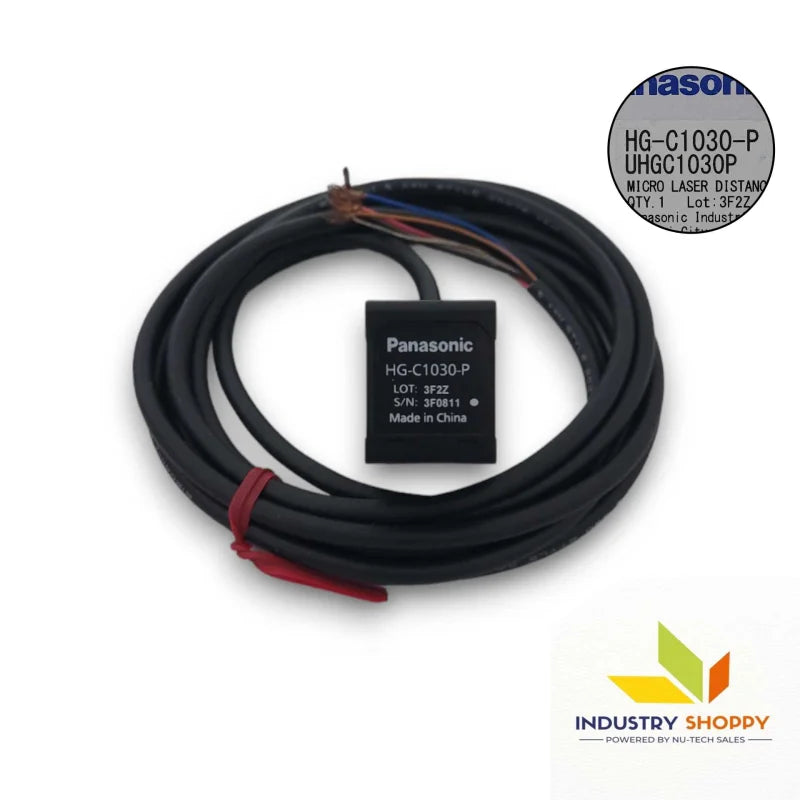

Panasonic HG-C1030-P Micro Laser Distance Sensor

Product SKU: NTSSEN00394
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UHGC1030P
  • Type
:  Micro Laser Distance Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$280.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic HG-C1030-P Micro Laser Distance Sensor

The Panasonic HG-C1030-P Micro Laser Distance Sensor is a high-precision laser distance sensor designed for measuring distances with exceptional accuracy in industrial environments. Utilizing laser triangulation technology, it offers precise distance measurements with a high resolution of 1 micrometer, making it ideal for applications where accuracy is crucial. The HG-C1030-P has a measurement range of 0.1 mm to 30 mm, allowing it to measure both small and precise objects. It’s particularly suited for tasks that require high-speed and high-precision measurement in automated systems.

This compact and robust sensor is designed for use in environments where space is limited, yet accuracy and durability are required. The HG-C1030-P features high-speed response with a maximum sampling rate of up to 20 kHz, making it perfect for fast-moving objects in applications like production lines and quality control processes. The analog output of the sensor provides real-time feedback to control systems, ensuring that continuous measurement data can be used for real-time decision-making in manufacturing processes.

Equipped with an IP67-rated enclosure, the HG-C1030-P ensures protection against dust and water, which makes it a reliable solution even in harsh industrial conditions. It operates with a 12-24 VDC power supply, ensuring compatibility with standard industrial systems. The easy-to-use interface and simple installation further enhance its suitability for integration into automated systems, reducing downtime and increasing operational efficiency.

Key features :-

Product Number HG-C1030-P
Part Number UHGC1030P
Applicable Standard EMC Directive Compliance, FDA Standard
Measurement Center Distance 30mm 1.181 in
Measuring Range ±5mm 0.197 in
Repeatability 10 μm 0.394 mil
Linearity ±0.1%F.S.
Temperature Characteristics 0.03% F.S. /℃
Light Source Red semiconductor laser Class 2 (JIS / IEC / GB) / Class II (FDA)(Note)
Max. output: 1mW
emission peak wavelength: 655nm 0.026 mil
(Note) This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 50, dated June 24, 2007, issued by CDRH (Center for Devices and Radiological Health) under the FDA (Food and Drug Administration).
Beam Diameter ø50 μm 1.969 mil approx.
(Note) This is the size in the measurement center distance. These values were defined by using 1 / e2 (13.5% approx.) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
Supply Voltage 12 to 24V DCplus or minus 10% Ripple P-P 10%
Current Consumption 40 mA or less (at 24V DC supply voltage)
65 mA or less (at 12V DC supply voltage)
Note : Specifications have been changed from shipment in August, 2016. For shipment before July 2016 ： 40 mA or less (at 24 V DC supply voltage), 60 mA or less (at 12 V DC supply voltage)
Control Output PNP open-collector transistor
- Maximum source current: 50mA
- Maximum source current: 50mA
- Applied voltage: 30V DC or less (Between control output to +V)
- Residual voltage: 1.5V or less (At 50mA source current)
- Leakage current: 0.1 mA or less
Control Output: Output Operation Either Light-ON or Dark-ON
Control Output: Short-Circuit Protection Incorporated (Auto reset type)
Analogue Output: Analog Voltage Output Output range: 0 to 5 V (at alarm: +5.2 V)
Output impedance: 100Ω
Analogue Output: Analog Current Output Output range: 4 to 20mA (at alarm: 0mA)
Output impedance: 300Ω or less
Note : Analog current output has been added from shipment in August 2016.
Response Time Switchable between 1.5 ms / 5 ms / 10 ms
External Input PNP non-contact input
- Input conditions
Invalid: 0 to +0.6V DC or Open
Valid: +4 to +V DC
- Input impedance: 10kΩ approx.
Pollution Degree 2
Operating Altitude 2,000 m 6561.680 ft or less
Protection IP67 (IEC)
Ambient Temperature -10 to +45 ℃ -14 to 113 ℉ (No dew condensation or icing allowed), Storage: -20 to +60 ℃ -4 to 140 ℉
Ambient Humidity 35 to 85% RH, Storage: 35 to 85% RH
Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Vibration Resistance 10 to 55 Hz (period: 1 min.) frequency, 1.5 mm 0.059 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Cable 5-core composite cable, 2 m 6.5617 ft long
Cable Extension Extension up to total 10 m 393.701 ft is possible with 0.3 mm2, or more, cable.
Material Enclosure: Aluminum die-cast
Front cover: Acrylic



Applications :-

  • Precision Measurement:
    Ideal for measuring small components and precise distances in high-accuracy applications, such as quality control and inspection systems.
  • Quality Control:
    Ensures the correct dimensions and tolerances of products during the manufacturing process, improving product consistency and quality.
  • Material Handling:
    Used for precise position monitoring in material handling systems, ensuring proper alignment and movement of objects along conveyor belts.
  • Automated Assembly Lines:
    Ideal for distance measurement in automated assembly lines, ensuring components are placed accurately and efficiently during production.
  • Research and Development:
    Used in laboratory and testing environments where precise distance measurements are required for experiments or product testing.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
