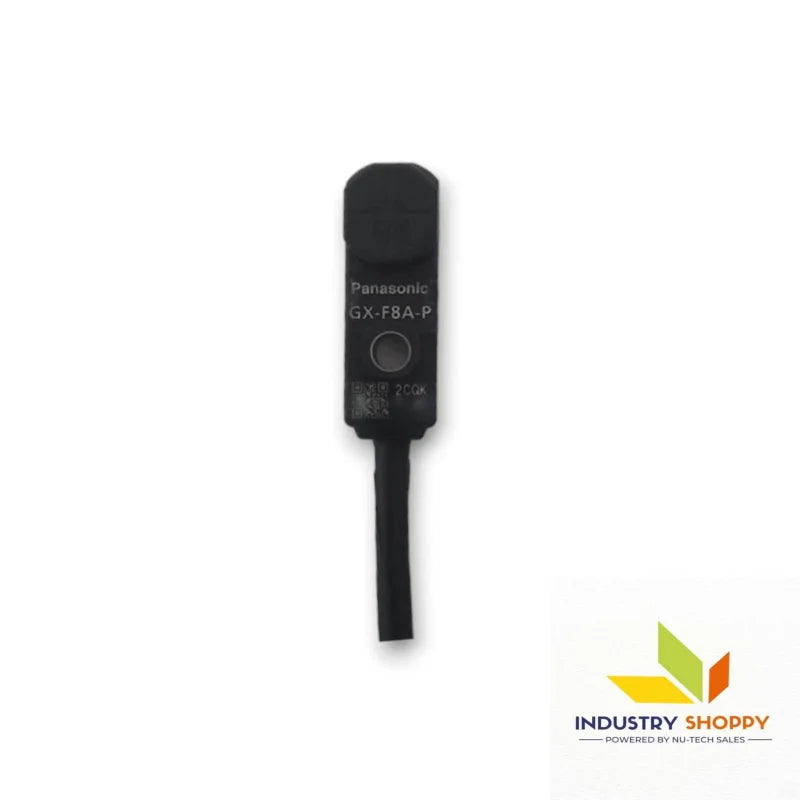

Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic GX-F8A-P-C5 Proximity Sensor
Panasonic

Panasonic GX-F8A-P-C5 Proximity Sensor

Product SKU: NTSSEN00028
Available:
Only 10 items in stock
10 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UGXF8APC5
  • Type
:  Proximity Sensor
  • Output Type
:  PNP
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$42.00
$55.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic GX-F8A-P-C5 Proximity Sensor

The Panasonic GX-F8A-P-C5 is an advanced inductive proximity sensor designed to detect metallic objects with high precision and reliability. Featuring a compact design and non-contact operation, this sensor ensures long-lasting performance by minimizing wear and tear over time. It operates with a sensing range of 8mm, making it ideal for detecting objects in compact spaces and in systems that require close-range detection.

The GX-F8A-P-C5 sensor is built with an IP67-rated enclosure, offering dust and water resistance, ensuring it operates reliably even in harsh industrial environments. This makes it a perfect solution for demanding applications where exposure to moisture, dirt, and chemicals is common. The sensor operates on a 10-30 VDC power supply and features PNP output, providing compatibility with a wide range of industrial control systems. Its fast response time ensures high-speed detection, essential for use in fast-paced manufacturing and automation systems.

The GX-F8A-P-C5 is designed to be energy-efficient, with low power consumption, helping to reduce operational costs while ensuring consistent detection performance. Additionally, the compact size of the sensor allows for easy installation in limited spaces, making it an excellent choice for applications where size constraints are important. With its durability, high precision, and fast response, the GX-F8A-P-C5 is an ideal sensor for various industrial, automation, and machinery applications.

Key features :-

Product Number GX-F8A-P-C5
Part Number UGXF8APC5
CE marking directive compliance EMC Directive, RoHS Directive
Max. operation distance 2.5 mm 0.098 in plus or minus 8 %
(Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
Stable sensing range 0 to 2.1 mm 0 to 0.083 in
(Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.
Standard sensing object Iron sheet 15 × 15 × t 1 mm 0.591 × 0.591 × t 0.039 in
Hysteresis 20 % or less of operation distance(with standard sensing object)
Repeatability Along sensing axis, perpendicular to sensing axis: 0.04 mm 0.002 in or less
Supply voltage 12 to 24 V DC +10/-15 % Ripple P-P 10 % or less
Current consumption 15 mA or less
Output PNP open-collector transistor
- Maximum source current: 100 mA
- Applied voltage: 30 V DC or less(between output and +V)
- Residual voltage: 2 V or less (at 100 mA source current)
Output:Output operation Normally open
Output:Utilization category DC-12 or DC-13
Max. response frequency 500 Hz
Operation indicator Orange LED(lights up when the output is ON)
Protection IP68 (IEC), IP68g (JEM)
(Note) Panasonic Electric Works SUNX's IP68 test method
1. Immerse at 0 m below 0 ℃ +32 ℉ water surface and leave for 30 min. Then, immerse at 0 m below +70 ℃ +158 ℉ water surface and leave for 30 min.
2. Regard the heat shock test in 1 as one cycle and perform 20 cycles.
3. Leave in water at a depth of 1 m 3.281 ft in water for 500 hours.
4. After tests 1 to 3, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.
(Note) If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil.
Ambient temperature -25 to +70 ℃ -13 to +158 ℉ , Storage: - 40 to +85 ℃ - 40 to +185 ※
Ambient humidity 45 to 85 % RH, Storage: 35 to 95 % RH
Voltage withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance 50 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure
Vibration resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (Max. 20 G) in X, Y and Z directions for two hours each
Shock resistance 10,000 m/s2 acceleration (1,000 G approx.) in X, Y and Z directions three times each
Sensing range variation: Temperature characteristics Over ambient temperature range -25 to +70 ℃ -13 to +158degrees Fahrenheit: Within plus or minus 8 % of sensing range at +23 ℃ +73 ℉
Sensing range variation: Voltage characteristics Within plus or minus 2 % for +10/-15 % fluctuation of the supply voltage
Material Enclosure: PBT
Indicator part: Polyester



Applications :-

  • Industrial Automation:
    Detects metallic objects in production lines for precise control, alignment, and movement of components in automated manufacturing systems.
  • Robotics:
    Provides accurate detection for robotic systems, improving navigation, positioning, and obstacle avoidance for tasks like assembly and inspection.
  • Material Handling:
    Perfect for monitoring material flow in conveyor systems, ensuring accurate sorting, positioning, and movement in packaging or logistics processes.
  • Machine Safety:
    Used to monitor the position of machinery components, ensuring that safety protocols are followed and machinery operates in a safe manner.
  • Quality Control:
    Assists in the verification of parts and components during quality inspection, ensuring that products meet stringent standards and specifications in manufacturing.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
