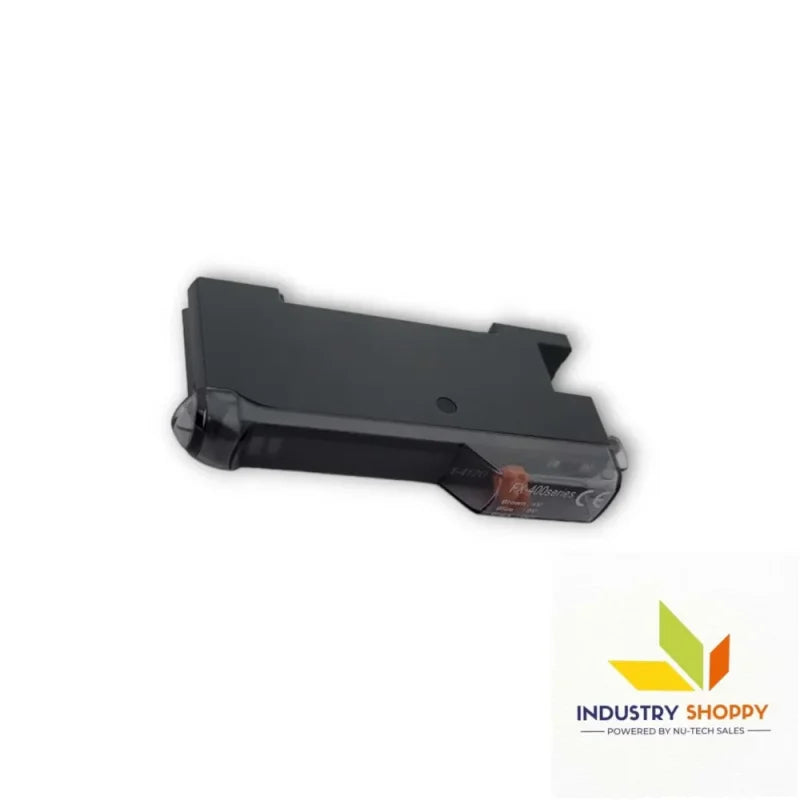

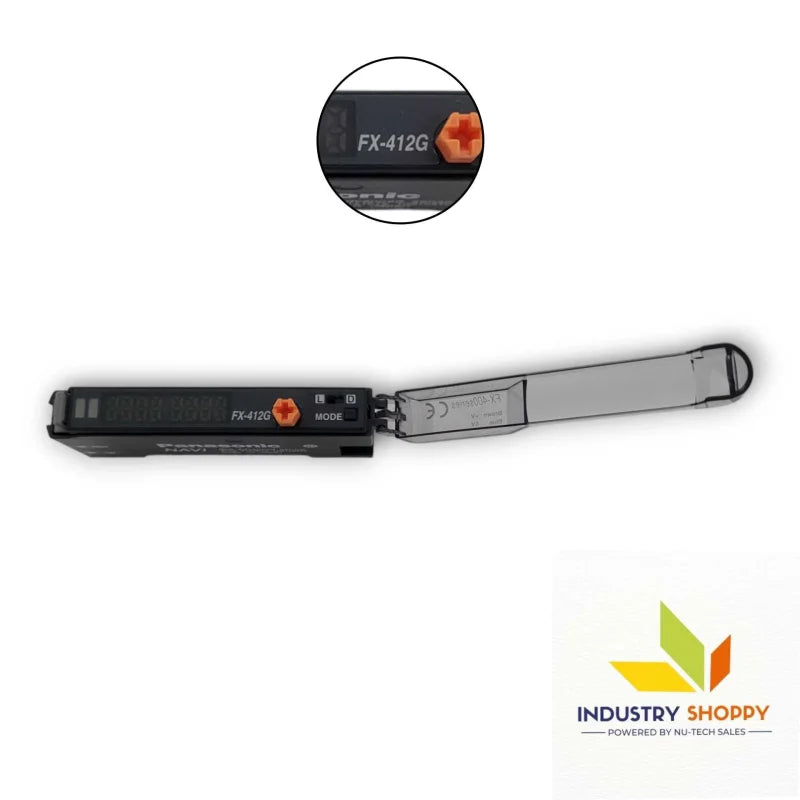

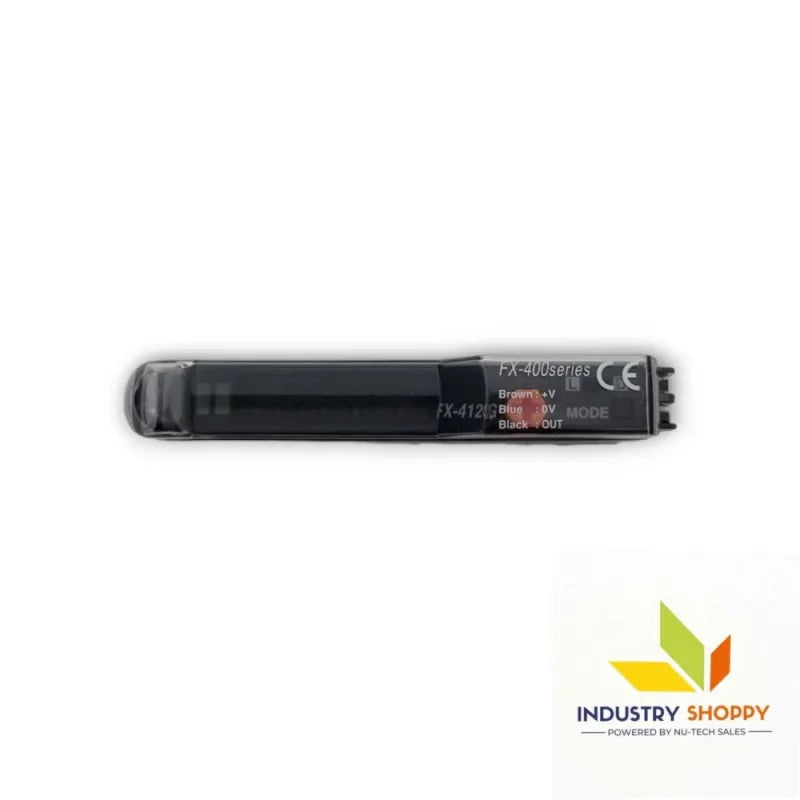

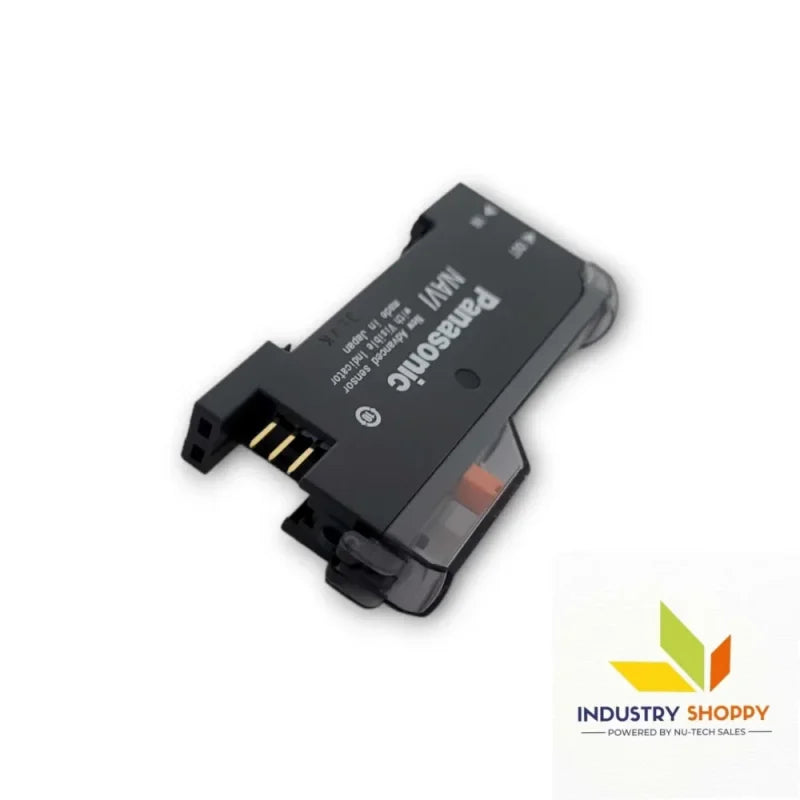

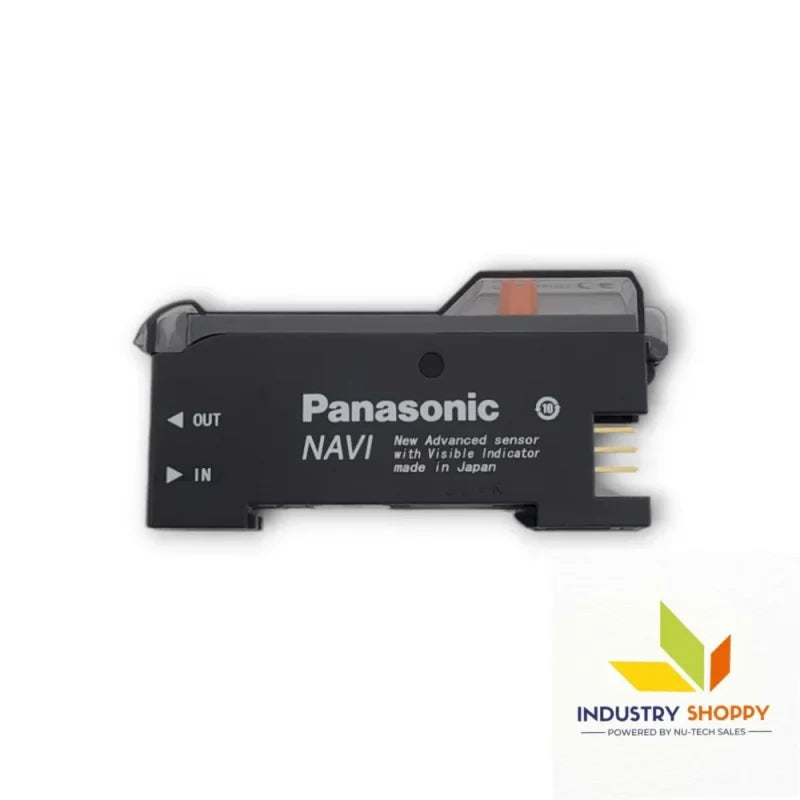

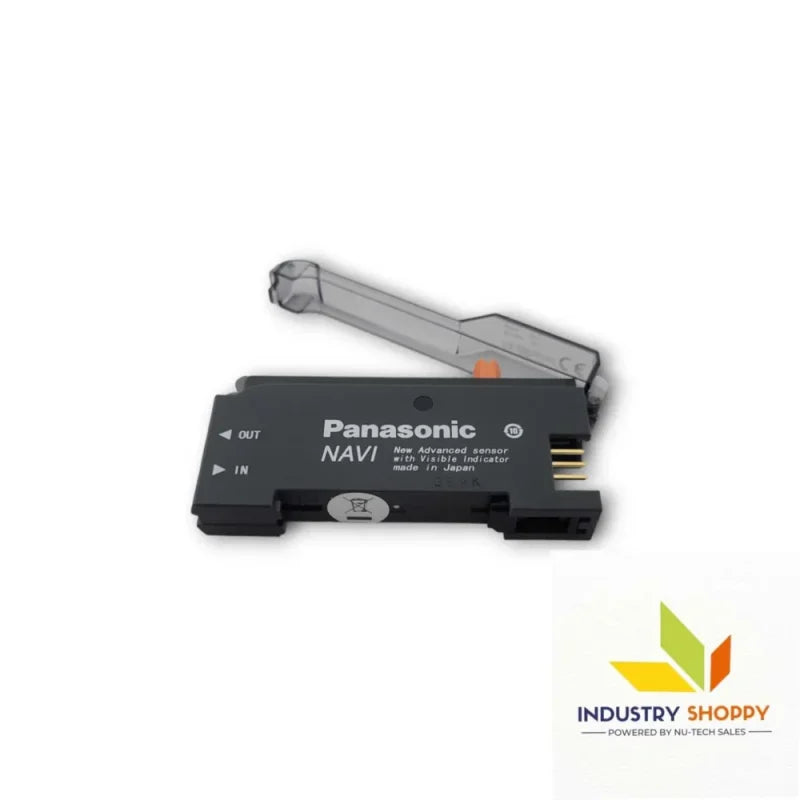

Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic FX-412G Digital Fiber Sensor
Panasonic

Panasonic FX-412G Digital Fiber Sensor

Product SKU: NTSSEN00226
Available:
Only 2 items in stock
2 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UFX412G
  • Type
:  Digital Fiber Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$210.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic FX-412G Digital Fiber Sensor

The Panasonic FX-412G is an advanced digital fiber optic sensor designed for high-precision detection in a wide variety of industrial applications. Utilizing fiber optic technology, the FX-412G provides non-contact detection, making it ideal for detecting small, hard-to-reach, or fragile objects in automated systems. This sensor is perfect for industries such as material handling, packaging, robotics, and more, offering reliable performance and easy integration into automation systems.

The FX-412G features digital processing technology, ensuring fast and accurate detection even in high-speed operations. It offers adjustable sensitivity to suit different application requirements, providing flexibility in performance. The sensor operates on a 12–24 VDC power supply and supports PNP and NPN outputs, making it compatible with various industrial control systems. This broad compatibility makes it easy to incorporate into existing setups and ensure seamless operation across a range of processes.

With a high switching frequency, the FX-412G is capable of detecting objects at rapid speeds, ensuring minimal delays in time-sensitive applications. The sensor is housed in an IP67-rated enclosure, providing dustproof and waterproof protection, which makes it suitable for use in harsh environments where exposure to moisture, dirt, and chemicals is common. Its compact form factor allows easy installation even in tight spaces, enhancing flexibility for diverse applications in industrial automation.

Key features :-

Product Number FX-412G
Part Number UFX412G
CE Marking Directive Compliance EMC Directive, RoHS Directive
Supply Voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power Consumption Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
ECO mode: 580 mW or less (Current consumption 24 mA or less at 24 V supply voltage)
Output NPN open-collector transistor
• Maximum sink current: 100 mA (50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 1.5 V or less [at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 150 μs or less (FAST), 500 μs or less (STD), 4.5 ms or less (U-LG) selectable with setting switch
Operation Indicator Orange LED (lights up when the output is ON)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition)
Timer Function Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective.
[Timer period (Note): 1 ms to 3 sec. approx. (1 to 10 ms: Setting possible in units of 1 ms, 10 to 100 ms: Setting possible in units of 10 ms, 100 to 500 ms: Setting possible in units of 50 ms, 500 ms to 1 sec.: Setting possible in units of 100 ms, 1 to 3 sec.: Setting possible in units of 500 ms)]
(Note):For models manufactured up until June 2005, the timer period is approx. 1 to 500 ms.
Automatic Interference Prevention Function Incorporated (Up to four sets of fiber heads can be mounted close together. However, U-LG mode is 8 fiber heads.)
(Note:When the power supply is switched on, the light emission timing is automatically set for interference prevention.)
Ambient Temperature –10 to +55 ℃ –14 to +131 ℉
(If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉,
if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉)
(No dew condensation or icing allowed), Storage: –20 to +70 ℃ –4 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage Withstandability 1,000 V AC for one min. between all supply terminals connected together and enclosure
(Note:The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only.)
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
(Note:The voltage withstandability and the insulation resistance values given in the above table are for the amplifier only.)
Vibration Resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting Element (Modulated) Green LED
Emitting Element (Modulated): Peak Emission Wavelength 525 nm 0.021 mil
Material Enclosure: Heat-resistant ABS, Case cover: Polycarbonate
Cable Length Total length up to 100 m 328.084 ft (50 m 164.042 ft for 5 to 8 units, 20 m 65.617 ft for 9 to 16 units) is possible with 0.3 mm2, or more, cable.



Applications :_

  • Industrial Automation:
    Detects small or delicate objects in automated production lines, ensuring precise sorting, positioning, and control in manufacturing systems.
  • Packaging Industry:
    Reliable detection of labels, containers, or products in packaging processes, ensuring accurate and efficient operations in packaging lines.
  • Material Handling:
    Used for tracking, sorting, and aligning materials in conveyor systems, improving efficiency in logistics and material transportation.
  • Quality Control:
    Assures the correct presence and position of components in quality inspection systems, maintaining high product quality standards.
  • Assembly Lines:
    Ensures precise detection of parts in automated assembly lines, supporting efficient and accurate assembly operations for industrial products.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
