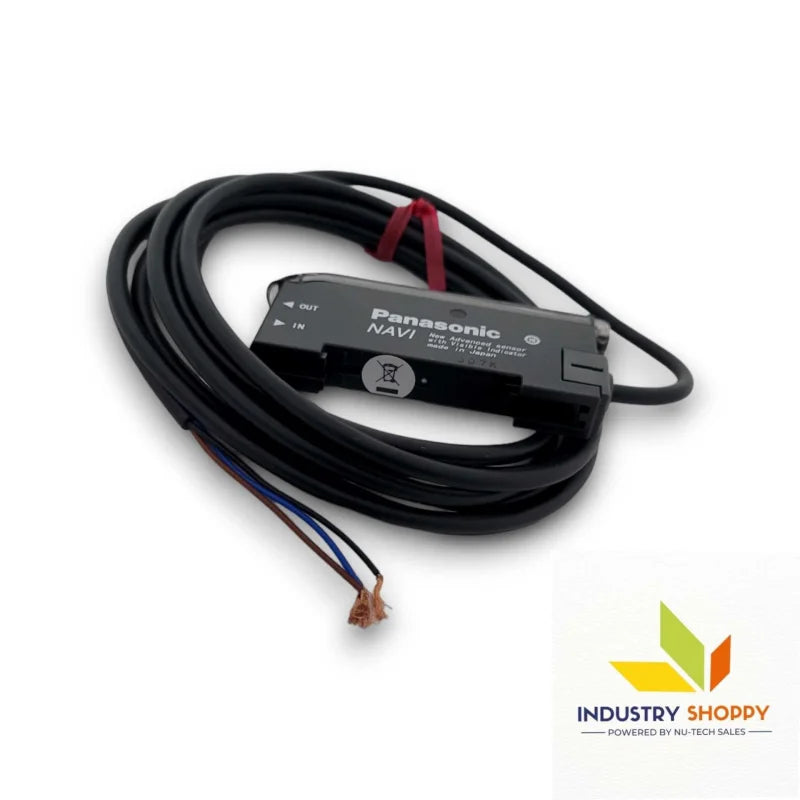

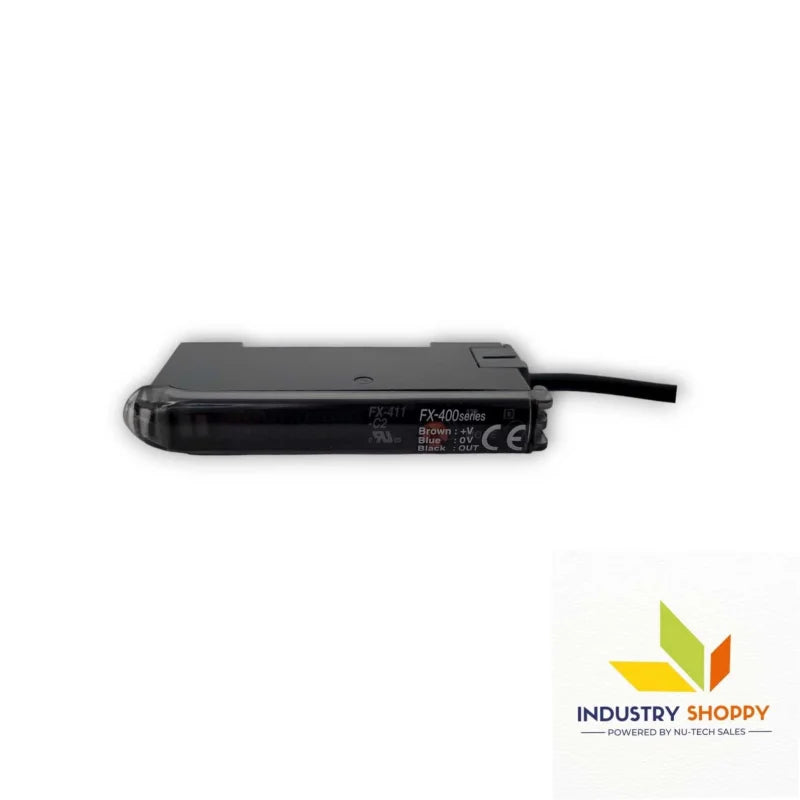

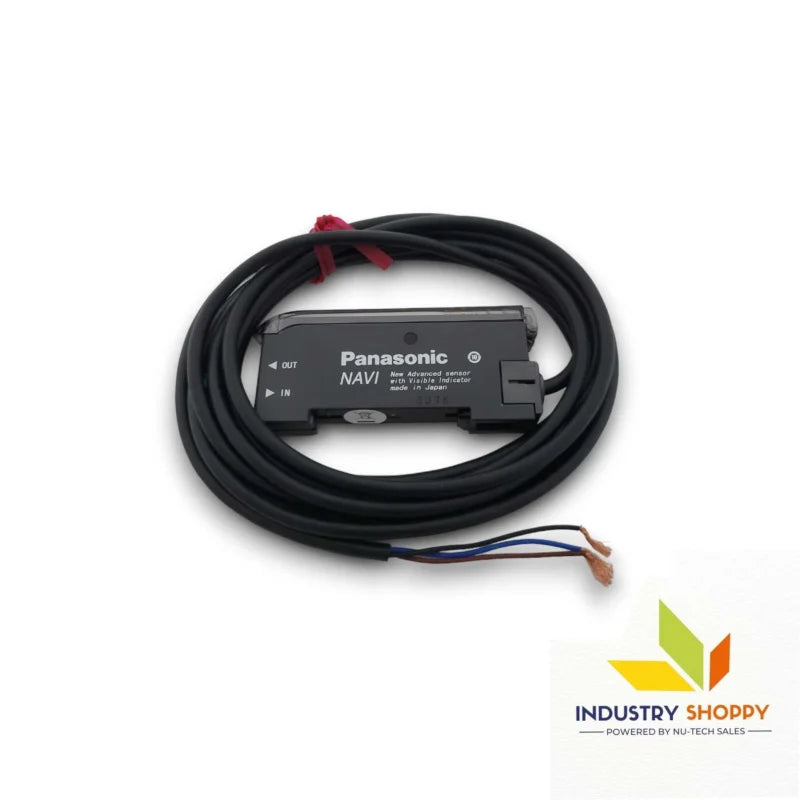

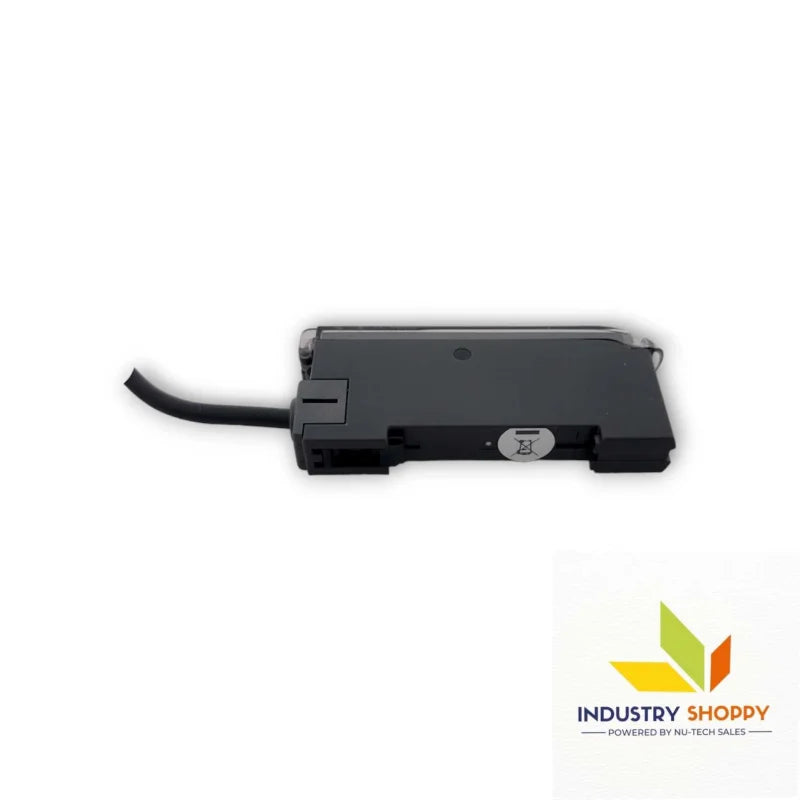

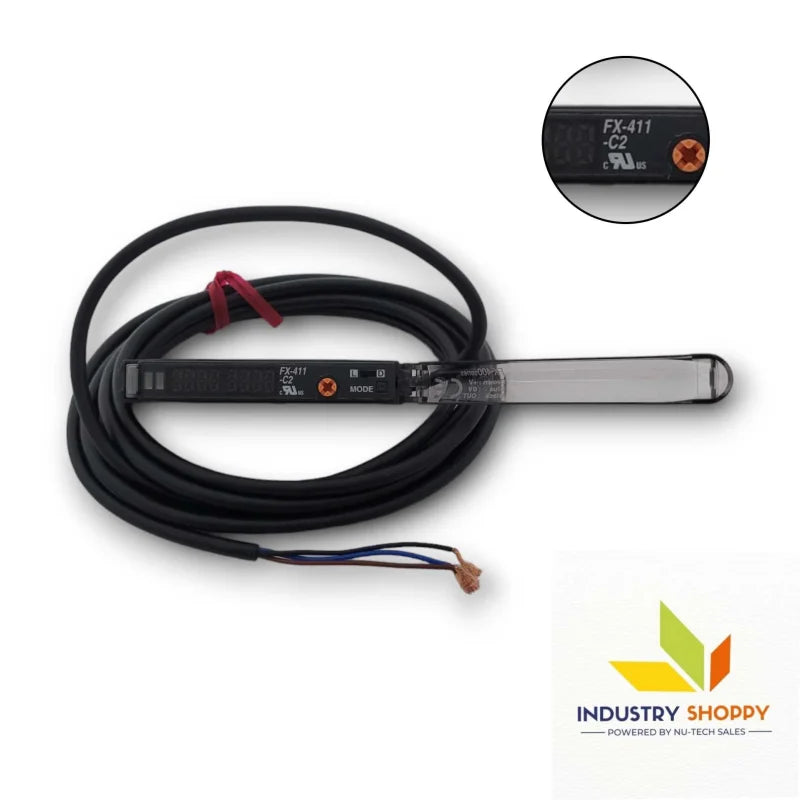

Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic FX-411-C2 Digital Fiber Sensor
Panasonic

Panasonic FX-411-C2 Digital Fiber Sensor

Product SKU: NTSSEN00229
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UFX411C2
  • Type
:  Digital Fiber Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in


$199.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

Panasonic FX-411-C2 Digital Fiber Sensor

The Panasonic FX-411-C2 is a high-performance digital fiber optic sensor designed to provide accurate, reliable, and fast detection for a wide range of industrial applications. It utilizes fiber optic technology, making it ideal for detecting small or hard-to-reach objects where space is limited or non-contact sensing is required. The FX-411-C2 offers flexibility and precision, making it a suitable choice for applications in material handling, packaging, and automated production systems.

Equipped with digital signal processing, the FX-411-C2 offers high-speed response times and stable detection, even in fast-paced environments. It operates on a 12–24 VDC power supply and supports both PNP and NPN outputs, ensuring compatibility with a wide variety of industrial control systems. The FX-411-C2 features adjustable sensitivity, allowing users to fine-tune detection parameters for specific application needs, ensuring optimal performance across various environments.

Designed for durability, the FX-411-C2 is housed in a compact, IP67-rated enclosure, offering dustproof and waterproof protection, which makes it highly resistant to harsh environments. Its high switching frequency allows for fast and reliable detection of moving objects, while the clear digital display ensures ease of setup and operation. The FX-411-C2 is well-suited for a wide range of applications, from high-speed sorting and assembly lines to precise object detection in packaging processes.

Key features :-

Product Number FX-411-C2
Part Number UFX411C2
CE Marking Directive Compliance EMC Directive, RoHS Directive
Supply Voltage 12 to 24 V DC ±10 % Ripple P-P 10 % or less
Power Consumption Normal operation: 960 mW or less (Current consumption 40 mA or less at 24 V supply voltage)
ECO mode: 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage)
Output NPN open-collector transistor
• Maximum sink current: 100 mA (50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 1.5 V or less [at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]
Output: Output Operation Switchable either Light-ON or Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 150 μs or less (FAST), 500 μs or less (STD), 4.5 ms or less (U-LG) selectable with setting switch
Operation Indicator Orange LED (lights up when the output is ON)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition)
Timer Function Incorporated with variable ON-delay / OFF-delay / ONE SHOT timer, switchable either effective or ineffective.
[Timer period (Note): 1 ms to 3 sec. approx. (1 to 10 ms: Setting possible in units of 1 ms, 10 to 100 ms: Setting possible in units of 10 ms, 100 to 500
ms: Setting possible in units of 50 ms, 500 ms to 1 sec.: Setting possible in units of 100 ms, 1 to 3 sec.: Setting possible in units of 500 ms)]
(Note):For models manufactured up until June 2005, the timer period is approx. 1 to 500 ms.
Automatic Interference Prevention Function Incorporated (Up to four sets of fiber heads can be mounted close together. However, U-LG mode is 8 fiber heads.)
(Note: When the power supply is switched on, the light emission timing is automatically set for interference prevention.)
Ambient Temperature –10 to +55 ℃ –14 to +131 ℉
(If 4 to 7 units are connected in cascade: –10 to +50 ℃ +14 to +122 ℉,
if 8 to 16 units are connected in cascade: –10 to +45 ℃ +14 to +113 ℉)
(No dew condensation or icing allowed), Storage: –20 to +70 ℃ –4 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 ℓx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
(Note: The voltage withstand ability and the insulation resistance values given in the above table are for the amplifier only.)
Insulation Resistance 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
(Note: The voltage withstand ability and the insulation resistance values given in the above table are for the amplifier only.)
Vibration Resistance 10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting Element (Modulated) Red LED
Emitting Element (Modulated): Peak Emission Wavelength 650 nm 0.026 mil
Material Enclosure: Heat-resistant ABS, Case cover: Polycarbonate
Cable Length Total length up to 100 m 328.084 ft (50 m 164.042 ft for 5 to 8 units, 20 m 65.617 ft for 9 to 16 units) is possible with 0.3 mm2, or more, cable.



Applications :-

  • Industrial Automation:
    Ideal for detecting small or delicate objects in automated production lines, ensuring accurate sorting, positioning, and control in manufacturing processes.
  • Packaging Industry:
    Used for precise detection of labels, containers, or products during packaging, improving efficiency and ensuring accuracy in packaging operations.
  • Material Handling:
    Helps with tracking, sorting, and aligning materials in conveyor systems, optimizing logistics and material transportation in industrial settings.
  • Quality Control:
    Ensures the correct placement and presence of parts in quality inspection systems, supporting high standards of product quality and manufacturing consistency.
  • Assembly Lines:
    Provides reliable detection for automated assembly lines, enabling fast, precise assembly of parts for various industrial products.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
