Panasonic FX-301-P Fibre Optic Sensor

Product SKU: NTSSEN00001
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UFX301P
  • Type
:  Fiber Optic Sensor
  • Output Type
:  PNP
  • Connection Method
: Connector


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in

$115.00
$185.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

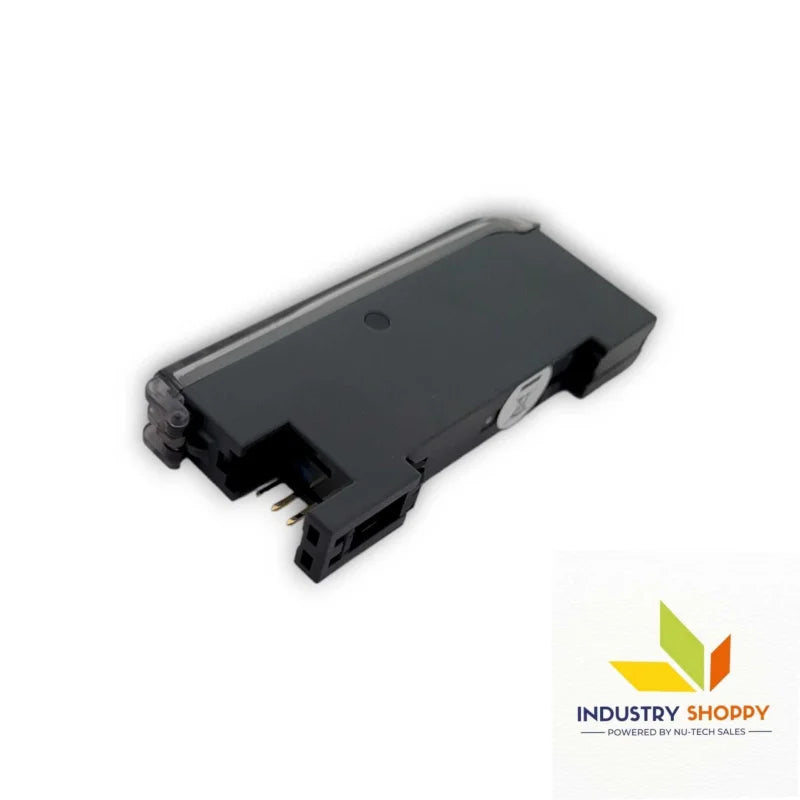

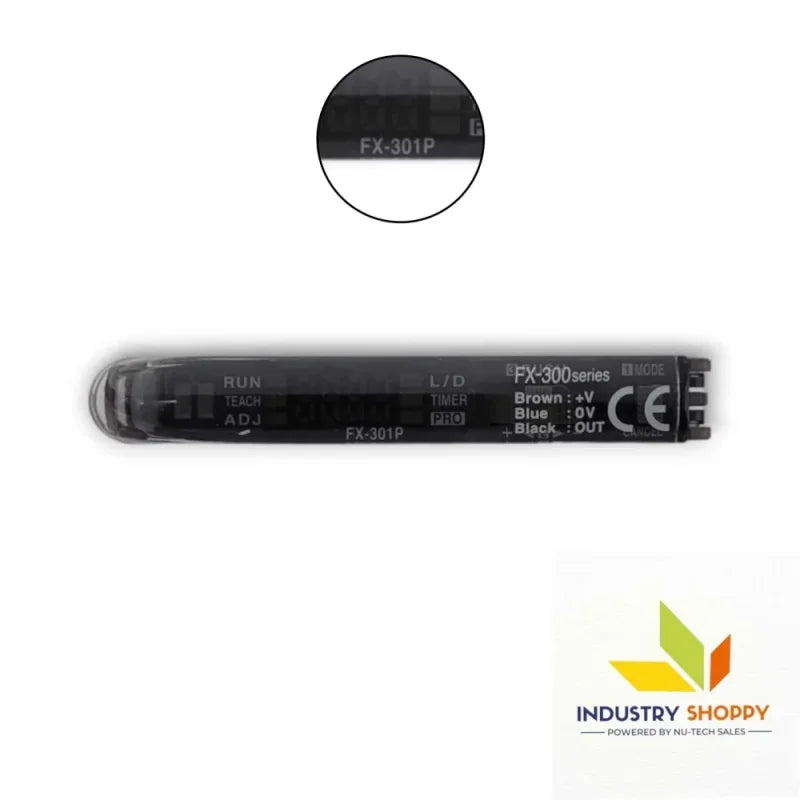

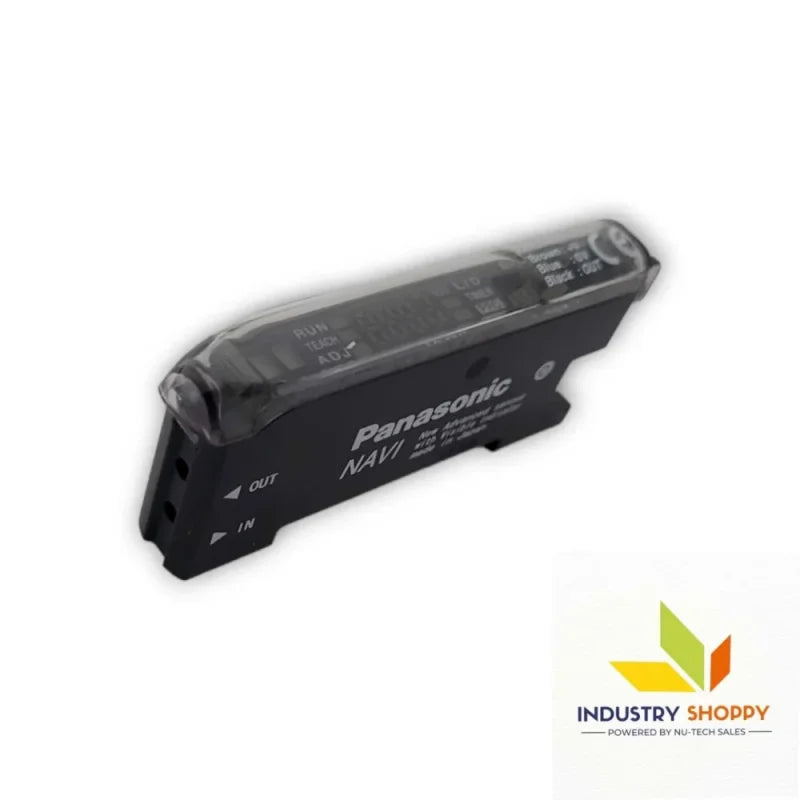

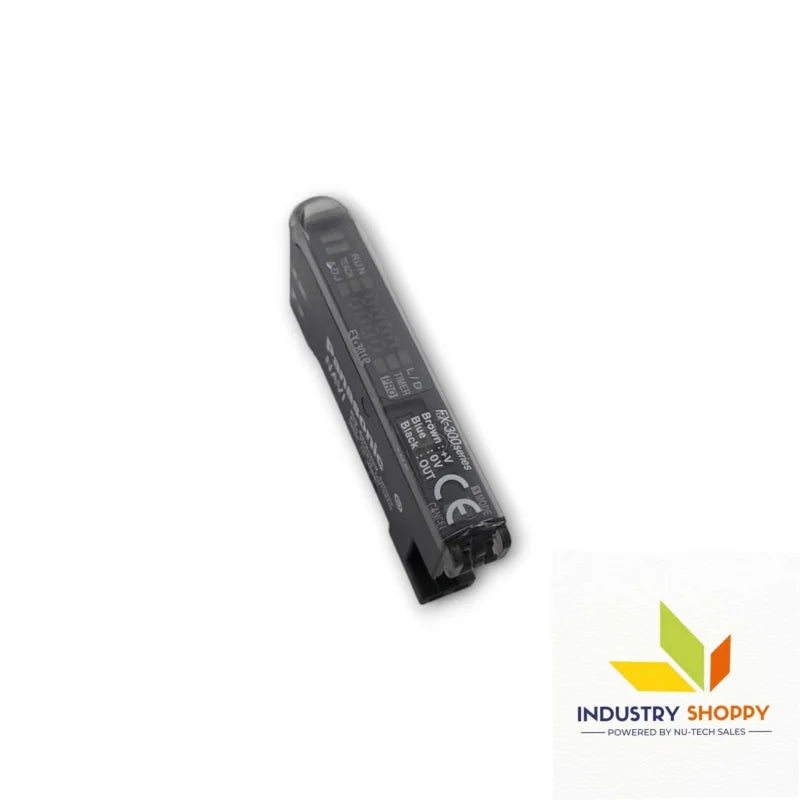

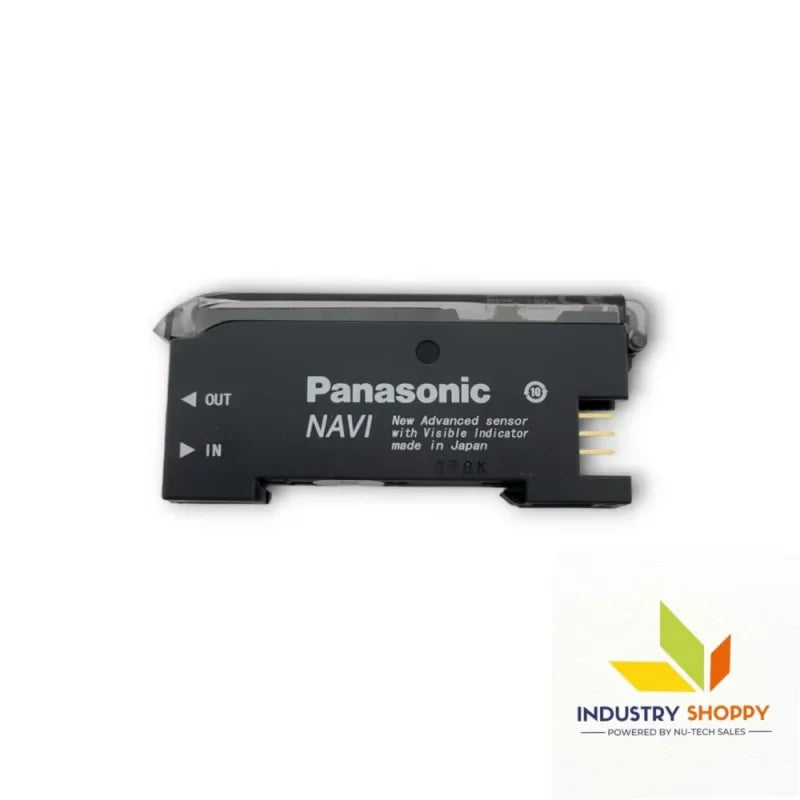

Panasonic FX-301-P Fiber Optic Sensor

The Panasonic FX-301-P Fiber Optic Sensor is a robust digital fiber optic sensor designed to deliver high-precision detection in industrial environments. It utilizes advanced fiber optic technology, allowing for non-contact detection of small or hard-to-reach objects. This makes it highly suitable for applications that require reliable and precise detection, such as in material handling, packaging, assembly, and quality control systems. The FX-301-P provides versatility in industrial automation by offering fast response times and accurate detection even in high-speed operations.

The FX-301-P sensor features digital processing technology, ensuring a high switching frequency and quick response time, making it ideal for fast-moving applications. It operates on a 12-24 VDC power supply and supports PNP and NPN outputs, making it compatible with most industrial control systems. This makes it easy to integrate into automated systems for various detection tasks. Additionally, it provides adjustable sensitivity, which allows users to fine-tune the sensor for specific applications, ensuring maximum reliability and flexibility.

Built with a compact and durable design, the FX-301-P offers IP67-rated protection, ensuring it is dustproof and waterproof, making it ideal for harsh industrial environments. It is resistant to dirt, moisture, and chemicals, ensuring long-lasting performance in tough conditions. The sensor also features an easy-to-read digital display, which makes it user-friendly and simplifies setup, calibration, and monitoring.



Applications

  • Precision detection in electronics and assembly lines

  • Small object sensing using fiber optic heads

  • Packaging and labeling systems

  • High-speed counting and positioning


Technical Precautions

  • Ensure compatible fiber optic head connection
  • Avoid excessive ambient light at sensing point
  • Maintain stable 12–24 V DC power supply
  • Configure teaching mode properly for accurate detection

While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


Product NumberFX-301-P
Part NumberUFX301P
ComplianceEMC Directive, RoHS Directive
Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
Power ConsumptionBlue LED / Green LED type

• Normal: 720 mW or less (≤30 mA at 24 V)

• ECO mode: 430 mW or less (≤18 mA at 24 V)
Output TypePNP open-collector transistor

• Max. source current: 100 mA (50 mA when ≥5 units cascaded)

• Applied voltage: 30 V DC or less

• Residual voltage: 1.5 V or less at 100 mA
Output OperationSelectable: Light-ON / Dark-ON (via jog switch)
Short-Circuit ProtectionIncorporated
Response Time• 65 μs or less (H-SP, Red LED only)

• 150 μs or less (FAST)

• 250 μs or less (STD / S-D, Red LED only)

• 2 ms or less (LONG)
Sensitivity Setting2-point teaching / Limit teaching / Manual / Full-auto / Max. sensitivity
Operation IndicatorOrange LED (ON when output is ON)
Stability IndicatorGreen LED (stable light or stable dark condition)
Mode IndicatorRUN: Green LED

TEACH / ADJ / L-D ON / TIMER / PRO: Yellow LED
Digital Display4-digit red LED
Fine Sensitivity AdjustmentIncorporated
Timer FunctionON-delay / OFF-delay / ONE-SHOT, switchable

• Red LED type: 0.5 ms to 9,999 ms

• Blue / Green / Infrared type: approx. 0.5 to 500 ms
Light Emission Level Selection(Red LED type only)

• FAST, STD, LONG: 4 levels

• H-SP: 3 levels

• S-D: 2 levels
Automatic Interference PreventionIncorporated (Up to 4 fiber heads close-mounted; 2 heads in H-SP mode)
Ambient Temperature• Operating: −10 to +55°C

• With 4–7 cascaded units: −10 to +50°C

• With 8–16 cascaded units: −10 to +45°C

• Storage: −20 to +70°C

(No dew condensation or icing)
Ambient Humidity35 to 85% RH (operating & storage)
Ambient IlluminanceIncandescent light: 3,000 lx max. at light-receiving face
Voltage Withstandability1,000 V AC for 1 min (supply terminals to enclosure)
Insulation Resistance≥20 MΩ (250 V DC megger)
Vibration Resistance10–150 Hz, 0.75 mm amplitude (X, Y, Z for 2 hours each)
Shock Resistance98 m/s² (approx. 10 G) in X, Y, Z (5 times each)
MaterialEnclosure: Heat-resistant ABS

Case cover: Polycarbonate

MODE key: Acrylic

Jog switch: Heat-resistant ABS
Connection MethodConnector
Cable LengthTotal up to 100 m (depending on number of cascaded units)
Country of OriginJapan
