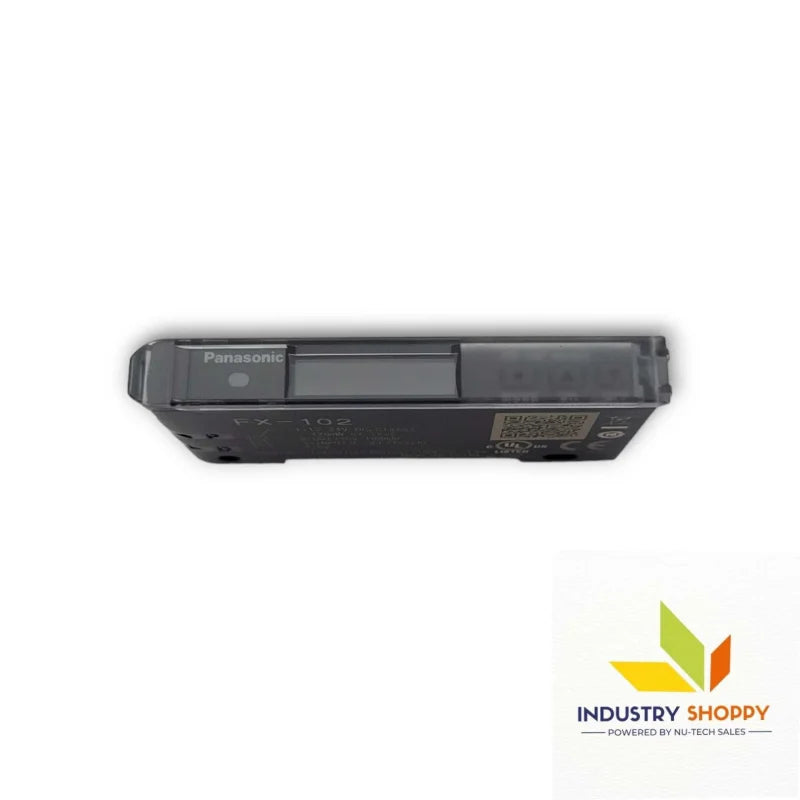

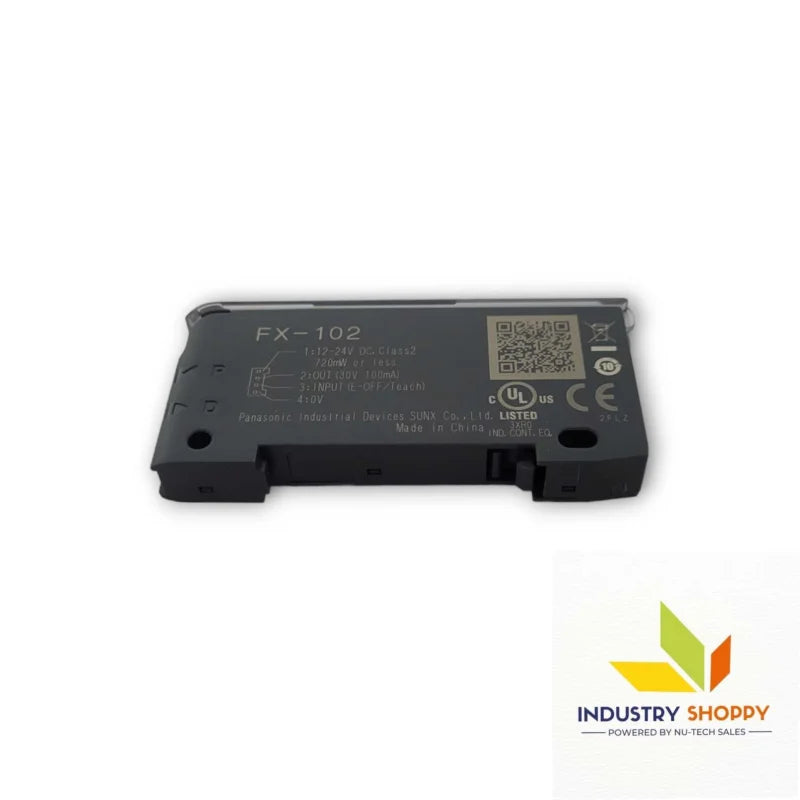

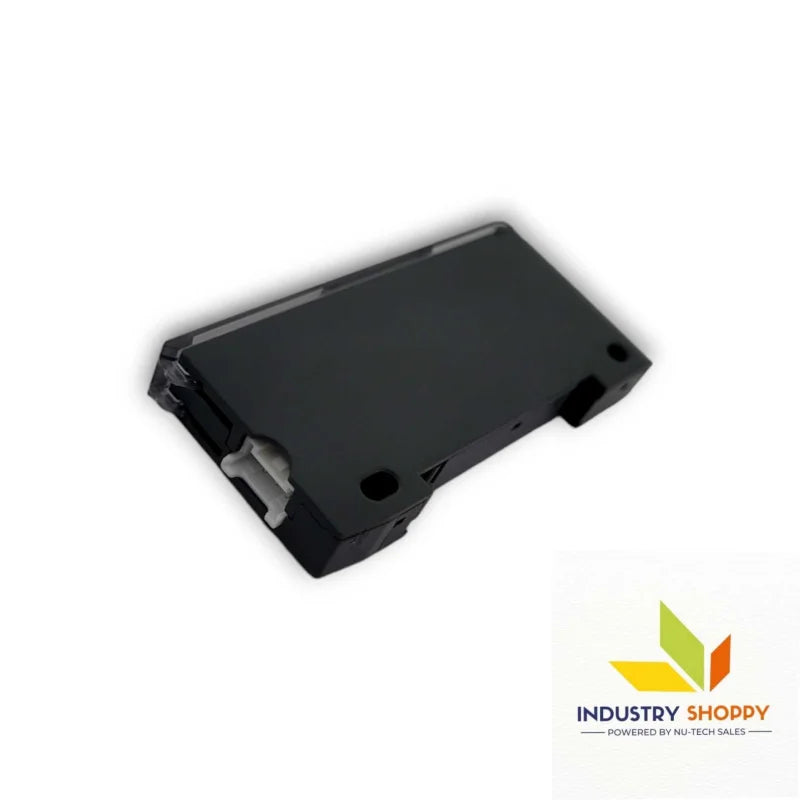

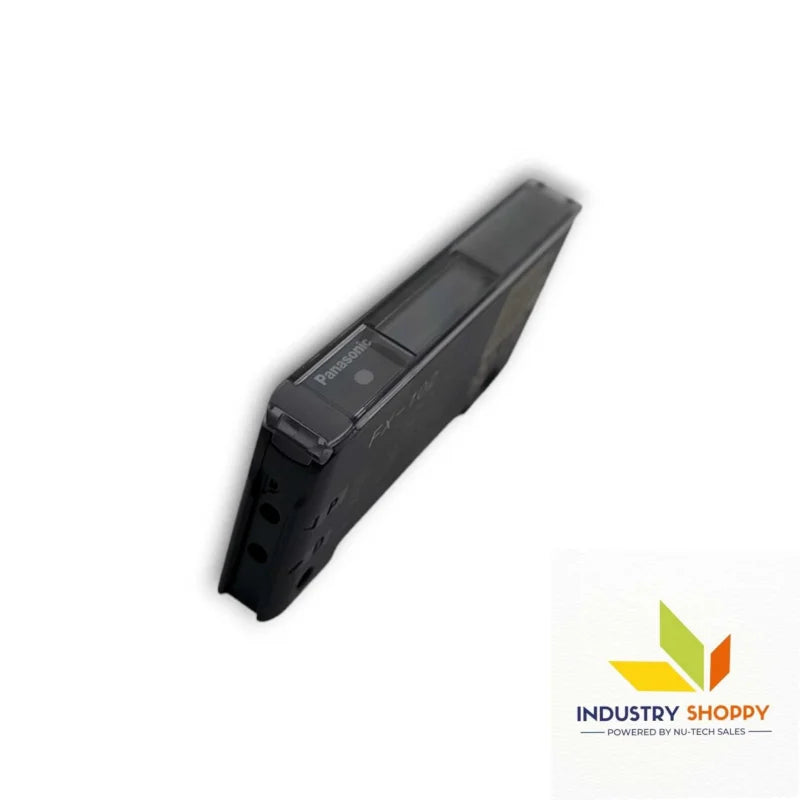

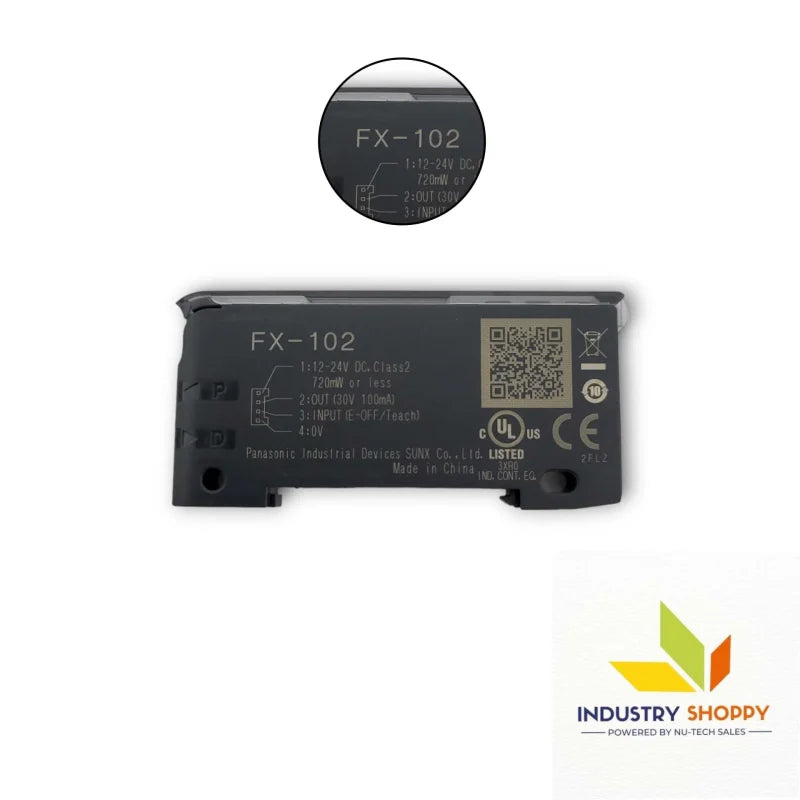

Panasonic FX-102-CC2 Digital Optic Fiber Sensor

The Panasonic FX-102-CC2 Digital Optic Fiber Sensor is a high-performance, compact amplifier designed for precision sensing in automation environments. Operating on 12 to 24 VDC, it offers NPN open-collector output with selectable Light-ON/Dark-ON modes, ideal for various industrial control systems.

It features a dual-color digital LCD display for real-time data visibility and supports multiple teaching modes, including 2-point, limit, and full-auto teaching. The unit offers fast response times—as low as 2.5 ms—and a fine sensitivity adjustment function to meet application-specific requirements. Users can also utilize on/off delay timers with nine selectable intervals for added flexibility.

The FX-102-CC2 includes short-circuit protection, external NPN input, and an interference prevention function with four selectable emission frequencies. With an IP-rated polycarbonate enclosure, it is resistant to vibration, shock, and variable temperatures from –10°C to +55°C. For ease of integration, the unit uses a connector-based system (compatible with CN-14A-C2).

Compact yet powerful, this sensor is built for durable, high-accuracy optical detection in industrial environments.

Key features :-

Product Number	FX-102-CC2
Part Number	UFX102CC2
CE Marking Directive Compliance	EMC Directive, RoHS Directive
Supply Voltage	12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Power consumption	Normal operation: 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode: 600 mW or less (Current consumption 25 mA or less at 24 V supply voltage)
Output	NPN open-collector transistor - Maximum sink current: 100 mA - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 100 mA sink current)
Output: Output Operation	Selectable either Light-ON or Dark-ON, at SET mode
Output: Short-Circuit Protection	Incorporated
External Input	NPN non-contact input - Signal condition High: +8 V to +V DC or Open Low: 0 to +2 V DC(Source current 0.5 mA or less) - Input impedance: 10 kOhm approx.
Response Time	Emission frequency 1: 2.5 ms or less (factory default setting) Emission frequency 2: 2.8 ms or less Emission frequency 3: 3.2 ms or less Emission frequency 4: 5.0 ms or less
Sensitivity Setting	2-point teaching / Limit teaching / Full-auto teaching
Operation Indicator	Orange LED (lights up when the output is ON)
Digital Display	4 digits (green) + 4 digits (red) LCD display
Fine Sensitivity Adjustment Function	Incorporated
Timer Function	ON-delay / OFF-delay timer, switchable either effective or ineffective [Timer period: 1 ms, 5 ms, 10 ms, 20 ms, 40 ms, 50 ms, 100 ms, 500 ms, 1,000 ms]
Emission Amount Setting Function	3-level + Auto setting (from production in December 2007)
Interference Prevention Function	Incorporated Emission frequency selection method (Functions at emission frequency 1, 2, 3 or 4) (Note) When using the interference prevention function, set the emission frequencies for the amplifiers to be covered by the interference prevention function to different frequency values.
Ambient Temperature	–10 to +55 ℃ +14 to +131 ℉ (If 4 to 7 units are mounted close together: –10 to +50 ℃ +14 to +122 ℉, if 8 to 16 units are mounted close together: –10 to +45 ℃ +14 to +113 ℉) (No dew condensation or icing allowed), Storage: –20 to +70 ℃ –4 to +158 ℉
Ambient Humidity	35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance	Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability	1,000 V AC for one min. between all supply terminals connected together and enclosure (Note) The voltage withstand ability and the insulation resistance values given in the above table are for the amplifier only.
Insulation Resistance	20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note) The voltage withstand ability and the insulation resistance values given in the above table are for the amplifier only.
Vibration Resistance	10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each
Shock Resistance	98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
Emitting Element (Modulated)	Red LED (Peak emission wavelength: 643 nm 0.025 mil)
Material	Enclosure: Polycarbonate Key switch: Polycarbonate Fiber lock lever: PBT

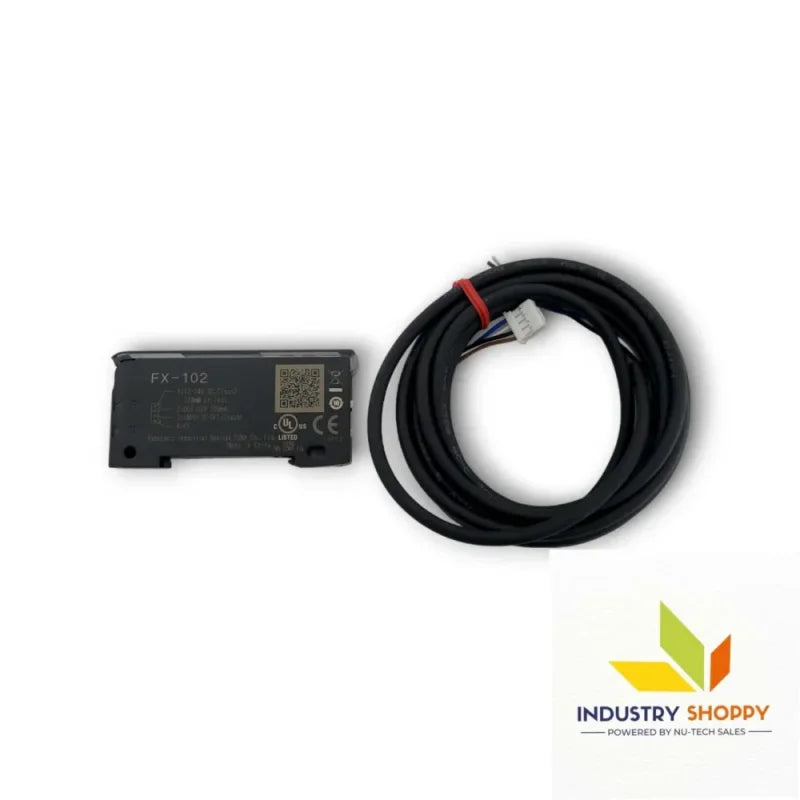

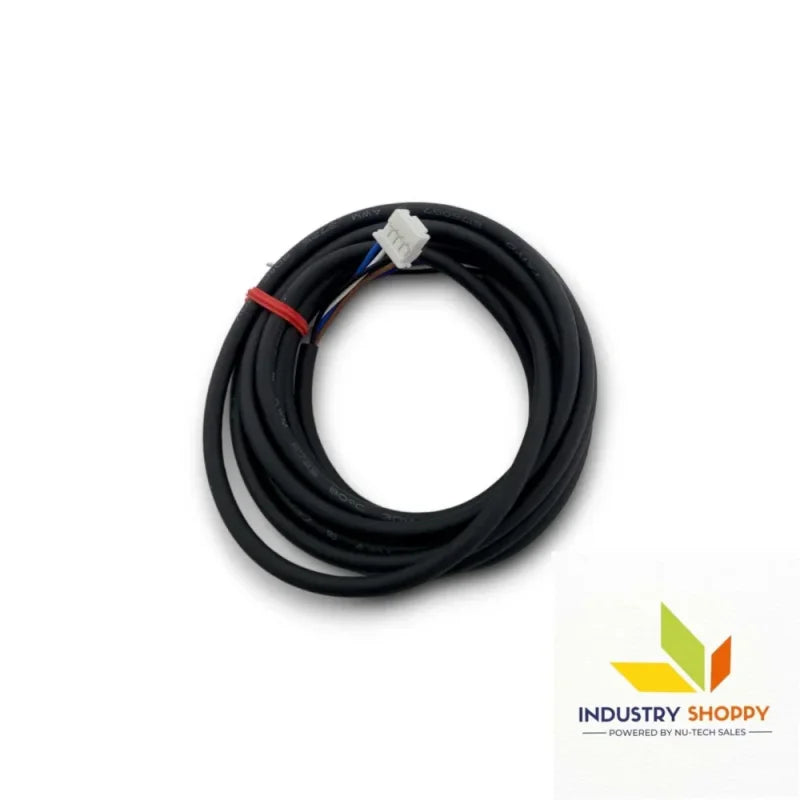

Connecting Method	Connector (Note) Connector attached cable CN-14A-C2 is not attached to the models that have no ''-CC2'' at the end of the model Nos. Make sure to use the optional connector attached cable CN-14A(-R)-Cx or the connector CN-14A, or a connector manufactured by J.S.T. Mfg., Ltd.(contact: SPHD-001T-P0.5, housing: PAP-04V-S).
Cable Length	Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.

Applications :-

Electronics Inspection: Detects minute features or objects in PCB or micro-component production.
Robotic Systems: Enables precision object sensing in robotic vision and feedback loops.
Conveyor Automation: Identifies product presence and spacing in high-speed packaging lines.
Textile Machinery: Ensures consistent yarn detection and position tracking in looms.
Assembly Lines: Facilitates part recognition and quality control in multi-step manufacturing.

Precautions :-

Ensure Correct Wiring: Incorrect connections can cause sensor failure
Avoid Overvoltage: Operating within 10-30V DC prevents damage
Protect from Extreme Heat: Avoid installing near high-temperature sources
Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
