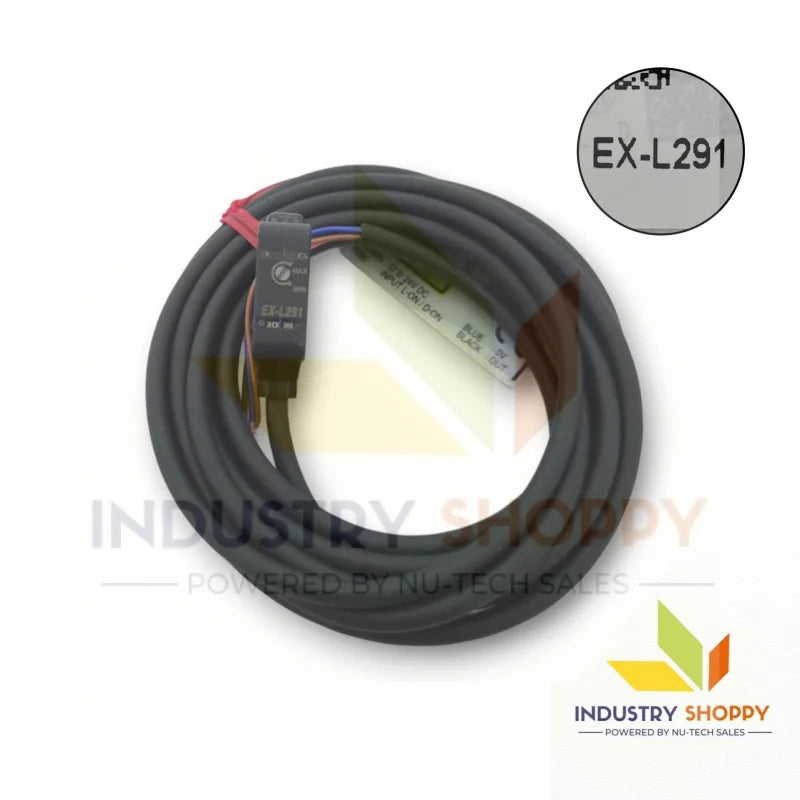

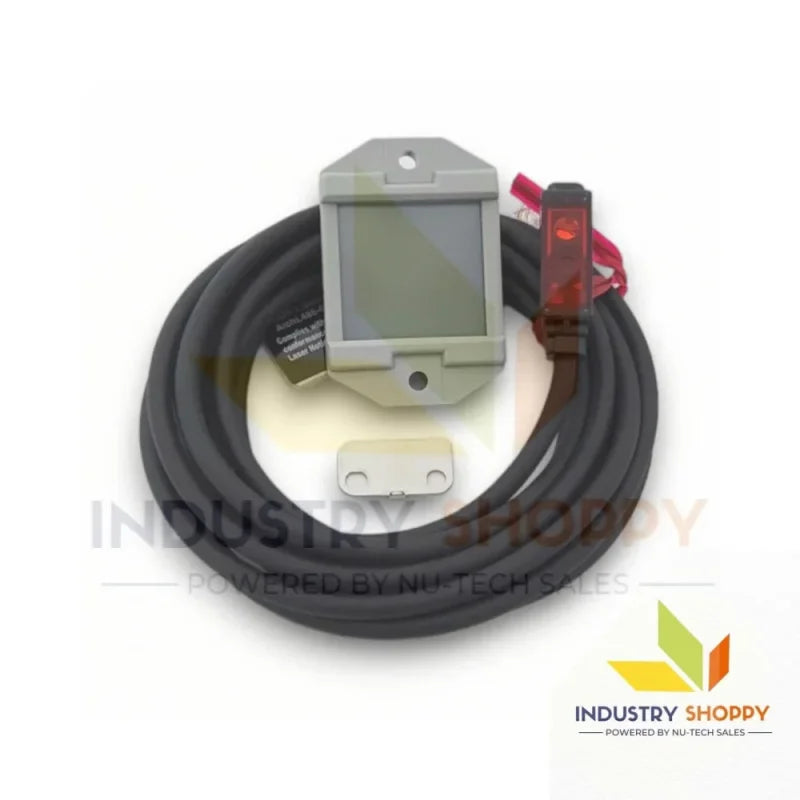

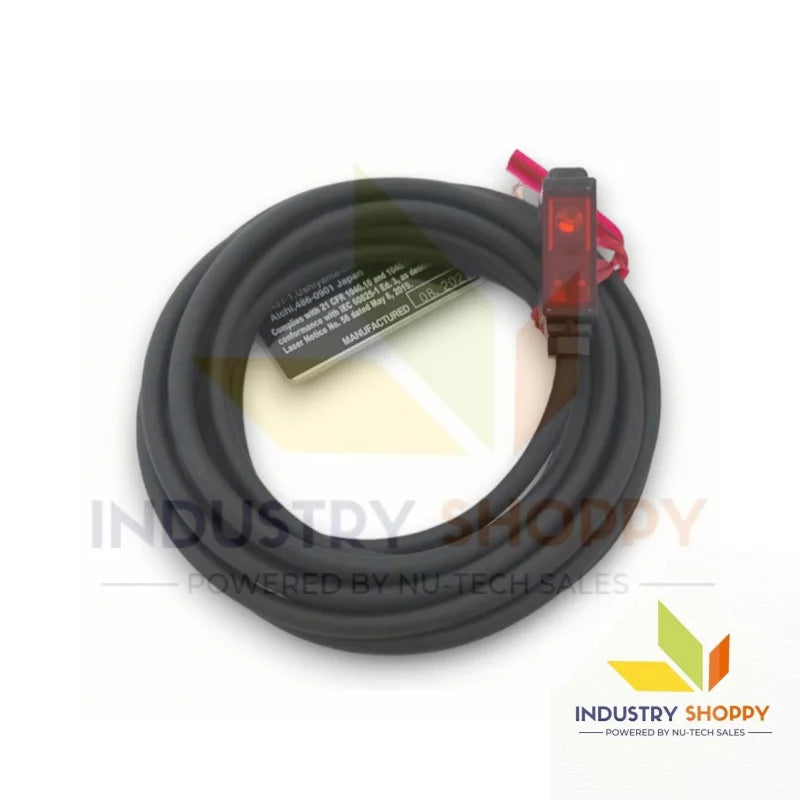

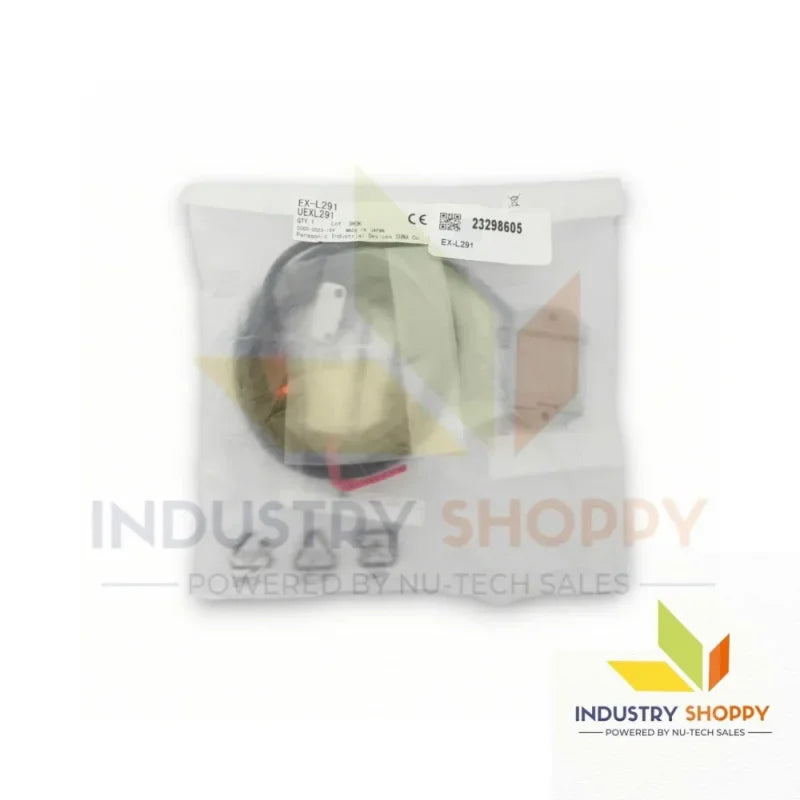

Panasonic EX-L291 Photoelectric Sensor

Panasonic EX-L291 Photoelectric Sensor

The Panasonic EX-L291 Laser Sensor (Part Number: UEXL291) is a high-performance laser displacement sensor designed to provide precise and reliable distance measurement for a wide variety of industrial applications. This through-beam sensor features a 4-meter (13.123 ft) sensing range, making it suitable for detecting objects at medium to long distances. It operates with an emission spot size of approximately 6 x 4 mm at 1 meter, expanding to 18 x 10 mm at a 4-meter sensing distance, providing an accurate and focused laser beam for precise object detection.

With a light-ON/dark-ON selectable output operation and NPN open-collector transistor output, the EX-L291 is equipped for seamless integration into a variety of industrial systems. The sensor also includes short-circuit protection and inverse polarity protection to ensure durability and reliability in demanding environments. The sensitivity adjuster allows for continuous fine-tuning of the sensor’s performance, ensuring optimal operation in a variety of conditions.

Built with an IP67-rated enclosure, the EX-L291 is protected against dust and water ingress, making it ideal for use in harsh environments. With a fast response time of 0.5 ms and an ambient temperature range of -10°C to +55°C, this sensor is perfect for applications requiring high-speed, accurate measurements under various conditions.

The Panasonic EX-L291 Photoelectric Sensor is compliant with CE Marking, EMC Directive, and RoHS Directive, ensuring that it meets the required standards for safety and environmental responsibility.

Key features :-

Applications :-

• Automated Manufacturing: Ideal for detecting objects in high-speed production lines, improving operational efficiency and precision.
• Quality Control: Ensures precise measurement and detection of parts during quality checks, preventing defective products from advancing through production.
• Packaging: Accurately detects objects on packaging lines, ensuring smooth and error-free operations.
• Material Handling: Monitors material position in conveyor systems, optimizing workflow in industrial settings.
• Robotics: Provides reliable feedback for robotic arms used in assembly, sorting, and inspection tasks.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
