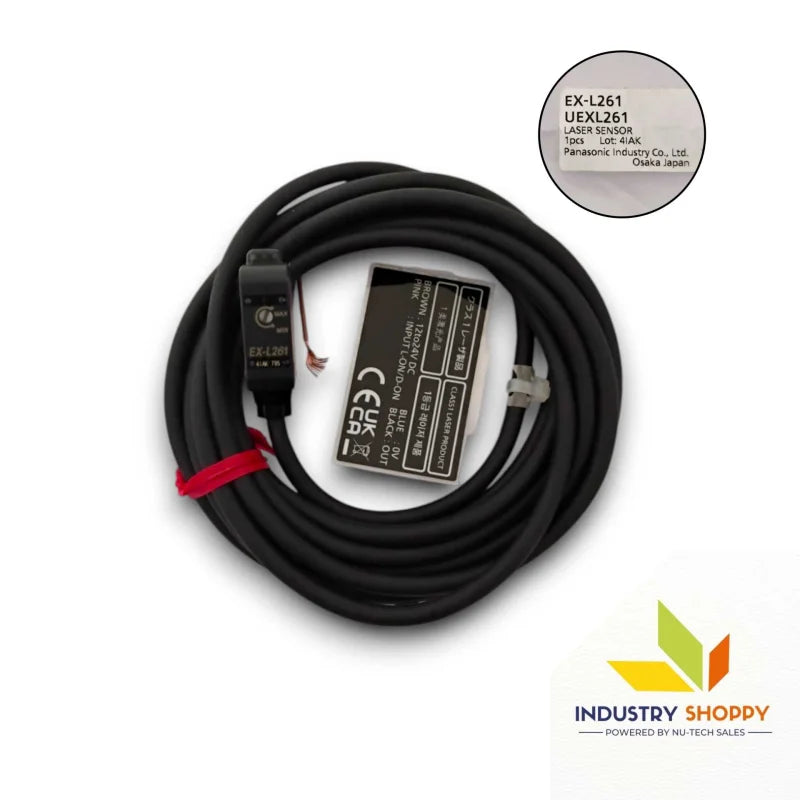

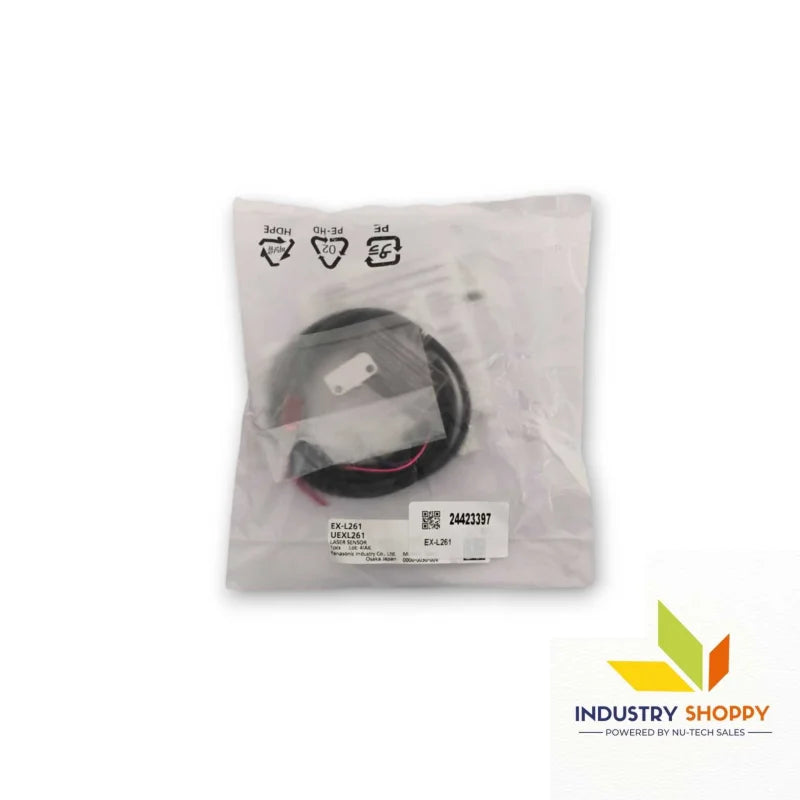

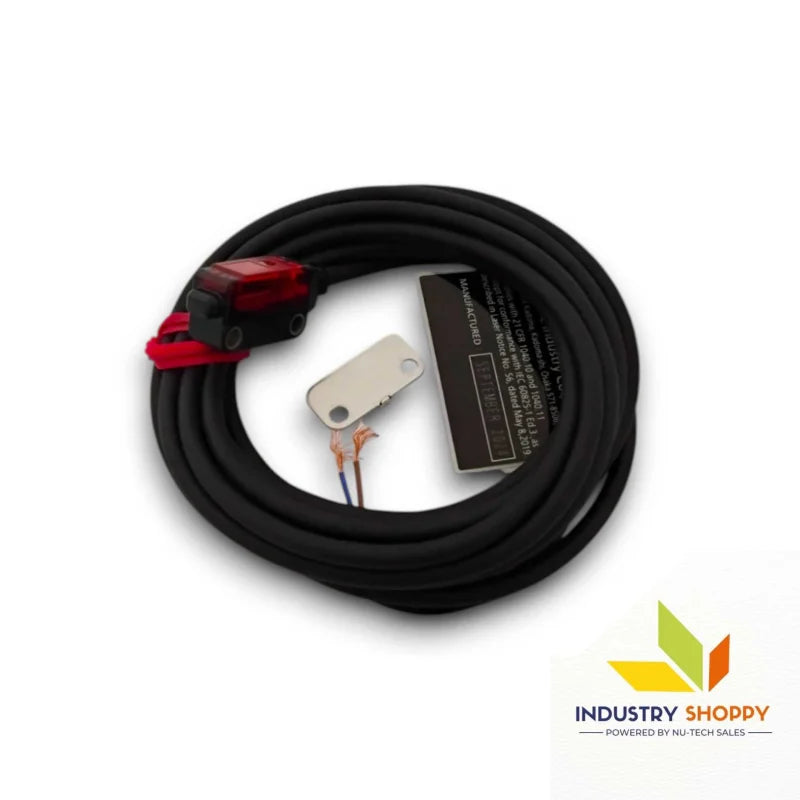

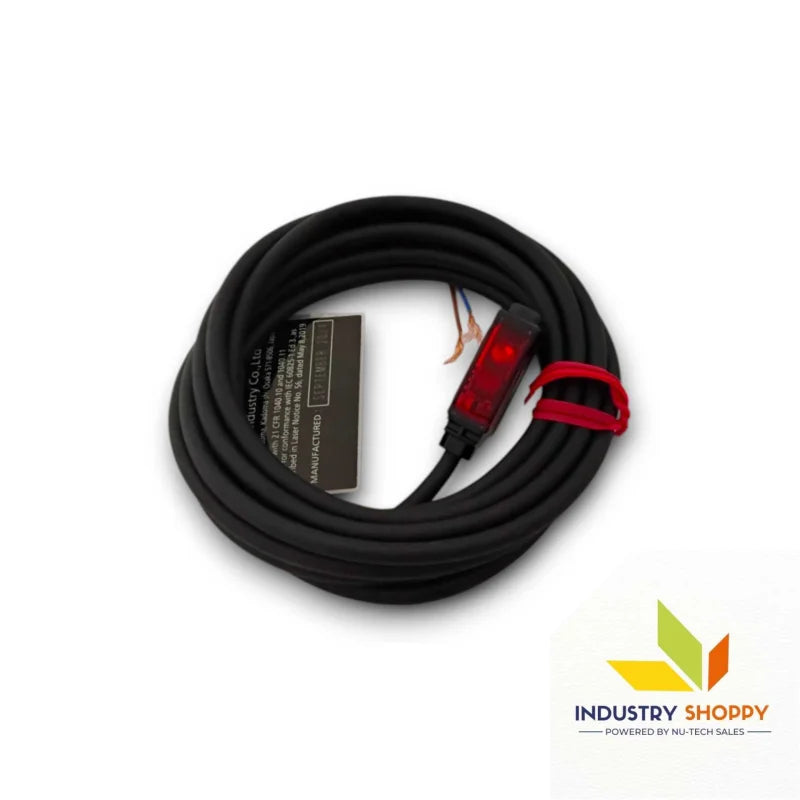

Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic EX-L261 Laser Sensor
Panasonic

Panasonic EX-L261 Laser Sensor

Product SKU: NTSSEN00520
Available:
Only 11 items in stock
11 items in stock
In stock
Pre-order
Out of stock
  • Brand: Panasonic
  • Model:  EX-L261
  • Sensing Range: 20 to 50 mm (0.787 to 1.969 in)
  • Supply Voltage: 12 to 24 V DC ±10%, Ripple P-P 10% or less
  • Current Consumption: 15 mA or less
  • External Input: NPN open-collector transistor

Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers: IndustryShoppy.in

$120.00
$200.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Panasonic EX-L261 Laser Sensor

The Panasonic EX-L261 Laser Sensor is an amplifier built-in ultra-compact laser sensor designed for high-precision detection in demanding industrial applications. Utilizing a convergent reflective sensing method, it offers a sensing range of 20 to 50 mm with a fine Ø1 mm emission spot size at 50 mm, ensuring accurate and stable detection.


Equipped with a Class 1 red semiconductor laser, the sensor can detect extremely small objects, including gold wire as thin as Ø0.01 mm. It operates on 12–24 V DC with low current consumption (≤15 mA) and features an NPN open-collector output with selectable Light-ON/Dark-ON operation.

With IP67 protection, short-circuit and inverse polarity protection, and a durable PBT enclosure, the EX-L261 ensures long-term reliability even in harsh environments.


Applications

  • Micro-component detection in electronics manufacturing
  • Detection of transparent or translucent materials
  • Semiconductor and precision assembly lines
  • Fine wire and small object positioning systems


Technical Precautions

  • Maintain supply voltage within 12–24 V DC ±10%
  • Do not exceed maximum sink current of 50 mA
  • Adjust sensitivity carefully for small object detection
  • Ensure proper alignment for convergent reflective sensing
  • Use appropriate cable size for extensions up to 50 m


While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,



BrandPanasonic
Product NumberEX-L261
Product NameAmplifier Built-in Ultra-compact Laser Sensor
Product DetailsConvergent reflective type
Sensing Range20 to 50 mm (0.787 to 1.969 in)
Emission Spot Size (Typical)Ø1 mm (0.039 in) or less at 50 mm sensing distance
Sensing ObjectOpaque, translucent, or transparent object
Minimum Sensing Object (Typical)Gold wire of Ø0.01 mm (Ø0.0004 in)
Hysteresis20% or less of operation distance
RepeatabilityPerpendicular to sensing axis: 0.2 mm (0.0080 in) or less
Supply Voltage12 to 24 V DC ±10%, Ripple P-P 10% or less
Current Consumption15 mA or less
OutputNPN open-collector transistor
Maximum sink current50 mA
Output OperationLight-ON / Dark-ON selectable via switching input
Short-circuit ProtectionIncorporated (short-circuit + inverse polarity protection)
Response Time0.5 ms or less
Sensitivity AdjusterContinuously variable adjuster
Protection RatingIP67 (IEC)
Ambient Temperature-10 to +55°C (+14 to +131°F)
Storage Temperature -30 to +70°C (-22 to +158°F)
Ambient Humidity35 to 85%RH
Storage Humidity 35 to 85%RH
Emitting ElementRed semiconductor laser, Class 1 (IEC/EN/JIS/GB/KS/FDA)
MaterialEnclosure: Polybutylene terephthalate
Front coverAcrylic
LensGlass
Indicator partPolyarylate
Cable0.15 mm², 4-core cabtyre cable, 2 m (6.562 ft)
Cable ExtensionUp to 50 m (164.042 ft) possible with 0.3 mm² or larger cable
Country of originJapan

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
