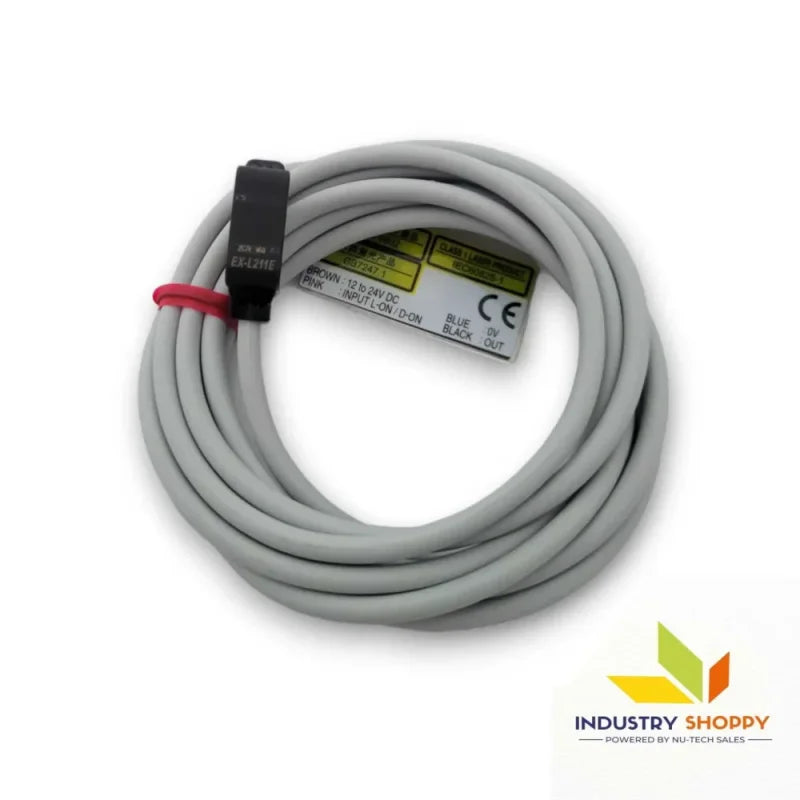

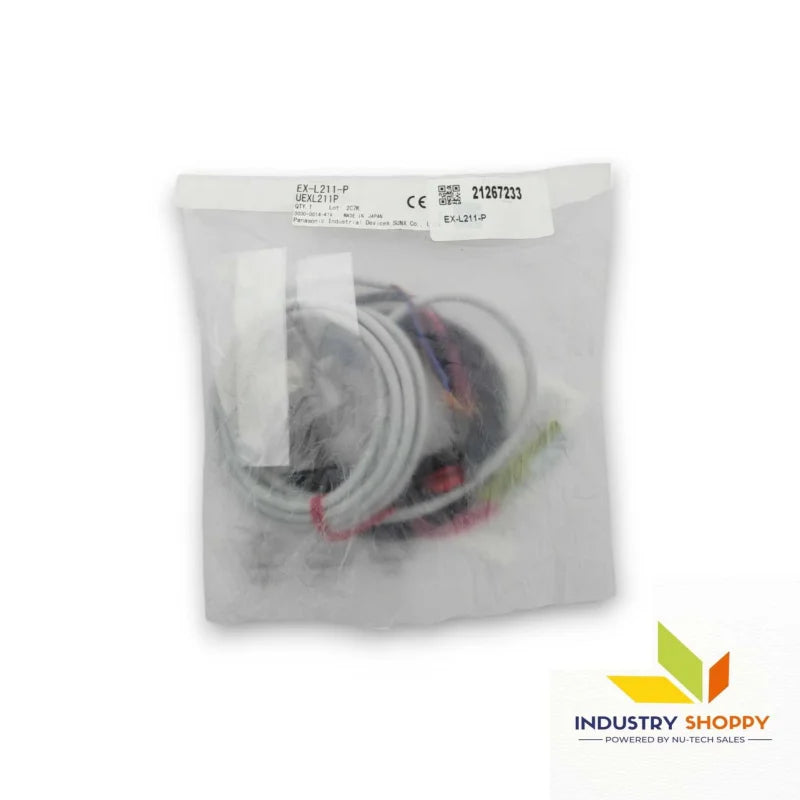

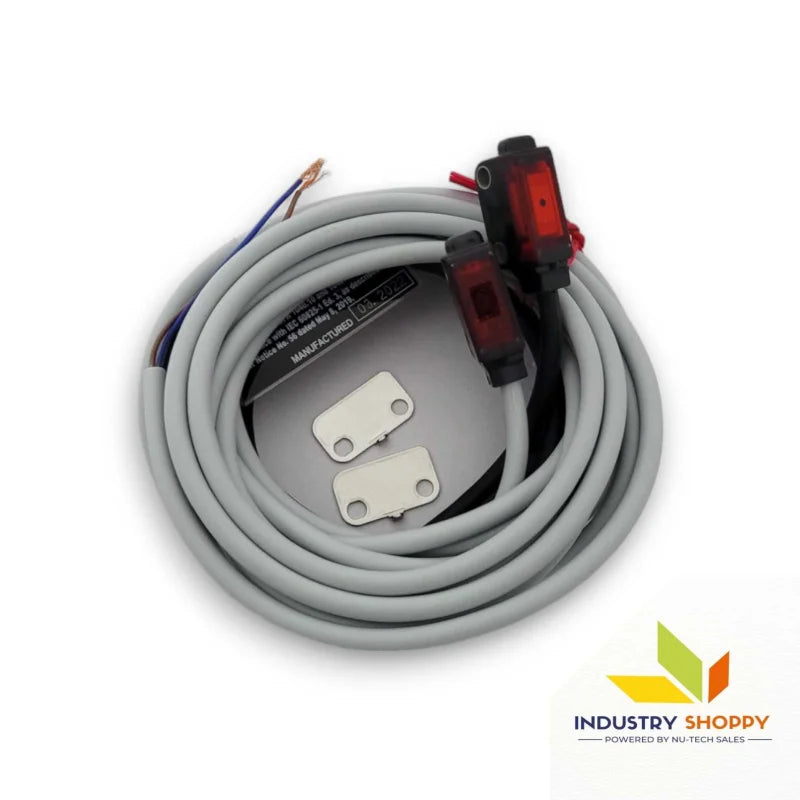

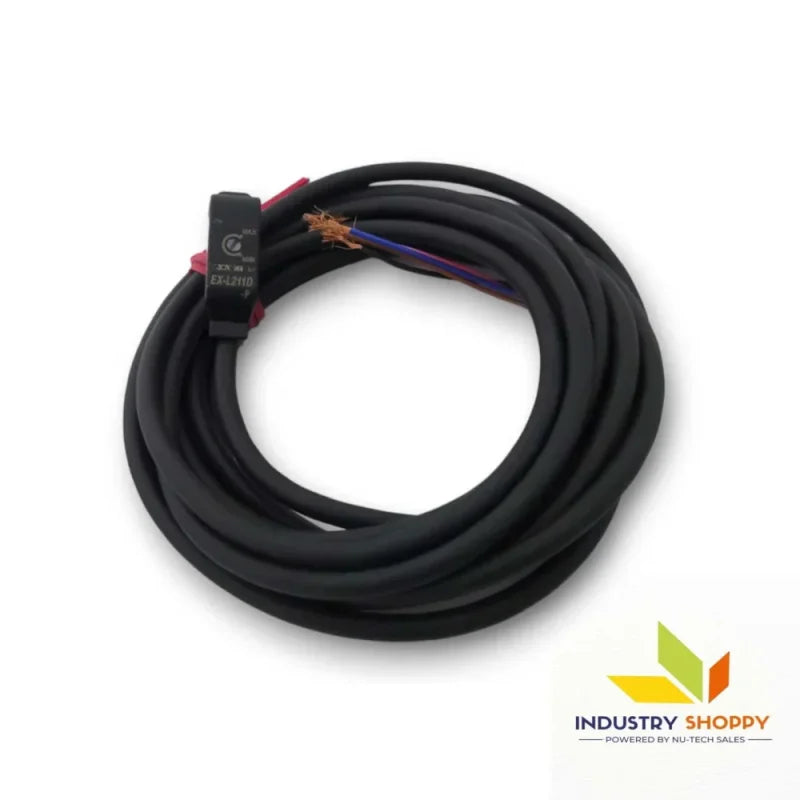

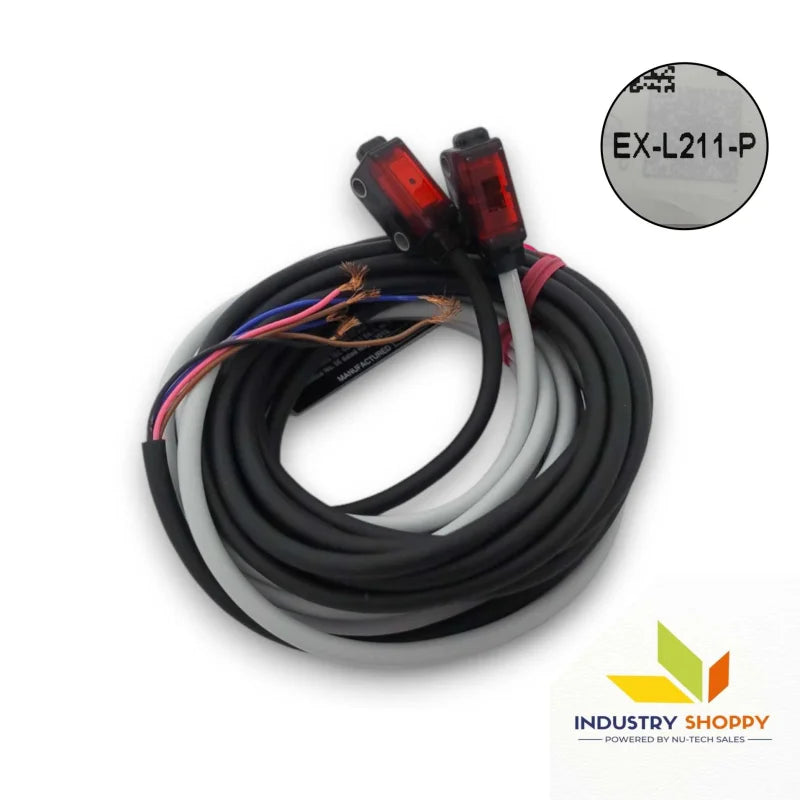

Panasonic EX-L211-P Laser Sensor

The Panasonic EX-L211-P Laser Sensor (Part Number: UEXL211P) is an advanced optical sensor designed for precise and reliable detection with a sensing range of 1 meter (3.281 ft). This sensor provides high performance, ideal for automated systems requiring accurate and fast response times. With a minimum sensing object size of ø0.3 mm (0.012 in) and an impressive repeatability of 0.05 mm (0.0020 in), it is suitable for a variety of industrial applications, including material handling, quality control, and automation.

The Panasonic EX-L211-P Laser Sensor features a PNP open-collector transistor output that allows for easy integration into different control systems. The sensor is equipped with short-circuit protection and inverse polarity protection to ensure operational safety. Its compact size, along with its IP67 rating, makes it resistant to dust and water, perfect for use in industrial environments.

Additionally, the Panasonic EX-L211-P Laser Sensor sensor includes operation and stability indicators with orange and green LEDs, making it easier for operators to verify the system's status at a glance. It is designed to work optimally in a wide range of ambient temperatures (from -10°C to +55°C) and can withstand environmental stress like vibrations and shocks, ensuring durability in dynamic industrial settings.

Key features :-

Brand Panasonic
Product name EX-L211-P
Part Number UEXL211P
Item Performance characteristics
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 1 m 3.281 ft
Emission Spot Size (Typical) Approx. 6 × 4 mm 0.236 × 0.157 in (vertical × horizontal)
(at a sensing distance of 1 m)
Sensing Object Opaque object of ø2 mm ø0.079 in or more
Minimum Sensing Object (Typical) Opaque object of ø0.3 mm ø0.012 in
(Note)Typical values when the sensitivity adjuster is optimally adjusted.
Repeatability Perpendicular to sensing axis: 0.05 mm 0.0020 in or less
Repeatability (Typical) (Perpendicular to Sensing Axis) 0.01 mm 0.0004 in or less(all area)
(Note)Typical values when the sensitivity adjuster is optimally adjusted.
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption Emitter: 10 mA or less
Receiver: 10 mA or less
Output PNP open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 26.4 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Output Operation Light-ON / Dark-ON selectable by the output operation switching input
Output: Short-Circuit Protection Incorporated (short-circuit protection / inverse polarity protection)
Response Time 0.5 ms or less
Operation Indicator Orange LED (lights up when the output is ON) (incorporated on the receiver for thru-beam type)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition) (incorporated on the receiver for thru-beam type)
Power Indicator Green LED (lights up when the power is ON) (incorporated on the emitter)
Sensitivity Adjuster Continuously variable adjuster (incorporated on the receiver)
Protection IP67 (IEC)
Ambient Temperature -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or no icing condition),
Storage: -30 to +70 ℃ -22 to +158 ℉
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 1.5 mm 0.059 in double amplitude (10 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Red semiconductor laser Class 1 (IEC / JIS/ FDA/ GB) (Note: This product complies with 21 CFR 1040.10 and 1040.11 Laser Notice No. 56, dated May 8, 2019, issued by CDRH
(Center for Devices and Radiological Health) under the FDA (Food and Drug Administration)
(Maximum output: 390 μW, Peak emission wavelength: 655 nm 0.026 mil)
Material Enclosure: Polybutylene terephthalate, Front cover: Acylic, Lens: Glass, Indicator part: Polyarylate
Cable 0.15 mm2 4-core (emitter of a thru-beam type: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (thru-beam type: Total 100 m 328.084 ft both emitter and receiver).



Applications :-

  • Automated Manufacturing: Used for high-precision detection of components in assembly lines.
  • Material Handling Systems: Monitors the position of objects on conveyor belts or robotic arms.
  • Quality Control: Ensures accurate part detection for inspection or sorting purposes.
  • Industrial Automation: Facilitates precise object detection and counting in automated production processes.
  • Packaging and Sorting: Ideal for monitoring the position of items during packaging or sorting operations.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
