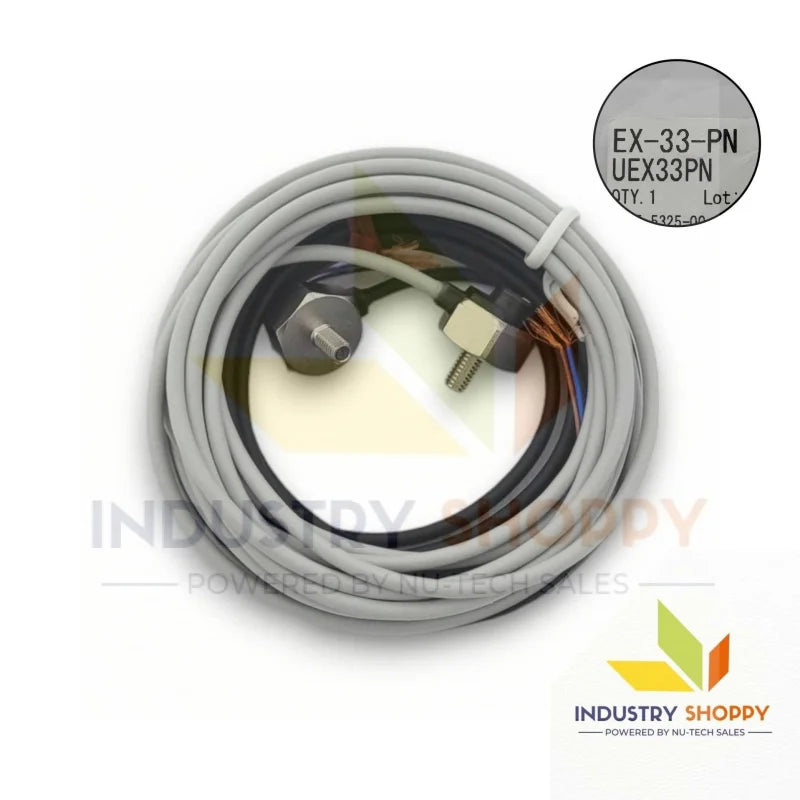

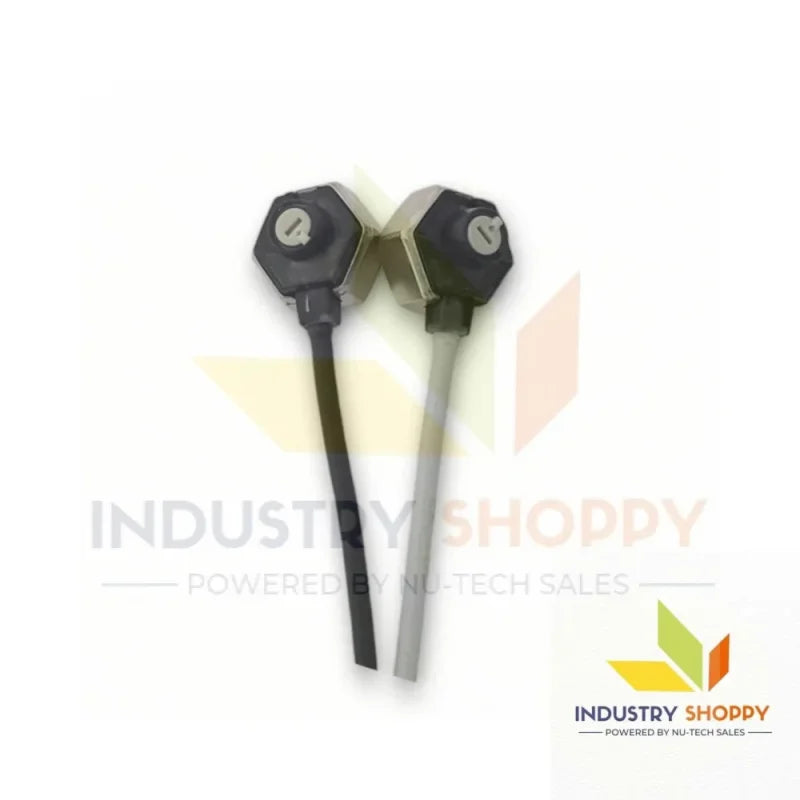

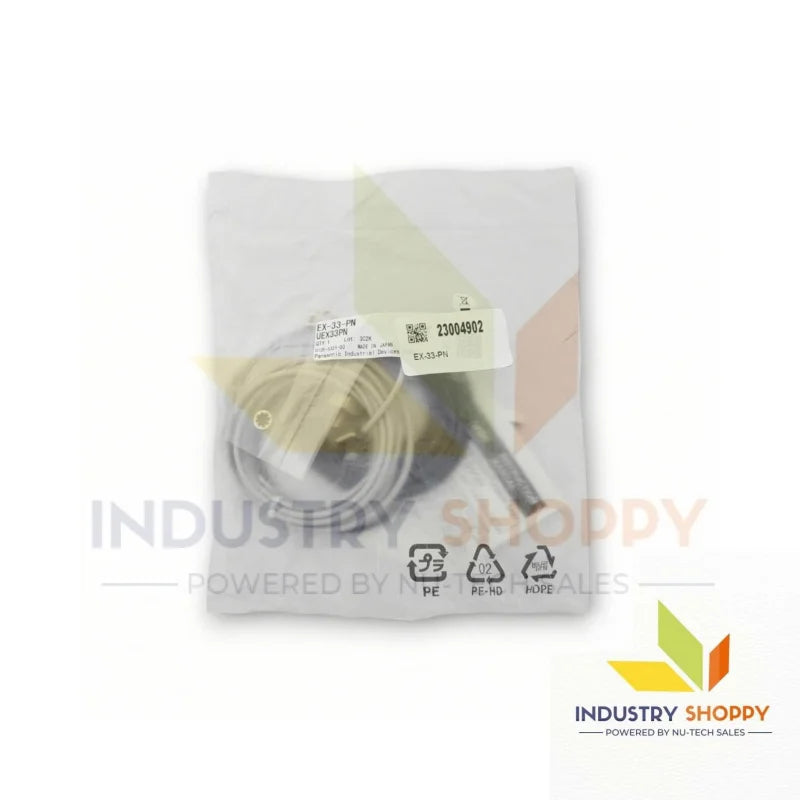

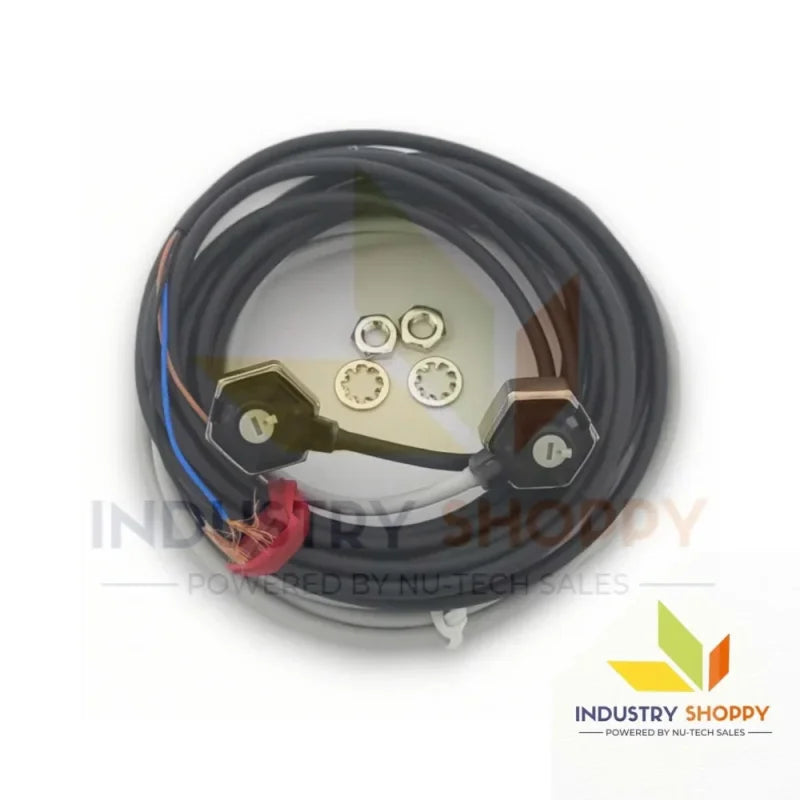

Panasonic EX-33-PN Photoelectric Sensor

Panasonic EX-33-PN Photoelectric Sensor

The Panasonic EX-33-PN Photoelectric Sensor (Part Number: UEX33PN) is a highly accurate photoelectric sensor designed to detect opaque objects with a sensing range of 800 mm (31.496 inches). Featuring PNP open-collector transistor output, this sensor provides reliable and precise detection for industrial applications. Ideal for sensing objects with a diameter of 2 mm (0.079 in) or more, the EX-33-PN is capable of detecting completely interrupted beams, offering a stable performance in environments where reliable object detection is crucial.

The Panasonic EX-33-PN Photoelectric Sensor operates with a response time of 0.5 ms or less, ensuring fast and responsive feedback. It also features short-circuit protection for enhanced safety. The adjustable sensitivity allows users to fine-tune detection settings based on specific needs, making it versatile for a range of industrial applications. With IP67 protection, the sensor is designed to withstand dust, water, and harsh environments, including exposure to vibration and shock.

With a broad ambient temperature range of -25°C to +55°C (-13°F to +131°F) and a robust housing made from die-cast zinc (nickel-plated) and polycarbonate lens, the EX-33-PN ensures long-lasting, stable performance even in challenging industrial conditions.

Key features :-

Applications :-

• Object Detection: Suitable for detecting opaque objects in industrial automation systems, ensuring efficient operations.
• Packaging Industry: Ideal for presence detection in packaging lines where objects need to be reliably sensed.
• Material Handling: Assists in detecting and monitoring materials in conveyor systems or machinery.
• Automotive Manufacturing: Used for object detection in automotive assembly lines.
• General Industrial Use: Provides fast, accurate object detection in diverse industrial environments.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance
