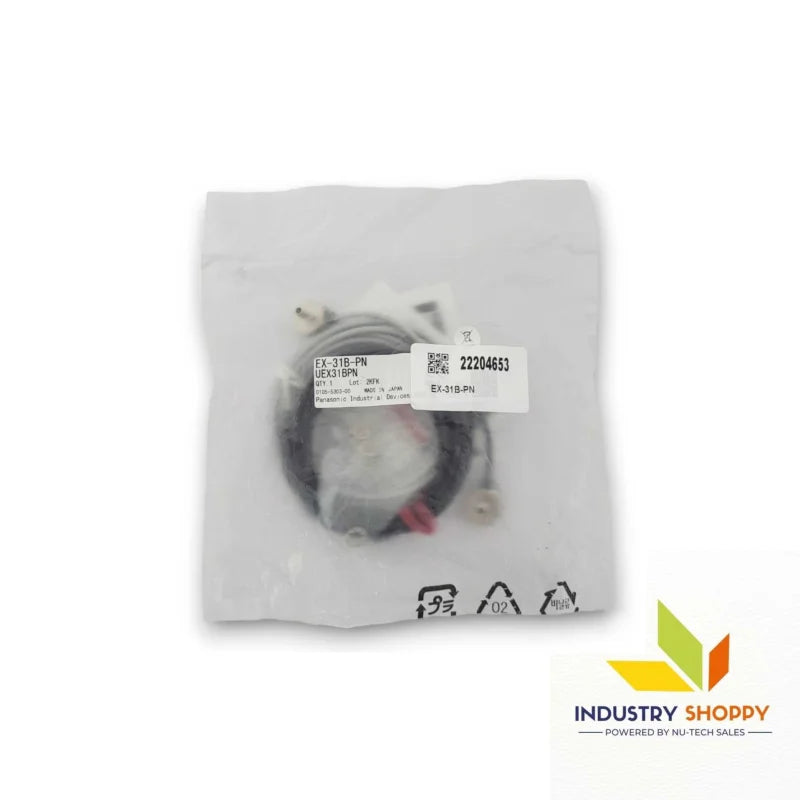

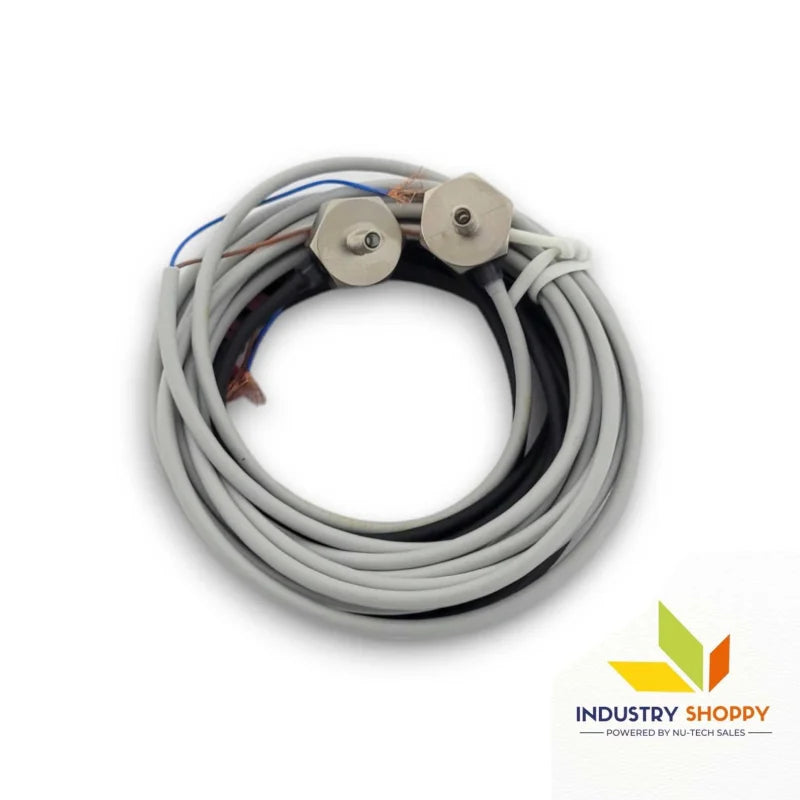

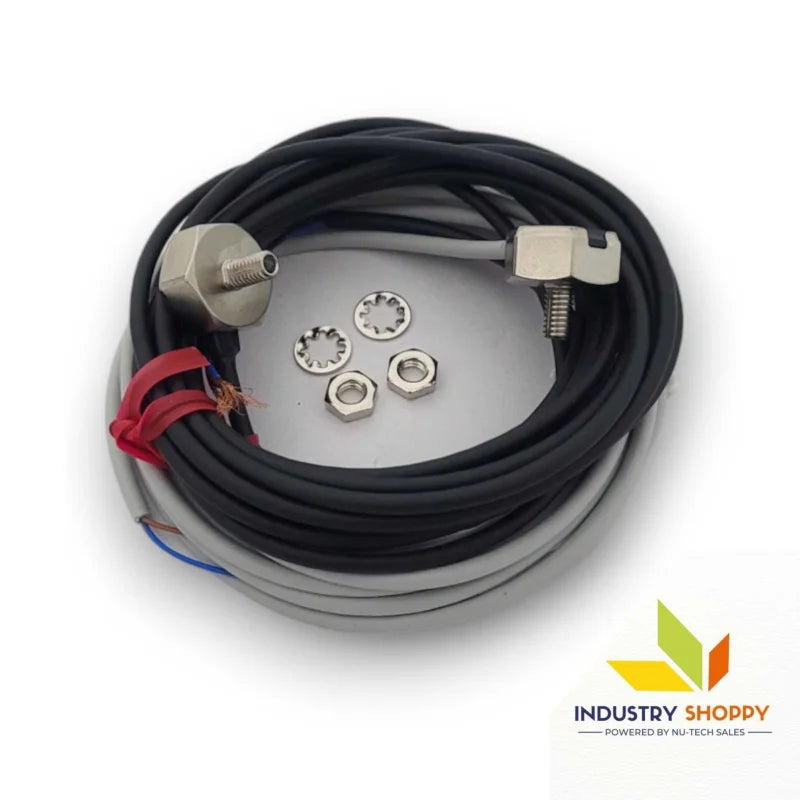

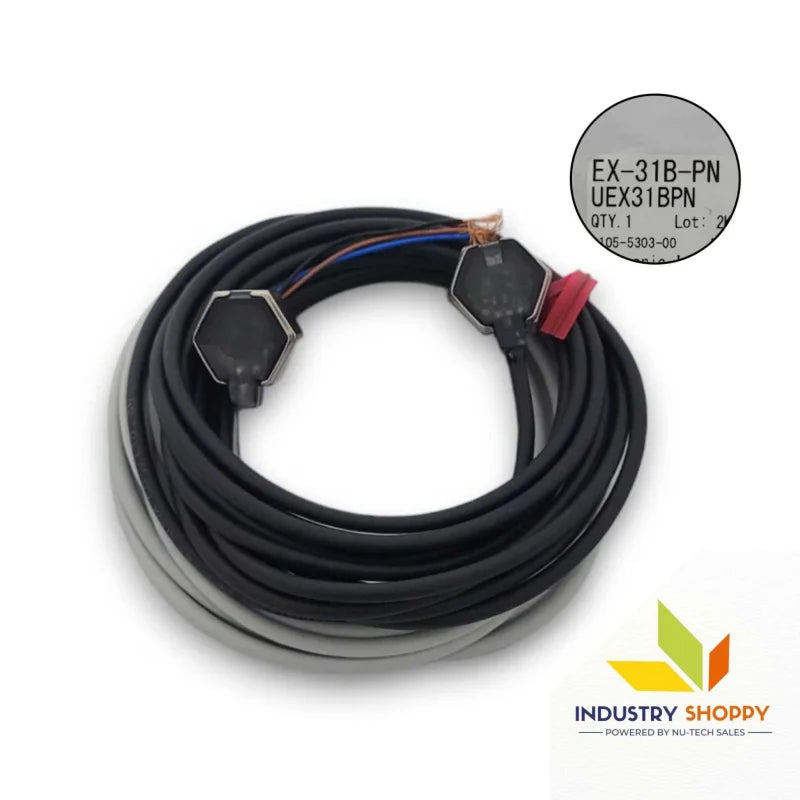

Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic EX-31B-PN Photoelectric Sensor
Panasonic

Panasonic EX-31B-PN Photoelectric Sensor

Product SKU: NTSSEN00035
Available:
Only 21 items in stock
21 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Supply Voltage
:  12 to 24 V DC ±10 %, Ripple P-P ≤10 %
  • Part Number
:  UEX31BPN
  • Type
:  Photoelectric Sensor
  • Output Type
:  PNP
  • Response Time
:  0.5 ms or less


Note : All tax and custom duty should be pay by buyer only.


For Indina Buyers : IndustryShoppy.in


$63.00
$95.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Specifications
  • Declaration

Panasonic EX-31B-PN Photoelectric Sensor

The Panasonic EX-31B-PN Photoelectric Sensor (Part Number: UEX31BPN) is

a high-performance through-beam sensor designed for long-distance and highly reliable object detection. With a sensing range of up to 500 mm, it ensures accurate detection of small opaque objects (≥ Ø2 mm) when the light beam is fully interrupted.

This model features a PNP open-collector output with Dark-ON operation, making it ideal for applications where output is required when the beam is blocked. It operates on a 12–24 V DC supply and offers a fast response time of ≤ 0.5 ms, ensuring efficient performance in high-speed automation systems.

Built with a durable die-cast zinc (nickel-plated) housing and polycarbonate lens, the sensor is highly resistant to mechanical stress and industrial wear. Its IP67 protection rating ensures reliable operation in harsh environments. The dual LED indicators (orange for output, green for stability) provide clear and easy monitoring of sensor status. With low power consumption (≤ 10 mA each for emitter and receiver) and built-in short-circuit protection, it delivers safe and efficient performance.


Applications

  • Long-distance object detection in conveyors

  • High-speed counting and sorting systems

  • Packaging and bottling lines

  • Small object detection in industrial automation


Technical Precautions

  • Ensure proper alignment between emitter and receiver for accurate detection.

  • Use within 12–24 V DC supply limits.

  • Avoid obstructions or dust accumulation on lens surface.

  • Maintain proper cable extension limits for stable signal transmission.



While our engineers carefully upload product details based on official datasheets, occasional errors may still occur. We encourage users to verify specifications as needed for complete accuracy.

IndustryShoppy.com offers a wide selection of industrial automation products—from sensors and HMIs to PLCs and more. Designed for convenience, our platform ensures a smooth shopping experience backed by reliable service and customer-focused support. Explore our extensive range and elevate your industrial operations with confidence.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.


Facebook, YouTube,


BrandPanasonic
Product NameEX-31B-PN
Part NumberUEX31BPN
CE Marking Directive ComplianceEMC Directive, RoHS Directive
Sensing Range500 mm (19.685 in)
Sensing ObjectØ2 mm (0.079 in) or more, opaque object (completely beam-interrupted objects)
Hysteresis–
Repeatability (Perpendicular to Sensing Axis)0.05 mm (0.002 in) or less
Supply Voltage12 to 24 V DC ±10 %, Ripple P-P ≤10 %
Current ConsumptionEmitter: ≤10 mA

Receiver: ≤10 mA
OutputPNP open-collector transistor

- Max source current: 50 mA

- Applied voltage ≤ 30 V DC

- Residual voltage: 2 V (50 mA), 1 V (16 mA)
Output Utilization CategoryDC-12 or DC-13
Output OperationDark-ON
Output Short-Circuit ProtectionIncorporated
Response Time0.5 ms or less
Operation IndicatorOrange LED (lights up when output is ON, on receiver)
Stability IndicatorGreen LED (lights up under stable light received or stable dark condition, on receiver)
Sensitivity Adjuster–
Pollution Degree3 (Industrial environment)
ProtectionIP67 (IEC)
Ambient TemperatureOperating: -25 to +55 °C (-13 to +131 °F)

Storage: -30 to +70 °C (-22 to +158 °F)
Ambient Humidity35 to 85 % RH (operating & storage)
Ambient IlluminanceIncandescent light ≤ 3,000 lx at light-receiving face
Voltage Withstandability1,000 V AC for 1 min between all supply terminals connected together and enclosure
Insulation Resistance≥ 20 MΩ with 250 V DC megger
Vibration Resistance10–500 Hz, 3 mm (0.118 in) double amplitude, 20 G max, X/Y/Z directions, 2 hours each
Shock Resistance500 m/s² (50 G approx.), X/Y/Z directions, 3 times each
Emitting ElementRed LED (modulated)
MaterialEnclosure: Die-cast zinc (Nickel plated)

Lens: Polycarbonate

Enclosure cover: Polycarbonate
Cable0.1 mm², 3-core (emitter: 2-core) cabtyre cable, 2 m (6.562 ft)
Cable ExtensionUp to 50 m (164.042 ft) with ≥0.3 mm² cable (both emitter & receiver)
Country of OriginJapan
