Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic EX-31B Photoelectric Sensor
Panasonic

Panasonic EX-31B Photoelectric Sensor

Product SKU: NTSSEN00370
Available:
Only 5 items in stock
5 items in stock
In stock
Pre-order
Out of stock
  • Brand
:  Panasonic
  • Condition
:  New
  • Part Number
:  UEX31B
  • Type
:  Photoelectric Sensor
  • Output Type
:  NPN
  • Operating Range
:  --


Note : All tax and custom duty should be pay by buyer only.

For Indian Buyers : IndustryShoppy.in






$53.00
$95.00
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Declaration

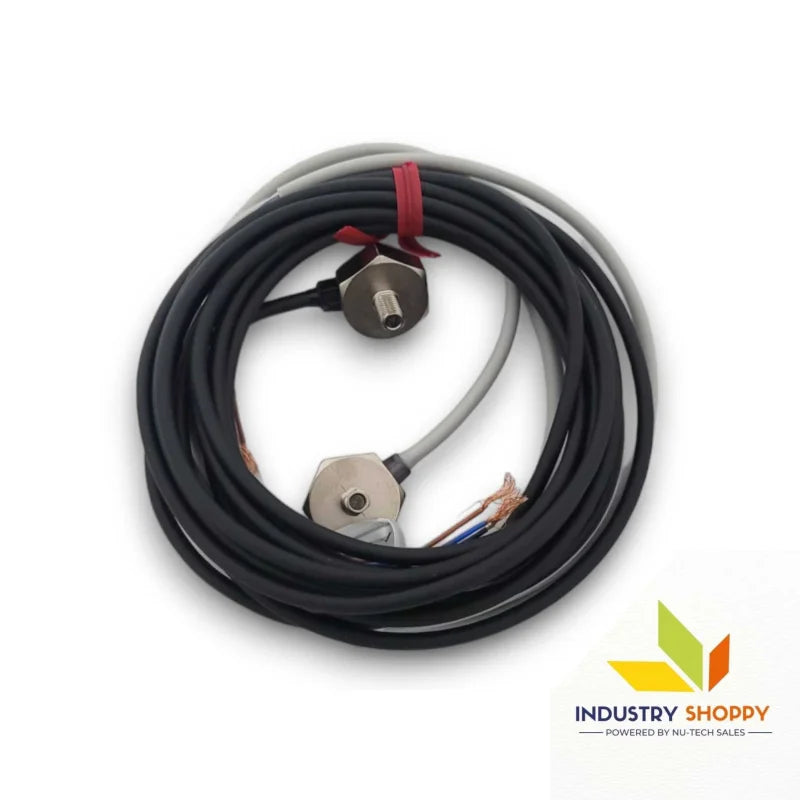

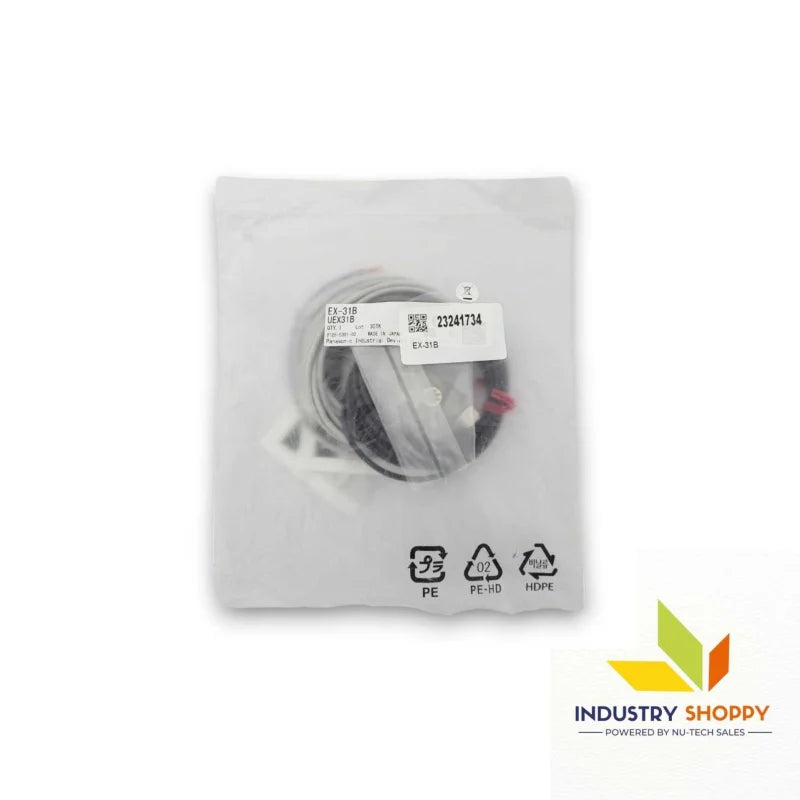

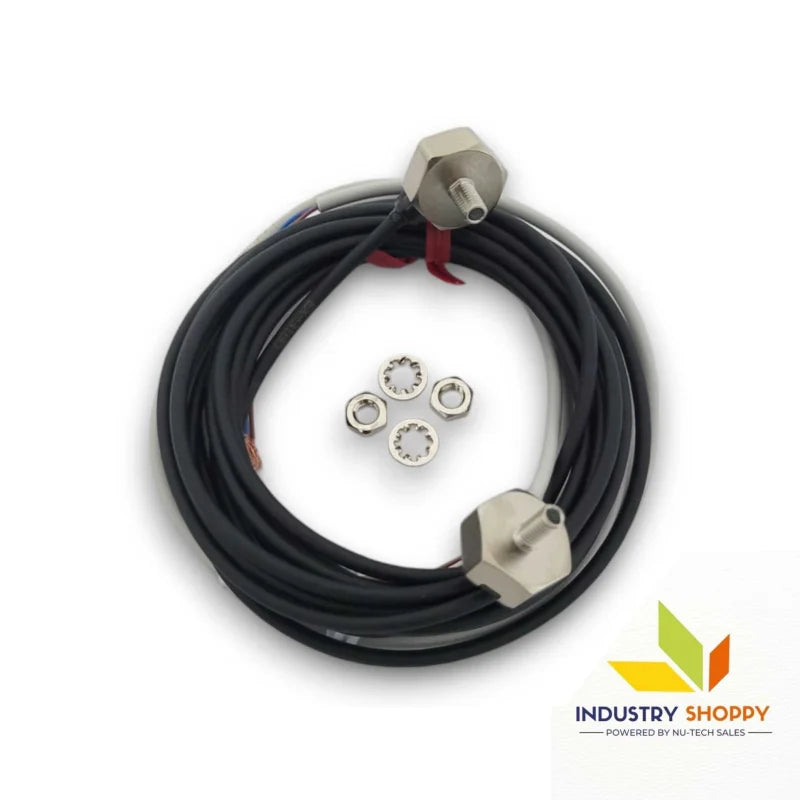

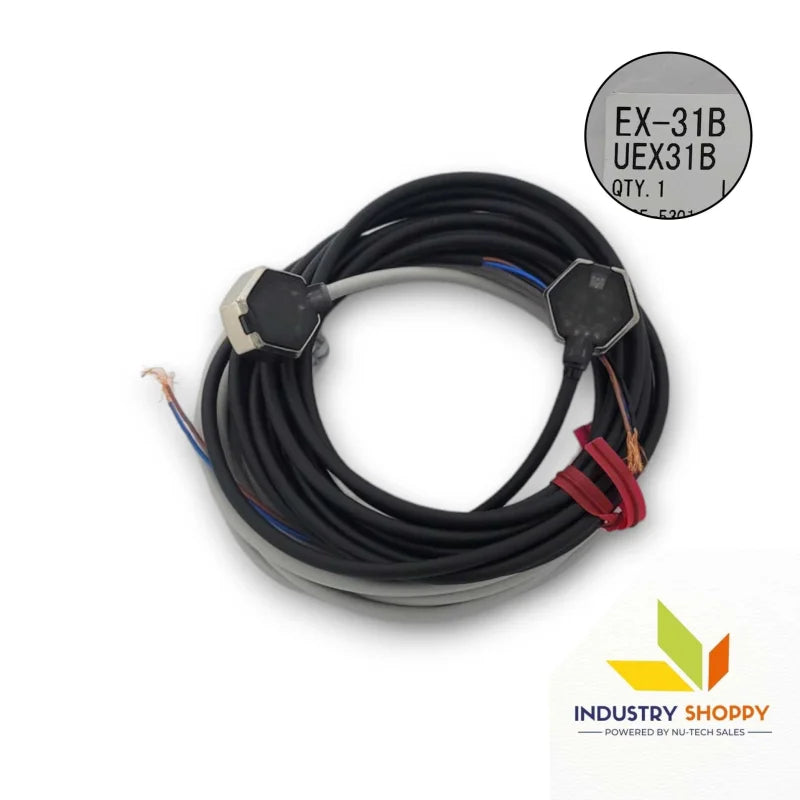

Panasonic EX-31B Photoelectric Sensor

The Panasonic EX-31B Photoelectric Sensor (Part Number: UEX31B) is a high-performance photoelectric sensor designed for detecting opaque objects with a sensing range of 500 mm (19.685 in). It is capable of detecting objects with a diameter of 2 mm (0.079 in) or larger. The EX-31B is ideal for industrial environments where precise and reliable object detection is critical. It offers excellent repeatability and response time of 0.5 ms, ensuring fast and accurate feedback in a variety of applications.

This sensor features an NPN open-collector transistor output with a maximum sink current of 50 mA and short-circuit protection, making it suitable for a wide range of control and automation systems. The IP67-rated housing ensures protection against dust and water ingress, making it highly durable in harsh environments.

The Panasonic EX-31B Photoelectric Sensor operates over a broad ambient temperature range from -25°C to +55°C (-13°F to +131°F), ensuring reliable performance even under extreme conditions. Additionally, the operation indicator (orange LED) and stability indicator (green LED) provide real-time status feedback to ensure optimal performance.

Key features :-

Brand Panasonic
Product Number EX-31B
Part Number UEX31B
Regulatory compliance EMC Directive, RoHS Directive
CE Marking Directive Compliance EMC Directive, RoHS Directive
Sensing Range 500 mm 19.685 in
Sensing Object dia. 2 mm dia. 0.079 in or more opaque object (Completely beam interrupted objects)
Hysteresis -
Repeatability (Perpendicular to Sensing Axis) 0.05 mm 0.002 in or less
Supply Voltage 12 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less
Current Consumption Emitter: 10 mA or less
Receiver: 10 mA or less
Output NPN open-collector transistor
- Maximum sink current: 50 mA
- Applied voltage: 30 V DC or less (between output and 0 V)
- Residual voltage: 2 V or less (at 50 mA sink current), 1 V or less (at 16 mA sink current)
Output: Utilization Category DC-12 or DC-13
Output: Output Operation Dark-ON
Output: Short-Circuit Protection Incorporated
Response Time 0.5 ms or less
Operation Indicator Orange LED (lights up when the output is ON)
(incorporated on the receiver)
Stability Indicator Green LED (lights up under stable light received condition or stable dark condition, incorporated on the receiver)
Sensitivity Adjuster -
Pollution Degree 3 (Industrial environment)
Protection IP67 (IEC)
Ambient Temperature -25 to +55 degrees -13 to +131 degrees Fahrenheit (No dew condensation or icing allowed), Storage: -30 to +70 degrees -22 to +158 degrees Fahrenheit
Ambient Humidity 35 to 85 % RH, Storage: 35 to 85 % RH
Ambient Illuminance Incandescent light: 3,000 lx or less at the light-receiving face
Voltage Withstand ability 1,000 V AC for one min. between all supply terminals connected together and enclosure
Insulation Resistance 20 MOhm , or more, with 250 V DC megger between all supply terminals connected together and enclosure
Vibration Resistance 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (20 G max.) in X, Y and Z directions for two hours each
Shock Resistance 500 m/s2 acceleration (50 G approx.) in X, Y and Z directions three times each
Emitting Element Red LED (modulated)
Material Enclosure: Die-cast zinc (Nickel plated)
Lens: Polycarbonate
Enclosure cover: Polycarbonate
Cable 0.1 mm2 3-core (emitter: 2-core) cabtyre cable, 2 m 6.562 ft long
Cable Extension Extension up to total 50 m 164.042 ft is possible with 0.3 mm2, or more, cable (both emitter and receiver).



Applications :-

  • Industrial Automation: Ideal for object detection in automated systems and manufacturing lines.
  • Material Handling: Provides reliable detection for sorting and conveying systems.
  • Packaging: Ensures precise detection of objects in packaging systems, improving accuracy and speed.
  • Automation & Control: Suitable for object presence detection in industrial automation applications.

Precautions :-

  • Ensure Correct Wiring: Incorrect connections can cause sensor failure
  • Avoid Overvoltage: Operating within 10-30V DC prevents damage
  • Protect from Extreme Heat: Avoid installing near high-temperature sources
  • Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.

Accuracy Disclaimer: Specifications provided are based on datasheet and are subject to change without notice. While every effort has been made to ensure accuracy, errors may occur. Users are encouraged to verify specifications with the manufacturer and consult for any specific questions or requirements.
