Panasonic EX-22A Photoelectric Sensor

Panasonic EX-22A Photoelectric Sensor

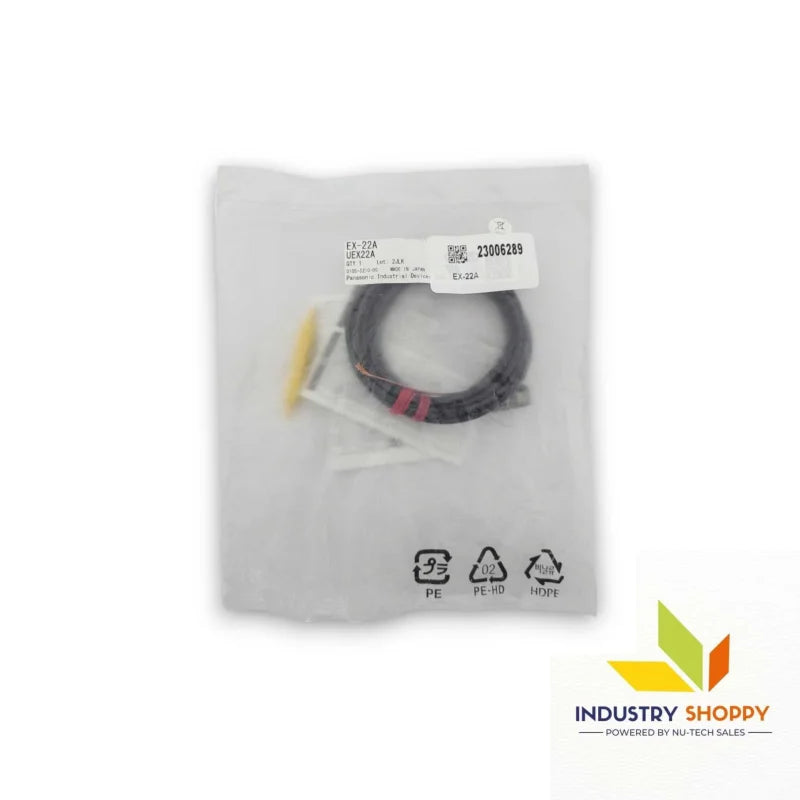

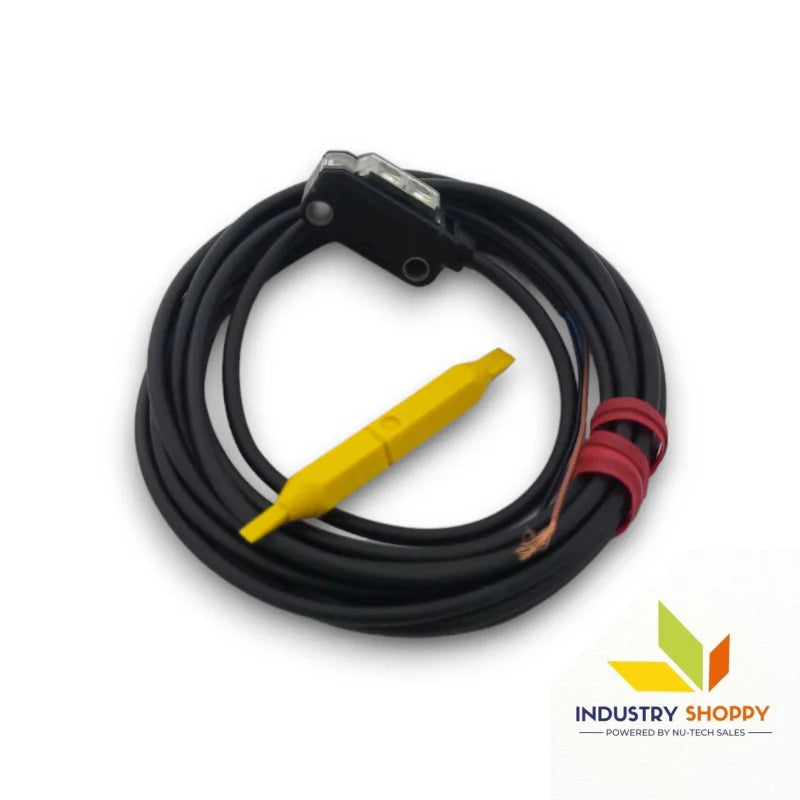

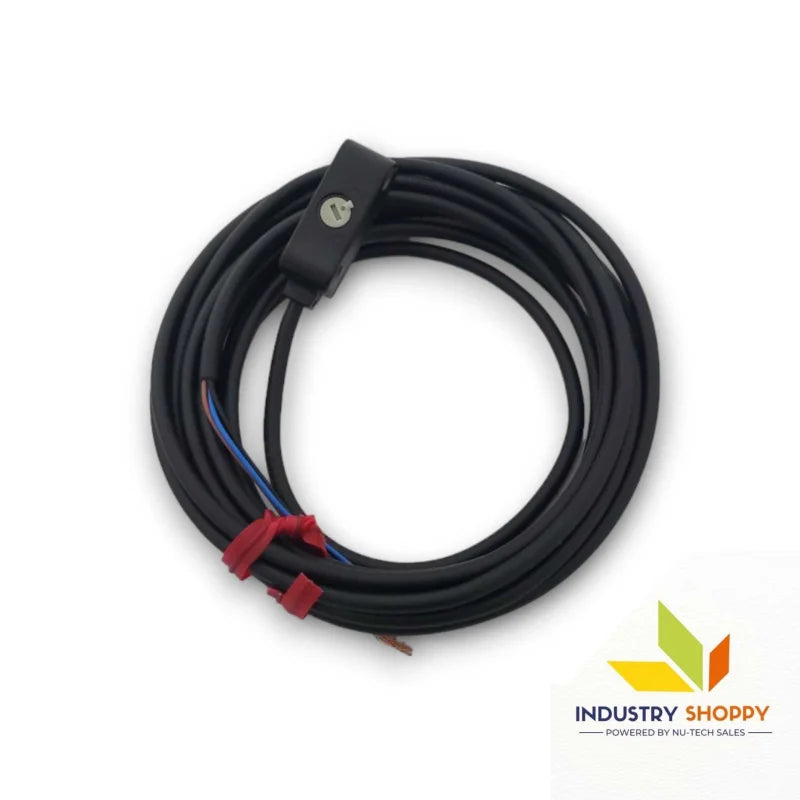

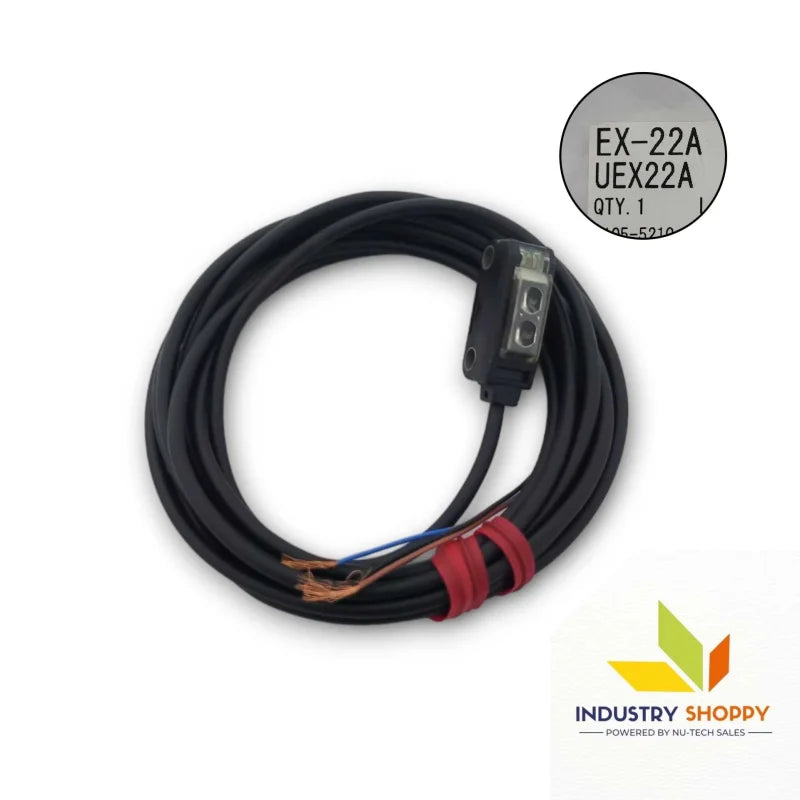

 The Panasonic EX-22A Photoelectric Sensor (Part Number: UEX22A) is a highly reliable photoelectric sensor designed to detect opaque, translucent, or transparent objects with a sensing range of 5 mm to 160 mm (0.197 to 6.299 inches). It operates effectively with white non-glossy paper (200 x 200 mm) as the detection object. This sensor provides an NPN open-collector transistor output, with a maximum sink current of 50 mA and short-circuit protection, ensuring safety and reliability in industrial applications.

With a response time of 0.5 ms or less, the EX-22A is ideal for high-speed operations. The sensor also comes with IP67 protection for dust and water resistance, making it highly durable in harsh environments. It features easy-to-use LED indicators: an orange LED to indicate output and a green LED for stability. The sensor is also equipped with a sensitivity adjuster for fine-tuning, ensuring optimal performance in different environments.

Key features :-

Applications :-

• Automation Systems: Ideal for automated processes requiring accurate object detection.
• Packaging Lines: Perfect for use in packaging machinery to detect objects in high-speed sorting and packaging operations.
• Material Handling: Suitable for conveying systems, detecting objects or materials on moving belts.
• Production Environments: Can be used in industrial production lines for reliable and accurate object presence detection.

Precautions :-

• Ensure Correct Wiring: Incorrect connections can cause sensor failure
• Avoid Overvoltage: Operating within 10-30V DC prevents damage
• Protect from Extreme Heat: Avoid installing near high-temperature sources
• Regular Cleaning: Keep the optical lens free from dust and debris for optimal performance

Note : All tax and custom duty should be pay by buyer only.

Note: All trademarks and trade names used are the property of their respective owners.
